Closing Transit Speed::
|
25-35per Minute
|
Opening Transit Speed::
|
30—45persons Per Minute
|
|
Power Supply:
|
AC 220V/110V ±10% 50/60MHZ (optional)
|
Communication Interface:
|
RS485,distance ≤1200m
|
|
Related Humidity:
|
≥90%RH
|
Operating Temperature:
|
-25℃ ~ +60℃, RH ≤90%
|

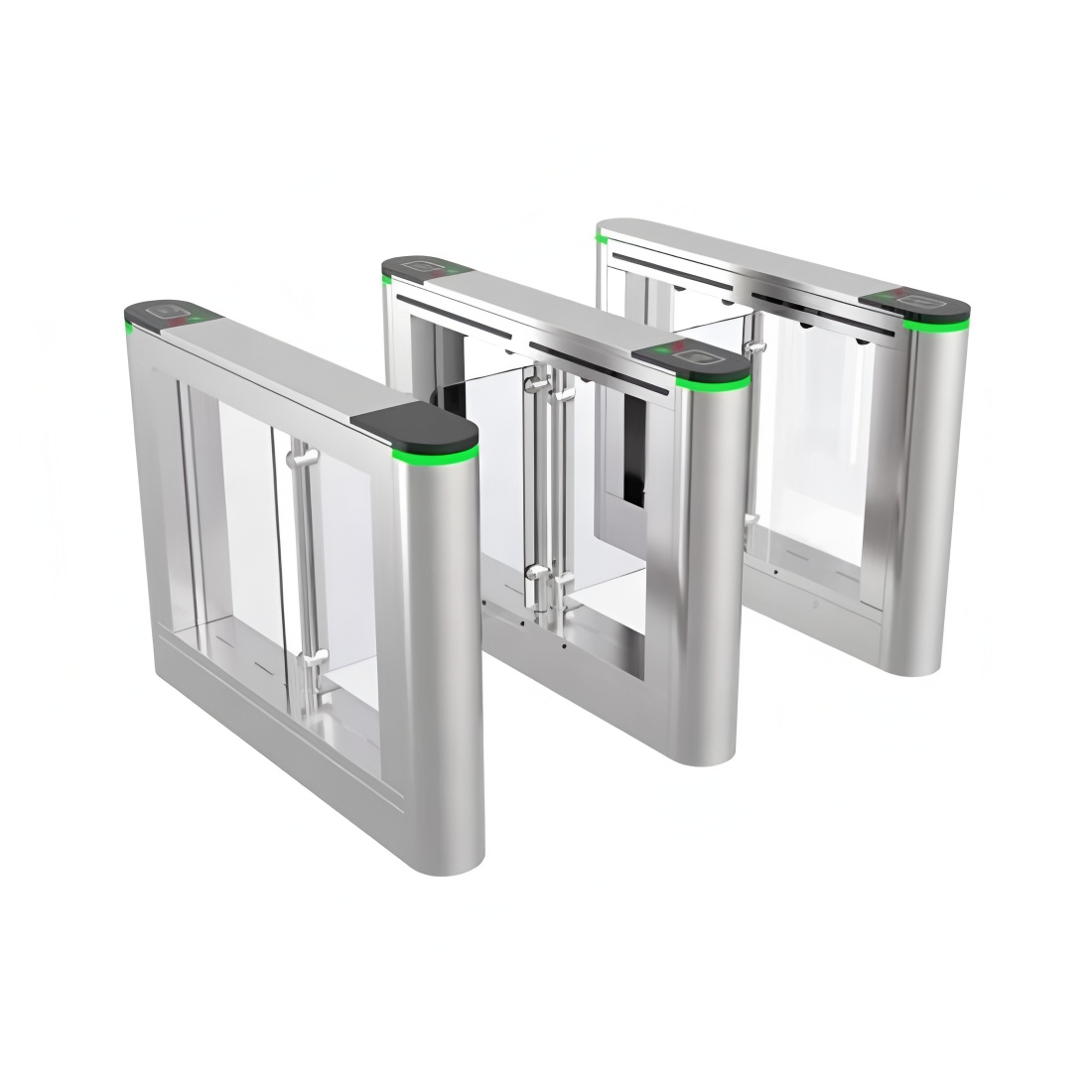

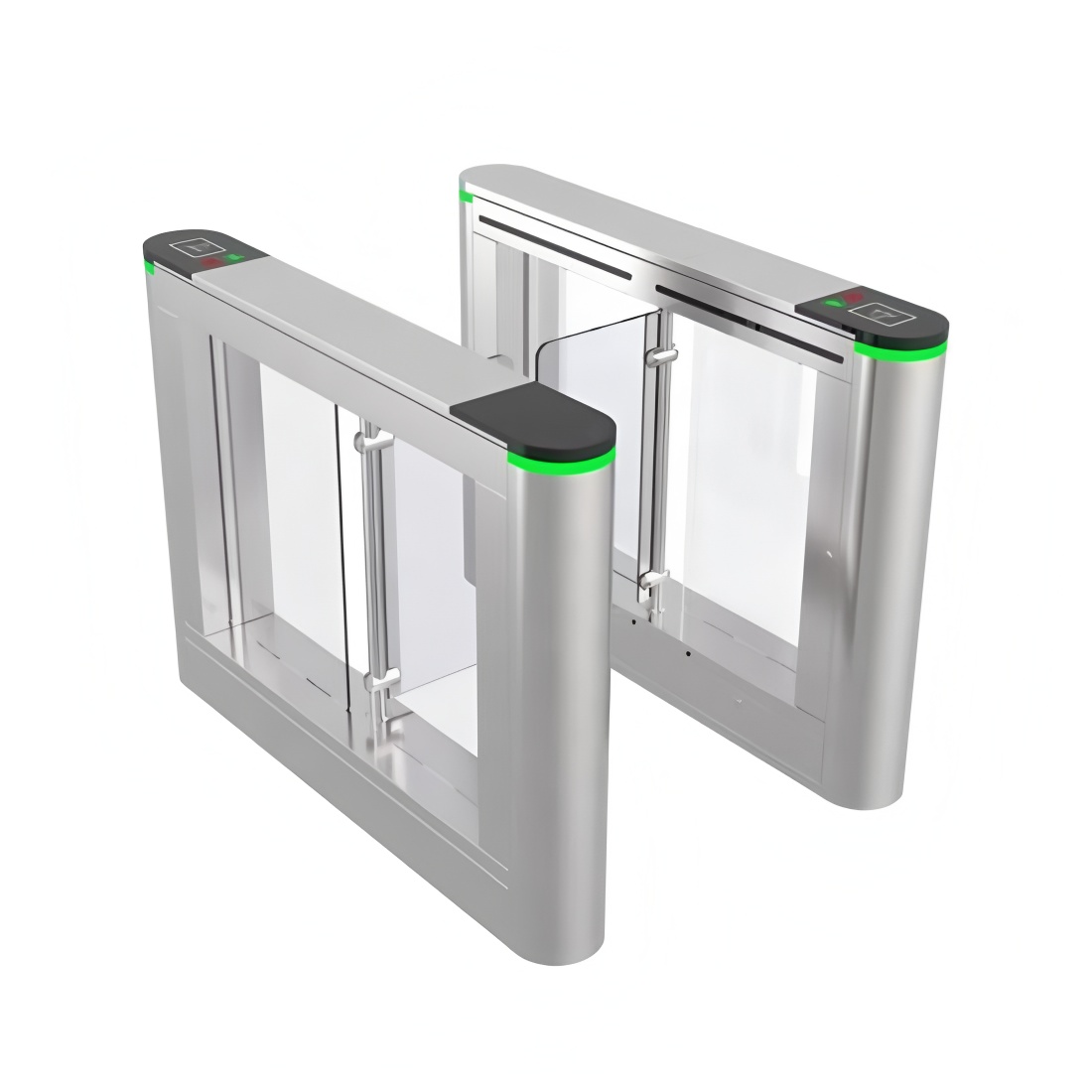

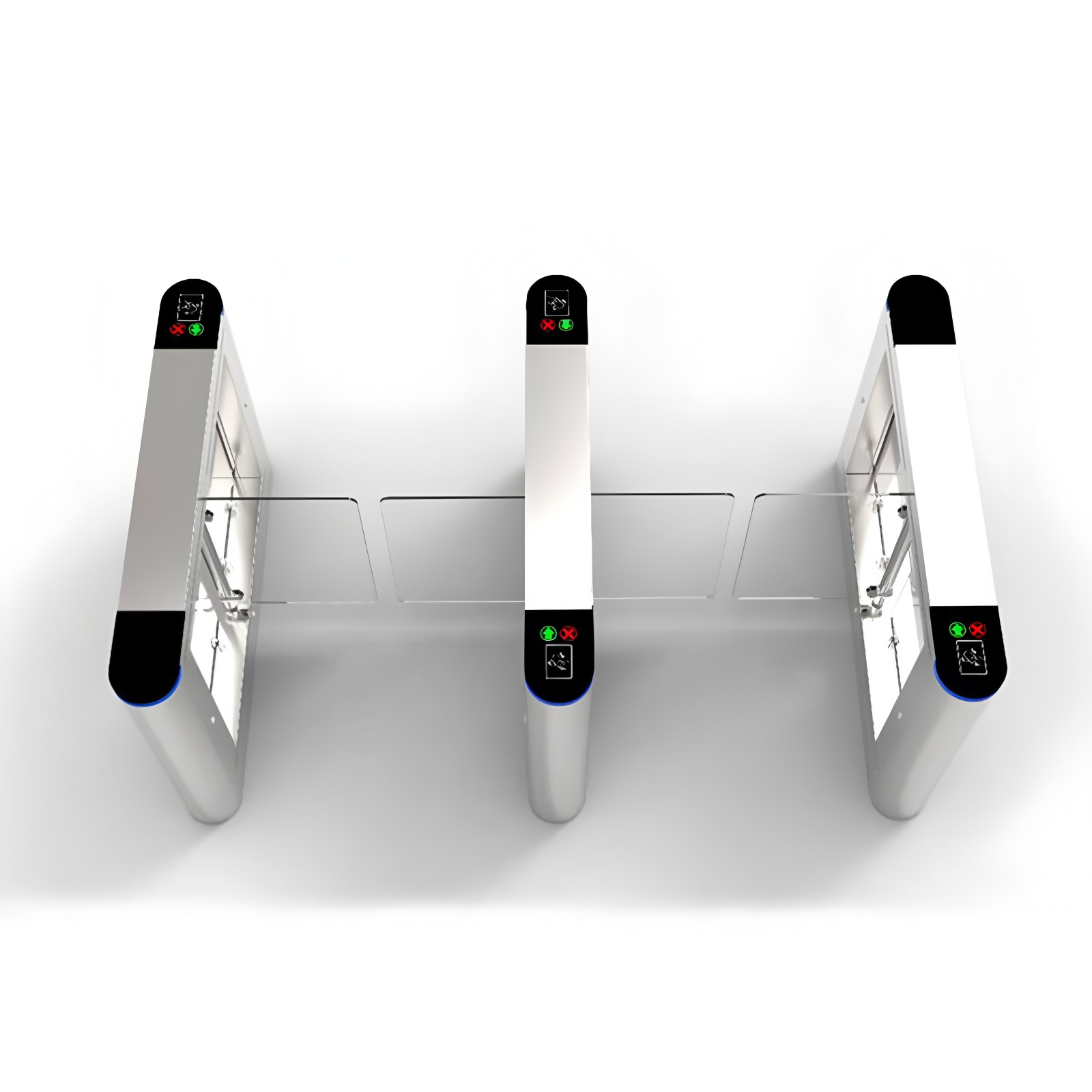

Access Control Swing Gate Turnstile Outdoor Security Biometric Automatic
All the gates models are space efficient security barriers, with a compact design, yet offer sufficient space to integrate any access control system. They can be mounted with display, passage counter, card reader, token operation traffic lights, command console, alarm system against unauthorised entries, interfaced with a PC through a RS232(RS485,TCP-IP)line. The unique swing arm feature provides a fail-safe safety solution in case of an emergency or power failure,providing egress in case of crisis evacuations. Durability with minimal maintenance means years and millions of trouble free passages. The gate creates a secure environment in. for example, a reception area. Our gates are used in applications including stadiums and arenas, perimeter and interior security, recreation and amusement parks, retail crowd control, transit fare collection and lobby access control
| Product Size: | 1400*185*1020mm |
| Pass Width: | 600-900mm |
| Net Weight: | 65kg |
| Thickness: | 1.2mm |
| Material: | 1.2mm SUS 304 Hailine 400# |
| Top cover Material: | Acrylic+1.5mm SUS304 |
| Filling Panel Material: | 10mm Transparent Acrylic |
| Arm Material: | 10mm Transparent Acrylic |
| Driver: | Brushed Motor |
| Infrared Sensor: | 5pairs |
| Pass rate: | 35-40p/m |
| Power Supply: | 100-240V(AC) |
| Operational Voltage: | 24V(DC) |
| Max Power Consumption: | 35w |
| Frequency: | 50-60hz |
| Working Temperature: | -25 to +70 ℃ |
| MCBF: | 5,000,000cycles |
Extensible functions:
1. LED counter display
2. Casing and gate size can be lengthened
3.Logic judgment by photocells (8 pair or 10 pairs)
4. Speech reminder
5.normal close or normal open adjustable
6. Light, sound alarm
