Arm Type:
|
Straight/Folded
|
Communication Interface:
|
RS485
|
|
Driving Motor:
|
DC Brushless Motor
|
Input Interface:
|
12V Level Signal Or 12V Pulse Signal With Width ≥100ms
|
|
LED Indicator:
|
Green, Red
|
Power:
|
90W
|

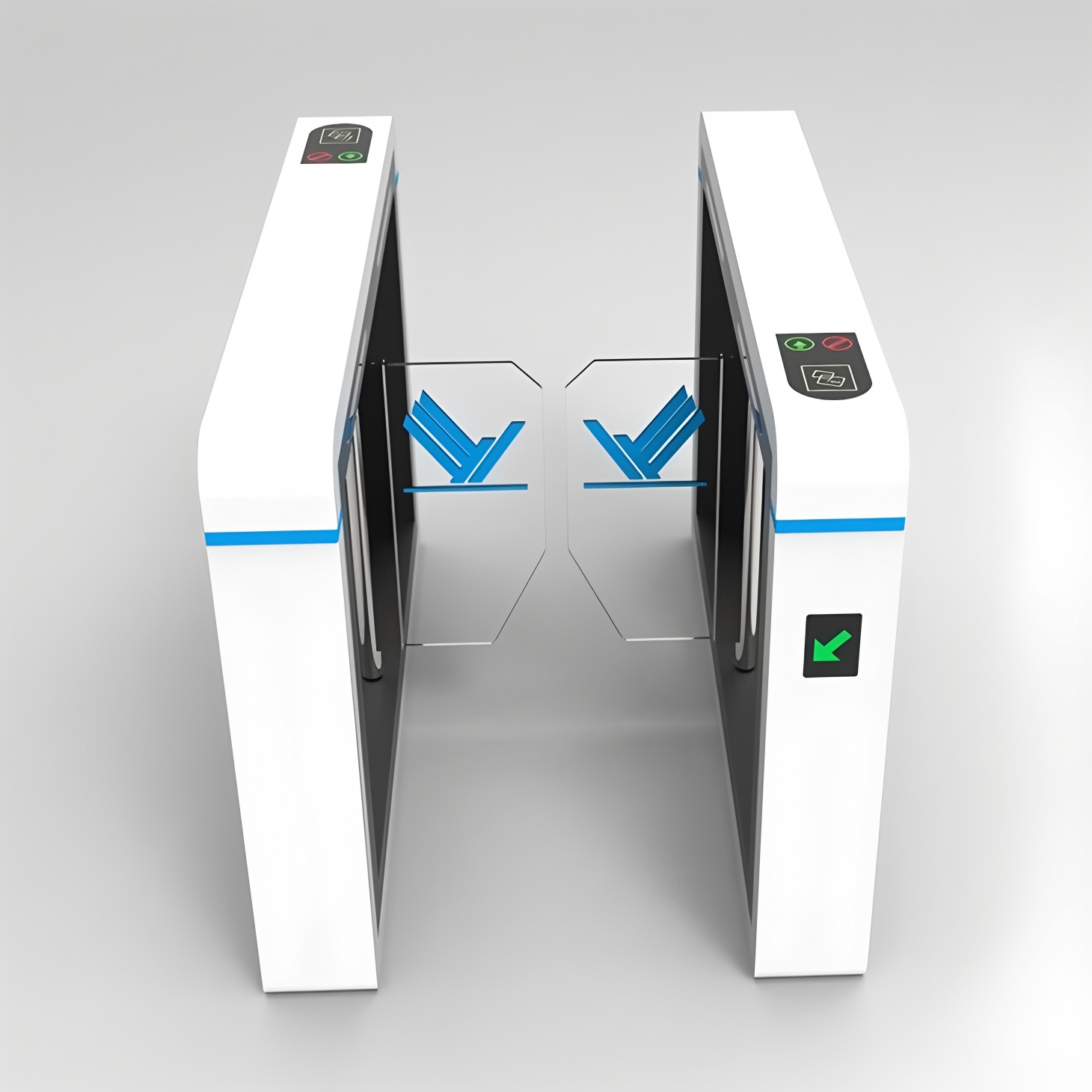

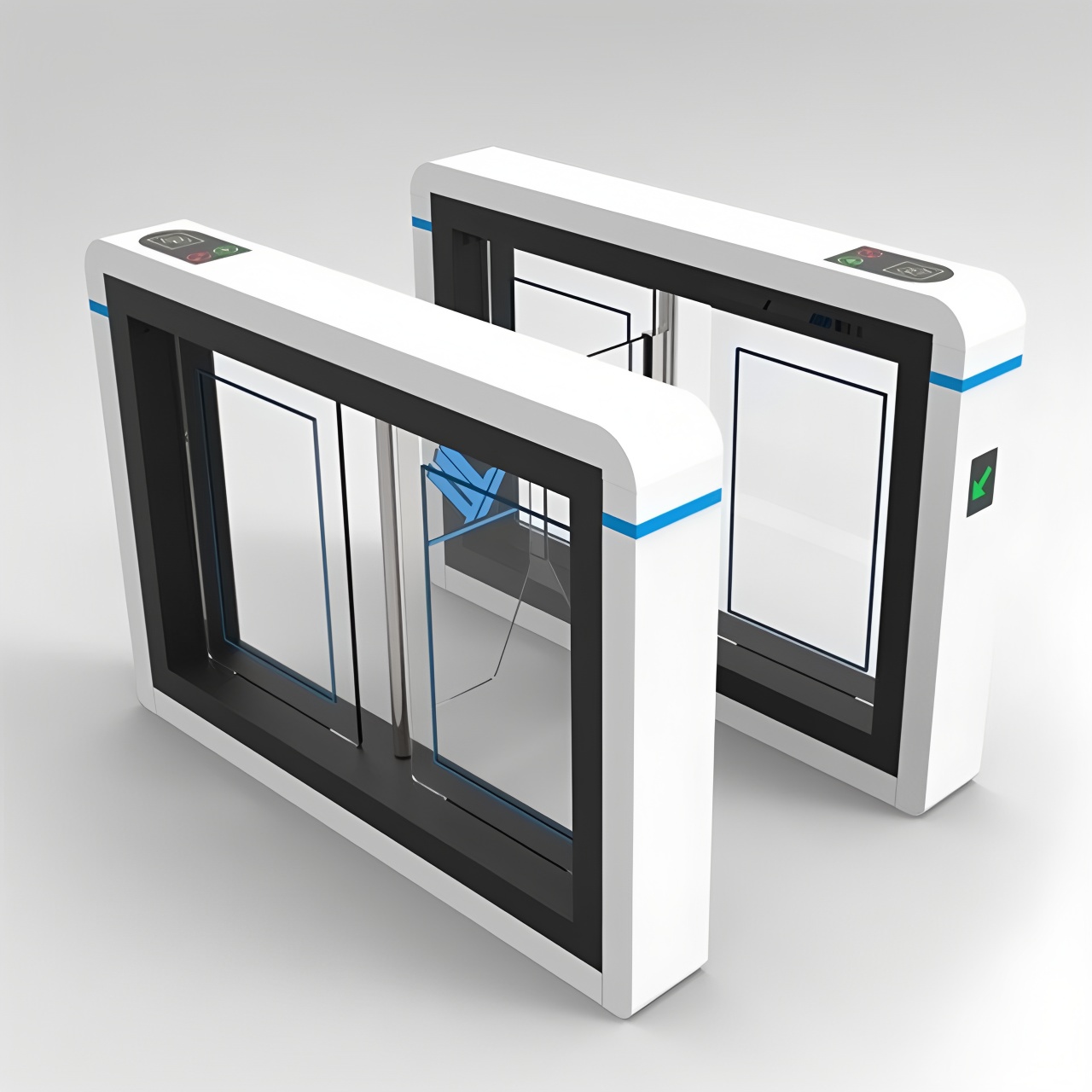

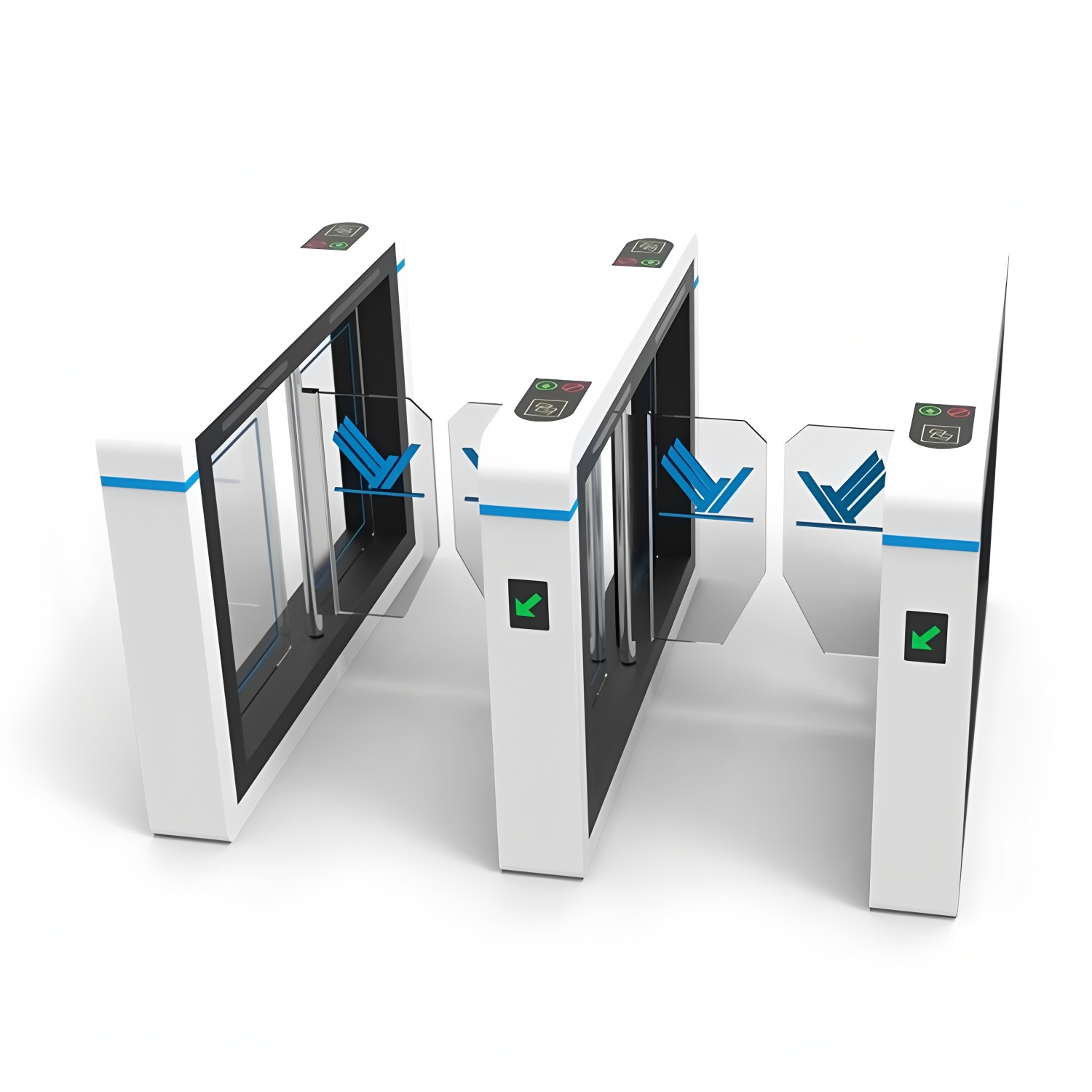

Stainless Steel Swing Gate Turnstile High Speed Pedestrian Passing Gate for Gym
Describe:
Swing turnstile gate has delicate, elegant shape which adopts stainless steel housing with surface brushed treatment. It not only adopts brushed servo motor electric control, but also adopts 6 pairs infrared sensor. Users also can choose access controller, face recognition, all-in-one QR code reader and one-key opening gates.
| Technical Parameter | |
| Material: | 304 stainless steel |
| Size: | 1400*180*1000mm |
| Power Input: | AC220V,50Hz |
| Driving Voltage: | DC24V 6.25A |
| Operating Temperature: | -20℃~70℃ indoor or outdoor |
| Passage direction: | Single directional/Bi-directional |
| Driving Mode: | brushless DC motor |
| Reacting time: | 0.2S |
| Pass Speed | 30~40p/m |
| Instruction: | voice broadcast, Indicator LED |
| Communication: | TCP/IP |
| External Equipment: | IC card reader, ID card reader, code scanner, face recognition module, fingerprint recognition module (optional) |
