Material:
|
1.5mm 304 Stainless Steel
|
LED Light:
|
One
|
|
Color:
|
Sliver
|
Passage Width::
|
550-900mm
|
|
Direction:
|
Bi-directional
|
Speed:
|
60-75P/Min
|

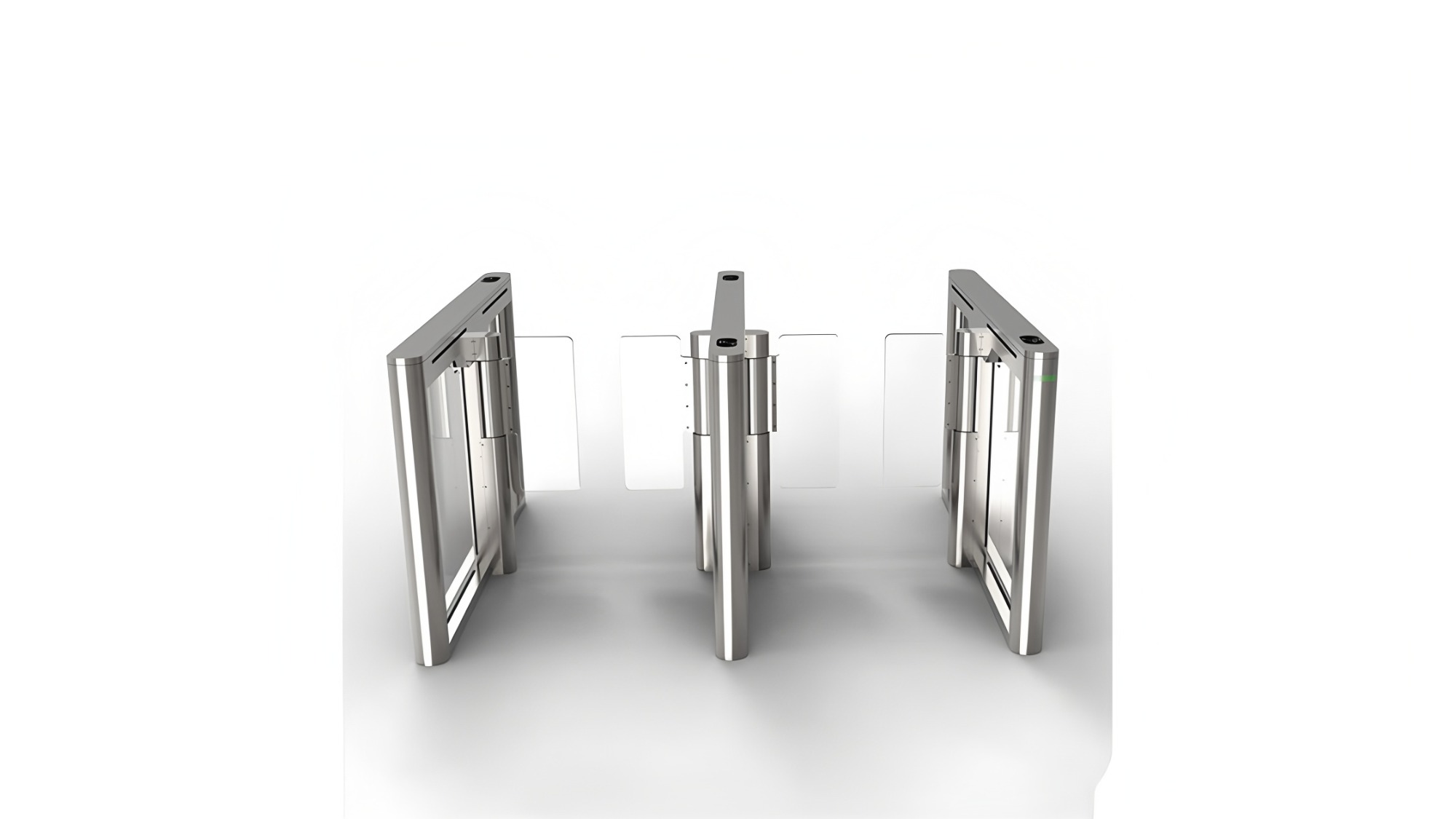

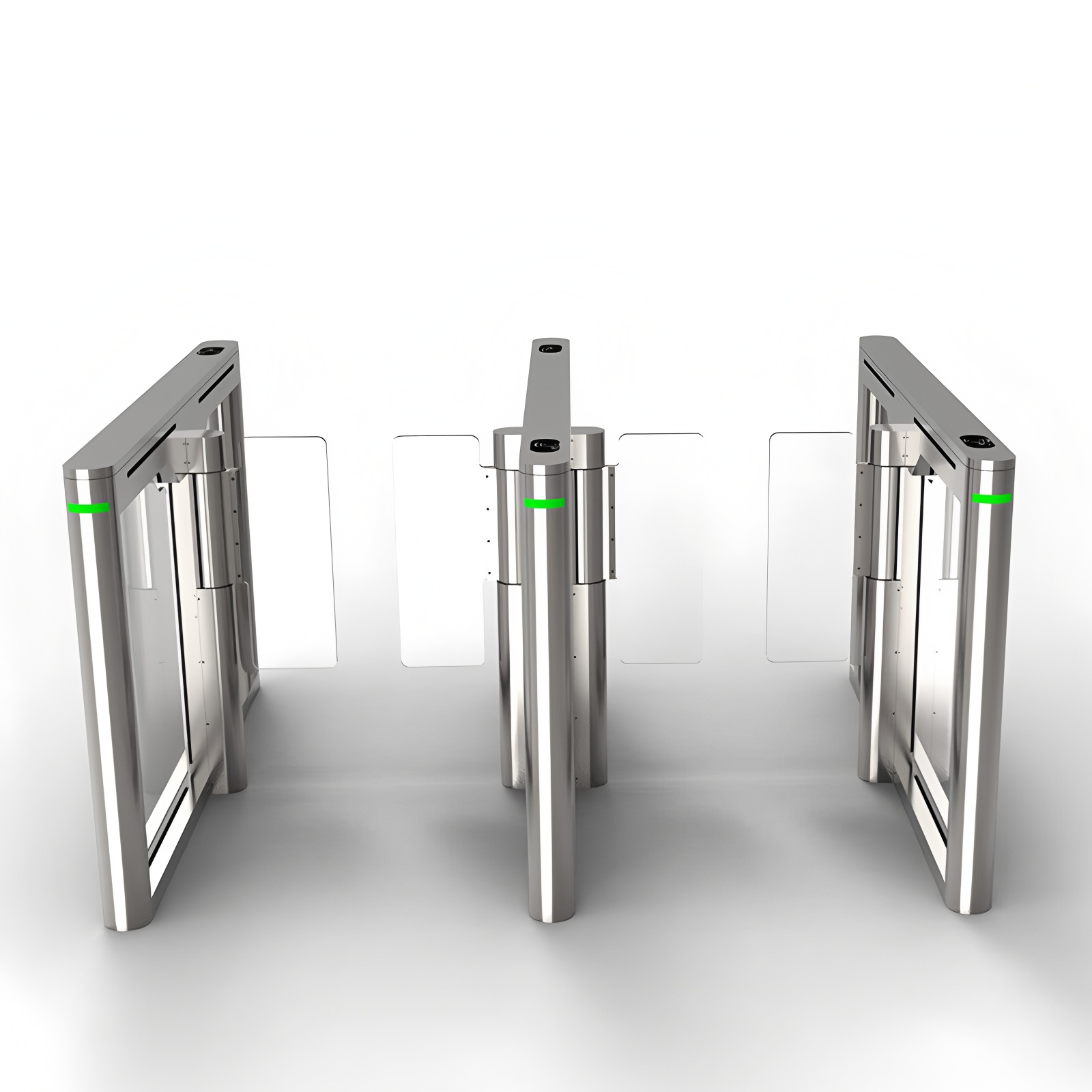

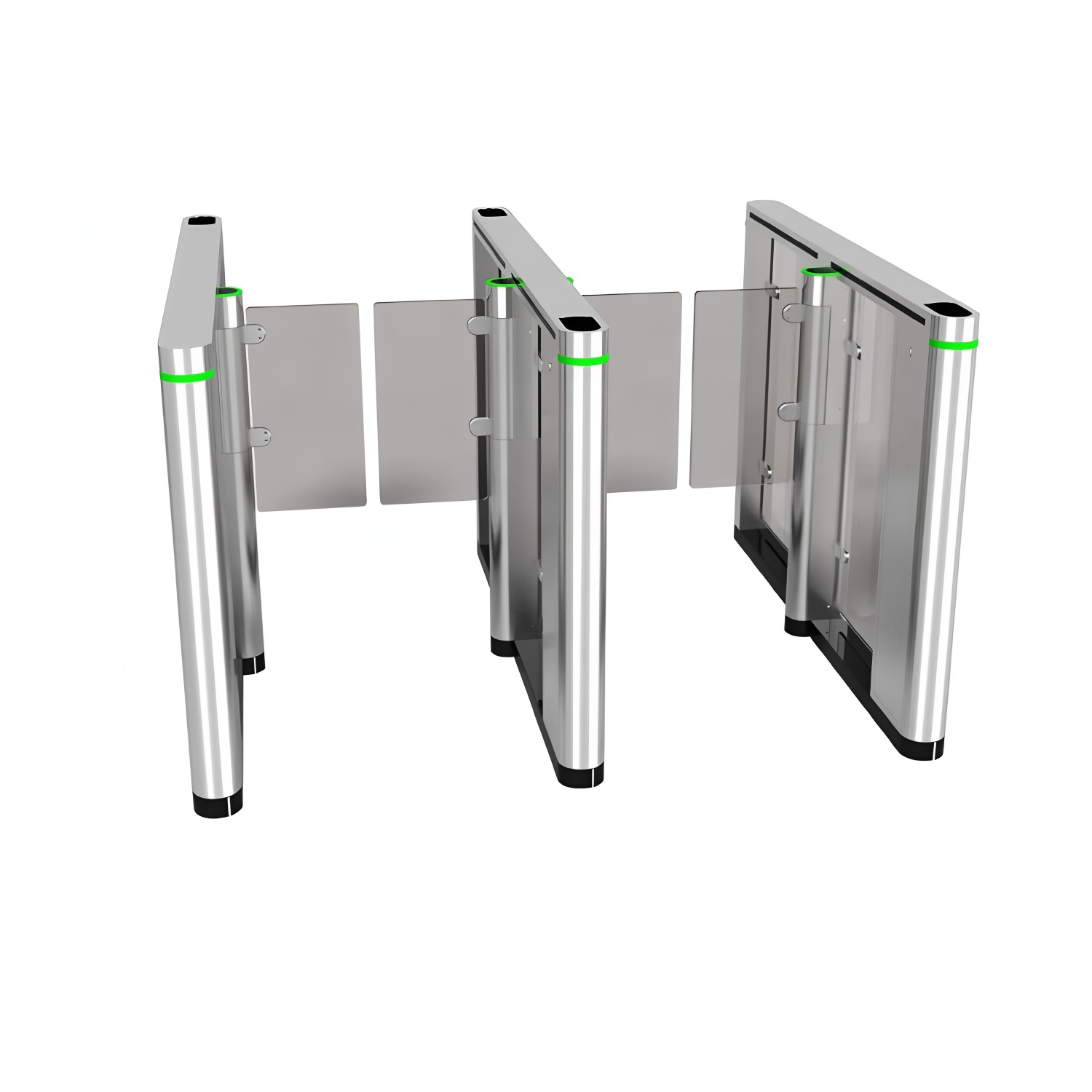

Gym speed lane Turnstile with Qr Code Reader Rfid Reader Access Control
| 1 | Power | AC220C±10V,50/60HZ; |
| 2 | Operating Temperature | -45℃-60℃ |
| 3 | Relative Humidity | ≤95%, No Condensation |
| 4 | Passage Width | 600mm (1000mm optional) |
| 5 | Passing Speed | Normally open-50 persons/min; Normally closed-30 persons/min |
| 6 | Manufacturing Technique | CNC laser cutting |
| 7 | Motor | DC Brushless motor, 140W/24V |
| 8 | Gate Opening and Closing time | ≤ 0.4S |
| 9 | Barrier Material | Acrylic glass, SS304 and so on |
| 10 | Working environment | indoor and outdoor(added the rainshed ) |
| 11 | Motor Operation Speed | 1600R/Min |
| 12 | Communication Distance | ≤1200M |
| 13 | Input Connection | +12V Level Signal or Pulse Wide>100ms Pulse Signal,Current>100ms |
| 14 | Communication Connection | RS485 Communication |
| 15 | Material | Stainless steel 304, thickness is no less than 1.5mm |
1. High speed gate is designed to control pedestrians entering or exiting restricted areas, usually
used of high pedestrian traffic flow in both directions.
2. The body is made from brushed stainless steel which creates a seamless and elegant access point
to blend into most indoor environment.
3. It can be integrated with any kind of access controller system (e.g.: RFID device, Push button,
Fingerprint and Biometric device).
4. In case of emergency, the Optical Turnstile arm will open automatically to allow free passage.
5. High speed gate are suit for elegant and luxury entrance solutions.
