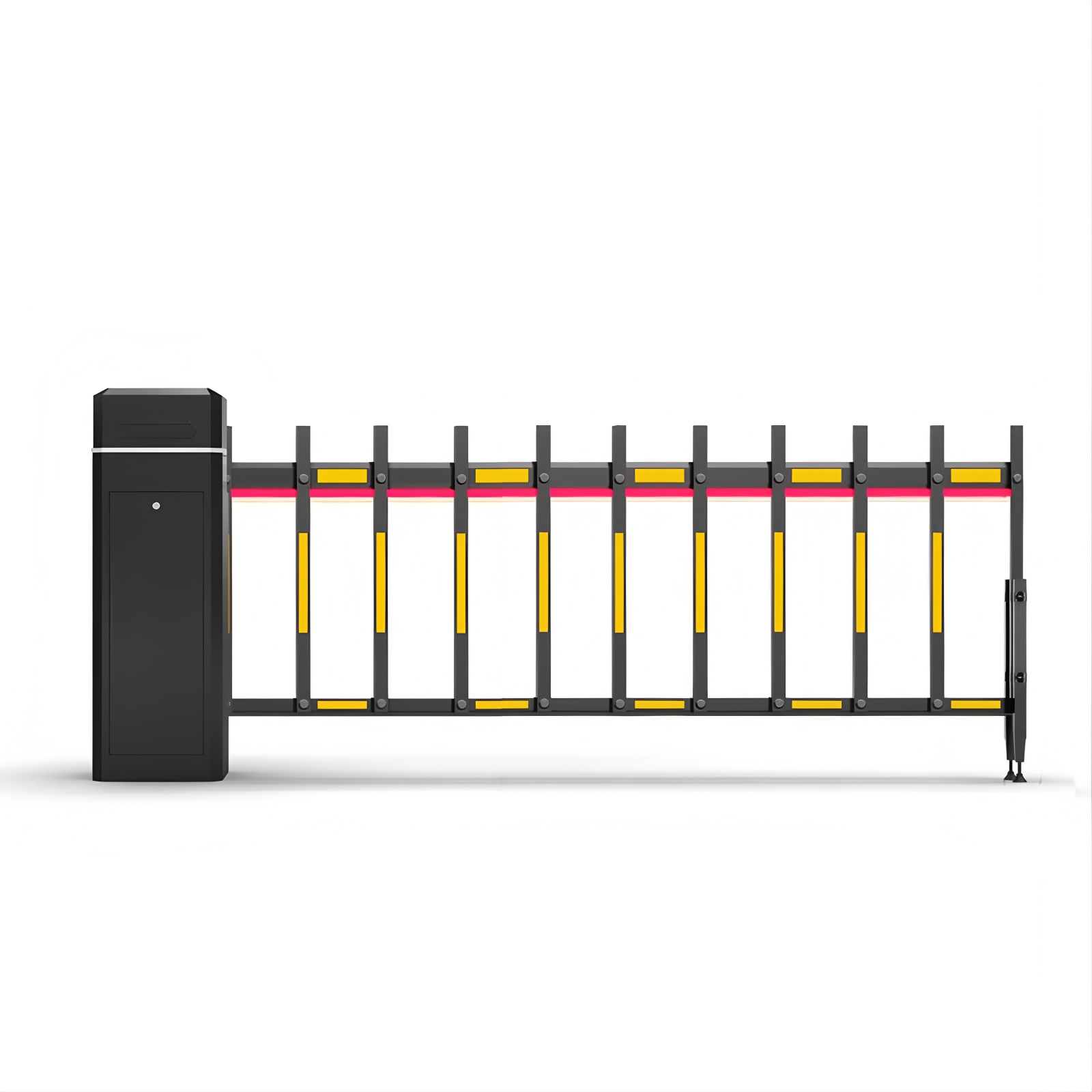

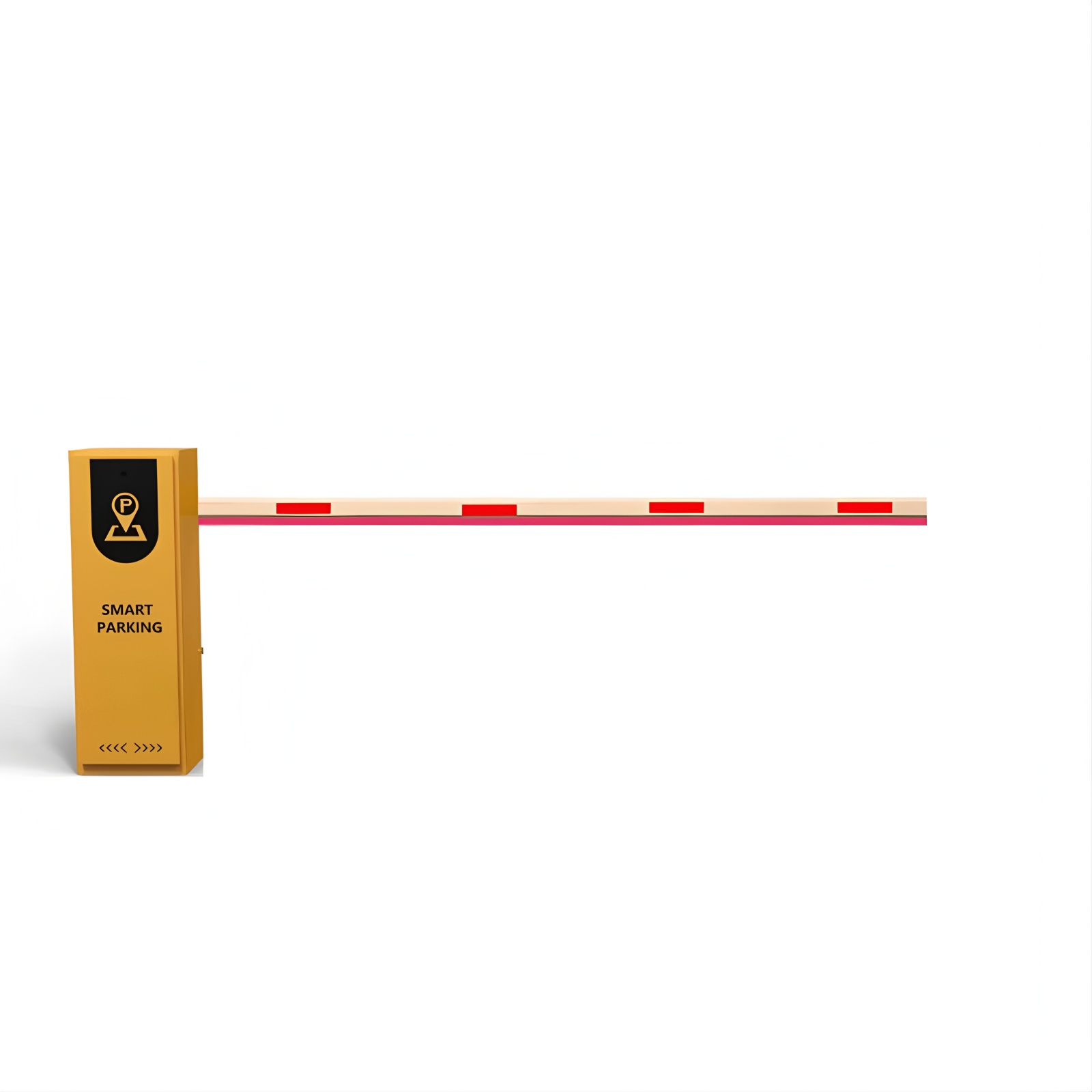

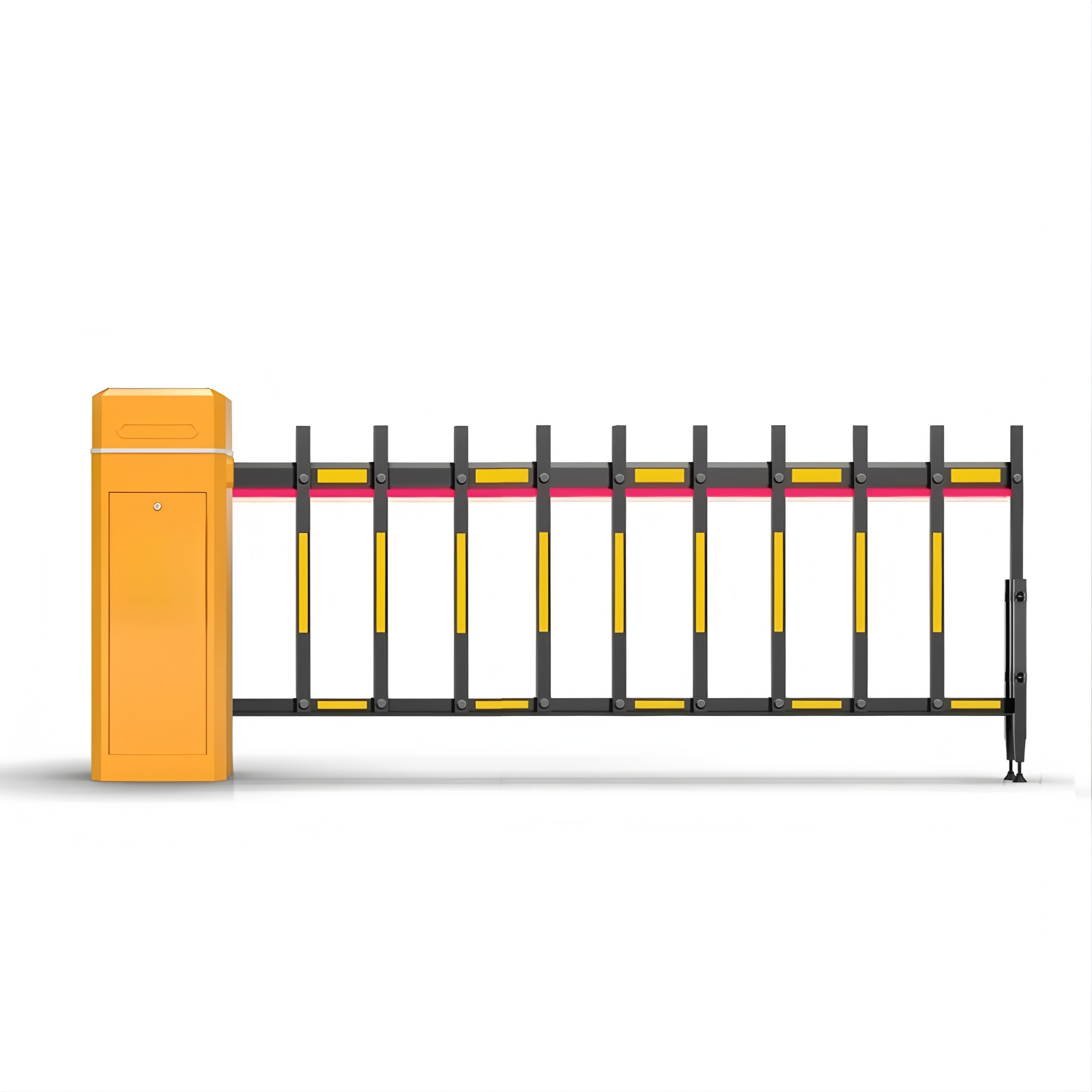

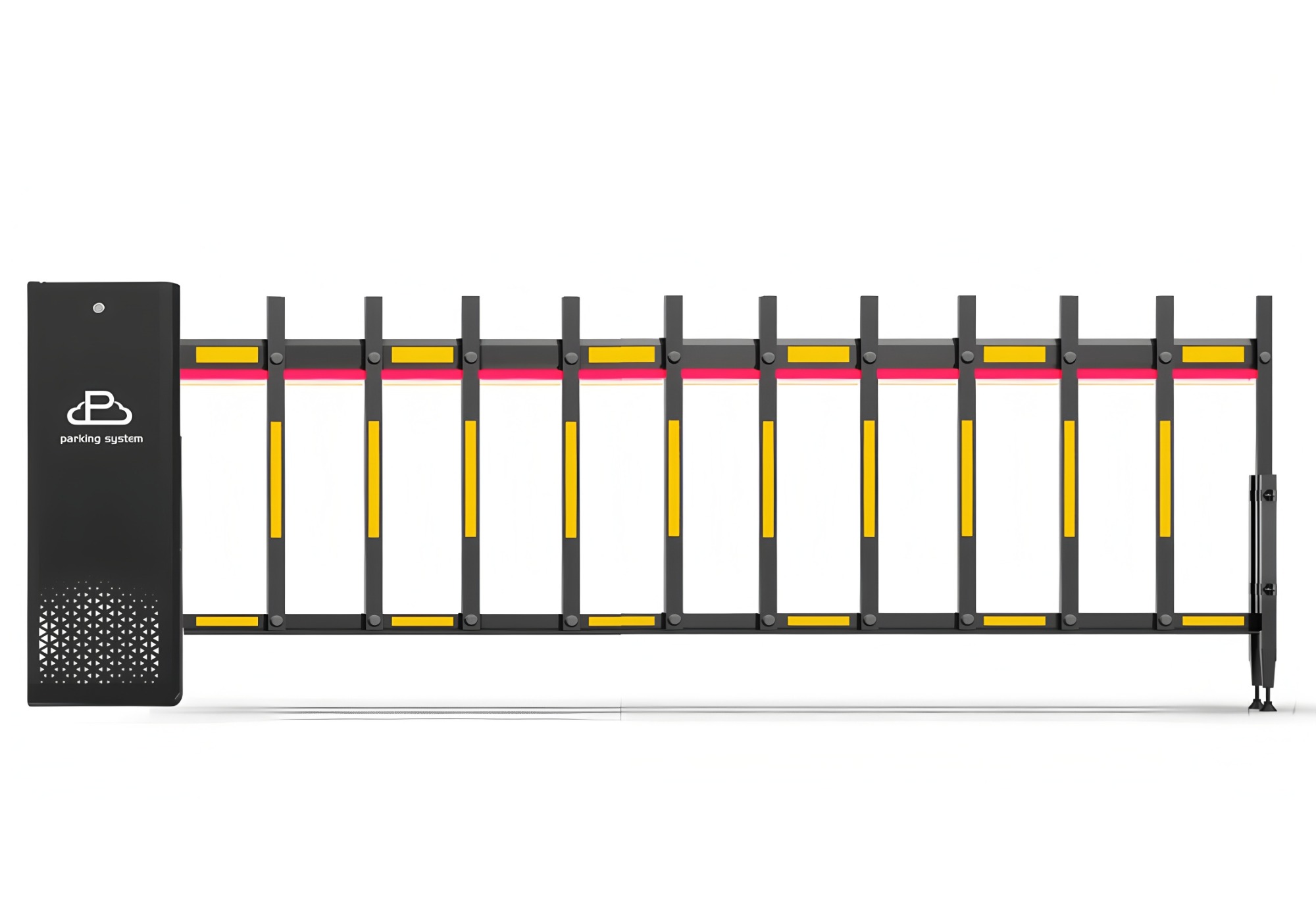

2-6m Arm Straight Automatic Boom Barrier Gate Traffic Barrier For Parking Lot
1. Barrier Gate Movement Features
◆ Highly integrated and integrated movement, the internal connecting rod structure of the movement adopts a hidden design and has a delicate structure.
◆ The internal screw reducer adopts screw transmission, which has high transmission efficiency and large output torque.
◆ The connecting rod structure parts are formed by molds, with high processing accuracy and stability.
◆ Barrier gate servo motor drive, controllable speed, precise positioning, strong adaptability, stable operation, and relatively fast motor acceleration and deceleration dynamics.
◆ Barrier gate servo movement is relatively self-locking, and the movement is relatively self-locking through the motor force to ensure that the rod cannot be lifted manually in the state of falling rod. When the power is off, the motor does not apply force, and the rod can be lifted, eliminating the clutch structure and hand-cranking structure.
◆ Barrier gate motor and the reducer are directly connected, with high transmission efficiency and strong stability.
◆ The reducer housing is connected with a flange design, which does not require internal structure processing and the bearing position is accurate.
◆ The design of multiple thin wires through spring balance has a long service life and is not easy to break.
◆ The cast aluminum rod handle is used, and the rod head can be quickly disassembled. Adopt cast aluminum buckle, exquisite appearance.
◆ The core transmission part of the reducer is a ball screw pair, with precise assembly dimensions and durability.
◆ The rod has no dead point design, and the rod can be manually lifted without clutch after power failure
2. Barrier gate chassis performance characteristics:
◆ Humanized appearance line design, simple and elegant, beautiful and bright.
◆ The box body is made of high-strength steel plate bending and welding, which is sturdy and durable.
◆ The chassis adopts upper and lower split design, which is beautiful and durable.
◆ The box cover, box body and door panel are split structures, which is convenient for color matching.
◆ The surface of the chassis is treated with phosphating process, which has the characteristics of rust prevention, UV resistance and not easy to change color under exposure to sunlight.
3. Barrier Gate lever features:
◆ Surface spray treatment, color matching is available. The fence pole can be equipped with pressure wave anti-smashing function and anti-smashing rubber strips.
◆ The main pole, auxiliary pole and vertical pole are rotating pole-collecting structures, and the vertical pole of the fence pole is a front-to-back staggered and repeated pole-collecting structure.
◆ The front end of the fence pole is equipped with a landing support pole and rubber shock absorption.
◆ The vertical pole is connected to the main pole and auxiliary pole with engineering plastics, and there is no noise when rising and falling.
◆ After the fence pole is retracted, the vertical poles are arranged flat, regular and beautiful in appearance.
4. Features of the servo gate control system:
◆ The system buffers and decelerates when the lifting and lowering pole is in place, runs smoothly and does not shake the pole.
◆ After a power outage, the system locks the motor phase line to keep the lifting and lowering pole in a vertical and horizontal state.
◆ Intelligent perception of abnormalities such as motor stalling, overtime operation protection, rebound when encountering obstacles, broken poles, and artificial lifting poles.
◆ The intelligent servo control technology is used to ensure that the lifting and lowering poles are accurate and stable, and multiple expansion port functions are reserved.
◆ Real-time monitoring of the gate pole operation data, and self-judgment of the function of lifting the pole immediately when encountering obstacles.
◆ Multiple control modes: onboard buttons, remote control, external wire control, 485 and other control modes, to achieve functions such as raising and lowering the pole.
◆ Multiple application modes: with common, fleet, counting and other application modes for users to choose.
◆ Unlimited switch, after powering on, the onboard button or remote control starts the self-test, and the self-learning stroke rise and fall position and number of steps.
◆ Reserved 485 communication interface, the system can realize remote control, status data collection, abnormal real-time reporting and other functions.
DC Brushness Barrier Controller Command List:
|
Menu |
Function |
Windows |
Scope |
Remarks |
|
F-00 |
Lifting speed |
60 |
10-100 |
The larger the value, the faster the brake lifting speed. |
|
F-01 |
drop speed |
60 |
10-100 |
The larger the value, the faster the drop off speed. |
|
F-02 |
brake lift deceleration position |
70 |
45-80 |
The angle at which the brake starts to decelerate, unit: degree |
|
F-03 |
brake deceleration position |
45 |
10-60 |
The angle at which the brake starts to decelerate, unit: degree |
|
F-04 |
Brake lift acceleration time |
30 |
0-255 |
When lifting the brake, the time from 0 to the speed of F-00 lifting the brake, unit: 0.01 seconds |
|
F-05 |
drop acceleration time |
30 |
0-255 |
When the brake is off, the time from 0 to the speed of F-01 when the brake is off, unit: 0.01 seconds |
|
F-06 |
brake lift end speed |
10 |
1-100 |
Brake lift in place speed |
|
F-07 |
closing speed |
20 |
1-100 |
brake in-position speed |
|
F-08 |
Horizontal position adjustment |
6 |
1-255 |
Adjust the horizontal position of the gate lever |
|
F-09 |
vertical position adjustment |
6 |
1-255 |
Fine-tuning the vertical position of the gate lever |
|
F-10 |
No ground sense automatic closing time |
0 |
0-255 |
Time for automatic brake off when no vehicle passes, unit: second |
|
F-11 |
Anti-smash |
0 |
0-1 |
1: Enable the anti-smashing function 0: Disable the anti-smashing function |
|
F-12 |
Passing delay time |
2 |
0-255 |
Passing delay and closing the gate, unit: 0.1 seconds |
|
F-13 |
Power-on self-learning speed |
40 |
0-80 |
Find the upper and lower limit at this speed |
|
F-14 |
Remote control learning |
0 |
0-60 |
learn remote control |
|
F-15 |
Rebound Sensitivity |
10 |
1-40 |
Blocked response time, unit: 0.05 seconds |
|
F-16 |
Rebound strength |
10 |
1-40 |
The higher the value, the stronger the force |
|
F-17 |
Motor type/rotation direction |
0 |
0-3 |
Motor polarity and gate rotation direction |
|
F-18 |
Locking power |
6 |
0-15 |
Dangerous, use with caution! The higher the number, the higher the locking current |
|
F-19 |
ground sense count |
0 |
0-10 |
Default misplacement count |
|
F-20 |
automatic testing |
0 |
0-255 |
Automatic test interval, can be used for aging, 0 is normal work |
|
F-21 |
reset |
0 |
0-255 |
5: Clear remote control 10: Restore factory settings |
|
F-22 |
Software version |
No default values |
No scope |
|
|
F-23 |
photosensitive threshold |
150 |
0-200 |
When the light sensitivity value of the current illumination is greater than the threshold |
|
F-24 |
Delay on |
10 |
0-255 |
Photosensitive delay light on, unit: second |
|
F-25 |
Delay off |
250 |
0-255 |
Photosensitive delay light off, unit: second |
|
F-26 |
photosensitivity |
No default values |
No scope |
Photosensitive value under current illumination |
|
F-27 |
Gate lift priority |
2 |
0-3 |
In brake lift priority mode, open priority |
|
F-28 |
Low speed running angle of drop gate |
30 |
0-45 |
The starting angle of the last segment of the low speed zone |
|
F-29 |
Relay output mode |
0 |
0-5 |
For different relay applications |
|
F-30 |
Windproof opening angle |
0 |
0-45 |
Windproof treatment for advertising barriers |
|
F-31 |
Anti-rust time interval |
0 |
0-255 |
Anti-rust time interval, unit: hour |
|
|
