Operating Voltage:
|
24V DC
|
Power Consumption:
|
160 W
|
|
Consumption Current:
|
6.5 A
|
Throughput Rate (in The Single Passage Mode):
|
60 Persons/min
|
|
Passageway Width:
|
650 Mm, 900 Mm, 1000 Mm, 1200 Mm
|
Operating Temperature Range:
|
From +1 °C To +50 °C
|

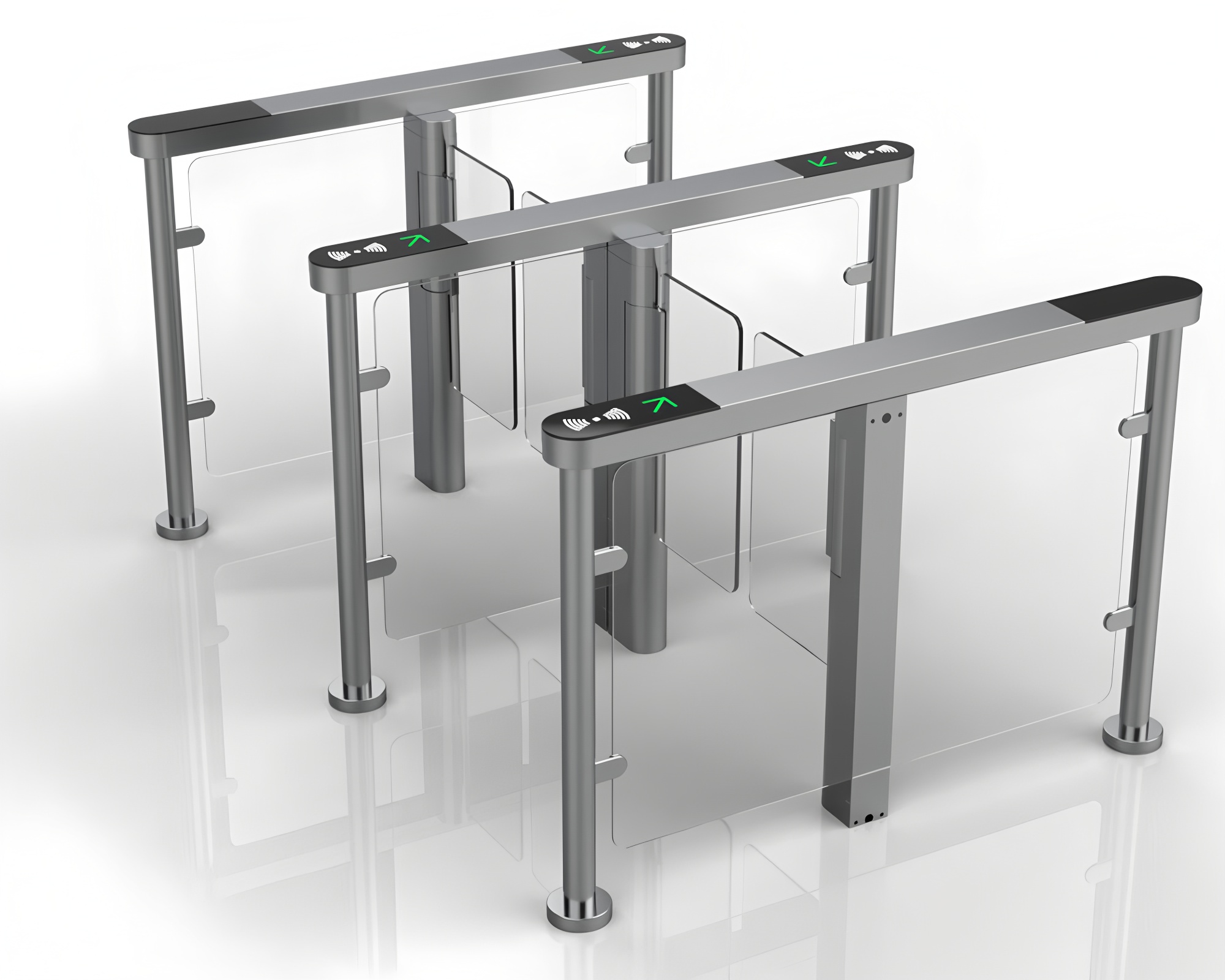

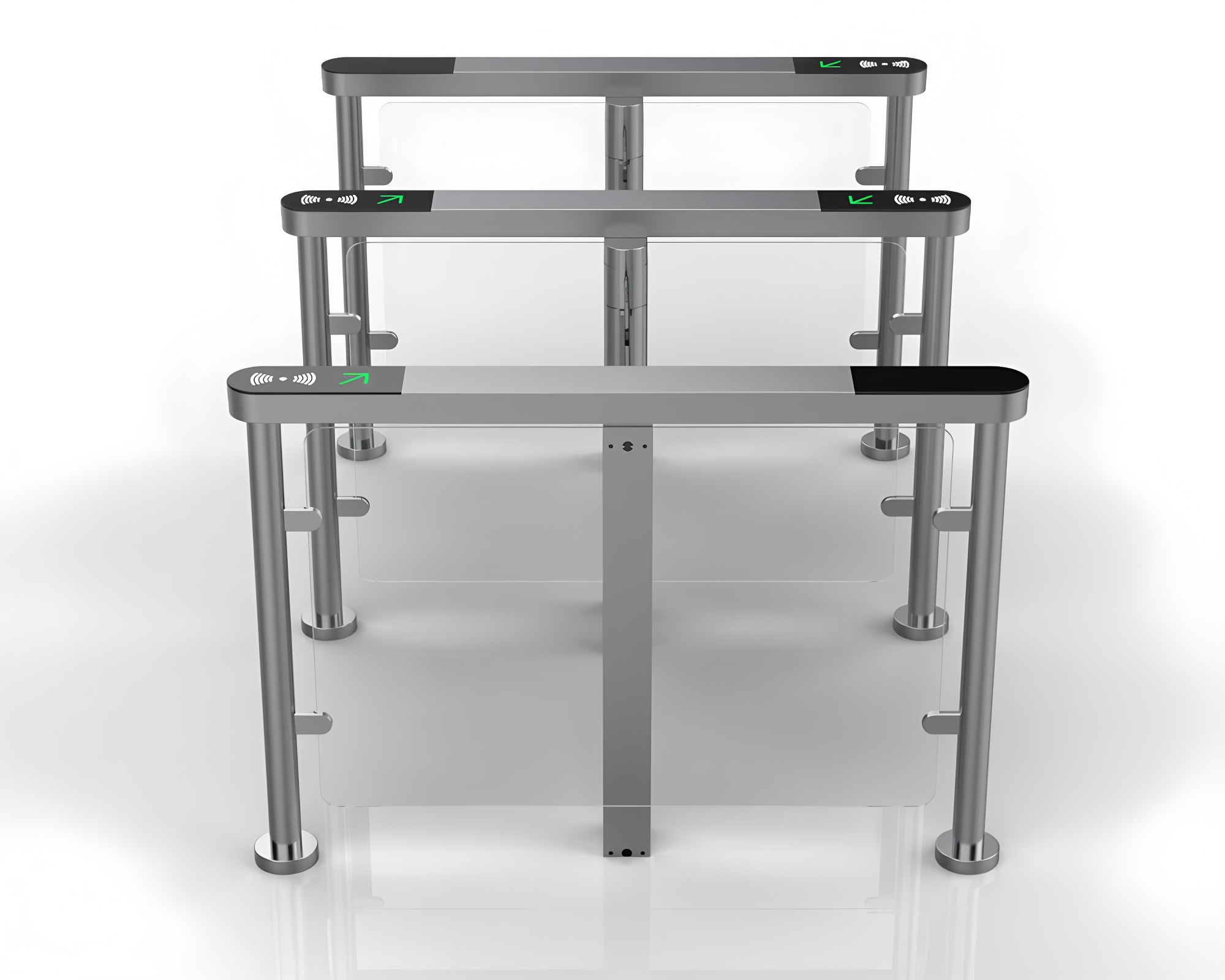

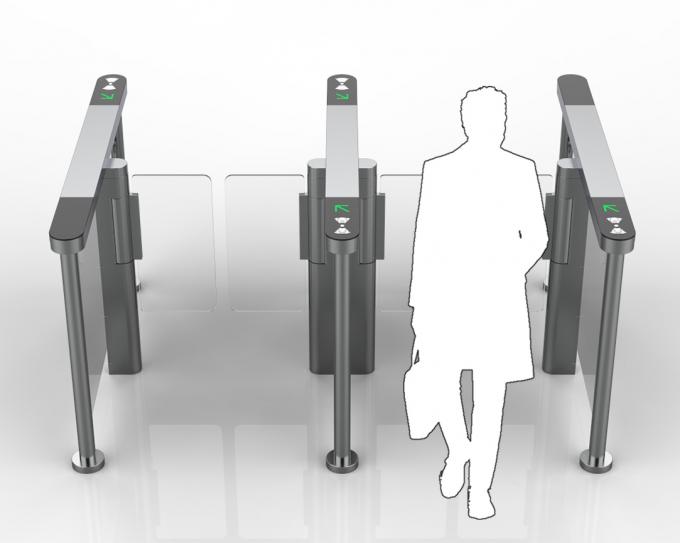

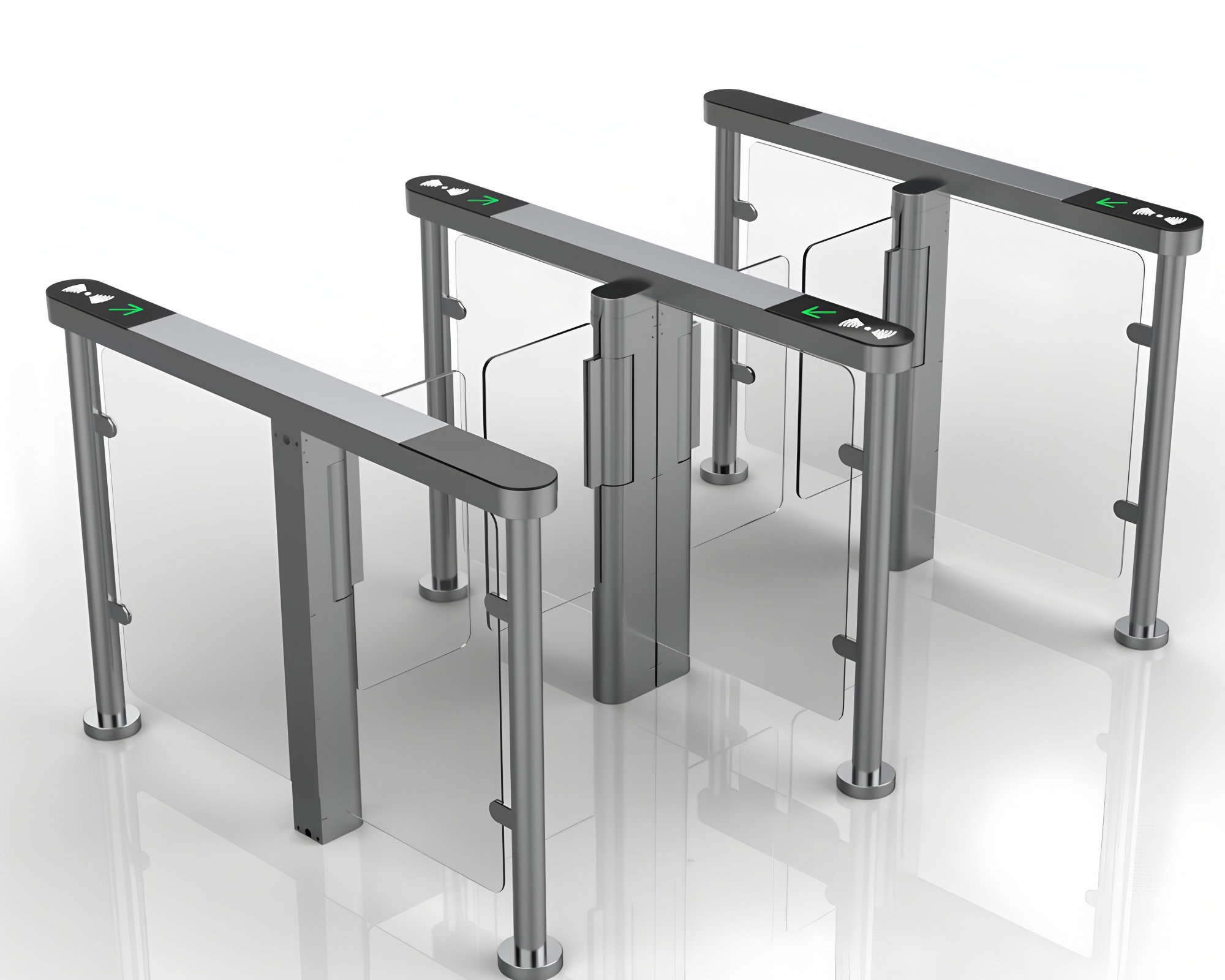

Compact Speed lane Turnstile Gate Entrance Entry Face &Fingerpint Management
The stainless steel design simplifies the installation of additional equipment and increases the durability of the top covers. The turnstile design combines style and easy integration of additional equipment.
Operating modes
The tracking system is equipped with two levels of infrared sensors: 14 pairs are located on the upper level and 28 – on the lower one, which guarantees the safety of passage at high throughput and provides avoiding simultaneous passage of two or more people. The delivery set includes an RC-panel; the orientation of the RC-panel buttons relative to the directions of passage is set when connecting to the turnstile. The powered speed gate operates in normally closed mode. It is possible to switch the turnstile to the additional "Automatic opening in the selected direction" mode, as well as to adjust the home position of the swing panels in the "training" mode. The product provides independent control of the passage in two directions.
Control commands:
• passage denial
• authorized single passage in the set direction
• authorized free passage in the set direction
• authorized free passage in both directions When the power is off, the turnstile panels are unlocked and can be moved manually in any direction.
Main features
• operation of the speed gate from RC-panel, WRC, ACS
• built-in electronic boards
• safe voltage – 24 V
• power consumption – max. 160 W per passage
• two levels of infrared sensors control the passage zone, 14 pairs are located on the upper level and 28 – on the lower one
• possibility for several users to perform authorized single passages in a row in the same direction without the panels being closed
• 4 versions of panels, both for different passageway widths (600, 900 and 1000 mm) and with increased height (1300 mm for a passageway width of 600 mm)
• several different versions of the turnstile front panels that allow integrating optional equipment: a card reader, a barcode scanner, a face recognition terminal, etc.
• if necessary, the number of passage lanes through the turnstile can be increased by installing STD-01 double-sided sections
• possibility to install proximity card readers inside sections under the glass top cover (overall reader dimensions – max.155х68х28 mm, reading range – min. 40 mm)
• central sections feature indication blocks of passage grant / denial
• section top covers feature passage indication
• reader interrogation zones are indicated with backlit pictograms
• backlit lateral indication of passage direction
• possibility to adjust the panels position when in the closed position (training mode)
• Fire Alarm input for connecting the emergency passage opening device; when the command is sent from it, the panels are automatically opened in one direction and it is possible to walk through the turnstile in both directions
• outputs for connecting remote indication blocks of passage grant / denial, as well as a sounder (sirens)
• two control modes: pulse and potential; it can operate both as a standalone unit controlled by the operator using an RC-panel and as a part of ACS
