Highlight:
250mm Telescopic Flap Barrier Turnstile
,
Bidirectional baffle gate turnstile
,
250mm baffle gate turnstile
|
Passage Direction:
|
Bidirectional
|
Certificate:
|
CE ROHS ISO9001
|
|
Place Of Origin:
|
Shenzhen China
|
LED Indicator:
|
Red And Green,Blue
|
|
Passage Width:
|
600mm~900mm
|
Packing:
|
Carton/Wooden Box
|

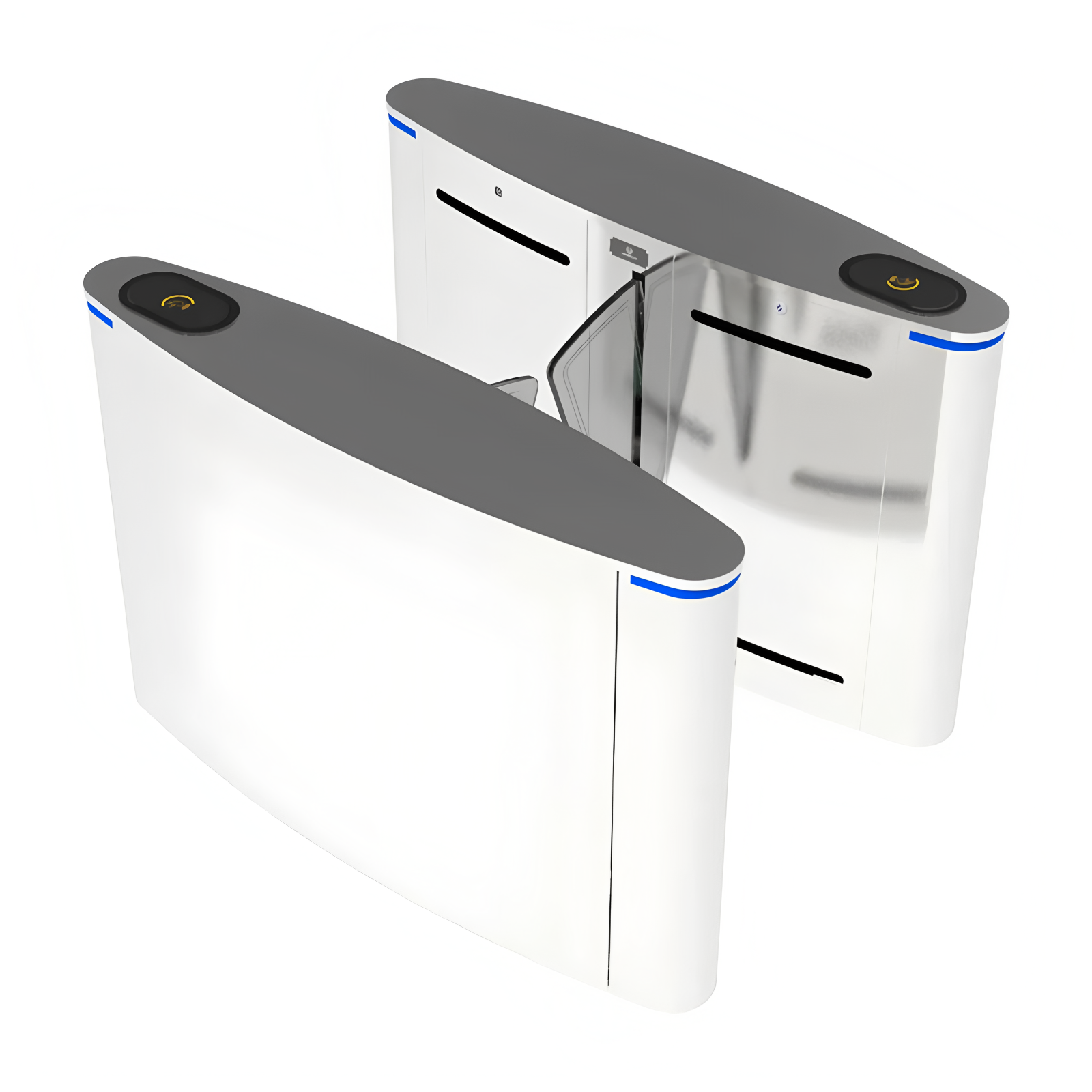

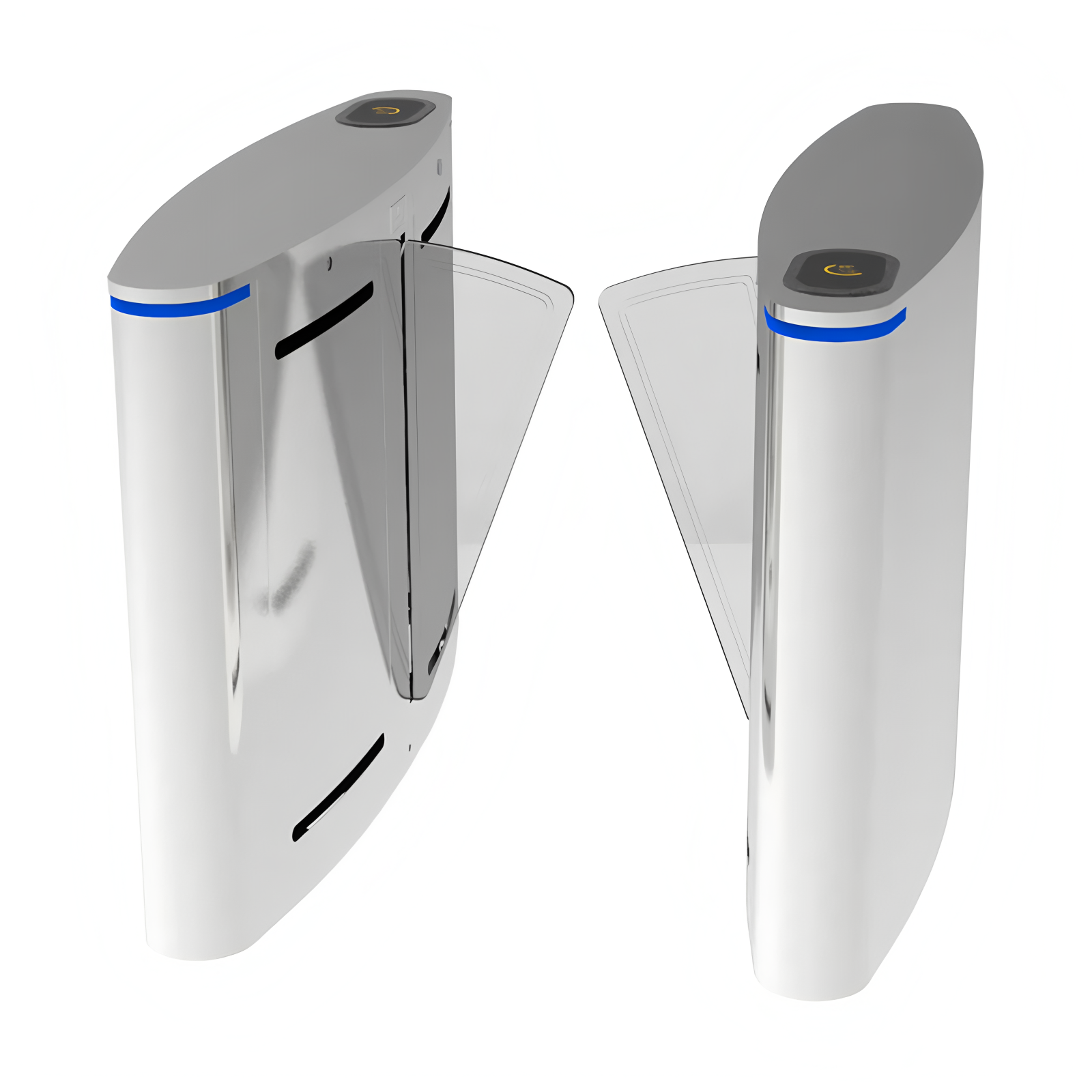

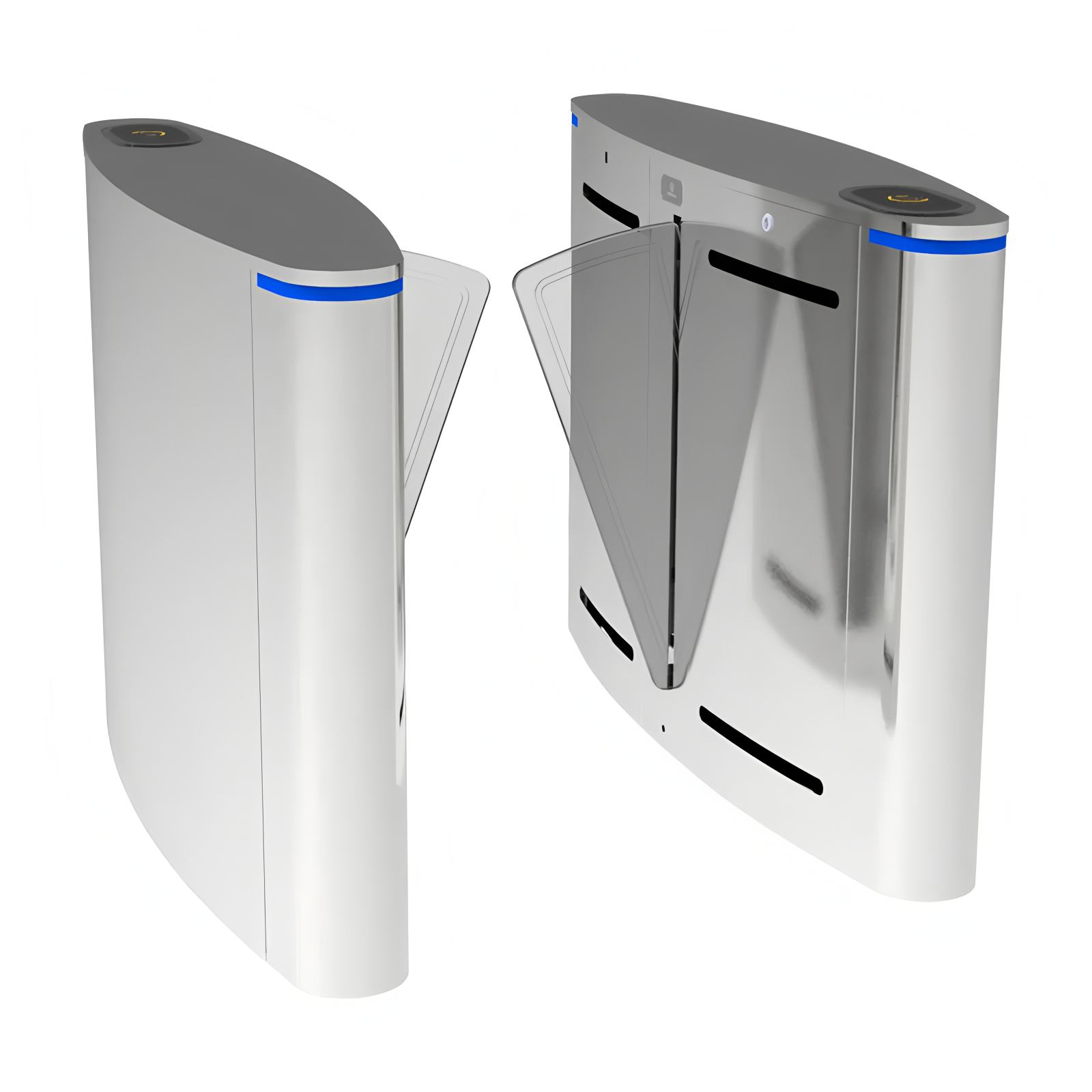

250mm Telescopic Flap Barrier Turnstile Bidirectional Baffle Gate Turnstile
Baffle Gate Turnstile Fastlane Glass Voice and Sound Prompts Auto Resetting Door
Flap turnstile is a high-tech product for intelligent management of personnel channel. It is an upgraded product of tripod turnstile and swing turnstile. The product has exquisite workmanship, fully functional, and classic design. It is mainly used in high-end places such as high-grade residential areas, intelligent buildings, hotels, subways, docks, clubs, gyms and so on. The equipment organically integrates mechanical, electronic, microprocessor control and various identification technologies, which is convenient to be compatible with the use of card reading and identification equipment such as IC card, ID card, bar code and fingerprint.
Functions:
>Fault self-check and alarming prompt function.
>Support varieties of IC/ID card reader/Barcode/QR code scanner, biometric recognition etc.
>Automatic resetting function.
>Intelligent voice and sound prompts make the device more user-friendly and easier to use.
> With auto multifunction inspection and alarm function, convenient for user maintenance and use.
>Sound and light alarm function: including illegal break-in, trailing alarm.
>Anti - impact function, the flap automatic locked without receiving the open signal.
|
Housing Material
|
Stainless Steel 304
|
|
Production Process
|
CNC Laser Cutting
|
|
Telescopic flap length
|
250mm
|
|
Passage width
|
≤ 600 MM
|
|
Power input
|
AC 220V/110V ±10% 50/60MHZ (optional)
|
|
Operation voltage
|
DC24V, 3A, Power: 40W( Servo Motor Optional)
|
|
Communication Interface
|
RS232
|
|
Passage direction
|
Single directional/Bi-directional(Optional)
|
|
Flow rate
|
35-45 people/miunute
|
|
Automatic Reset Function
|
Automatically locked within set time(Time Adjustable)
|
|
LED Indcator
|
Yes
|
|
Operation Humidity
|
≤90%RH
|
|
Operation Temperature
|
-25℃~+75℃
|
|
Operation Eenvironment
|
Indoor,Outdoor(Shelter)
|
|
Protection Funcetion
|
Encoder limit,Clutch anti-collision,Infrared anti-pinch,Break-inalarm fifiunction
|
Advantages:
- Flap barrier gate turnstiles are constructed to control people entering or exiting the restricted area. It is usually used in high pedestrian traffic flow locations in both directions.
- The flap barrier casing is made of brushed 304 stainless steel which creates a seamless and nice entrance system to blend into most indoor environments.
- It can be integrated with all third-party access control systems (e.g.: RFID access system, Push the button, Fingerprint and face recognition with temperature check).
- In case of emergency, the FlapTurnstile arm will open automatically connecting with the battery or capacitor to allow free passage.
- OpticalFlap Turnstiles are suitable for luxury and elegant entrance solutions.
- The flap turnstile features fast speed, long life, high performance, and high operation dependability
- Alarm function, in case of illegal intrusion and reverse intrusion.
- Best turnstile gates saudi arabia.
- The infrared sensor will alarm and the LED light will flash to prevent pinching pedestrians.
- Automatic reset function: flap arms will close automatically within 5s in default (can be set) if passenger delays to
- The flap turnstile will stay in the lock if someone wants to burst in without swiping the RFID card.
- LED directional indicator on top and front post
- Anti-reverse function, the turnstile alarms if someone wants to enter in the reverse direction.
- Bi-direction or single-direction running are options
- Feature: IC/ID reader, Barcode Reader, Face recognition, Fingerprint, other access control equipment, UPS, etc
- Working Direction: Bidirectional/Single directional
- Emergency situation: open automatically when the electricity is cut off with a capacitor
