Highlight:
304 Stainless Steel Hydraulic Rising Bollard
,
304 Stainless Steel Automatic rising bollard
,
Automatic rising bollard 4.5S
|
Bollard Material:
|
SS304
|
Lowring Speed:
|
3S
|
|
Power:
|
370W
|
Rising Speed:
|
4.5S
|
|
Packing:
|
Wooden Pallet/case
|
Casing Size:
|
650*480*530 Mm (For Top Segment Diameter 219mm）
|

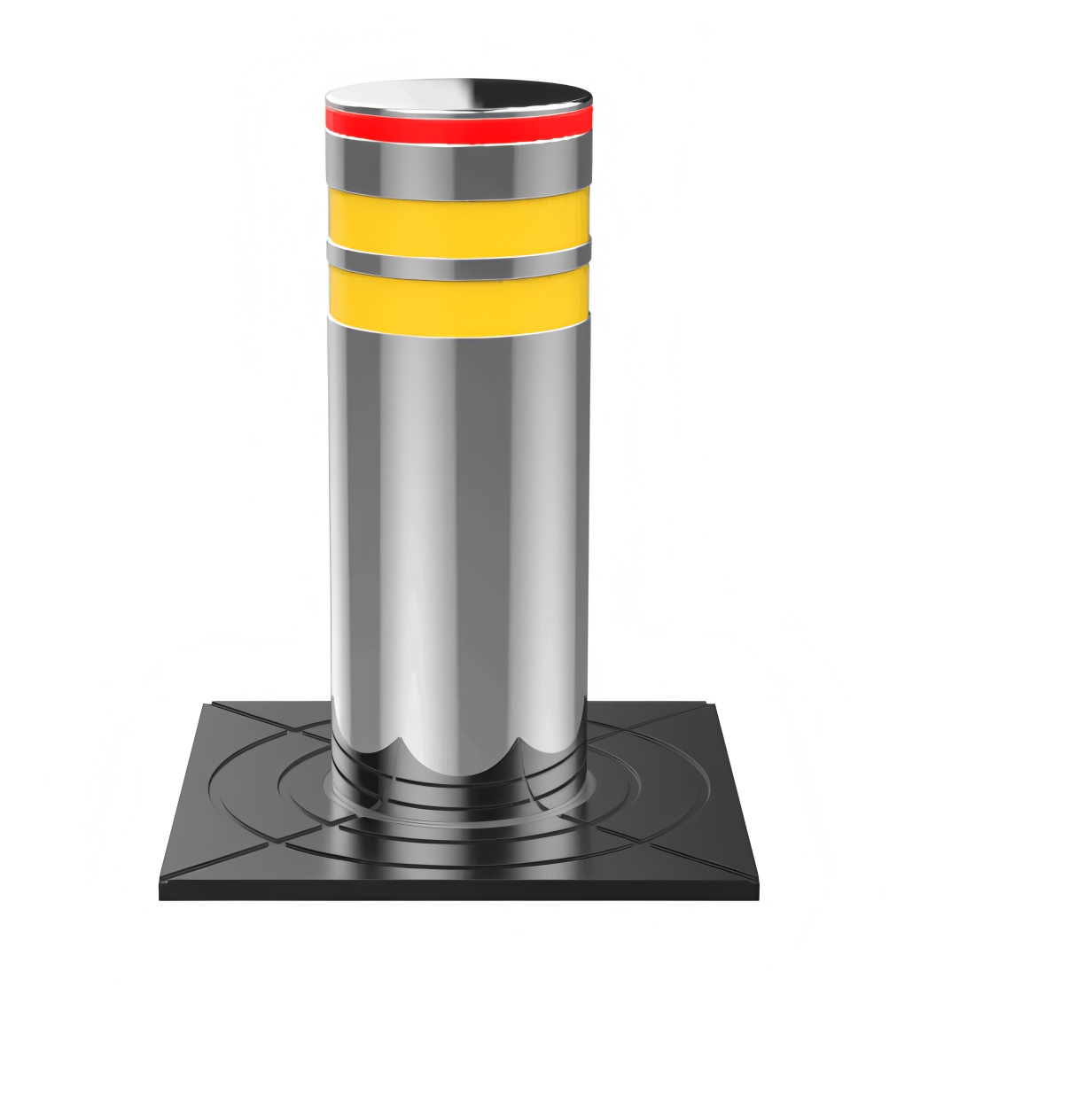

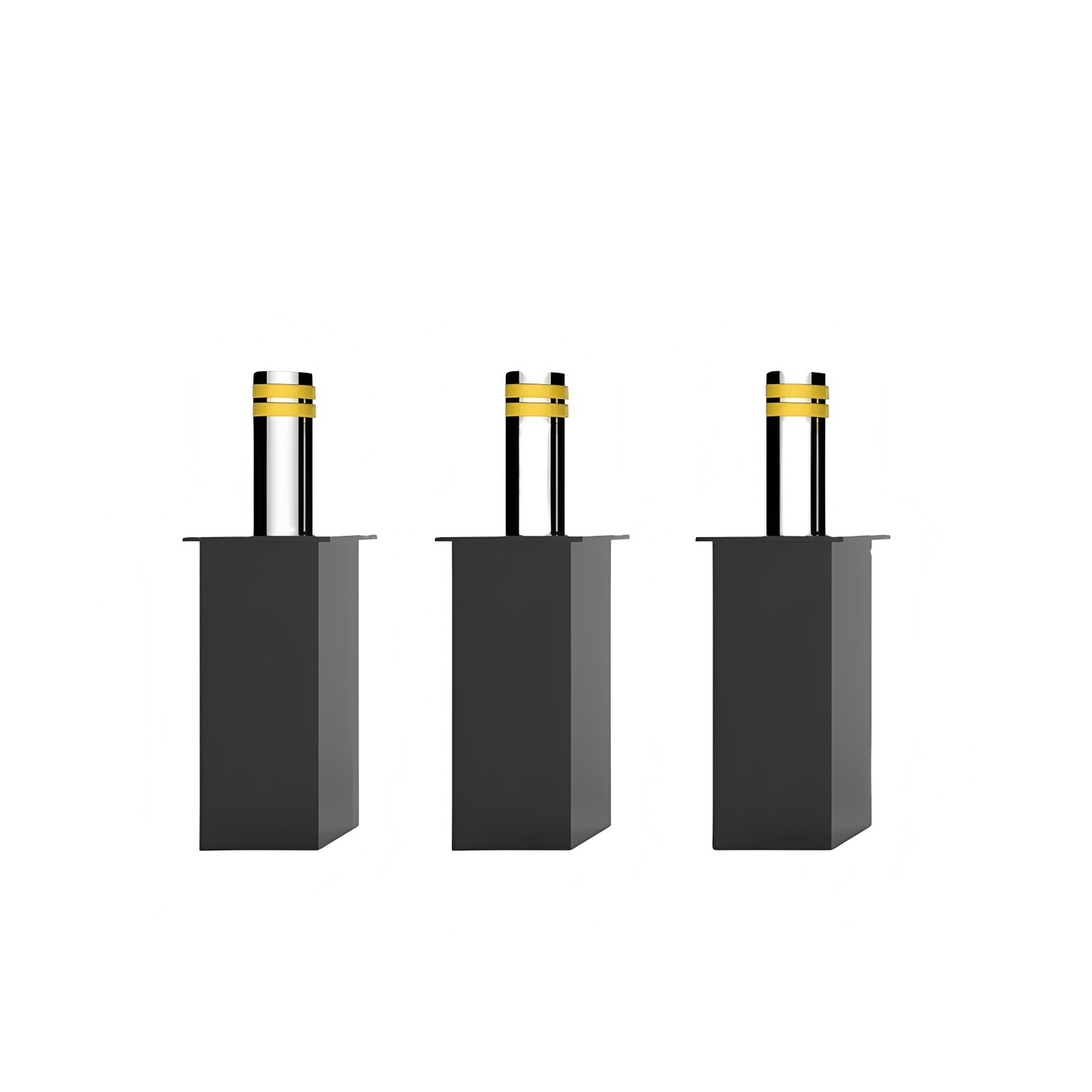

304 Stainless Steel Automatic Hydraulic Rising Bollard 4.5S 219mm Diameter
304 Stainless Steel Automatic Cylinder Hydraulic Rising Bollard 219mm diameter Segmented sectional Type
description
Automatic rising bollard is automatic barrier system for to control traffic. Bollards integrated
hydraulic ram inside. Compared to the traditional manual rising bollard, with hydraulic power unit, it has easy installation, saves budget, and has easy maintenance etc.It could work when connected with control system and power.
Features:
1. Manufactured by using steel and stainless steel or powder coatedcarbon steel
2.high efficiency and good performance
3.Hydraulic system makes it more flexible
4.In ground mounted style saves space
5. With LED lights
6 Optional reflective tape
Product parameters
Power supply (v): AC110-240V, 50Hz
Power (W): 550
Dimensions: length * width * height (mm) 360 * 360 * 1080 (error ± 10mm)
Lifting column diameter (mm): 219 (error ± 2mm)
Lifting column cylinder thickness (mm): 6 (can be customized according to customer needs)
Lifting height (mm): 600 (error ± 2mm)
Lifting time (seconds): 2~6
Pressure capacity: 120 tons of container trucks.
Anti-collision force: K12 (equivalent to 120KM / hour impact, the car is blocked, the equipment works as usual)
Surface treatment: 304 stainless steel surface wire drawing (can be processed according to customer requirements)
Protection level: up to IP68
Anti-destruction level: up to M30~M50
Working temperature (°C): -40~+75
Storage environment: -10 ° C --- 75 ° C, rain and moisture proof.
Drive unit: two-way integrated hydraulic
Weight (kg): 180
