Highlight:
304 stainless steel Tripod Turnstile Gate
,
304 stainless steel automatic tripod turnstile
,
304 stainless steel access control barrier gate
|
Material:
|
304 Stainless Steel
|
Specification:
|
1200*280*990mm
|
|
Work Voltage:
|
AC220V±10% 50HZ±10%
|
Core:
|
DC24V Solenoid Valve
|
|
Max Bearing Force:
|
80KG
|
Warranty:
|
1 Year
|

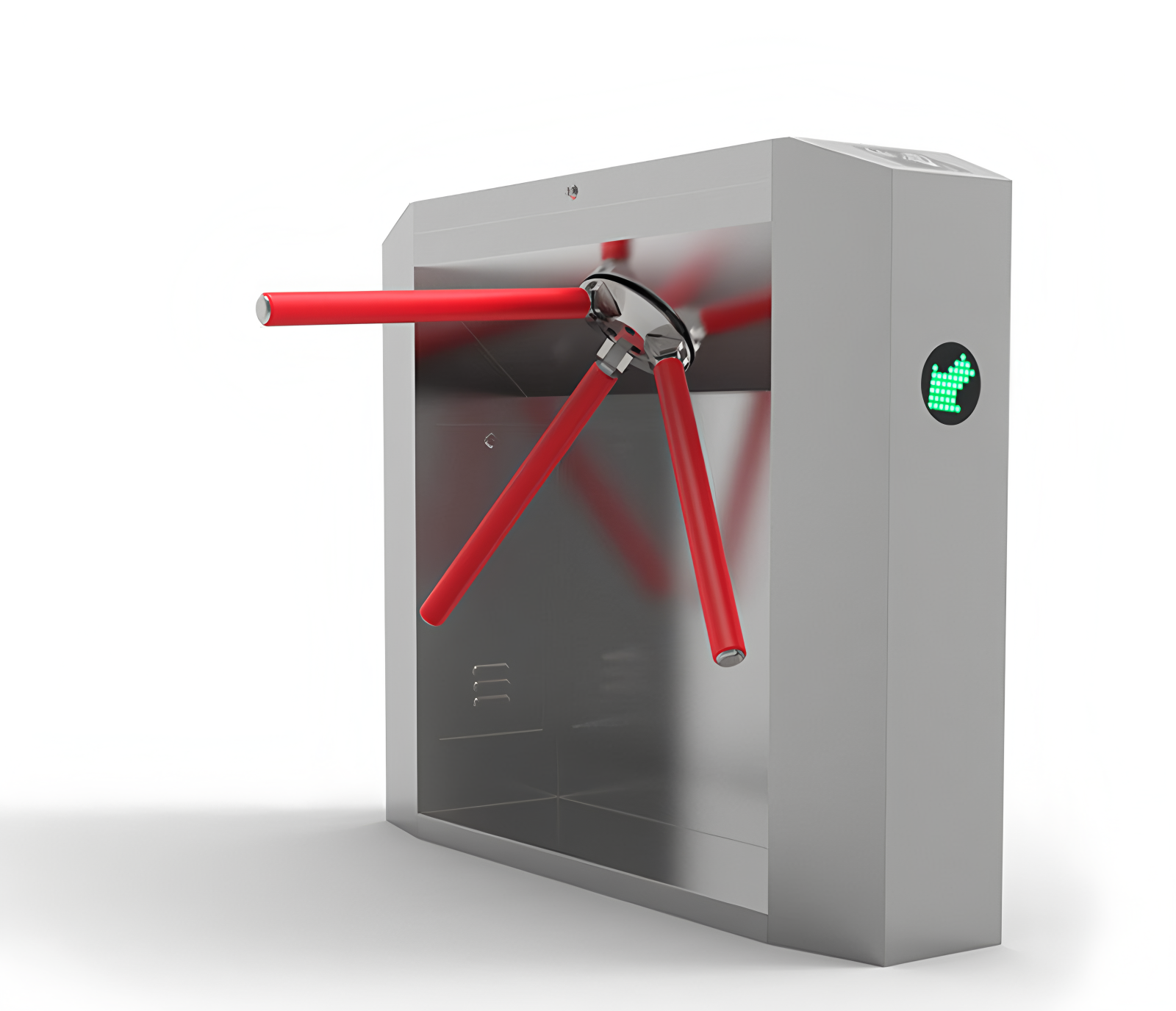

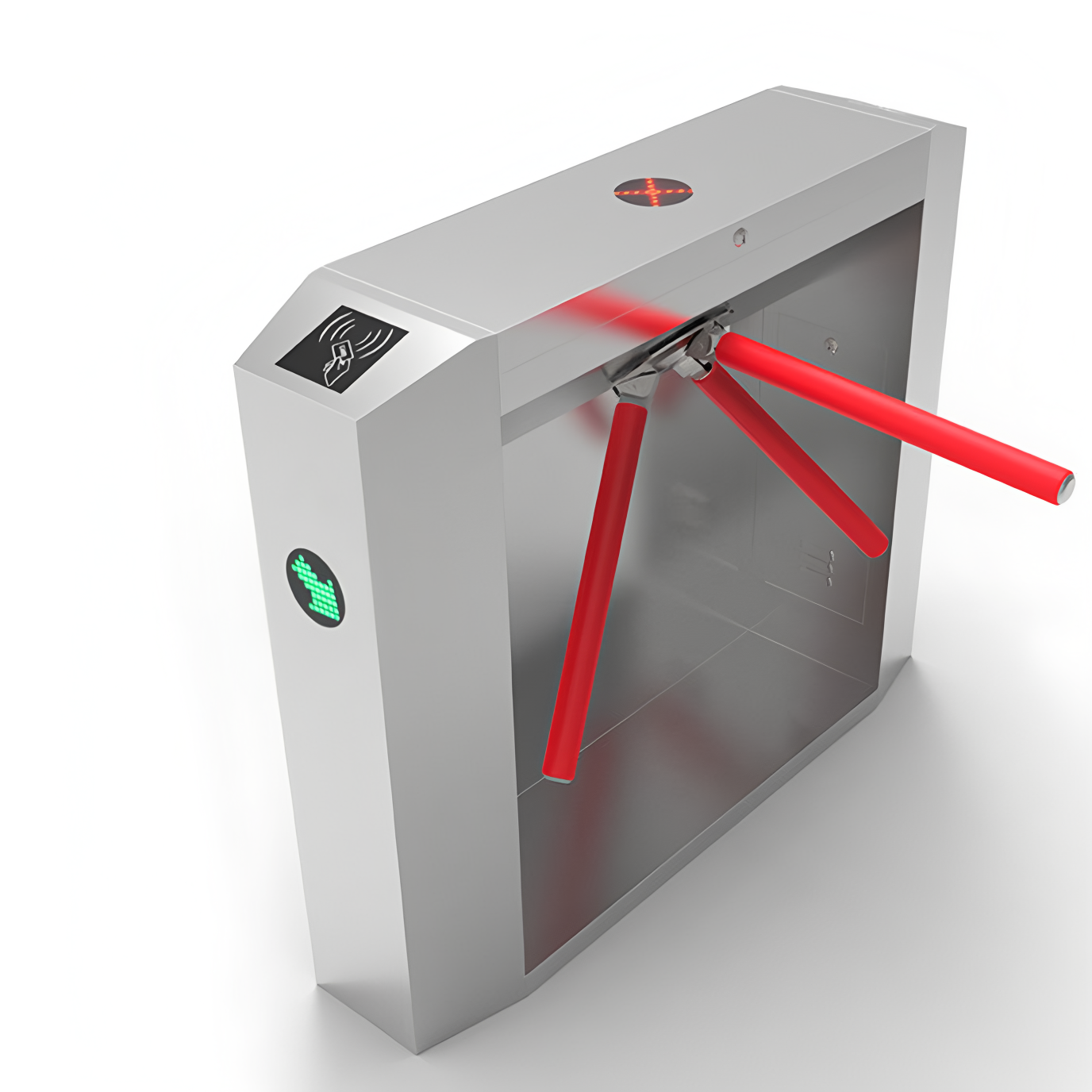

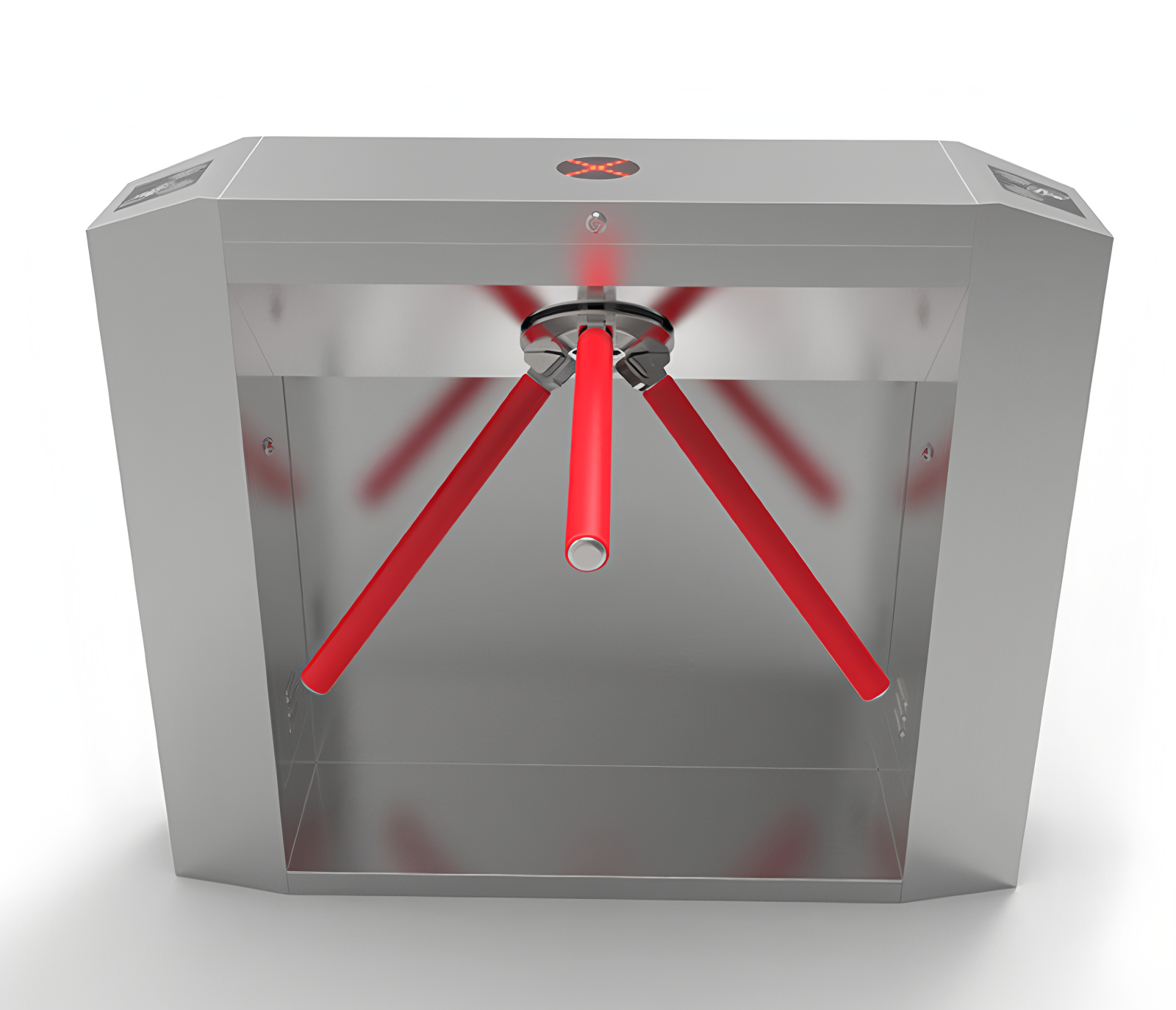

304 stainless steel Automatic Tripod Turnstile Gate Access Control Barrier Gate
High Speed Barrier Tripod Turnstile Gate Full Automatic Gate For School
Product Description:
The device designed to assist pedestrian access control at guarded passage ways inside buildings. Examples of use: points of ticket control and access control for passenger traffic, airports/seaports, passages for authorized personnel, directing passenger traffic, points of access control in secured buildings (e.g. state offices such as border crossing points, other services), points of ticket control and fees at museums, theaters, cinemas, exhibitions, fair areas, show facilities, paid toilets, points of ticket control at sports facilities, e.g. swimming pools, stadiums, other sports and show facilities, access and time attendance control points in working places, e.g. offices, dedicated areas in factories.
Features:
- The Full Automatic machine is driven by the DC brush-less Motor system, such motorized Mecha-nism using the big and hard gears, no
abrasivewear, small passing resistance, so hardly withthe outside force, you can pass easily with the card. And the brake beam will be rising when the power is on, the beam will be down without the power. It is the high intelligent turnstile, no maintenance all the of life, No Atrition, Low-noise, High Itelli-gence
The Semi Automatic Machine:
The Semi Automatic machine is driven by theheavy hard system, it does not have the auxiliaryforce, so you can pass after giving the outsideforce to it,
it is traditional intelligent turnstile.
Technical Parameters:
|
Arm length
|
500mm
|
|
Max lane width
|
550MM
|
|
Card reading window
|
standard or customized
|
|
Work environment
|
indoor or outdoor, 10℃~70℃
|
|
relative humidity
|
≤90%, no condensation
|
|
Barrier open time
|
0.2s
|
|
Transit speed
|
25-35people/minute
|
|
Emergency
|
auto drop for arm
|
|
Normal work life
|
3,000,000 times
|
|
Communication interface
|
RS 485, distance ≤1200m
|
