304 Stainless Steel Remote Control Hydraulic Rising Bollards 1.5kW

Item No.: CL-16C
Product Details
Place of Origin: CHINA
Brand Name: Cardlan
Certification: CE
Model Number: Cl-16C
Description
Description
Highlight:

304ss Hydraulic Rising Bollard

304ss remote control bollards

remote control bollards 1.5kW

MCBF:
3 Million Times
Weight:
100-155kg
Lamp Belt:
LED Lamp(Acrylic Light Circle)
System Control:
Hydraulic And Electric Control
Movement Principle:
Hydraulic Driving
Cylinder Stainless Steel Finish:
Stoving Varnish
304 Stainless Steel Remote Control Hydraulic Rising Bollards 1.5kW

Full automatic hydraulic road rising bollard barrier lifting column with LED light



Automatic bollard:

This is new designed electric-hydraulic operated retractable bollard for roadblock management.
The system can be quickly and easily operated, suitable for both security and access control applications.
The system is designed to bring convenience and enhancements to higher level security. It is ideal choice for universities, pedestrian sidewalks, parking lots, government buildings, gyms, amusement parks, airports, shopping centers, hospitals, and occasions with high traffic flow.



304 Stainless Steel Remote Control Hydraulic Rising Bollards 1.5kW 0



Feature:

1. The structure is sturdy and durable, with large load carrying capacity, stable operation and low noise.
2. Adopt PLC control, the system running performance is stable and reliable, and easy to integrate.
3. In the case of power failure or when there is a fault, the vehicle can be manually operated.
4. Adopting international leading low pressure hydraulic drive technology, the whole system is safe, reliable and stable.
5, remote control device: lift by wireless remote control.
6, swipe control: add a card reader, swipe the card automatically control the lift.
7. Linkage between the gate and the lifting column: plus control to realize the linkage of the gate, and the access control and the lifting column.
8. It is controlled by the computer in conjunction with the computer buried system or the charging system.

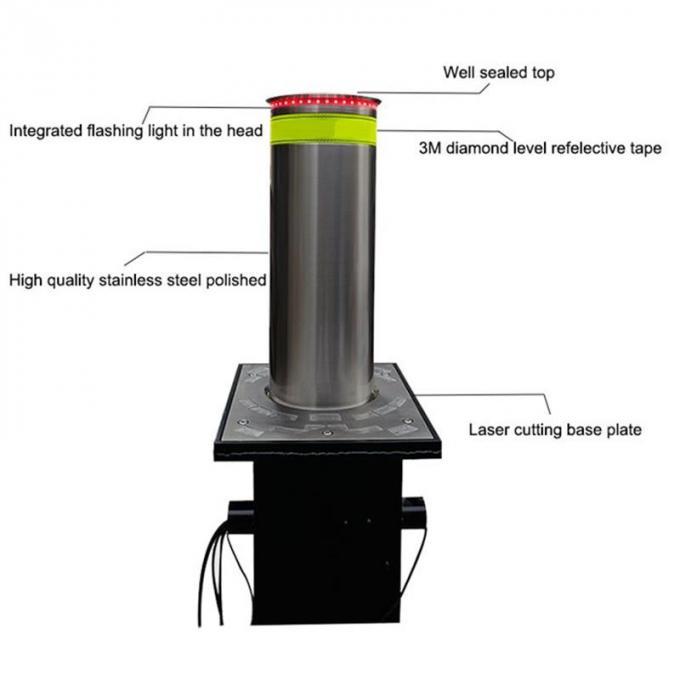

9. LED flashing function, flashing warning during the movement of the column, and warning at night.
10. Sound alarm intermittent alarm sound.

304 Stainless Steel Remote Control Hydraulic Rising Bollards 1.5kW 1

Product parameters



Product name Electric automatic bollard
Control system electric-hydraulic operated
Maximum weight of passing cars ≤8 T
Power supply 220 V (control voltage: 24V)
System power 1.5kW / 2.2kW
Rising time ≤ 4 s (adjustable)
Dropping time ≤ 2 s (adjustable)
Working temperature -35°C ~75°C
Material #304 stainless steel
Diameter of pillar 219mm (168mm, 275mm, 324mm are also available)
Thickness of housing 6mm(8mm, 10 mm are also available)
