Closing Time:
|
2s
|
Material:
|
Stainless Steel
|
|
Opening Time:
|
0.2s
|
Power Supply:
|
AC220V/50HZ
|
|
Product Name:
|
Tripod Turnstile Gate
|
Protection Level:
|
IP54
|
|
Relative Humidity:
|
5%-90%
|
Working Temperature:
|
-15℃~+70℃
|

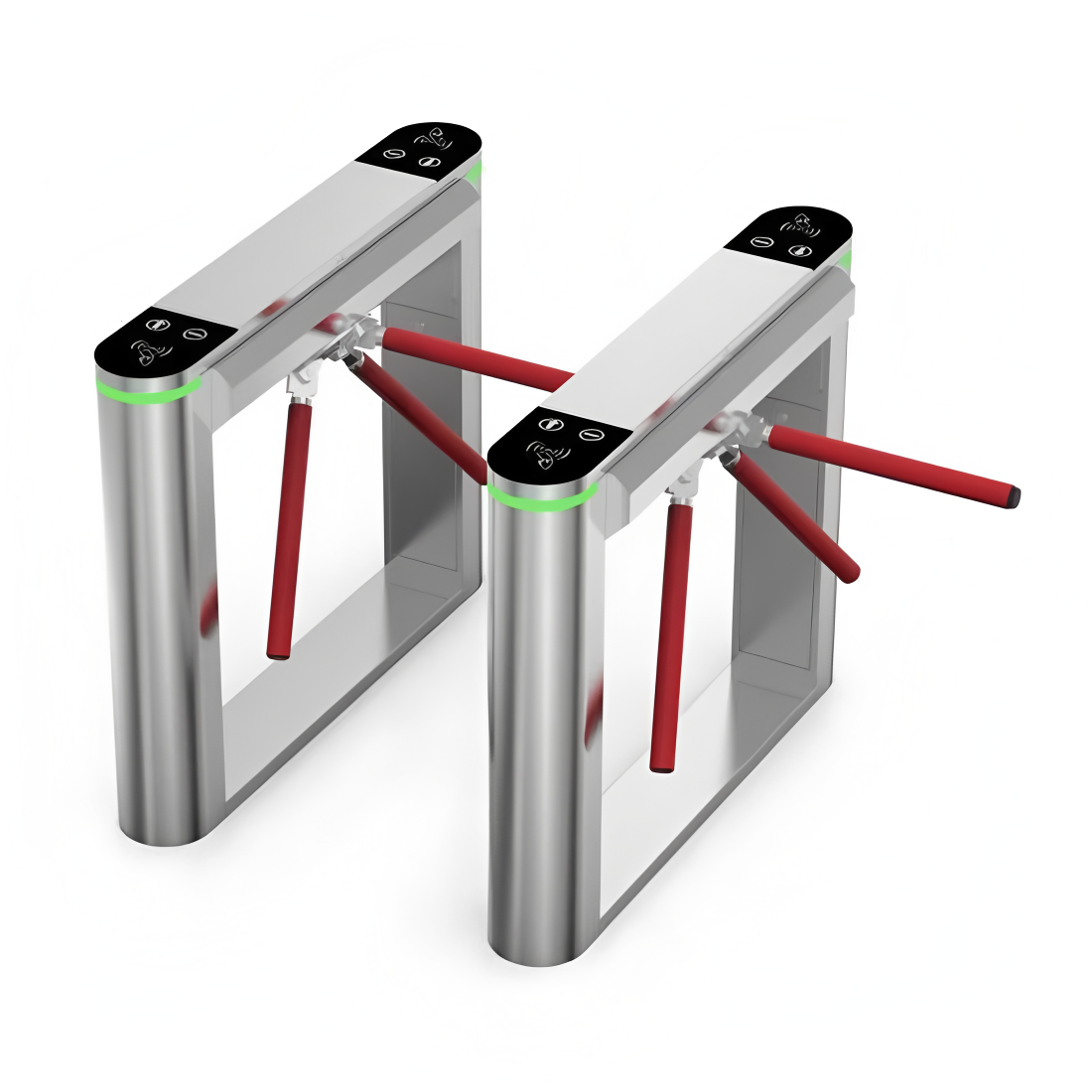

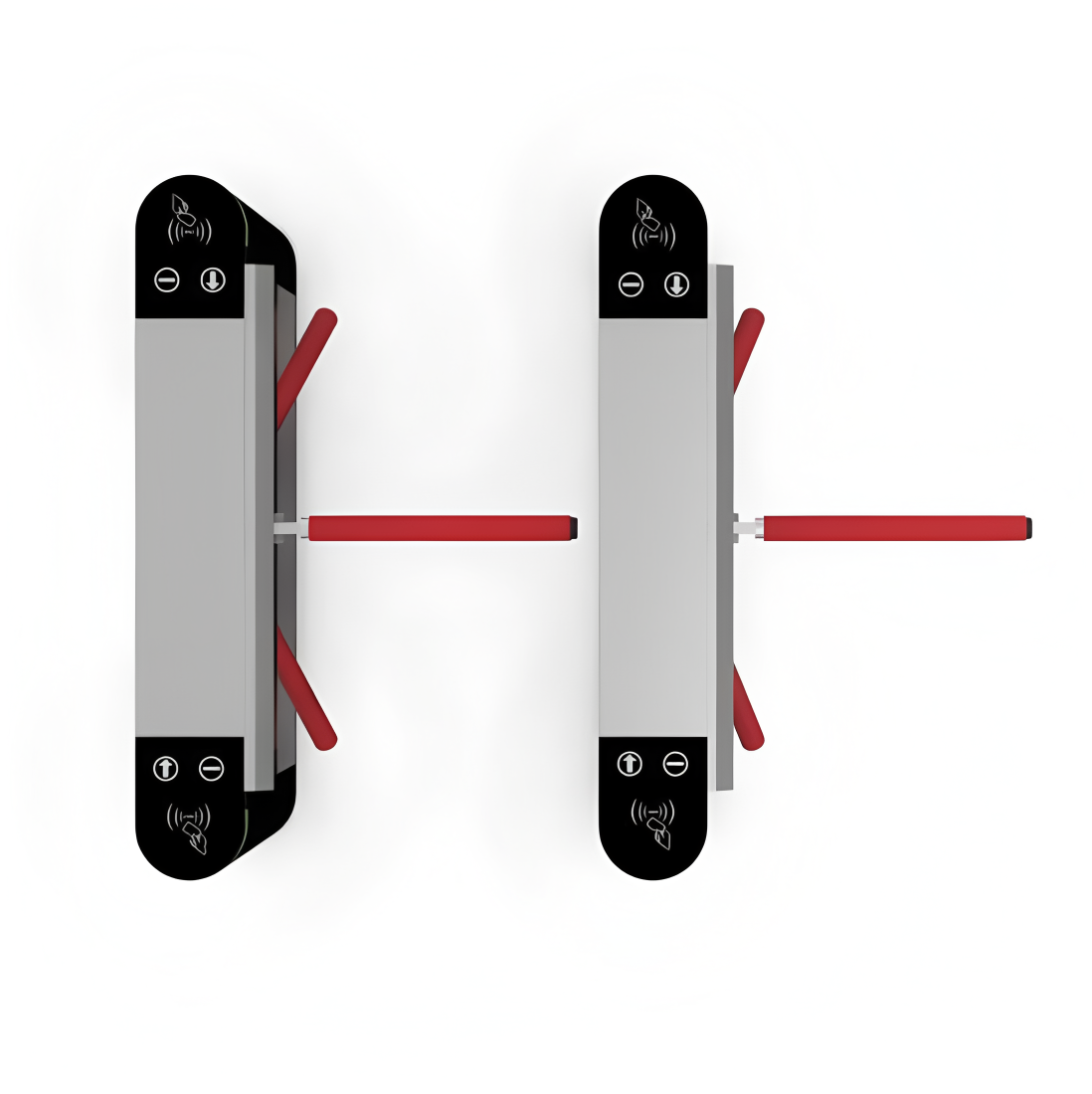

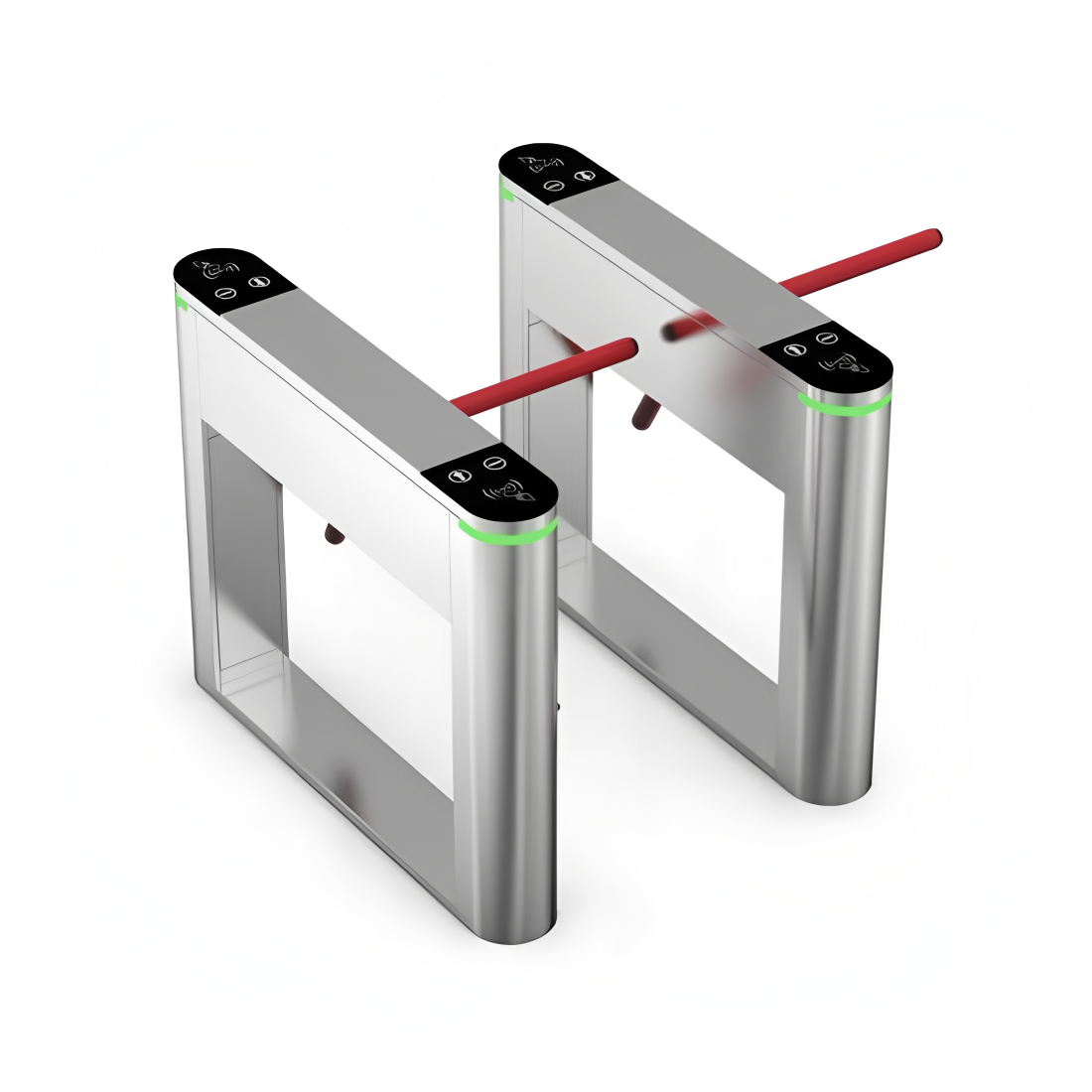

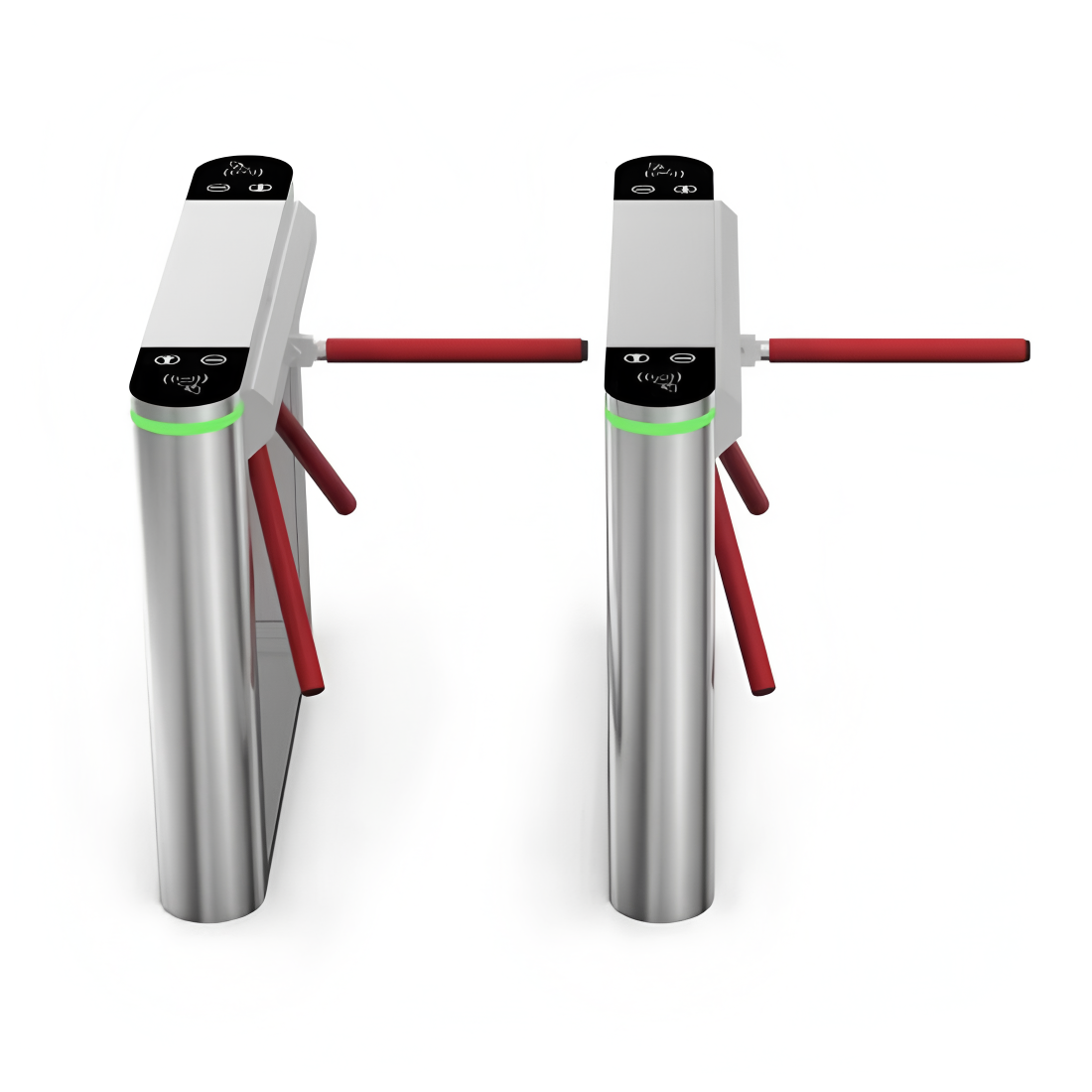

304 Stainless Steel Tripod Turnstile Gate For Secure And Controlled Entrance And Exit
A tripod turnstile is a type of physical access control device used to manage and restrict pedestrian flow into and out of restricted areas. It consists of three rotating arms mounted on a central pivot, forming a tripod-like structure.
Tripod Turnstile Series, also known as three-arm turnstiles, is a type of access control device. Originally imported from abroad, these devices are used as intelligent control terminals for pedestrian entrances and exits. They are specifically designed for areas that require security checks or controlled access, such as cafeterias, hotels, office buildings, museums, stadiums, clubs, subways, stations, docks, and tourist attractions.
1. **Mechanical Turnstile Mechanism**: Tripod Turnstile mechanism requires manual effort to push the arm after the control is released. After one arm is pushed through, another arm stays in a horizontal position through the hydraulic damping device of the mechanism and needs to be released again before it can be pushed. The pushing force required is only 0.5 kg.
2. **Motorized Mechanism**: This mechanism is equipped with a motor inside the turnstile. Once the control is released, the arms move forward at an angle. When a pedestrian comes into contact with the arms, the motor will actively rotate the arms until another arm returns to the horizontal position, completing the passage.
### Optional Features
- Each entrance and control direction can be equipped with a counting device, which can be reset or left as is, and can be either electronic or mechanical.
- Display windows with red prohibition and green passage arrows.
- Display window showing authorized users passing through.
- A heating system for operating temperatures as low as -20°C.
- Integrated coin and identification receivers.
- Enclosed base with stainless steel.
- Stainless steel casing with standard RAL colors.
### Functional Characteristics
1. The entire system operates smoothly with low noise.
2. Features automatic drop arm during power off and automatic rise during power on.
3. Equipped with self-checking functions for devices and circuits, making maintenance convenient.
4. Has a time protection function.
5. Provides passage indication function.
6. Features self-protection and automatic reset functions.
7. Can integrate with various intelligent card systems for parking, access control, attendance, elevator control, and consumption management.
Parameters
| 1. Material | 304stainless steel,Thickness:1.5mm (full thickness) |
| 2. Dimension | L1200*W280*H980mm |
| 3. Channel width | 550mm |
| 4. arm material | Stainless steel ,Standard black foam stick cover,better protection and beauty. |
| 5. movement | Semi-automatic buffer movement, smooth operation, low noise and long service life of the gate |
| 6. Environmental requirements | waterproof model, which can be used indoors and outdoors(canopy). |
| 7.Communication Interface | RS485, Dry contact |
| 8.Passage Direction | Single directional/Bi-directional |
| 9. Traffic speed | ≥ 30 people per minute |
| 10.Opening mode support | swiping card, QR code, ESD, fingerprint, face recognition,etc. |
Product feature
1. Auto replacement function, reposition after person pass by
2.Anti tail function auto-lock once turn 120° .
3. Arms auto drop when power off , insure unblocked when accident
4. Standard electronic interface, remote control through internet which is also could connect variety card readers and receive relay signal to work
5.Diverse control mode optional, changeable due to varying, convenient for your manage
6.Auto alert error function, comfort for user maintain and operate
7. Manual button or remote control ,Bio-directional passage
8. Open signal with memory or with out set function
9.Red and green light to show pass or stop, leisure to exit and entrance
10. The whole system runs smoothly with low noise.
1. Manufacturer
We are the manufacturer. We could accept your customized design on hardware and software.
2. OEM&ODM
Acceptable.
3. Sample order
Our barrier and turnstile accept MOQ 1pc.
Parking management system order MOQ 1 entry and 1 exit .
Parking guidance system order MOQ 100pcs parking spaces.
Accessories, we don't sale the accessories individually. Except already has cooperation before.
Traffic devices not our main products, so we not have any in stock. For this series item order needs to ask the sales about lead time and MOQ.
4. Best price
Be honest, all the best prices are based on your order quantity and detail requirements. If u offer the detail information, we will give all the information and best price you want.
5. Our service
Before you make order to us, our engineer could helps you to make the solution, drawing, installation and wiring diagram etc. Sales could makes the documents based your demands.
After you get the items, our engineer could give remote guidance to install. If you need onsite supports, we also could arrange our engineer to your country.
6. Warranty
We have one year warranty. During one year any problem caused by quality problem, we offer free accessories to repair. Out of warranty, we could offer discounts accessories.
Longer the warranty time is acceptable. Please contact with the sales.
7. Lead time
Standard 7 work days.
Customized based on detail requirements. Normally needs 15-20 work days.
8. Certification
CE and Rohs could be offered. Before make order,please notice us.
9. Training
We'd love to see that our clients could have a training course about our system.
10. Delivery
Suggest delivery by sea. By express and air is acceptable. Please offer seaport, airport or country name.
