Closing Time:
|
2s
|
Material:
|
Stainless Steel
|
|
Opening Time:
|
0.2s
|
Power Supply:
|
AC220V/50HZ
|
|
Product Name:
|
Tripod Turnstile Gate
|
Protection Level:
|
IP54
|
|
Relative Humidity:
|
5%-90%
|
Working Temperature:
|
-15℃~+70℃
|

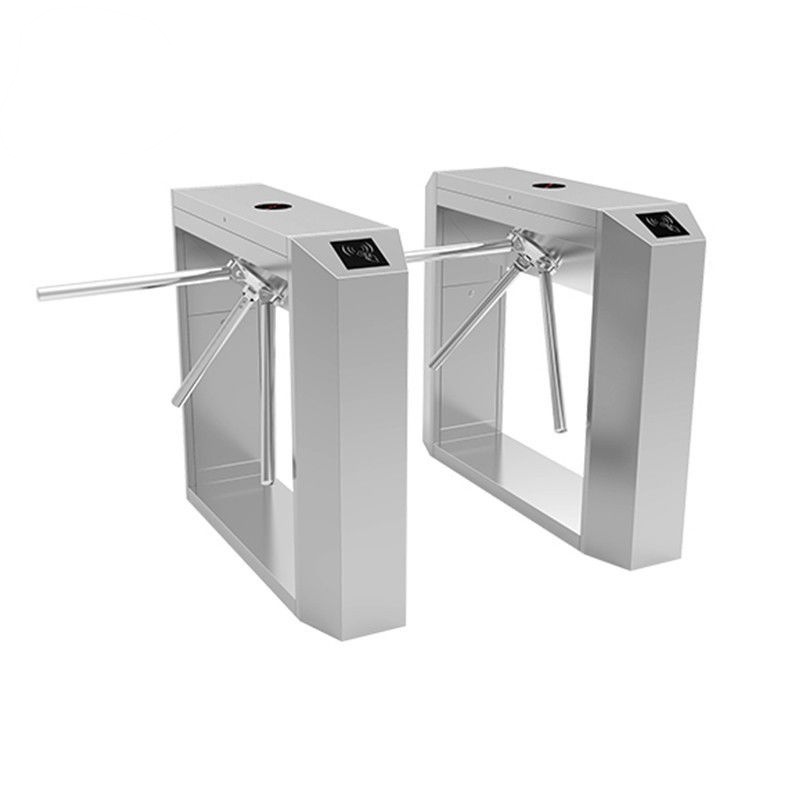

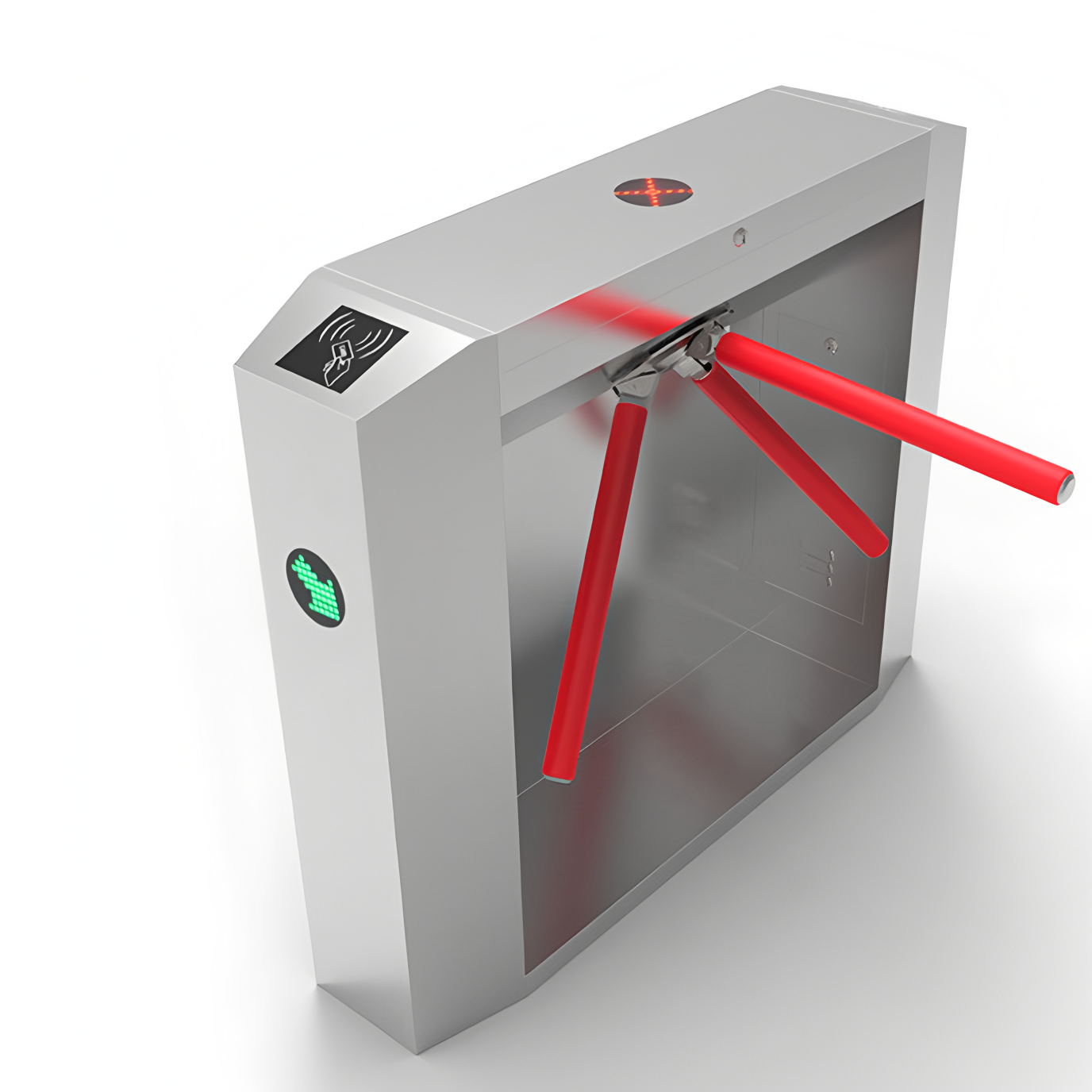

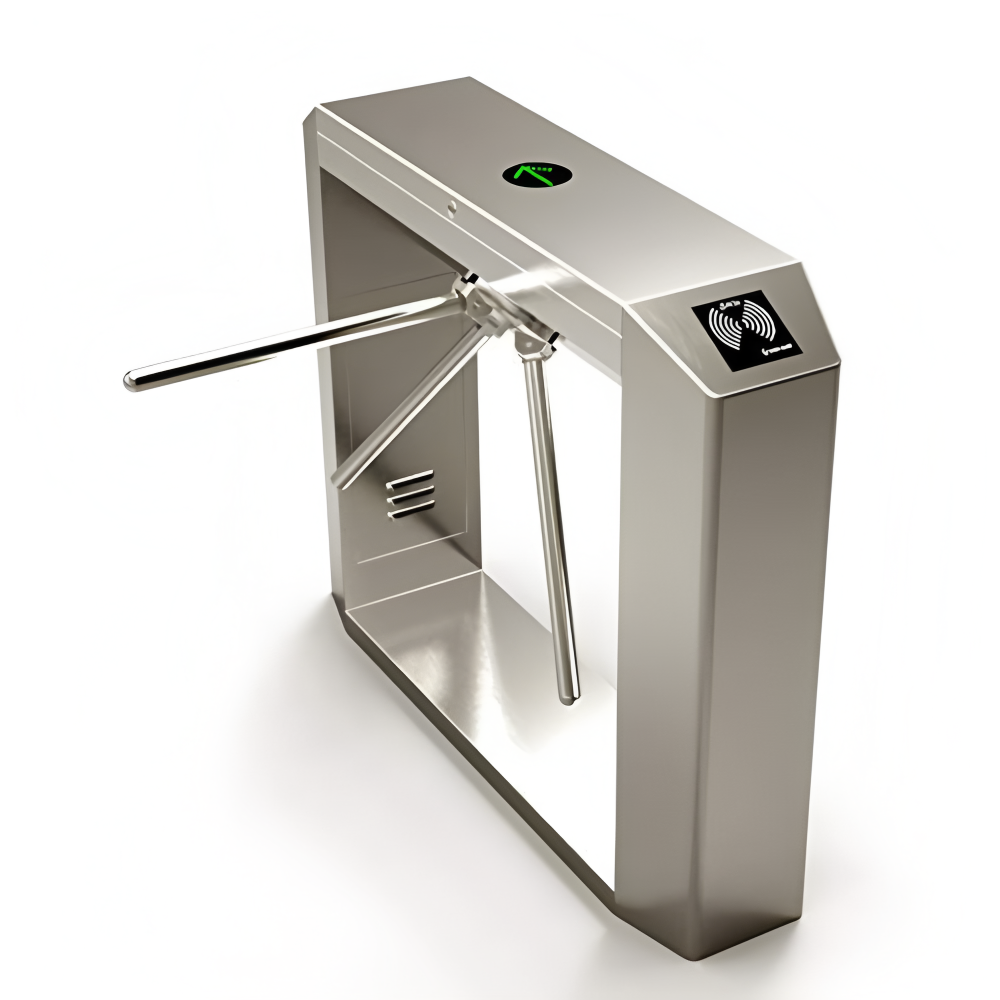

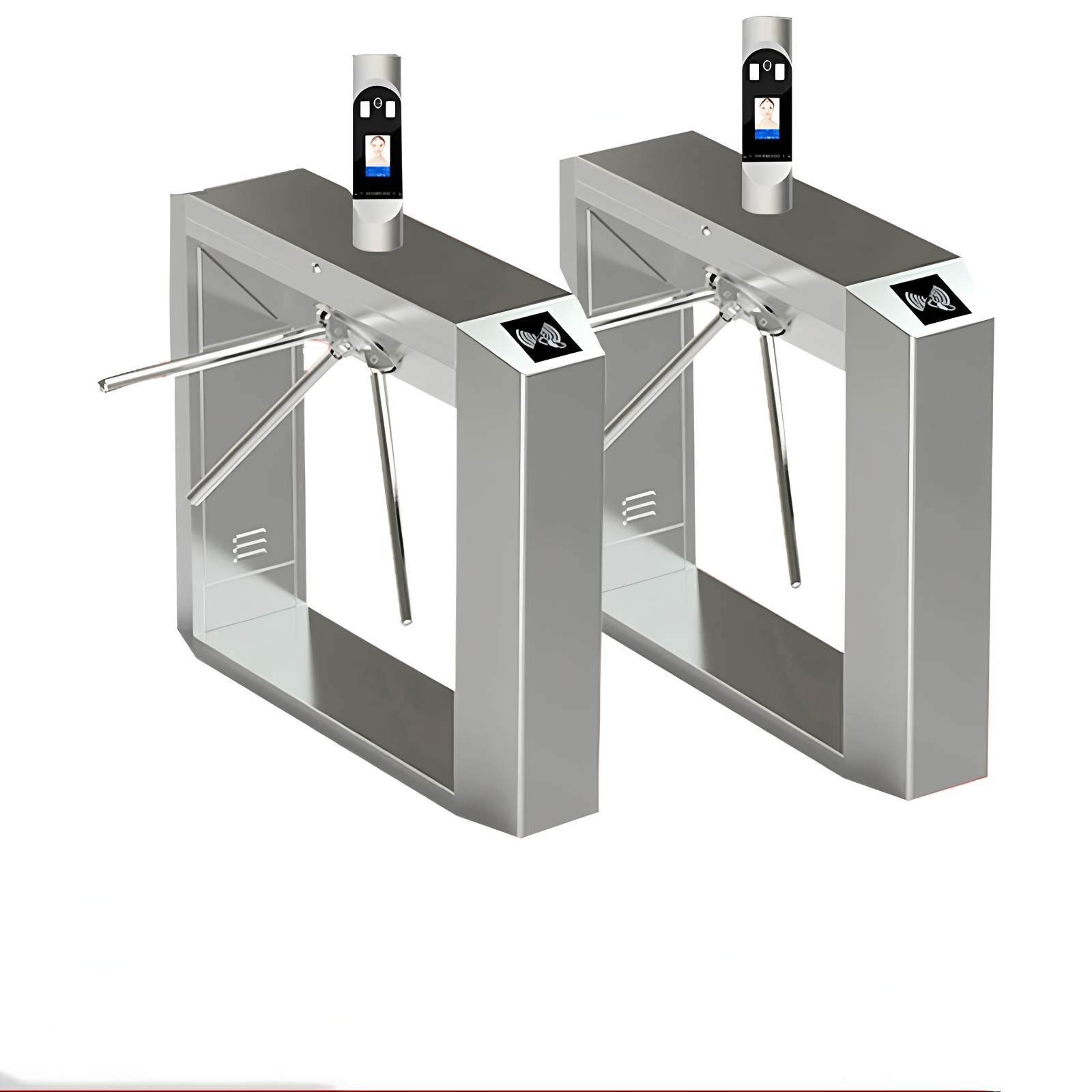

Half Height Vertical Tripod Turnstile Coin Acceptor Gate Cost Effective 304 Stainless Steel
Tripod Barrier Gate The shape of the whole product adopts domestic standard (304) stainless steel plate stamping forming, the shape is beautiful and generous, anti-rust, durable, can resist external damage.It can provide an orderly and civilized way for entry and exit personnel, put an end to illegal entry and exit, the gate pole runs smoothly, low noise, and quickly control the fall or end of the pole in case of emergency.
Parameters
| 1. Material | 304stainless steel,Thickness:1.5mm (full thickness) |
| 2. Dimension | L1200*W280*H980mm |
| 3. Channel width | 550mm |
| 4. arm material | Stainless steel ,Standard black foam stick cover,better protection and beauty. |
| 5. movement | Semi-automatic buffer movement, smooth operation, low noise and long service life of the gate |
| 6. Environmental requirements | waterproof model, which can be used indoors and outdoors(canopy). |
| 7.Communication Interface | RS485, Dry contact |
| 8.Passage Direction | Single directional/Bi-directional |
| 9. Traffic speed | ≥ 30 people per minute |
| 10.Opening mode support | swiping card, QR code, ESD, fingerprint, face recognition,etc. |
Product feature
1. Auto replacement function, reposition after person pass by
2.Anti tail function auto-lock once turn 120° .
3. Arms auto drop when power off , insure unblocked when accident
4. Standard electronic interface, remote control through internet which is also could connect variety card readers and receive relay signal to work
5.Diverse control mode optional, changeable due to varying, convenient for your manage
6.Auto alert error function, comfort for user maintain and operate
7. Manual button or remote control ,Bio-directional passage
8. Open signal with memory or with out set function
9.Red and green light to show pass or stop, leisure to exit and entrance
10. The whole system runs smoothly with low noise.
1. Manufacturer
We are the manufacturer. We could accept your customized design on hardware and software.
2. OEM&ODM
Acceptable.
3. Sample order
Our barrier and turnstile accept MOQ 1pc.
Parking management system order MOQ 1 entry and 1 exit .
Parking guidance system order MOQ 100pcs parking spaces.
Accessories, we don't sale the accessories individually. Except already has cooperation before.
Traffic devices not our main products, so we not have any in stock. For this series item order needs to ask the sales about lead time and MOQ.
4. Best price
Be honest, all the best prices are based on your order quantity and detail requirements. If u offer the detail information, we will give all the information and best price you want.
5. Our service
Before you make order to us, our engineer could helps you to make the solution, drawing, installation and wiring diagram etc. Sales could makes the documents based your demands.
After you get the items, our engineer could give remote guidance to install. If you need onsite supports, we also could arrange our engineer to your country.
6. Warranty
We have one year warranty. During one year any problem caused by quality problem, we offer free accessories to repair. Out of warranty, we could offer discounts accessories.
Longer the warranty time is acceptable. Please contact with the sales.
7. Lead time
Standard 7 work days.
Customized based on detail requirements. Normally needs 15-20 work days.
8. Certification
CE and Rohs could be offered. Before make order,please notice us.
9. Training
We'd love to see that our clients could have a training course about our system.
10. Delivery
Suggest delivery by sea. By express and air is acceptable. Please offer seaport, airport or country name.
