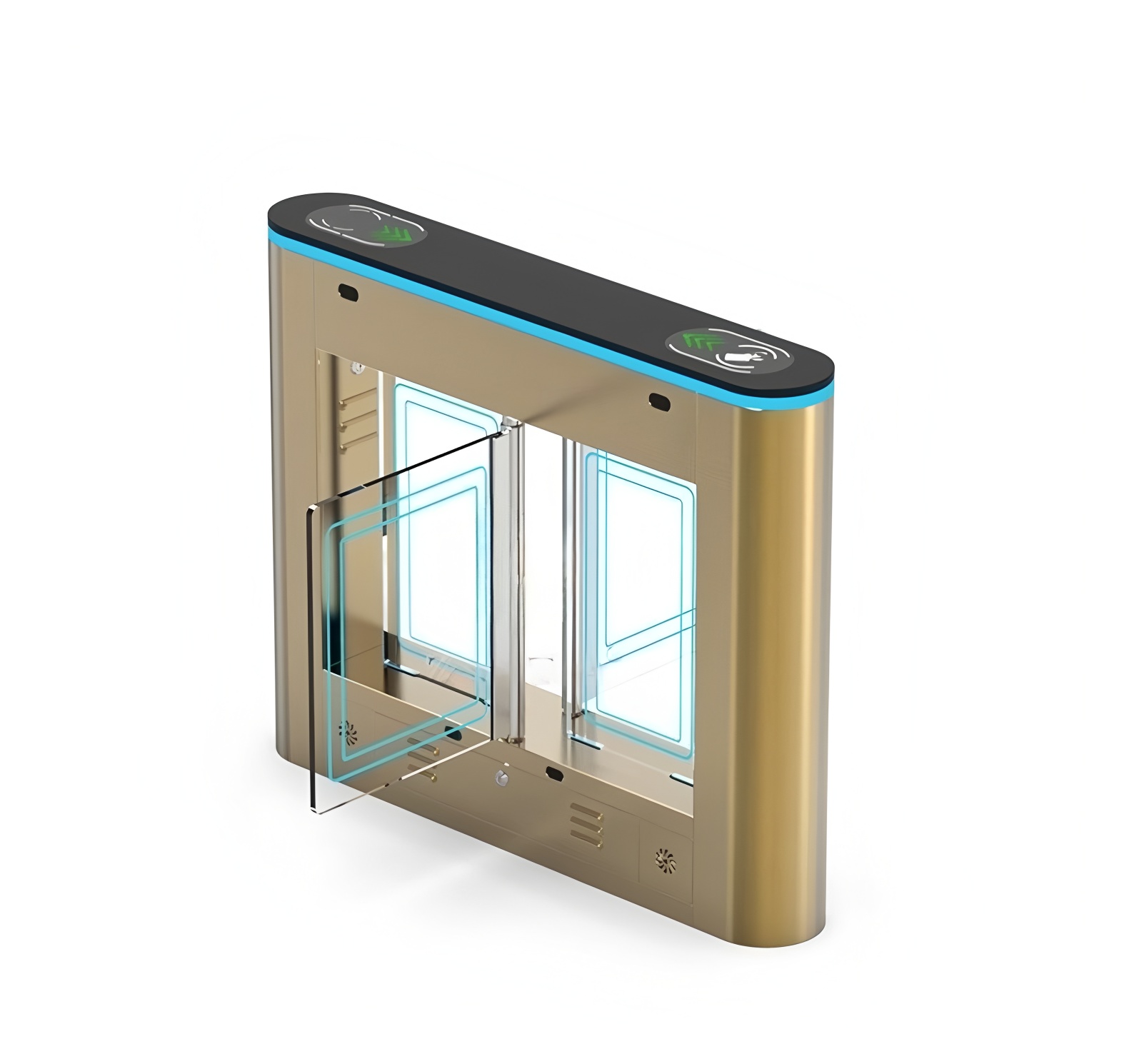

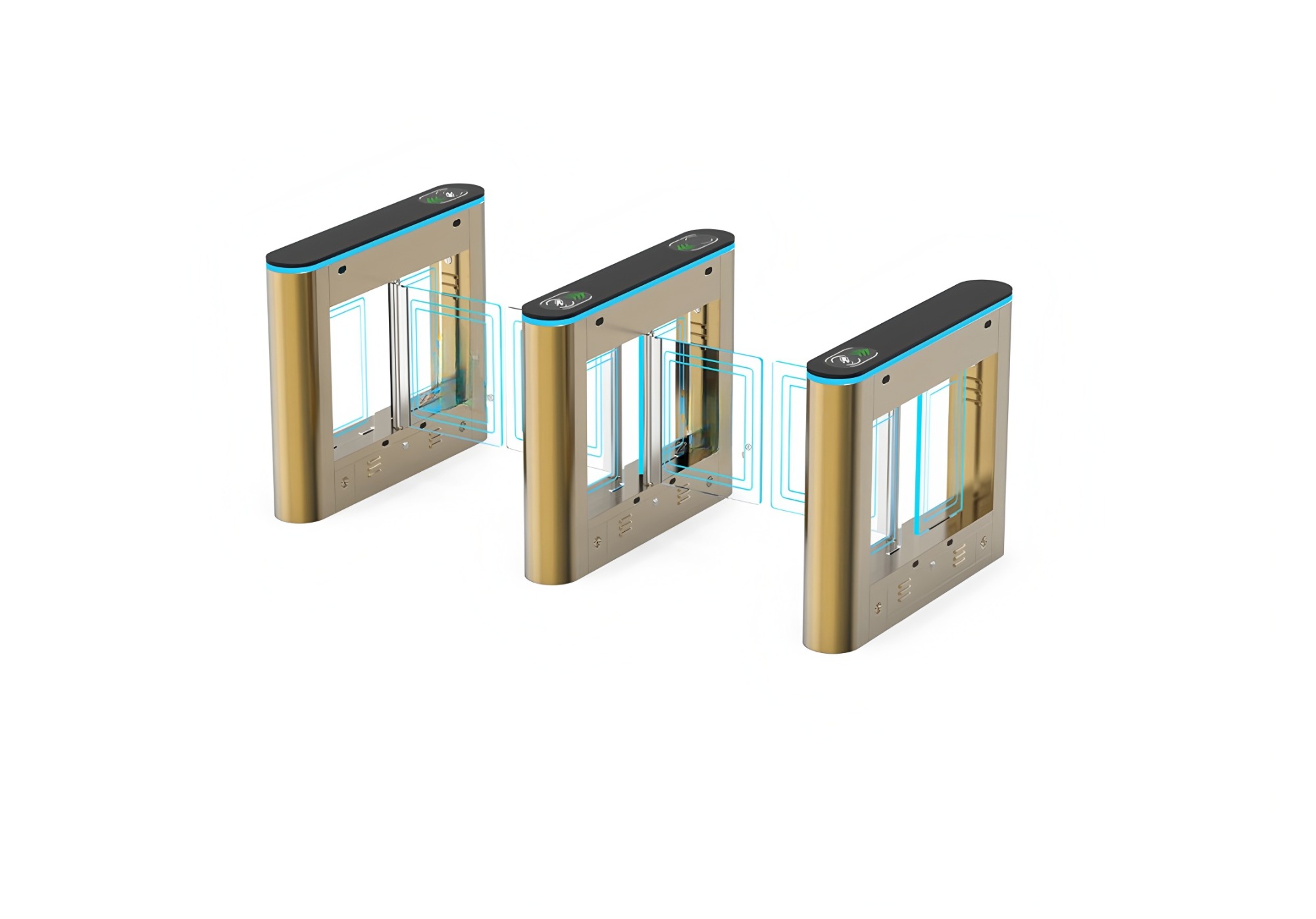

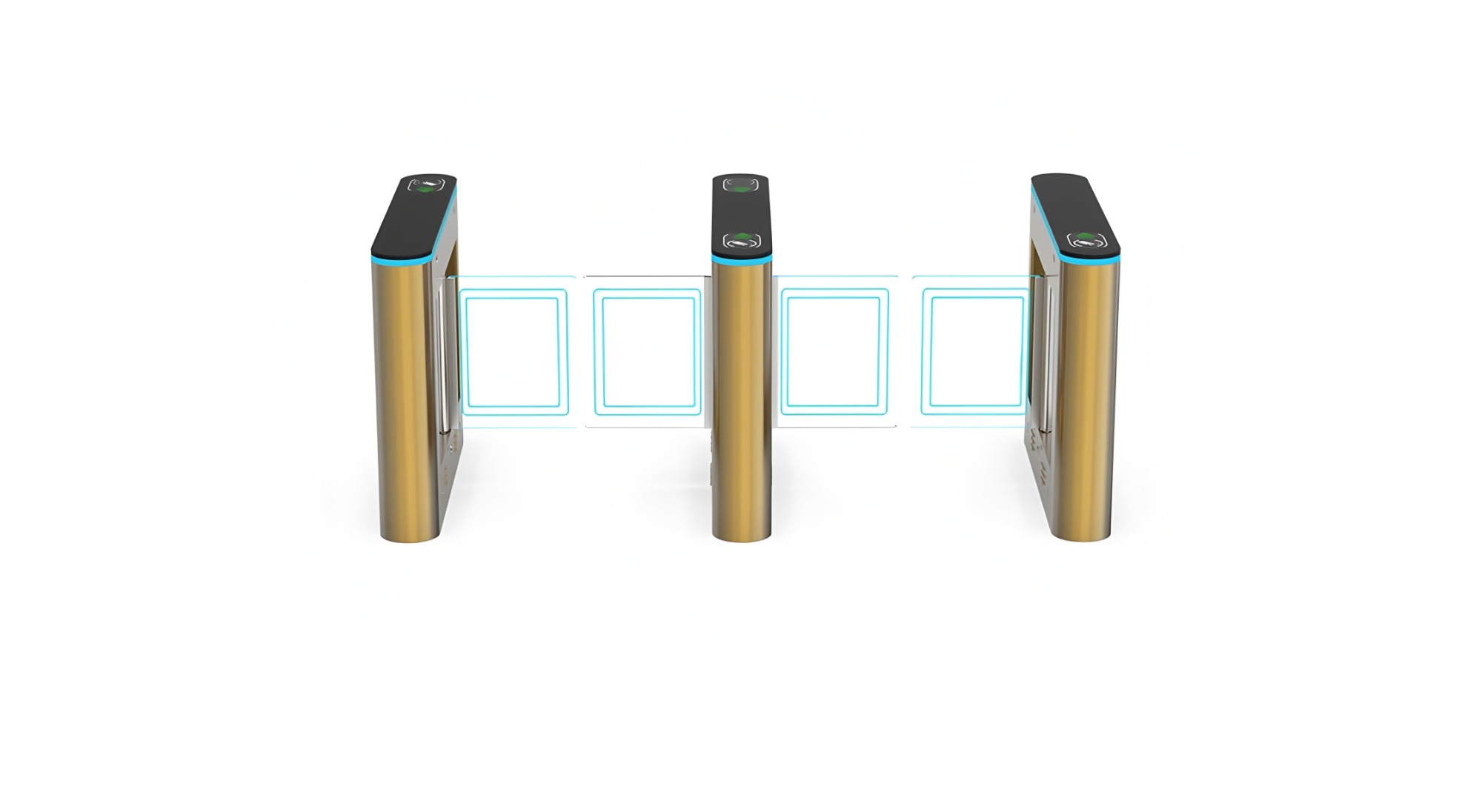

304SS Swing Turnstile Gate with Pedestrian Control System Gym

Swing turnstile series with innovate design, it extensive use in metro, school, office, scenic, gym, factory, residential, supermarket etc.. It can support RFID, fingerprint, facial verification mode. Combine with infrared detector, temperature controller, can widely used in all kind of different environment.
Swing turnstile series can option the crash proof function, turnstile integrated angle coder and clutch, can protect the door while people or bicycle crash it.
The glass swing barrier gate is support combine with QR code reader, card collector, is suitable for the ticketing system apply to gym, club, etc.. Where the place require manager visitors.

Specification
Material 304 stainless steel Dimension 1200*200*980(mm)
Passage width 550mm Net Weight 50KG
Verification mode
Standard: RFID
Option: barcode, qr code, fingerprint facial
Movement
Motor
Power input AC 220V/110V Working voltage DC 24V
Pass rate 35 people/min in RFID mode Unlock time ≤0.2
qr code turnstile pedestrian swing gate barrier

Features
1. Door will keep opened automatically while power cut off.
2. Direction of through is adjustable, one-way, bi-direction.
3. LED direction indicator
4. Anti-pinch function
5. Anti-tail, prevent people follow pass without verified
6. Use super capacitor instead of backup battery for gate open with electric cut off, without shipping problem with battery.
7. Prevent wrong direction pass, go through wrong direction will be alarm by beep
8. Option RFID access controller, fingerprint reader, facial identify reader, qr code reader, barcode reader, consume system.

Scope

Access control system: Combine with rfid/fingerprint/veins/facial readers, apply to factory, school, dormitory, residential, construction site.

Ticketing system: Combine with rfid/QR code/barcode readers, apply to public park, tourism area, subway, bus station, air port, dock, play ground, gym, cinema, cantine.

Consumption system: Combine with IC card readers, apply to super market, canteen, gym, subway, bus station.

Time attendance system: Combine with rfid/figerprint facial/veins readers, apply to factory, office, school, etc..

Construction system: Combine with CCTV/LED screens, apply to construction site for safety.

ESD system: Combine with profession ESD tester for factory, special area entrance.
