Cabinet Material::
|
304/316 Stainless Steel
|
Dimensions::
|
Cabinet:1400*120*965mm
|
|
Motor Type::
|
Single Motor/double Motor
|
Weight::
|
70KG
|
|
Arm Length::
|
200-300mm
|
Passage Width::
|
550-600mm
|

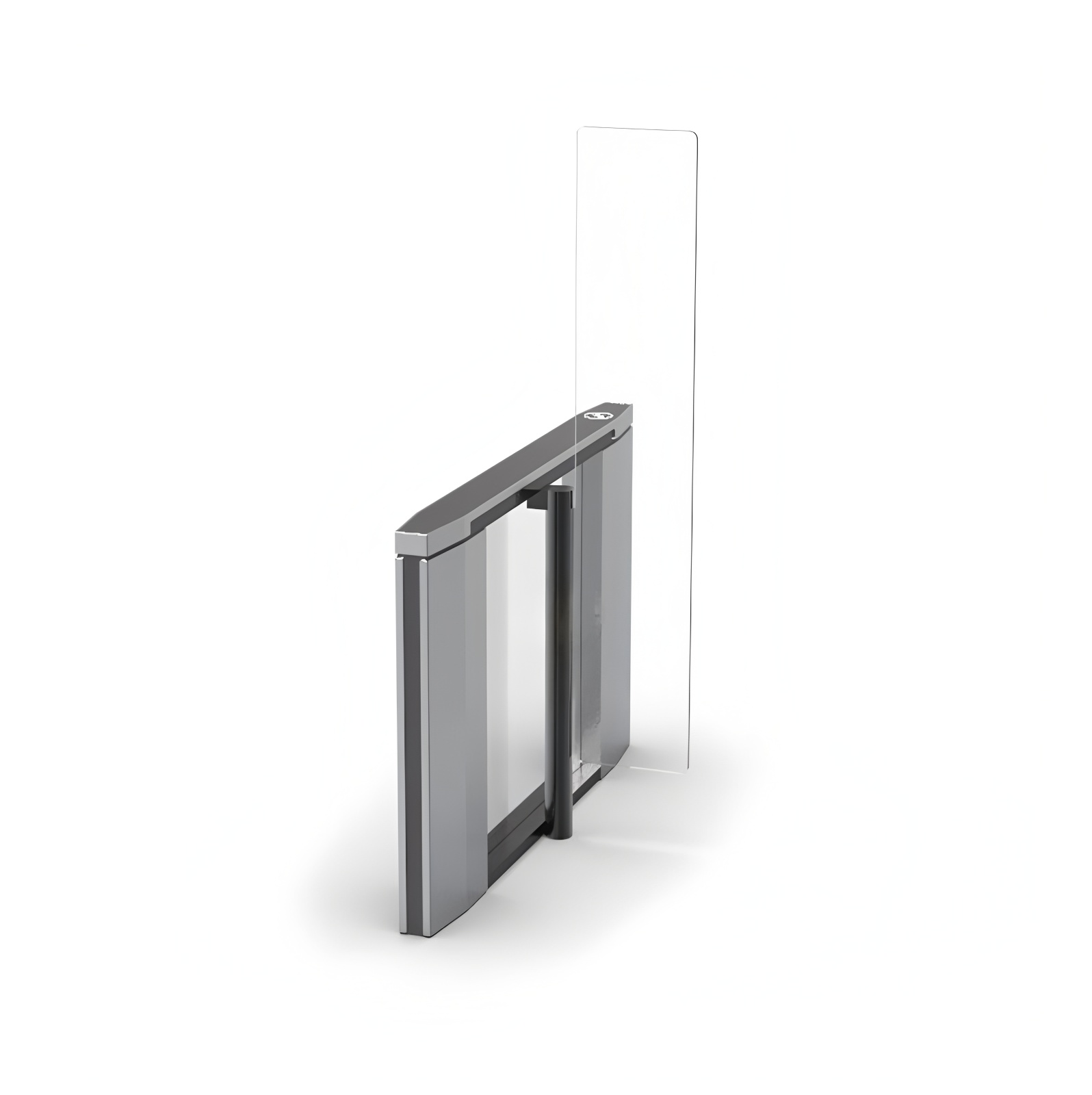

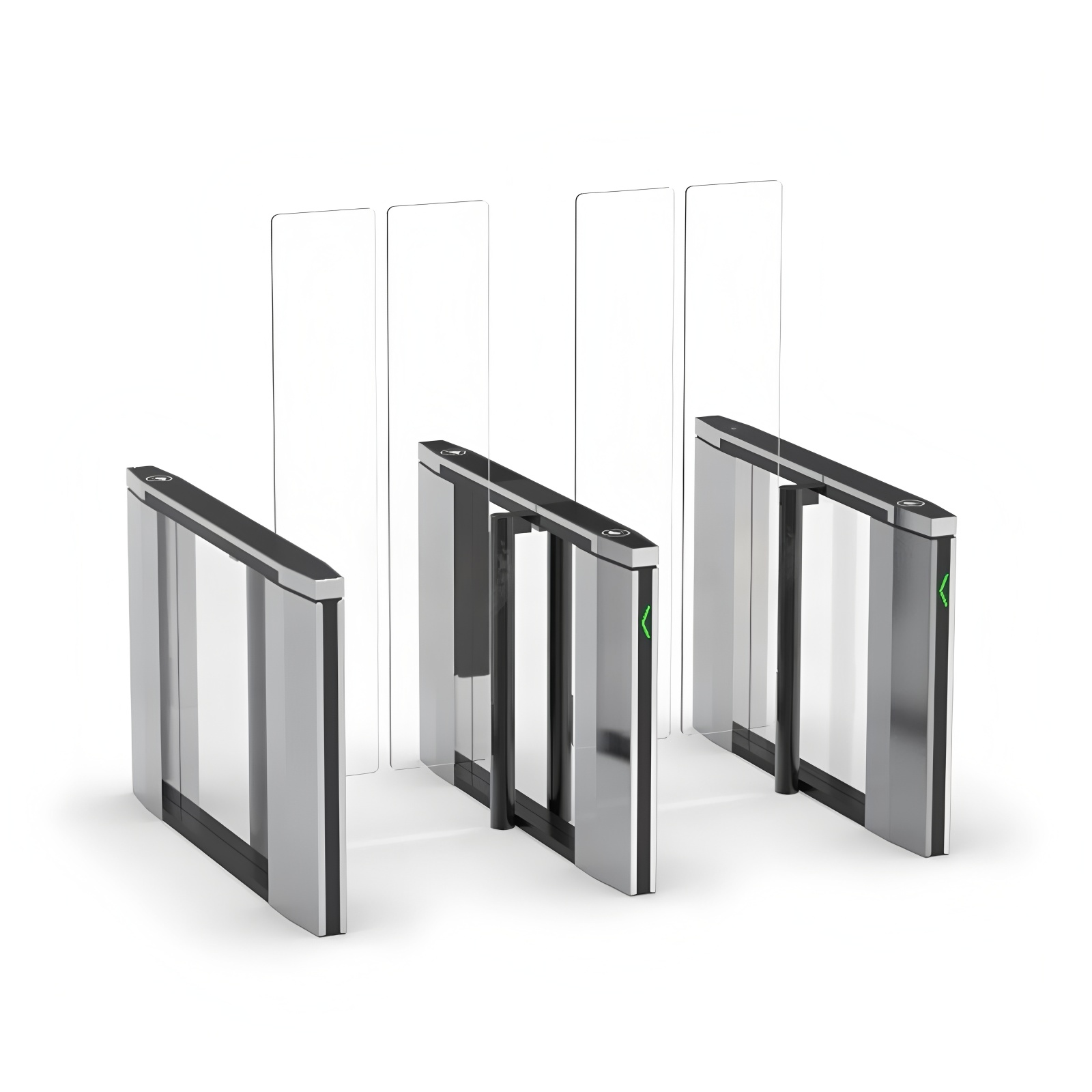

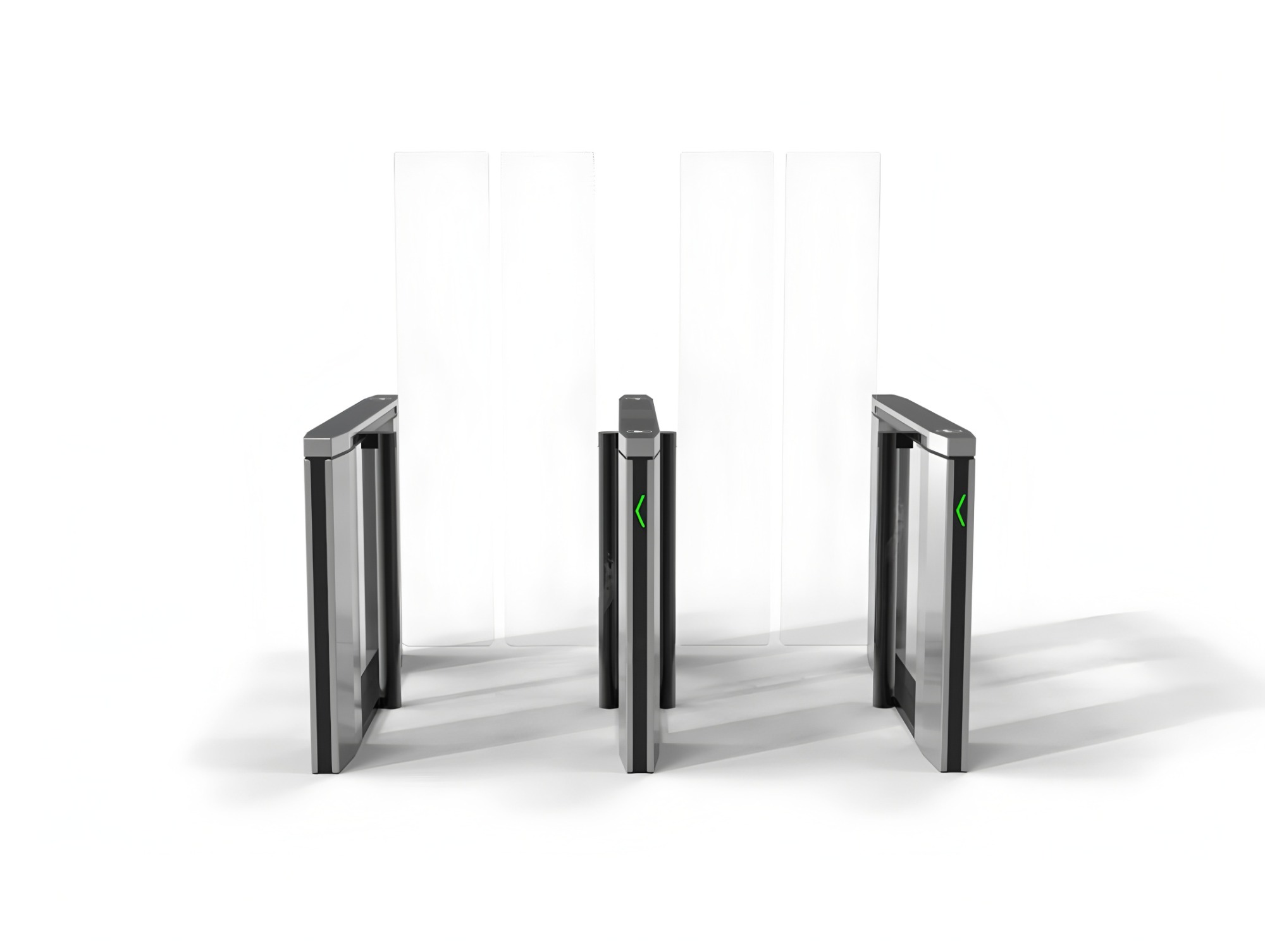

Shenzhen Speed Gate Turnstile Outdoor Luxury Face Recognition&Fingerprint
Speed Lane Turnstile developed by operates quite swiftly and safely, it is very suitable for area where there is a large flow of people.The machine organically integrates machinery, electronics, microprocessor control and a variety of identification technologies, conveniently compatible with access control systems, bar code cards, biology identification equipment. The machine provides a high level of security and high capacity by adopting reliable security protection devices, alarm devices, direction indicators, etc.
Dry Contact: 12V
Material Thickness: 1.5mm
Card-reading Window: Two
Direction: Bi-directional
Service Life: 5million times
Operating Temperature: -25℃ ~ +60℃
Related Humidity: ≥90%RH
Communication Interface: TCP/IP
Power Supply: AC 220V/110V ±10% 50/60MHZ (optional)
Opening Speed: 45-65 persons per minute
Closing Speed: 45-65 persons per minute
MCBF: ≧10,000,000 times
Gate opening time: 0.2s
Drive motor: DC 24V Brushless Servo motor
Passage direction: Bi direction
Compared with other turnstile gates, speed gate turnstile owns strong advantages relying on its obvious speed advantage, brings great convenience and comforts for people’s lives. Its gate is driven by control system to achieve automatic opening and closure and can select operational mode by program settings.
Size:
