Closing Time:
|
2s
|
Communication:
|
RS485/TCP/IP
|
|
Lifespan:
|
5 Million Times
|
Opening Time:
|
0.2s
|
|
Passage Speed:
|
30-40 Persons/min
|
Passage Width:
|
550mm
|
|
Power:
|
50W
|
Protection Level:
|
IP54
|
|
Size:
|
1200mm(L) X 300mm(W) X 980mm(H)
|
Working Temperature:
|
-20℃~+70℃
|

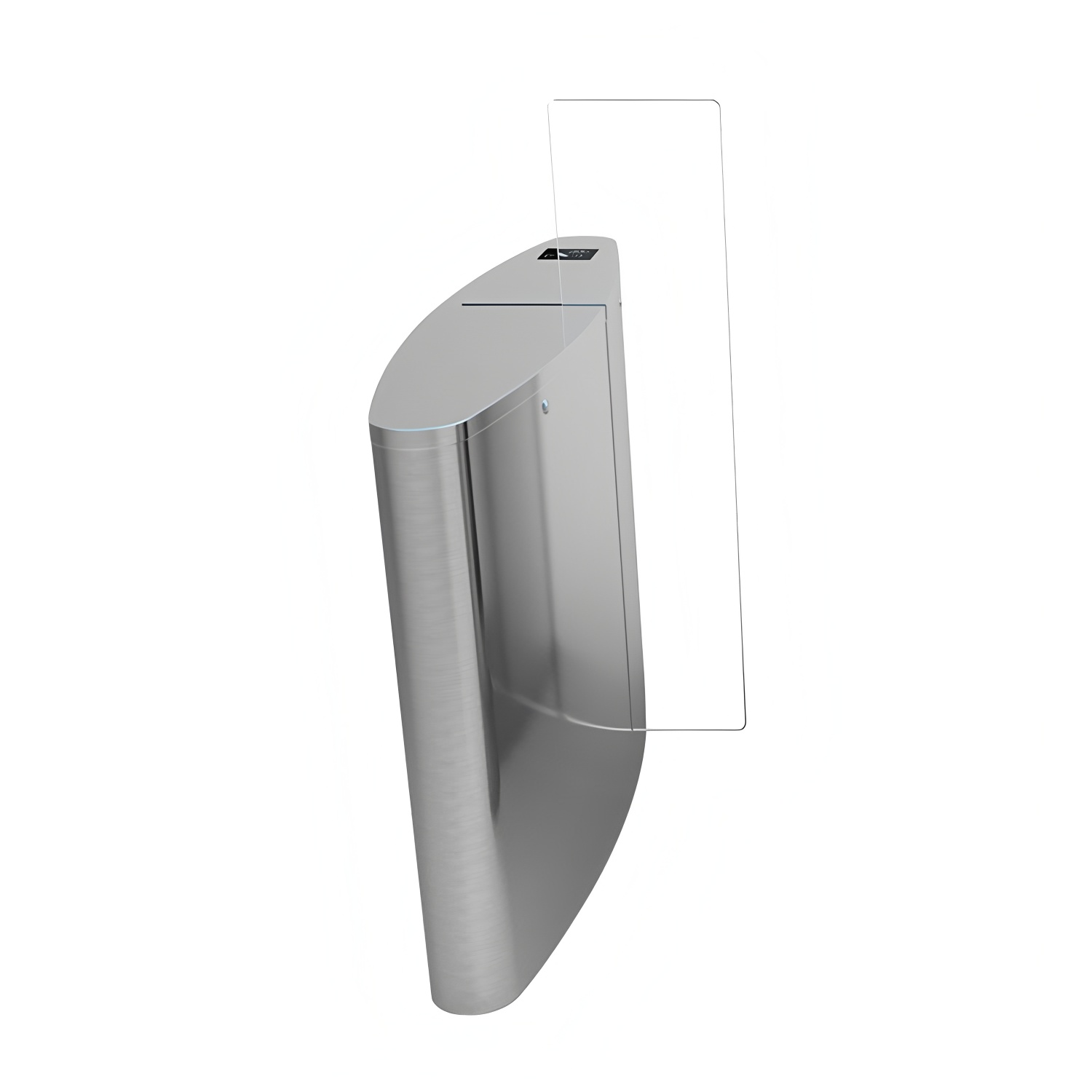

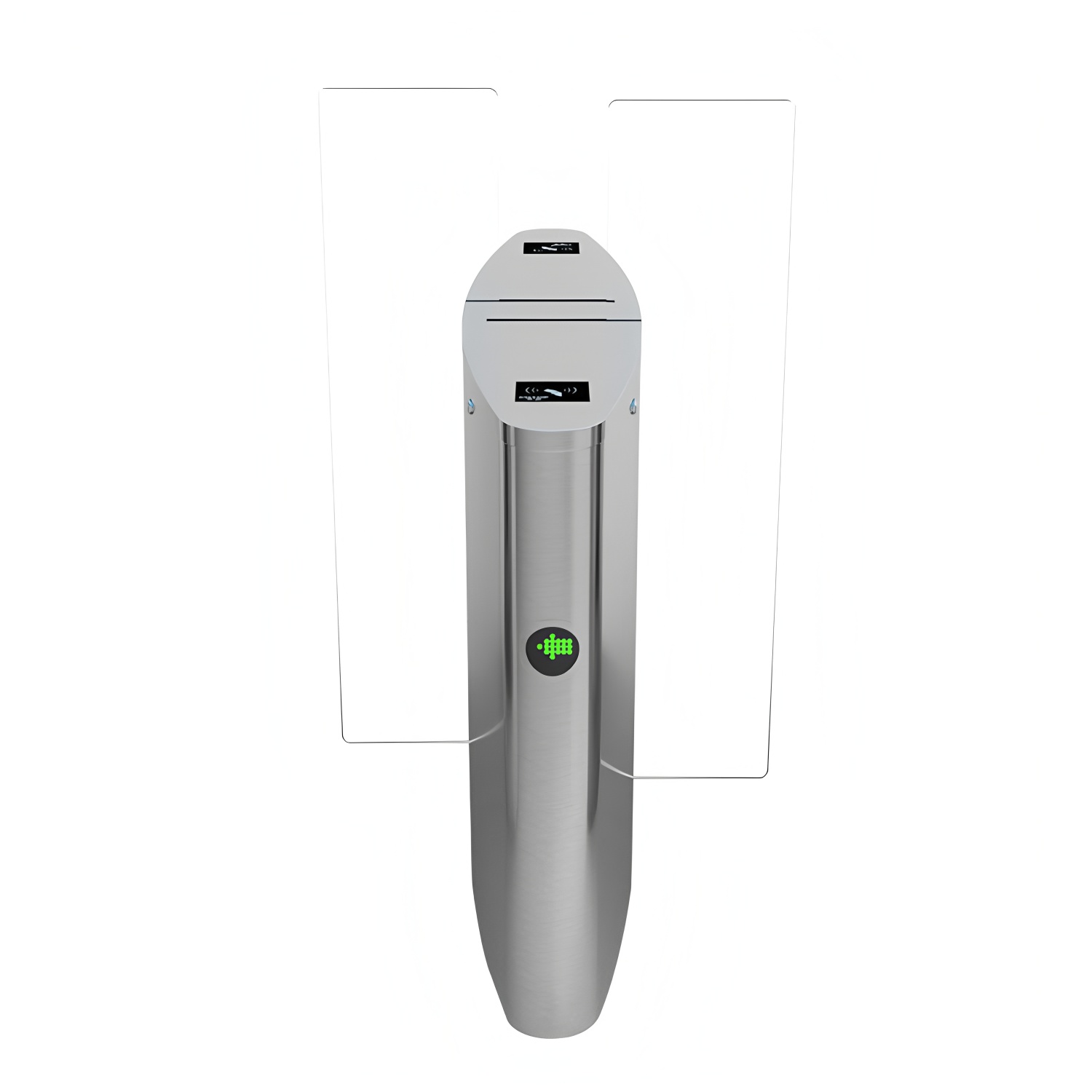

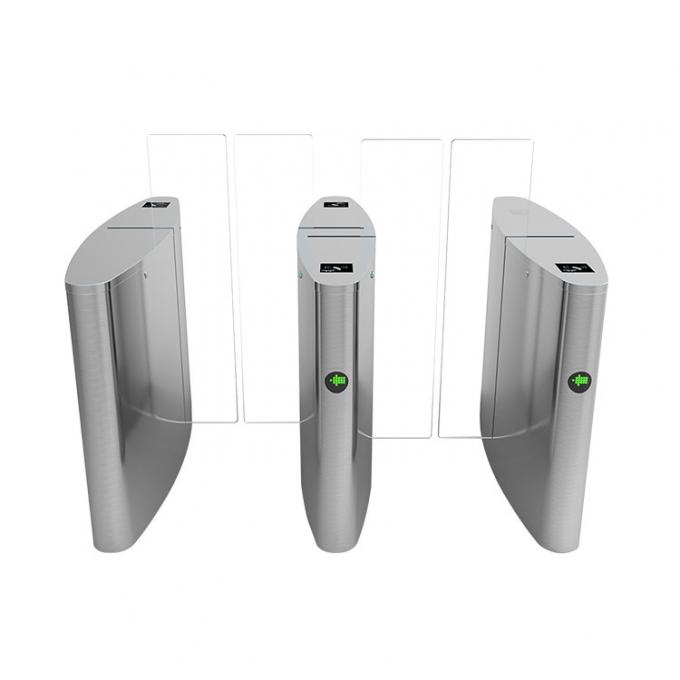

Sliding Gate Turnstile
Feature
1. By using 6 pairs of military level high-performance infrared sensors and exact algorithms.
2. Using the multiple anti-clamping designs to protect the personal safety of passengers in maximum limit
3. Equipped with the dry contact signal input interface, compatible with all kinds of access controllers.
4. It will alarm when break in illegally, followed by people,passed overtime,damaged for equipment.
5. After swiping card in normal condition, if within the permitting time passages do not pass, the system will cancel the users’ pass right and arm close automatically
6. Arm automatically open when the power off to make sure safety In case of emergency
7. Optional for external counter to record the people numbers for each lane
Product Specifications
| Product name | Sliding turnstile |
| Dimensions | 1400*340*1000mm |
| Infared Sensors | 4 pairs |
| Passage width | 600mm |
| Motor drive | DC motor/Brushless motor |
| Normal work life | >10000000 times |
| Opening transit speed | 25-35 persons per minute |
| Reading mode | IC/ID card ,Fingerprint , face recognition |
| certificate | CE support |

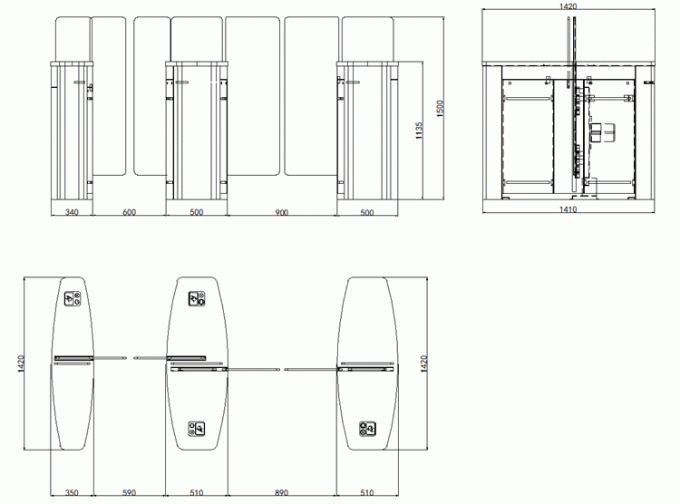

Product Size
