Access Control Automatic Tripod Turnstile And Access Gate Entrance Security System

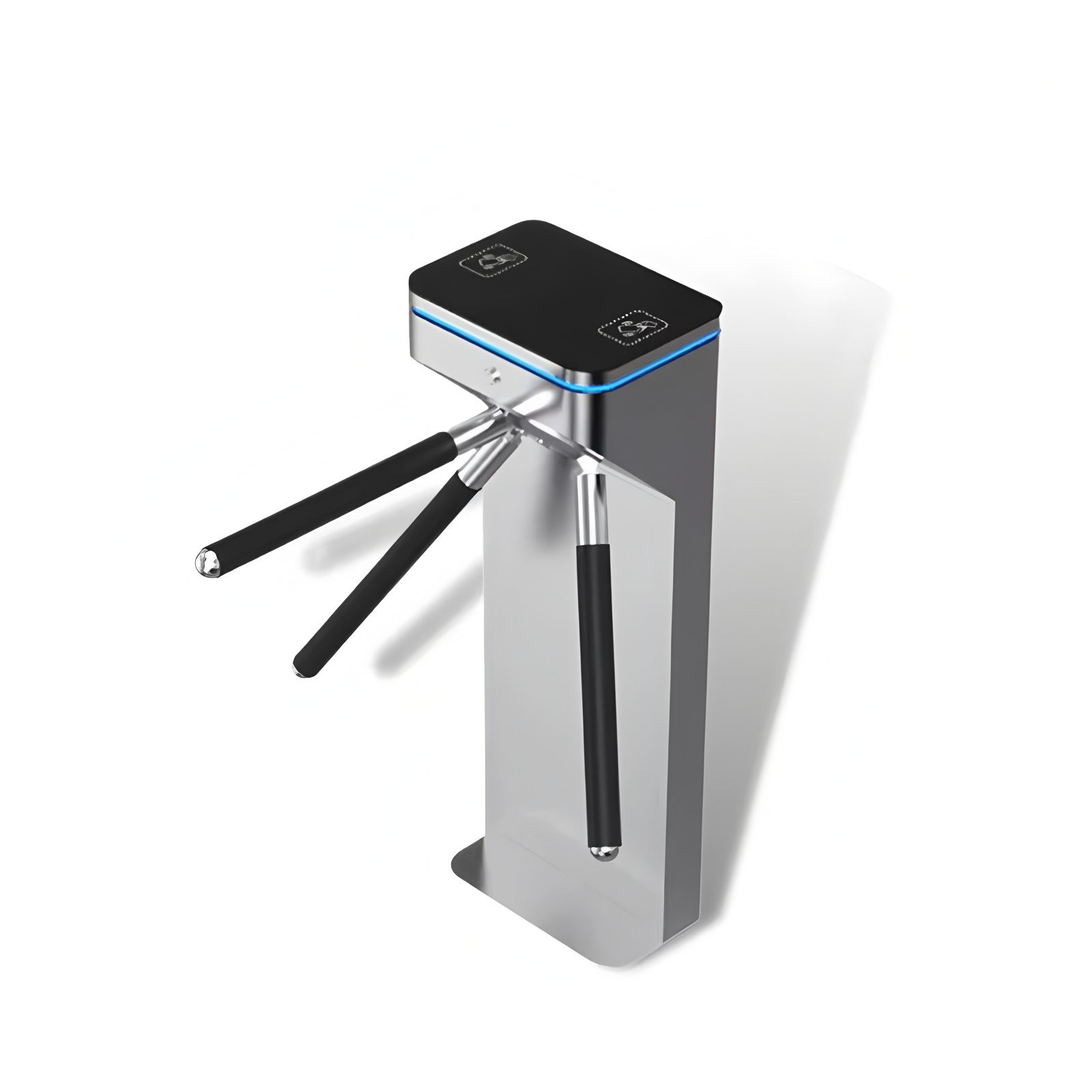

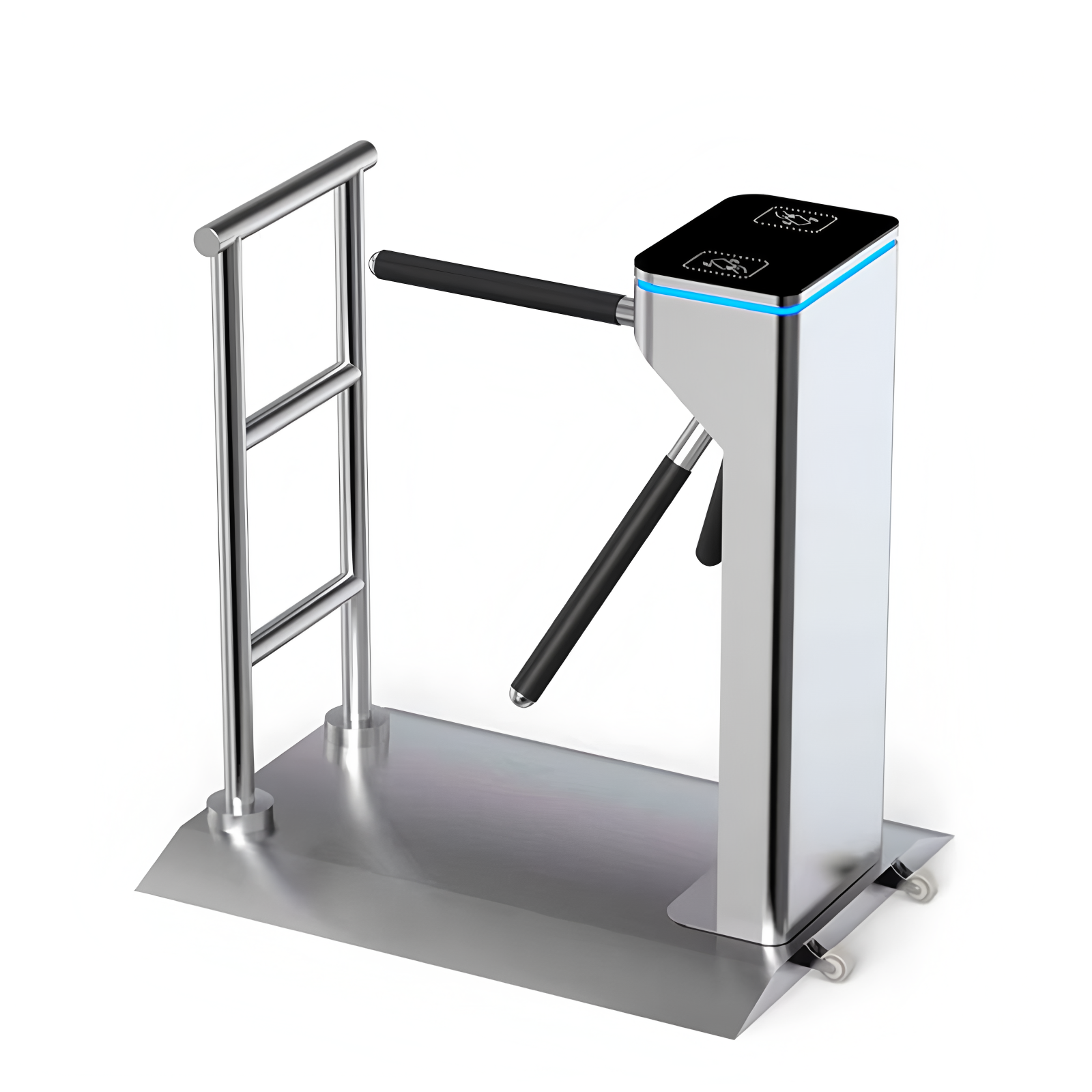

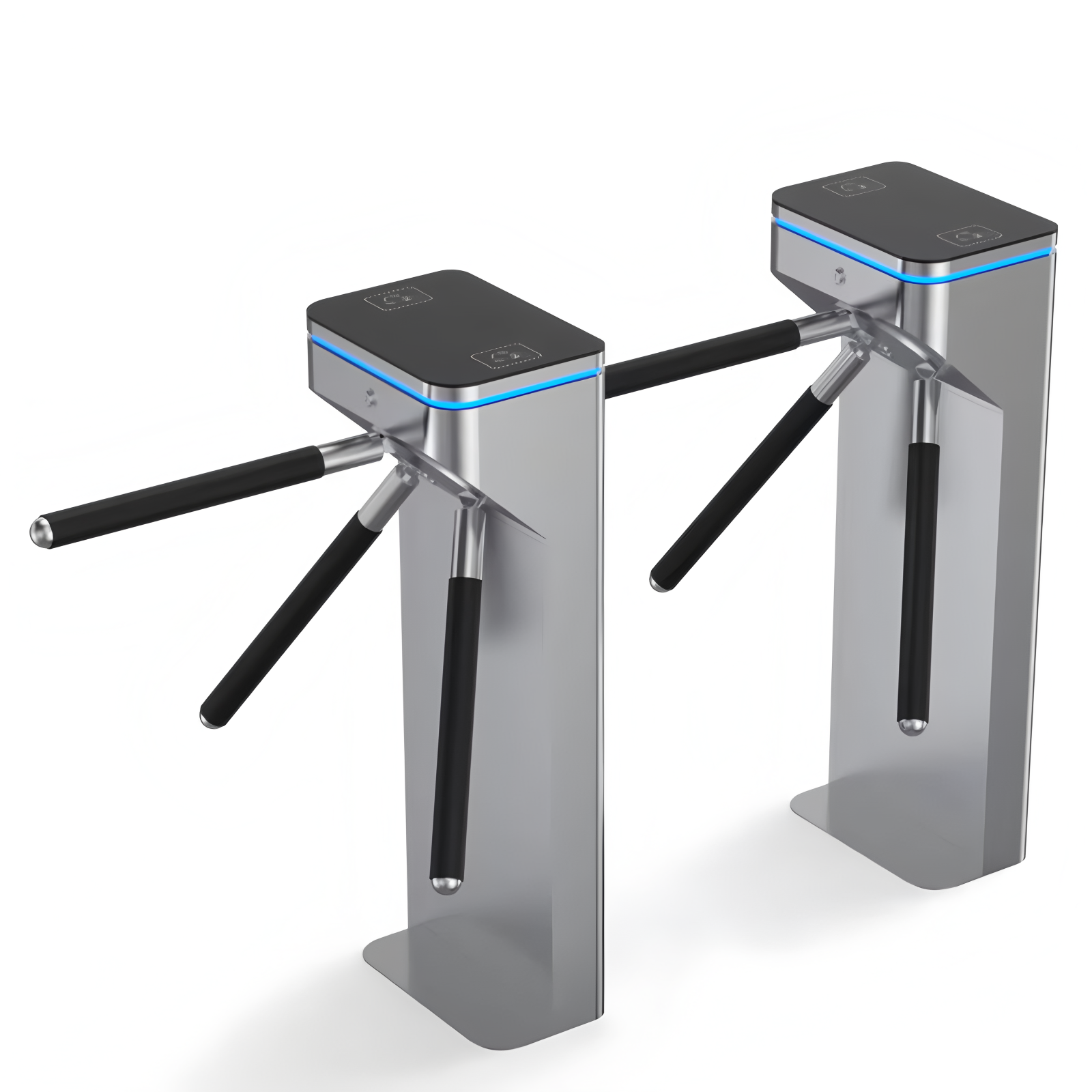

Tripod Turnstile Features
Cardlan tripod turnstile is also called a three-roller gate, a tripod turnstile gate, etc. tripod turnstile's application system is included in most systems such as property management system, scenic area management system, energy consumption management system, etc., and tripod turnstile application scenarios are also very wide, including office buildings, corporate parks, scenic area management, amusement parks and other usage scenarios. Tripod turnstile is usually made of 304 stainless steel, which is characterized by strong durability and not easy to deform. It can be stopped or released by rotation. The tripod turnstile gate can be divided into three types according to the type: mechanical, semi-automatic and automatic. According to the mode, tripod turnstile can be divided into three types: vertical tripod turnstile gate, circular arc tripod turnstile gate, and bridge tripod turnstile gate. Among them, the vertical type is small in size and is suitable for relatively small parks. Tripod turnstile is relatively cheap and easy to install. The standard size of the bridge and arc is 1200mm long*280 wide*980mm high.
1) The unique incomplete gear transmission system makes the tripod turnstile gate lock and unlock more accurately and reliably at zero position.
2) The whole system runs smoothly, with low noise and no mechanical shock.
3) Tripod turnstile has a self-check function for incoming calls and automatically restores to the locked state.
4) There are multiple working modes to choose from, including two-way card reading, card reading on one side and prohibition of the other direction, card reading on one side and free passage in the other direction, and the gate working mode can be set through the mainboard menu.
5) Tripod turnstile has the function of power-off drop and power-on manual pole raising.
6) Tripod turnstile has 485 remote control drop and pole raising functions to meet the special needs of users and fire safety requirements.
7) Tripod turnstile has a unified and standard external electrical interface, which can be connected with various reading and writing devices, which is convenient for system integration, and can be remotely controlled and managed through the management computer.
8) Tripod turnstile can automatically count the number of people passing in the direction of passage and present it to the manager in an intuitive LED (optional) way, so that the manager can know the number of people passing in a certain direction.
9) Tripod turnstile has a clear direction indication function, and uses intuitive LED passers-by to indicate whether passage is allowed or prohibited.
10) Tripod turnstile has card reading with memory and without memory functions, and users can set it through the motherboard keyboard according to their needs.
11) Through software settings, the total number of people inside the venue can be limited to meet the special needs of some special occasions.
12) Tripod turnstile has an automatic reset function. When the passer-by does not pass within the specified time after reading the card, the system will automatically cancel the passer-by's access rights for this time, and the restricted access time can be set by the management personnel.
|
Physical dimensions (mm): |
1200(Length) * 280(width ) * 980 (height) customized optional |
|
Cabinet material : |
SUS304 stainless steel; Surface brushed treatment; Anti-fingerprint |
|
Material thickness (mm): |
1.2 |
|
Width of passage (mm): |
550 (standard passageway) |
|
Rotary rod dimension(mm): |
510(standard) |
|
Rotary rod motion mode: |
Double-way rotation |
|
Gate open and close responding time: |
＜0.1 seconds |
|
Gate running speed: |
Rad/s (adjustable) |
|
Average times of failure-free operation : |
≥5,000,000 cycles |
|
Pass speed: |
≥25/minutes (Normally closed type) |
|
Application environment |
Indoor/outdoor |
|
Operation temperature: |
- 30°C~60°C |
|
Operation humidity : |
≤90%, none condensation |
|
Power supply: |
AC220V±,50Hz |
|
Average power consumption (W): |
60 |
Analysis of the advantages and disadvantages of the tripod turnstile
1. The advantages of the tripod turnstile
1. Tripod turnstile has a strong preventive effect and effectively realizes a single way of passage. Only one person is allowed to pass at a time, which has strong safety and reliability.
2. The cost of the tripod turnstile is low, and one tripod turnstile can form a channel.
3. Tripod turnstile has strong dustproof, waterproof and environmental adaptability, and can be used indoors and outdoors.
2. Disadvantages of the tripod turnstile
1. The width of the pedestrian crossing is relatively small, only about 510mm.
2. The speed of passage is relatively slow.
3. Tripod turnstile is restricted by the blocking body method, which is not conducive to passengers with luggage.
4. The appearance plasticity of tripod turnstile is weak, and many styles are not beautiful.
