Closing Time:
|
2s
|
Material:
|
Stainless Steel
|
|
Opening Time:
|
0.2s
|
Power Supply:
|
AC220V/50HZ
|
|
Product Name:
|
Tripod Turnstile Gate
|
Protection Level:
|
IP54
|
|
Relative Humidity:
|
5%-90%
|
Working Temperature:
|
-15℃~+70℃
|

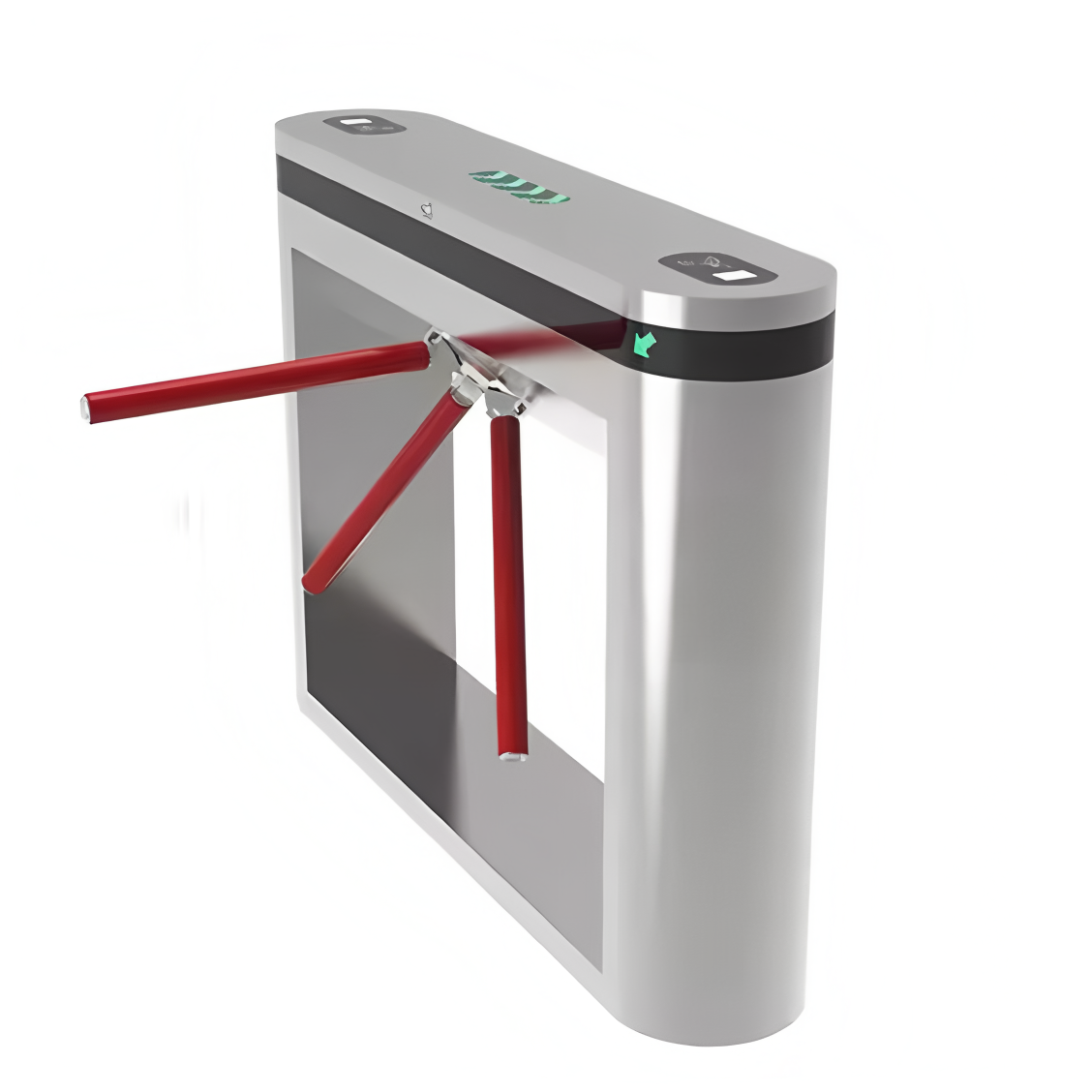

Access Control Automatic Tripod Turnstile Access Gate Entrance Security System
The tripod turnstile is an intelligent channel management device developed, researched and produced by our company. By configuring different reading and writing devices, it can complete the intelligent control and management of channel traffic.
The entire product is stamped with stainless steel plates, which is beautiful, rust-proof and durable. The system uses a standard electrical interface to the outside, which can easily connect barcode cards, face recognition machines, ID cards, IC cards, anti-static and other control devices, thereby providing an orderly and civilized way of passage for people entering and leaving, and preventing illegal people from entering and leaving. At the same time, in order to meet the requirements of fire passages, the power will be cut off and the pole will be lowered in an emergency to organize personnel evacuation.
At our turnstile manufacturing company, we stand out from the competition with the following key advantages:
1. Extensive Experience: With over 10 years in the industry, we have a proven track record of delivering high-quality turnstiles that have been installed and well-received in various regions worldwide.
2. Quality Certifications: Our products boast prestigious certifications, including CE, ROHS, and ISO9001. These certifications reflect our commitment to meeting international quality standards and ensuring customer satisfaction.
3. State-of-the-Art Factory: Equipped with advanced technology and machinery, our modern factory enables us to produce turnstiles with precision, efficiency, and consistency.
4. Customization Options: We offer comprehensive OEM/ODM services, allowing customers to provide their own designs or samples for tailored turnstile solutions. Our experienced team can bring your unique vision to life.
5. Professional Sales and Technical Support: Our dedicated sales team and technical experts are here to assist you at every step. From product selection to after-sales support, we provide prompt and personalized assistance to meet your specific requirements.
6. Customer Satisfaction: We prioritize building long-term relationships with our clients by delivering exceptional products and outstanding service. Your satisfaction is our ultimate goal.
Experience the advantages of our exceptional manufacturing capabilities, commitment to quality, and customer-centric approach. Stand out from the competition with turnstile solutions that exceed expectations. Contact us today for more information.
Tripod Barrier Gate The shape of the whole product adopts domestic standard (304) stainless steel plate stamping forming, the shape is beautiful and generous, anti-rust, durable, can resist external damage.It can provide an orderly and civilized way for entry and exit personnel, put an end to illegal entry and exit, the gate pole runs smoothly, low noise, and quickly control the fall or end of the pole in case of emergency.
Parameters
| 1. Material | 304stainless steel,Thickness:1.5mm (full thickness) |
| 2. Dimension | L1200*W280*H980mm |
| 3. Channel width | 550mm |
| 4. arm material | Stainless steel ,Standard black foam stick cover,better protection and beauty. |
| 5. movement | Semi-automatic buffer movement, smooth operation, low noise and long service life of the gate |
| 6. Environmental requirements | waterproof model, which can be used indoors and outdoors(canopy). |
| 7.Communication Interface | RS485, Dry contact |
| 8.Passage Direction | Single directional/Bi-directional |
| 9. Traffic speed | ≥ 30 people per minute |
| 10.Opening mode support | swiping card, QR code, ESD, fingerprint, face recognition,etc. |
Tripod Turnstile Features
1) The unique incomplete gear transmission system makes the tripod turnstile gate lock and unlock more accurately and reliably at zero position.
2) The whole system runs smoothly, with low noise and no mechanical shock.
3) Tripod turnstile has a self-check function for incoming calls and automatically restores to the locked state.
4) There are multiple working modes to choose from, including two-way card reading, card reading on one side and prohibition of the other direction, card reading on one side and free passage in the other direction, and the gate working mode can be set through the mainboard menu.
5) Tripod turnstile has the function of power-off drop and power-on manual pole raising.
6) Tripod turnstile has 485 remote control drop and pole raising functions to meet the special needs of users and fire safety requirements.
7) Tripod turnstile has a unified and standard external electrical interface, which can be connected with various reading and writing devices, which is convenient for system integration, and can be remotely controlled and managed through the management computer.
8) Tripod turnstile can automatically count the number of people passing in the direction of passage and present it to the manager in an intuitive LED (optional) way, so that the manager can know the number of people passing in a certain direction.
9) Tripod turnstile has a clear direction indication function, and uses intuitive LED passers-by to indicate whether passage is allowed or prohibited.
10) Tripod turnstile has card reading with memory and without memory functions, and users can set it through the motherboard keyboard according to their needs.
11) Through software settings, the total number of people inside the venue can be limited to meet the special needs of some special occasions.
12) Tripod turnstile has an automatic reset function. When the passer-by does not pass within the specified time after reading the card, the system will automatically cancel the passer-by's access rights for this time, and the restricted access time can be set by the management personnel.
FAQ
1. Manufacturer
We are the manufacturer. We could accept your customized design on hardware and software.
2. OEM&ODM
Acceptable.
3. Sample order
Our barrier and turnstile accept MOQ 1pc.
Parking management system order MOQ 1 entry and 1 exit .
Parking guidance system order MOQ 100pcs parking spaces.
Accessories, we don't sale the accessories individually. Except already has cooperation before.
Traffic devices not our main products, so we not have any in stock. For this series item order needs to ask the sales about lead time and MOQ.
4. Best price
Be honest, all the best prices are based on your order quantity and detail requirements. If u offer the detail information, we will give all the information and best price you want.
5. Our service
Before you make order to us, our engineer could helps you to make the solution, drawing, installation and wiring diagram etc. Sales could makes the documents based your demands.
After you get the items, our engineer could give remote guidance to install. If you need onsite supports, we also could arrange our engineer to your country.
6. Warranty
We have one year warranty. During one year any problem caused by quality problem, we offer free accessories to repair. Out of warranty, we could offer discounts accessories.
Longer the warranty time is acceptable. Please contact with the sales.
7. Lead time
Standard 7 work days.
Customized based on detail requirements. Normally needs 15-20 work days.
8. Certification
CE and Rohs could be offered. Before make order,please notice us.
9. Training
We'd love to see that our clients could have a training course about our system.
10. Delivery
Suggest delivery by sea. By express and air is acceptable. Please offer seaport, airport or country name.
