Communication Interface:
|
RS232
|
Control Mode:
|
Button, Card, Face
|
|
Humidity:
|
≤90%
|
Passage Width:
|
550-900mm
|
|
Power:
|
50W
|
Service Life:
|
≥5,000,000 Times
|
|
Speed:
|
1.2s/time
|
Weight:
|
65KG
|
electronic full height sliding access control qr code turnstyles china access control turnstile gate
product description

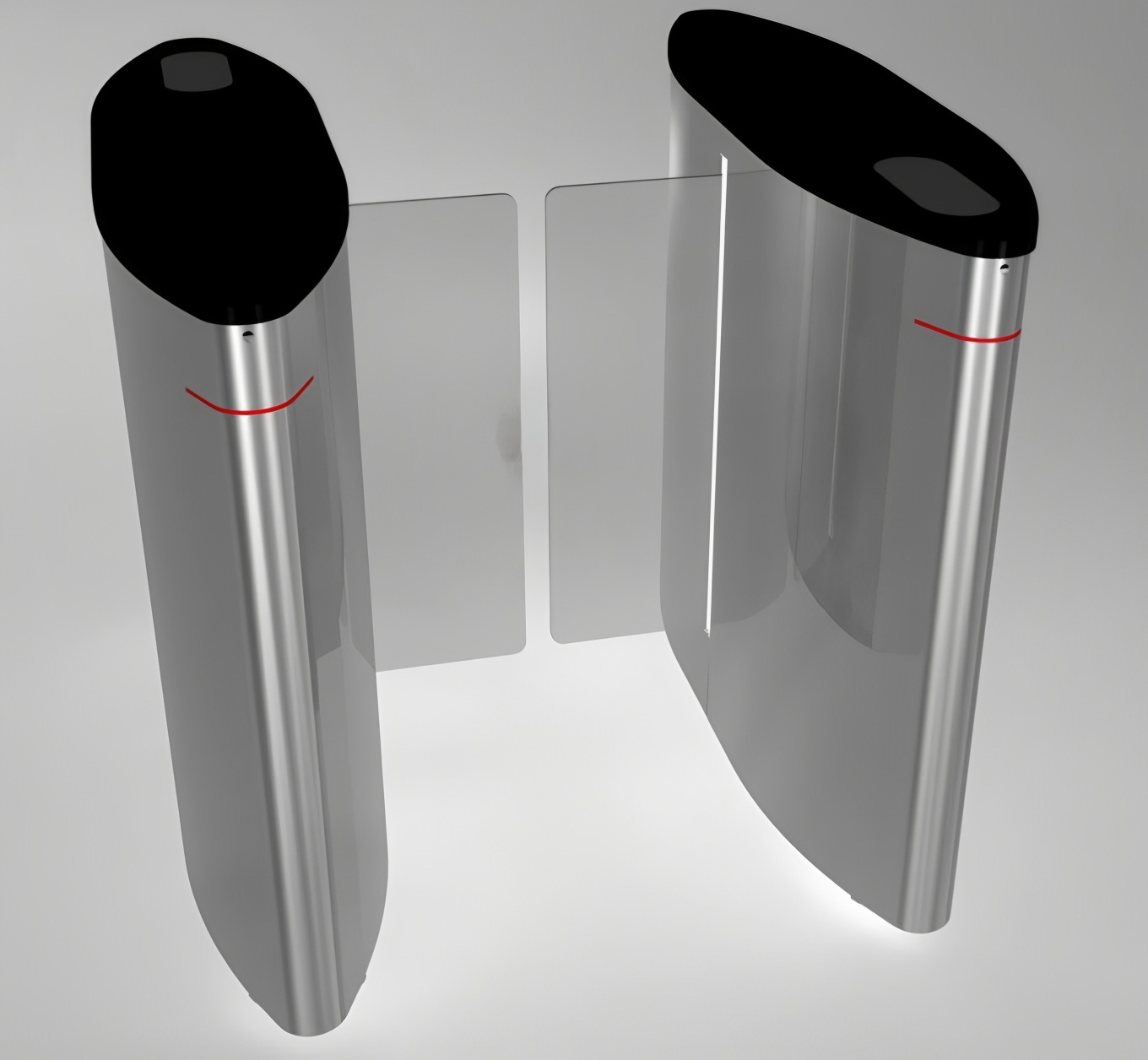

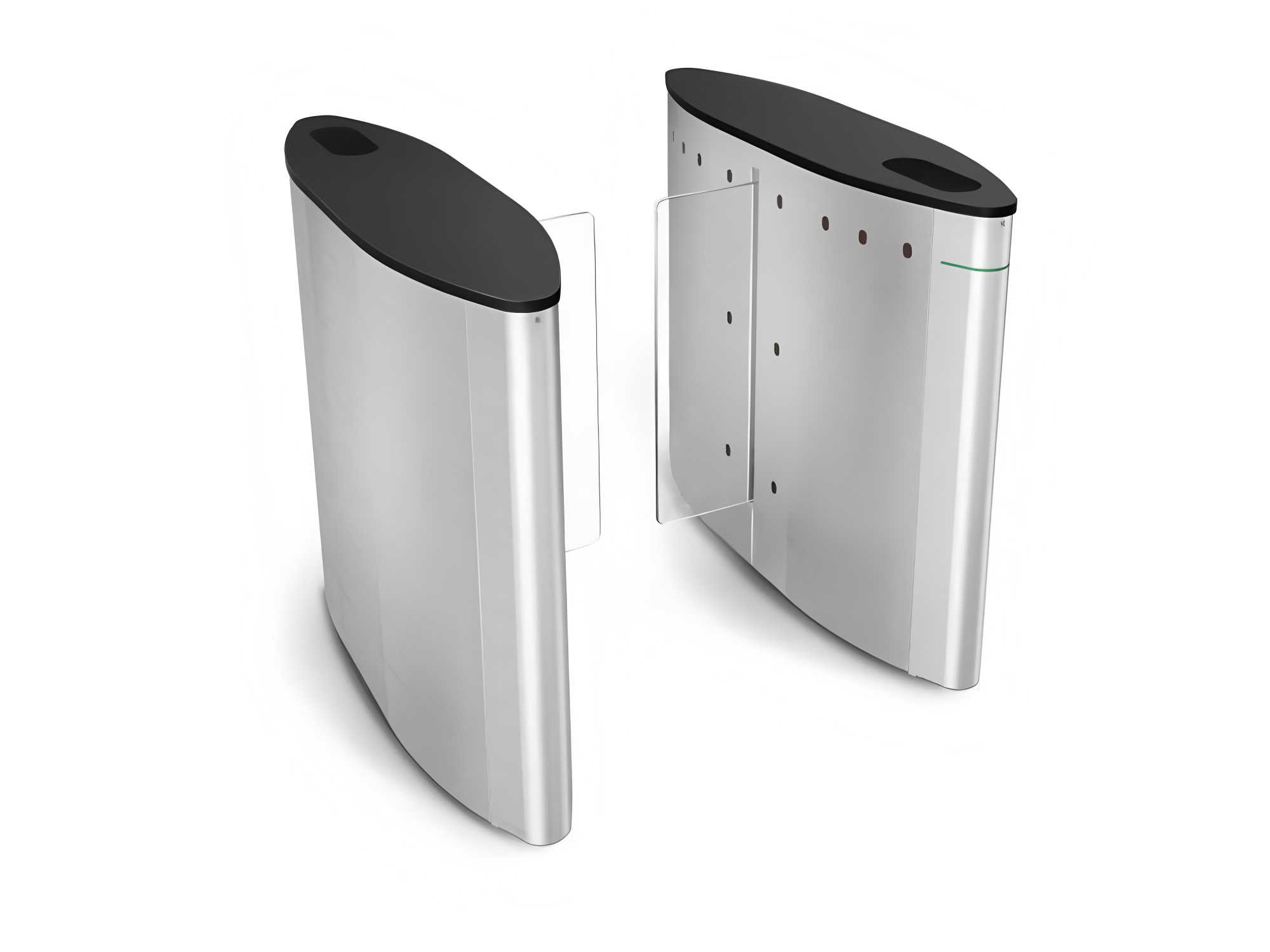

The sliding gate housing comes out from stainless steels pressing which is good-looking, anti-rust and durable. It can be
integrated with magnetic card, bar code, IC and ID card by standard electrical interface, thus good-order and civilized passing means are realized and unauthorized persons will never be allowed to get in. Meanwhile, to meet fire-control passage requirements, sliding barrier arms will open automatically if power off and there will be enough time to organize people to get out.
|
Power supply
|
AC220±10%V 50Hz/AC110±10% 60Hz
|
|
Motor voltage
|
DC 24V
|
|
Access device input voltage
|
Dry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA
|
|
Direction
|
Can be set as single or double
|
|
Max flow rate
|
30 person per minute
|
|
Flap openning/closing time
|
1s
|
|
Flap lenght
|
250mm
|
|
Flap material
|
Acrylic
|
|
Working temperature
|
-20°C~+60°C
|
|
Working humidity
|
0~95%RH
|
|
Application
|
Indoor/ outdoor with tent
|
