Size::
|
168*1050mm (can Be Customized)
|
Standard Lane Width:
|
600mm
|
|
Motor:
|
Servo Motor
|
Power Supply::
|
110V/220V 50/60Hz
|
|
Arm Material::
|
Acrylic Or Tempered Glass
|
Max Pass Width::
|
Acrylic-900mm Or Tempered Glass-800mm
|

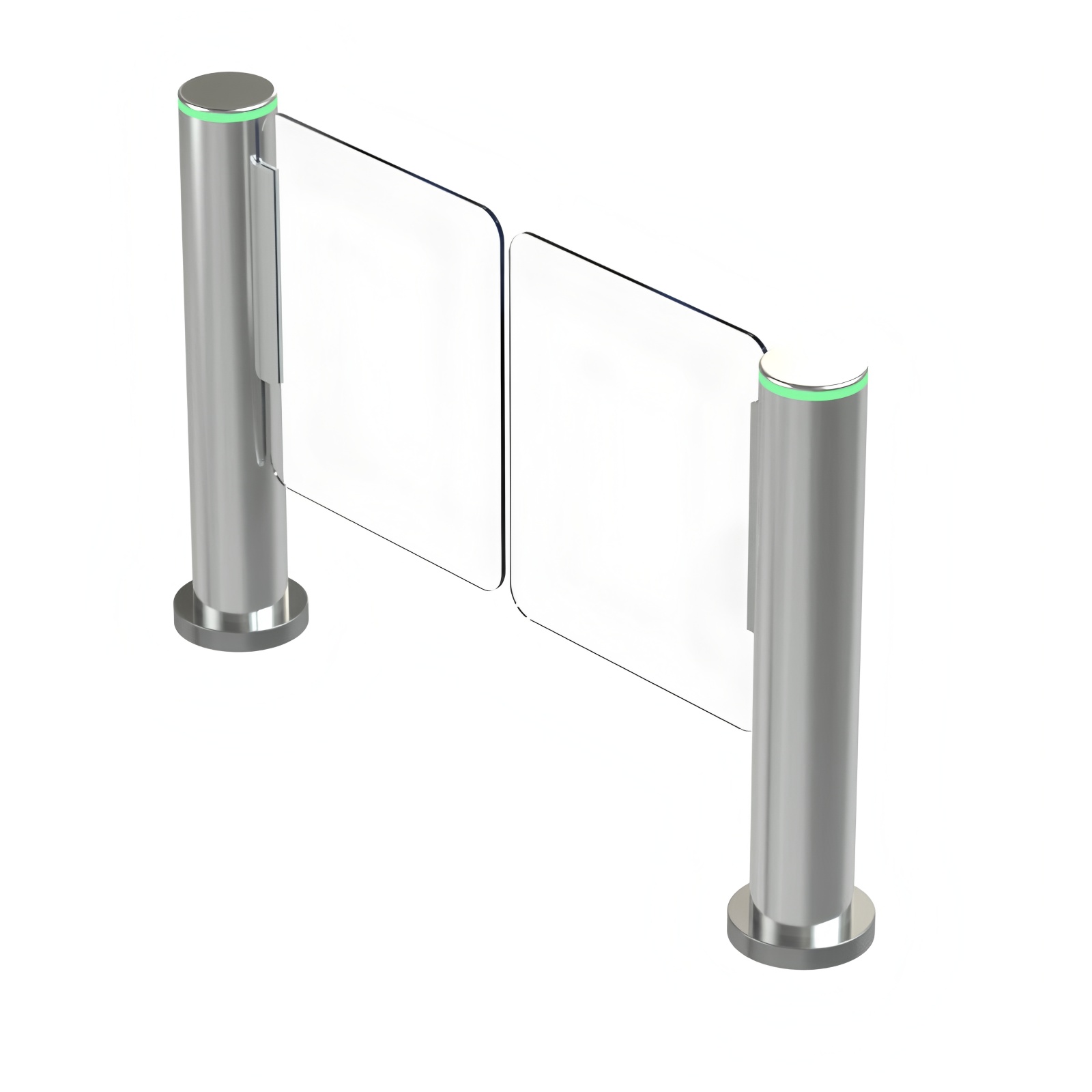

Speed Lane Turnstile Access Control Solution Optical Brushless Motor Access Control For Gym
Introduction
The whole framework of these standard swing gate barriers is manufactured using SUS304 1.5-2.0mm stainless steel. It is rustproof and extremely durable. Fast access for authorized personnel. Aesthetically pleasing.
Servo drive motor, the movement has anti-collision function, customized star-shaped reducer, current anti-pinch (when the gate encounters external force obstruction during operation, it can make an emergency stop and reduce the power to prevent pinching) to prevent injury to pedestrians, precise positioning, minimum The door opening time can reach 0.25 seconds, the operation is smooth, the position is accurate, the position is precise and smooth, and there is no noise. Long service life, equipped with CAN+R232 network server, remote upgrade and convenient maintenance; anti-forced intrusion function: when the gate is closed, if there is an external force pushing the gate, the driver will immediately lock the gate to prevent illegal intrusion.
Parameters:
| Framework | 304 Stainless Steel |
| Dimensions | 168×1050mm |
| Weight | 90KG |
| Arm Length | 500-900mm |
| Dry Contact | 12V |
| LED indicating light | One |
| Card-reading window: | Two |
| Rated power | 120W |
| Operating temperature | -25℃ ~ +60℃, RH ≤90% |
| Related humidity | ≥90%RH |
| Comunication Interface | RS485,distance ≤1200m |
| Power supply | AC 220V/110V ±10% 50/60MHZ (optional) |
| OpeningTransit speed: | 30—45persons per minute |
| Closing Transit speed: | 25-35per minute |
Features
* Multiple sets of electric eye sensors monitor the status of the channel in real time, making accurate logical judgments and ensuring unobstructed authorized passage.
* Quadruple protection of mechanical devices, door positions, current detection and channel sensors to protect pedestrians in the channel from pinching.
* The entire system operates using a stepless positioning device, and the operation process is controlled by sensors without mechanical collision.
* CNC machining technology, fine surface treatment, strong corrosion resistance
* Convenient and easy to use, making it easy for personal belongings such as parcels and luggage to pass through
* Anti-tailgating function: Protection level 3
* Traffic mode: one-way, two-way (optional), operating speed is adjustable; multiple working modes are available
* Light reminder: traffic direction indication
* With lightning protection and leakage protection function
* Protection function: Anti-collision, anti-stall, and anti-electrical overvoltage and overcurrent functions
* Prevent illegal operation and alarm function
* Standard external electrical interface with photoelectric safety isolation, which can be connected with various control equipment to facilitate system integration
* Remote control and setting functions

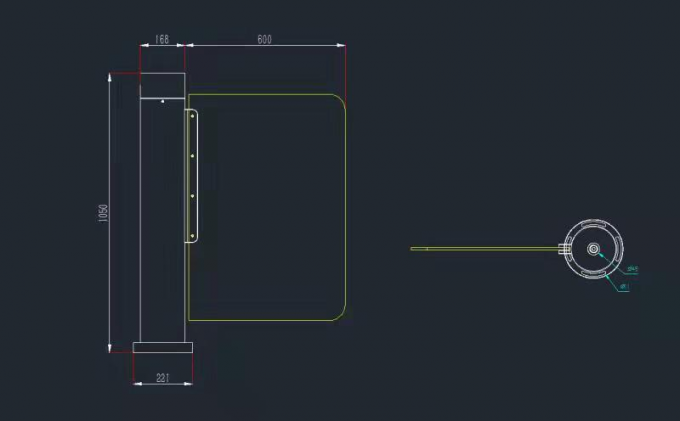

Turnstile Dimension:
Typical application:
⊙Office spaces: smart buildings, business buildings, government agencies, factories, etc.
⊙Scientific and educational units: schools, colleges, research institutes, libraries, etc.
⊙Commercial service places: supermarkets, shopping malls, hotels, clubs, banks, etc.
⊙Residence place: residential area, community, apartment, dormitory, etc.
⊙Transportation stations: bus stations, train stations, subways, airports
⊙Scenic spots: scenic spots, playgrounds, theaters, gymnasiums

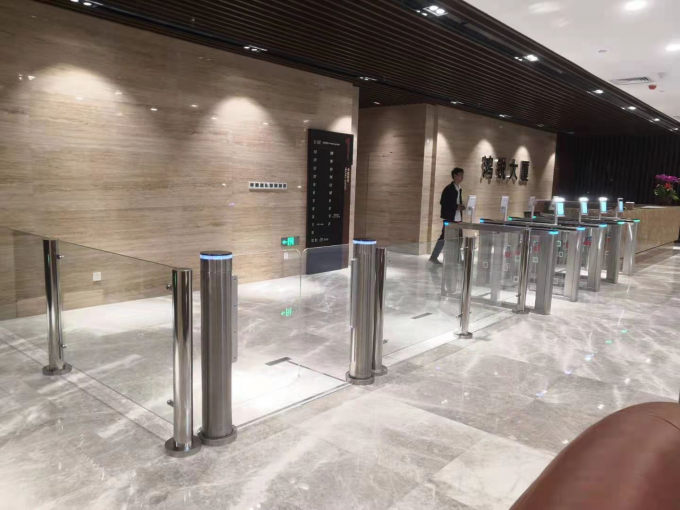

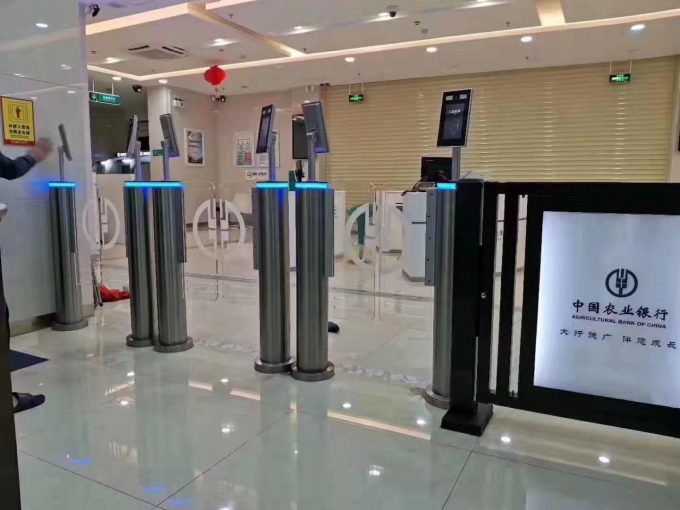

Case picture:
