Communication Interface:
|
RS485
|
Drive Mode:
|
DC Motor
|
|
Input Interface:
|
12V Level Signal
|
Motor Speed:
|
100r/min
|
|
Output Interface:
|
Relay Signal
|
Passage Speed:
|
30-40 Persons/min
|
Enhancing Security and Efficiency: The Modern Solution of Swing Turnstile Gates

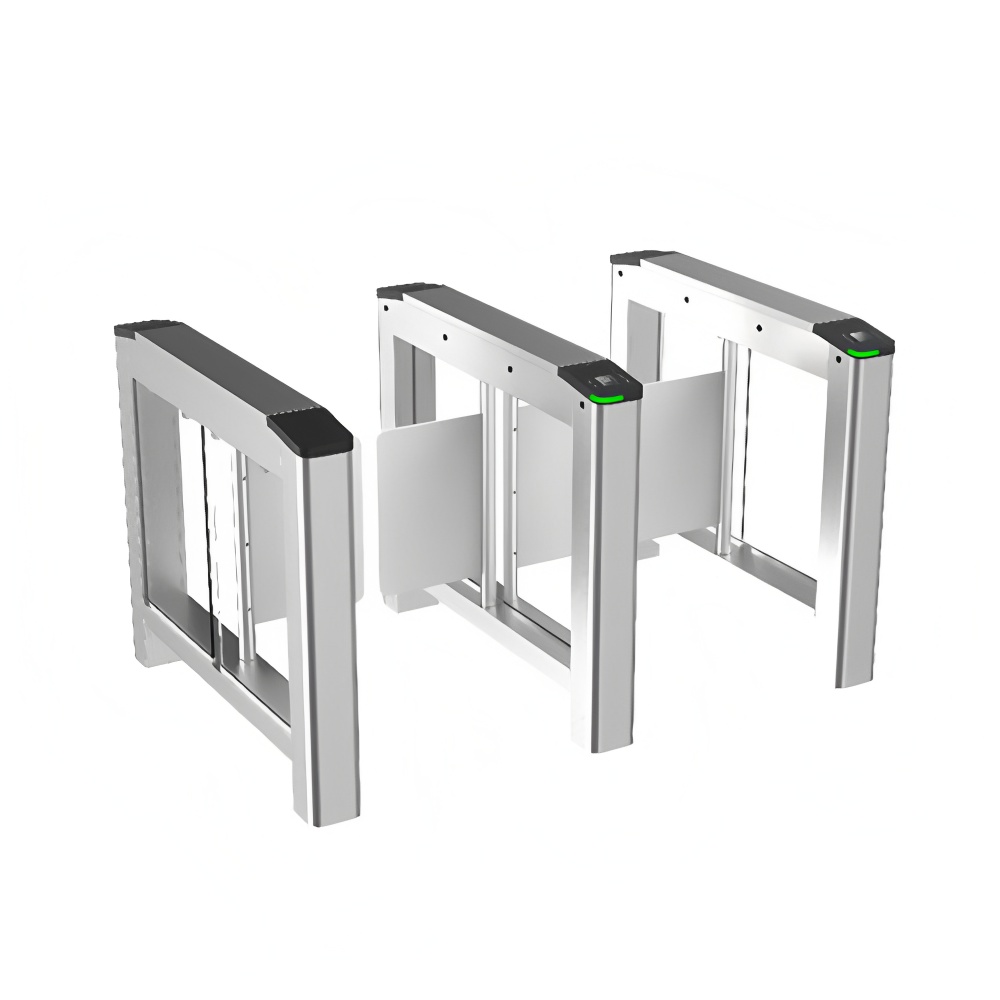

### Swing Turnstile Gate Description:
The swing turnstile gate, also known as a swing barrier or swing barrier gate, features a modern and slim design. It boasts rugged stainless steel enclosures and high-quality components to ensure smooth operation even in harsh outdoor environments, providing a long service life. Utilizing the latest technologies and an optimal brushless control scheme, the swing turnstile gate remains undamaged even when violently hit. The barrier locks in the middle position until the correct biometric or card verification signal is received, after which it opens, rejecting unauthorized entry.
**Cardlan Swing Turnstile Gate Comprehensive Performance**
- **Stable Operation:** Cardlan Swing Turnstile Gate uses a DC brushless motor, supported by Cardlan's independently developed servo control algorithm, ensuring stable and reliable operation. It supports at least 3 million trouble-free passes.
- **Voice Alerts:** The Cardlan Swing Turnstile Gate supports voice broadcasting for various abnormal passing events such as tailgating, reverse passing, climbing over, etc. (speaker module required).
- **Multiple Authentication Methods:** The Cardlan Swing Turnstile Gate supports optional peripherals such as permission boards, facial recognition modules, card readers, and QR code scanners, allowing for diverse authentication methods.
- **Access Control Integration:** The Cardlan Swing Turnstile Gate supports integration with third-party control boards for access management.
**Passage Control**
- **Authorized Access Only:** Only authorized personnel can pass through; unauthorized personnel are denied access.
- **Auto-Reset Function:** The Cardlan Swing Turnstile Gate has an automatic reset function. If the Turnstile Gate is opened and no passage occurs within a specified time, the system automatically cancels the user's passage permission. The passage time can be set.
- **Flexible Configuration:** The Cardlan Swing Turnstile Gate supports flexible configuration of passage direction status (controlled, normally open, prohibited, or sensor-based opening).
- **Memory Mode:** The Cardlan Swing Gate supports memory mode, enabling continuous and rapid passage.
- **Anti-Tailgating:** The Cardlan Swing Turnstile Gate supports cross-host anti-tailgating functionality , effectively preventing unauthorized personnel from tailgating.
- **Remote Control:** The Cardlan Swing Turnstile Gate supports an optional wireless receiver module, allowing remote control of the gate (up to 32 remote controllers can be associated with one receiver, and one remote controller can be associated with up to 6 receivers).
- **Customizable Security Modes:** The Cardlan Swing Turnstile Gate allows selection between relaxed and alert modes based on actual management needs, providing different levels of anti-tailgating and anti-pinch protection.
- **Timed Mode Options:** The Cardlan Swing Turnstile Gate supports flexible selection of modes such as normally open or normally closed across different time periods (up to 8 time periods).
**Safety Design**
- **Fire Alarm Integration:** The Cardlan Swing Turnstile Gate features a fire alarm interface. When a fire signal is triggered, the gate wings automatically open, guiding people to evacuate quickly.
- **Passage During Power Outage:** The Cardlan Swing Turnstile Gate allows passage during a power outage, with the wings in a free state for easy passage, preventing panic. An optional supercapacitor can be used to enable automatic opening during a power outage.
- **Tailgating Detection:** The Cardlan Swing Turnstile Gate employs 4 pairs of infrared sensors with tailgating detection technology, allowing only authorized personnel to pass. Unauthorized tailgating triggers sound and light alarms.
- **Anti-Pinch Function:** The Cardlan SwingTurnstile Gate is equipped with an anti-pinch function. If an obstruction is encountered during the wing reset, the motor automatically stops to prevent injury.
- **Anti-Collision Function:** The Cardlan Swing TurnstileGate has an anti-collision feature. If no opening signal is received and an impact force of less than 40 N•m is applied, the gate wings remain locked.
**User Experience Design**
- **Distinctive Appearance:** The Cardlan Swing Gate features a highly recognizable slim design with a beautiful, elegant, and durable appearance, breaking the stereotype of low-end gates.
- **LED Indicators:** The Cardlan Swing Turnstile Gate uses LED indicators to show passage direction and status, with customizable brightness settings.
**Installation and Maintenance**
- **Condensation Solution:** The Cardlan Swing Turnstile Gate uses a special air duct design and device protection cover to minimize condensation issues.
- **Self-Detection and Alarm:** The Cardlan Swing Turnstile Gate has self-detection, self-diagnosis, and automatic alarm functions, including but not limited to unauthorized entry alarm, reverse entry alarm, tailgating alarm, climbing alarm, etc.
- **Electrical Safety:** The Cardlan Swing Turnstile Gate is equipped with a leakage protection device, and the working voltage of all relevant electrical modules does not exceed 24V.
### Swing Turnstile Gate Applications
The adjustable aisle width and robust frame make the MS01B swing turnstile gate suitable for various locations, including but not limited to:
- Hospitals
- Shops
- Customs ports
- Sports facilities (e.g., basketball courts, gyms)
- Factories
- Industrial parks
### Features
- **Photoelectric Sensors:** Detect unauthorized entry, tailgating, illegal intrusion, reverse intrusion, and more.
- **Child Safety:** Equipped with two sensors specifically for detecting children, ensuring safe passage.
- **Automatic Reset Function:** Swing arms will lock automatically if nobody enters within 5 seconds (adjustable).
- **Adjustable Passage Width:** Ranges from 600mm to 1100mm, suitable for disabled and trolley access.
- **Smooth Operation:** Low noise system ensures smooth operation of swing barriers.
- **Anti-Collision Movement:** Swing barriers reset automatically if strongly hit by a bicycle or trolley.
- **Access Control Integration:** Compatible with any type of access control systems.
- **Ease of Use:** Simple installation, operation, and maintenance.
【Product Features】
- Swing barrier gate turnstile that offers advanced access control and efficient pedestrian management.
- Integrated access control system with customizable options for face recognition, swing gate opener, and RFID gate.
- High-speed operation with a speed of 35-40P/Min, ensuring quick and seamless access for authorized individuals.
In the dynamic Turnstiles industry, our Advanced Access Control System with Bidirectional Swing Barrier Gate Turnstile stands out as a reliable and technologically advanced solution. With its exceptional security features, durability, and customizable options, it is the perfect choice for a wide range of applications. Ensure secure access control and streamline pedestrian flow with our top-of-the-line turnstile gate. Experience the future of access management with our state-of-the-art Advanced Access Control System.
Integration
ZT-999 series can ship pre-configured with our customers’ preference for either card or fingerprint access control reader. This greatly reduces installation time & expense.
ZT-999 series and associated access control readers are all factory-tested prior to shipping.
Universal functions of swing turnstile gate
1) Fault self-check and alarm prompt functions to facilitate user maintenance and use;
2) The operating status of the programmable device can be programmed through the built-in small button on the main control board;
3) Mechanical structure and induction dual anti-pinch function. When encountering resistance during the reset of the swing arm, it will automatically stop or the motor will stop working within the default time. It will reset again after the default delay (until reset), and the force will be very small. (≤2Kg);
4) Sound and light alarm functions: including illegal intrusion and tailgating alarms;
5) Anti-collision function, the swing arm automatically locks when the gate opening signal is not received;
6) Pendulum (arm) synchronization function;
7) Automatic reset function. After the gate is opened, if there is no passage within the specified time, the system will automatically cancel the user's permission for this passage. The standard is to automatically reset 5 seconds after opening;
8) The channel will automatically open after a power outage and close automatically after power on;
9) Can be connected to a variety of card reading devices to receive relay switching signals;
10) One-way or two-way control of personnel entry and exit;
11) Remote control and management can be realized directly through the management computer;
Material
Here's why you should choose Shenzhe Cardlan's Turnstile Gate:
We would love to discuss your specific requirements and how we can assist you further. Please feel free to reach out to us at your convenience. We are eager to contribute to the success of your business.
Thank you for considering Shenzhen Cardlan as your trusted supplier. We look forward to hearing from you soon.
【Product FAQ】
How about the lead time?
Normally we have stock for the hot sale models of standard products. Generally, regular products need 5-7 working days. The customized products need 10-20 working days.
Can I use my own access control system?
Yes, you can use your own access control system. Since your company specializes in these systems, you should be well-equipped to implement and manage your own solutions. Do you have any specific requirements or scenarios in mind where you want to use your access control system?
Can you customize my turnstile?
Yes, customizing your turnstile is certainly possible. Depending on your specific requirements, customization can include features such as:
1. **Integration with Access Control Systems**: Tailoring the turnstile to integrate seamlessly with your existing access control systems, such as card readers, biometric scanners, or facial recognition devices.
2. **Design and Aesthetics**: Modifying the appearance to match your branding or the architectural style of the installation location.
3. **Functionality**: Adding or modifying functionalities, such as incorporating additional sensors, customizing entry and exit modes, or enhancing security features.
4. **Software and User Interface**: Developing custom software or user interfaces to provide a more intuitive and user-friendly experience.
If you have specific customization requests or a vision for how you want your turnstile to function, please share the details so I can provide more targeted advice or assistance.
Do you test all your goods before delivery?
Yes, we have a 100% test before delivery. We will take the test video and send it to you to confirm.
What is your sample policy?
Our sample policy typically involves providing samples for evaluation before making bulk purchases. Usually, customers need to cover the cost of the samples and shipping. If you're interested in specific samples, I can provide more details tailored to your needs.
