Size::
|
168*1050mm (can Be Customized)
|
Standard Lane Width:
|
600mm
|
|
Motor:
|
Servo Motor
|
Power Supply::
|
110V/220V 50/60Hz
|
|
Arm Material::
|
Acrylic Or Tempered Glass
|
Max Pass Width::
|
Acrylic-900mm Or Tempered Glass-800mm
|

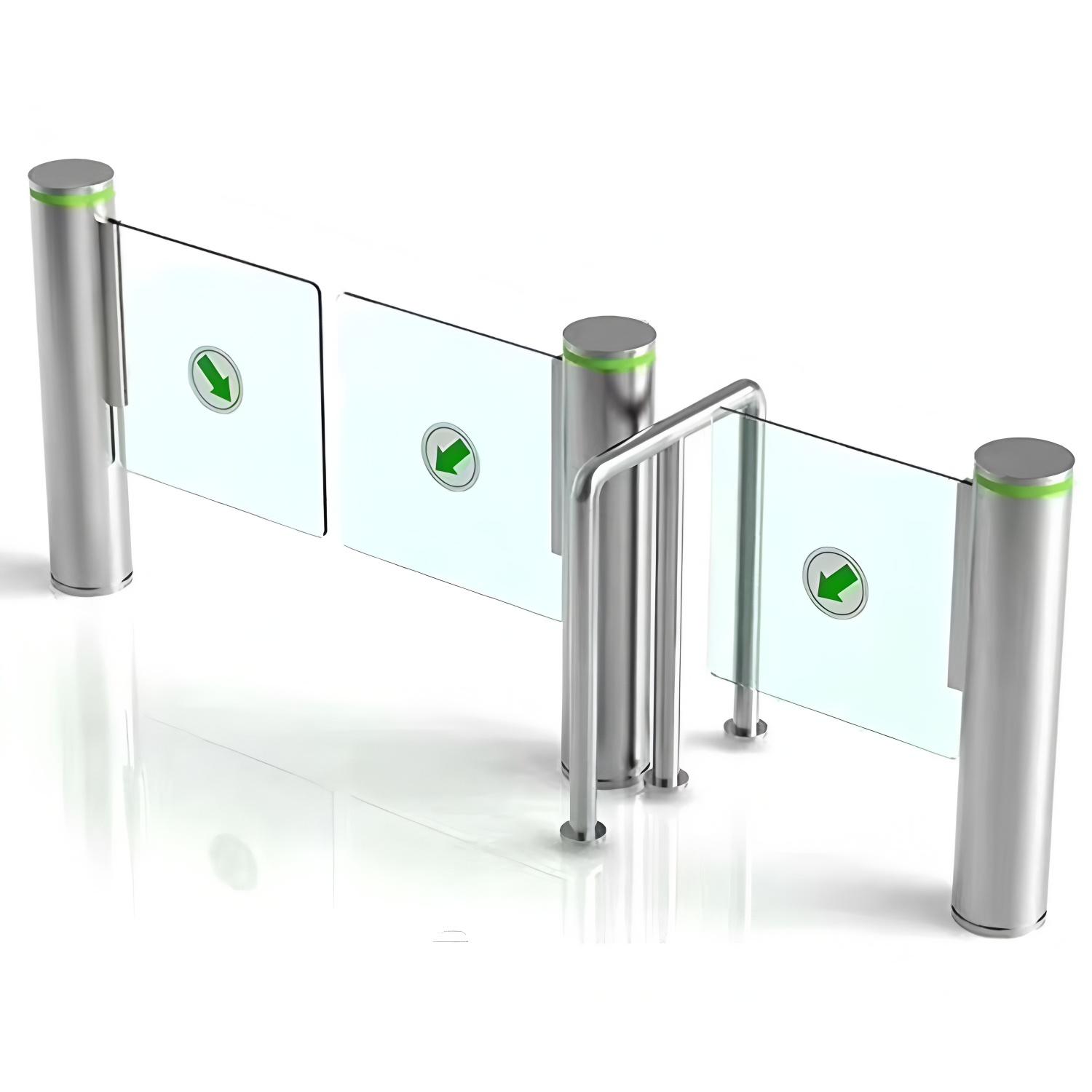

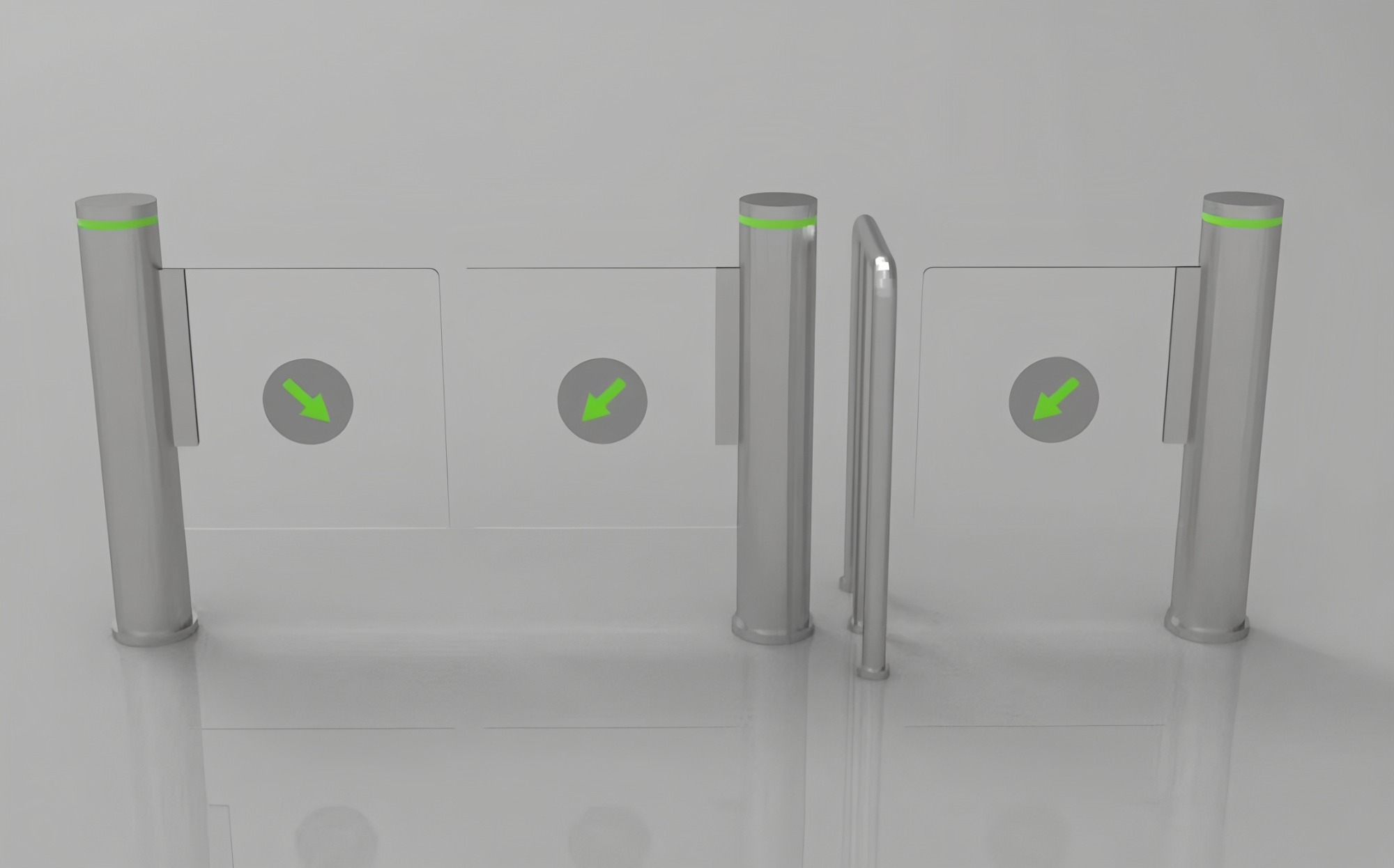

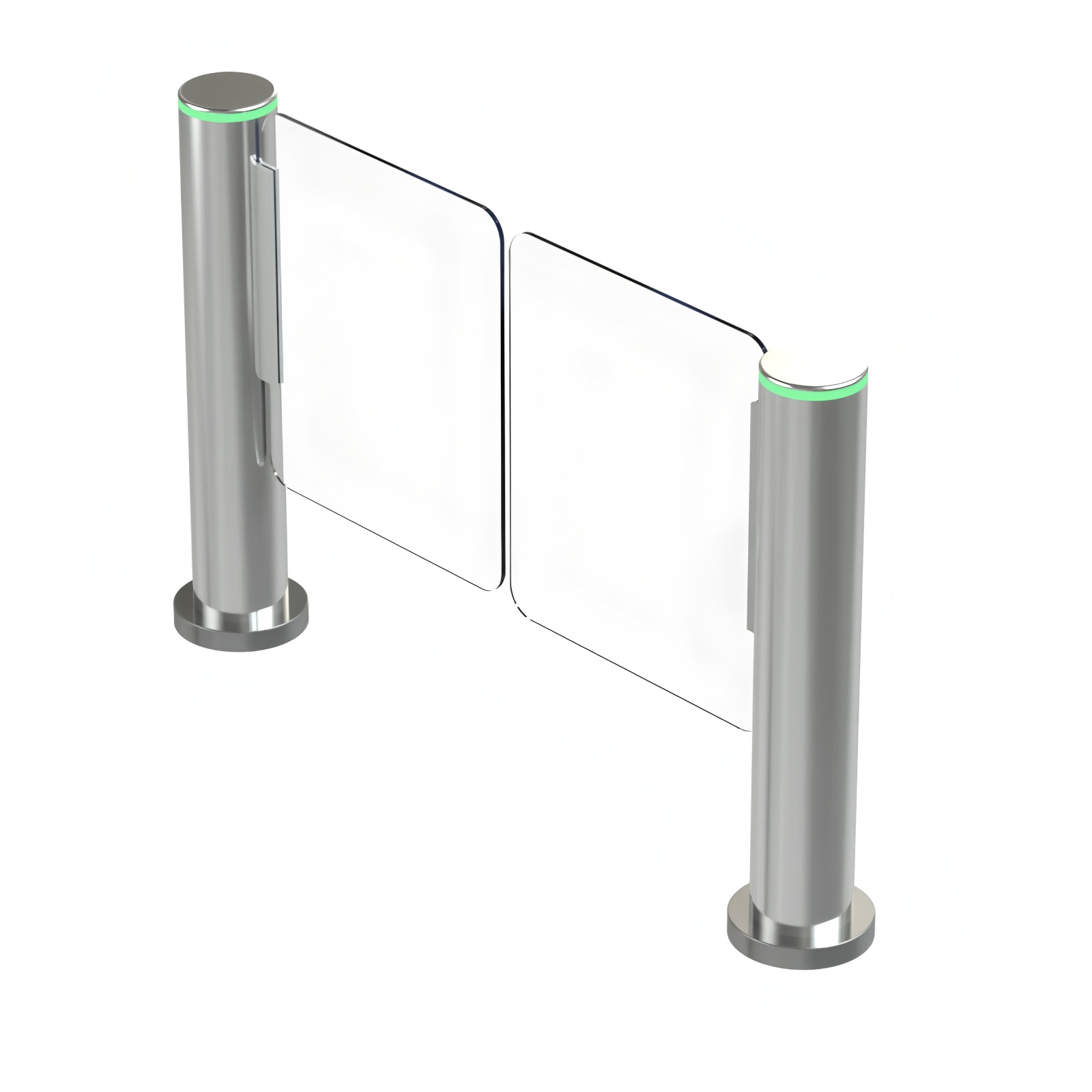

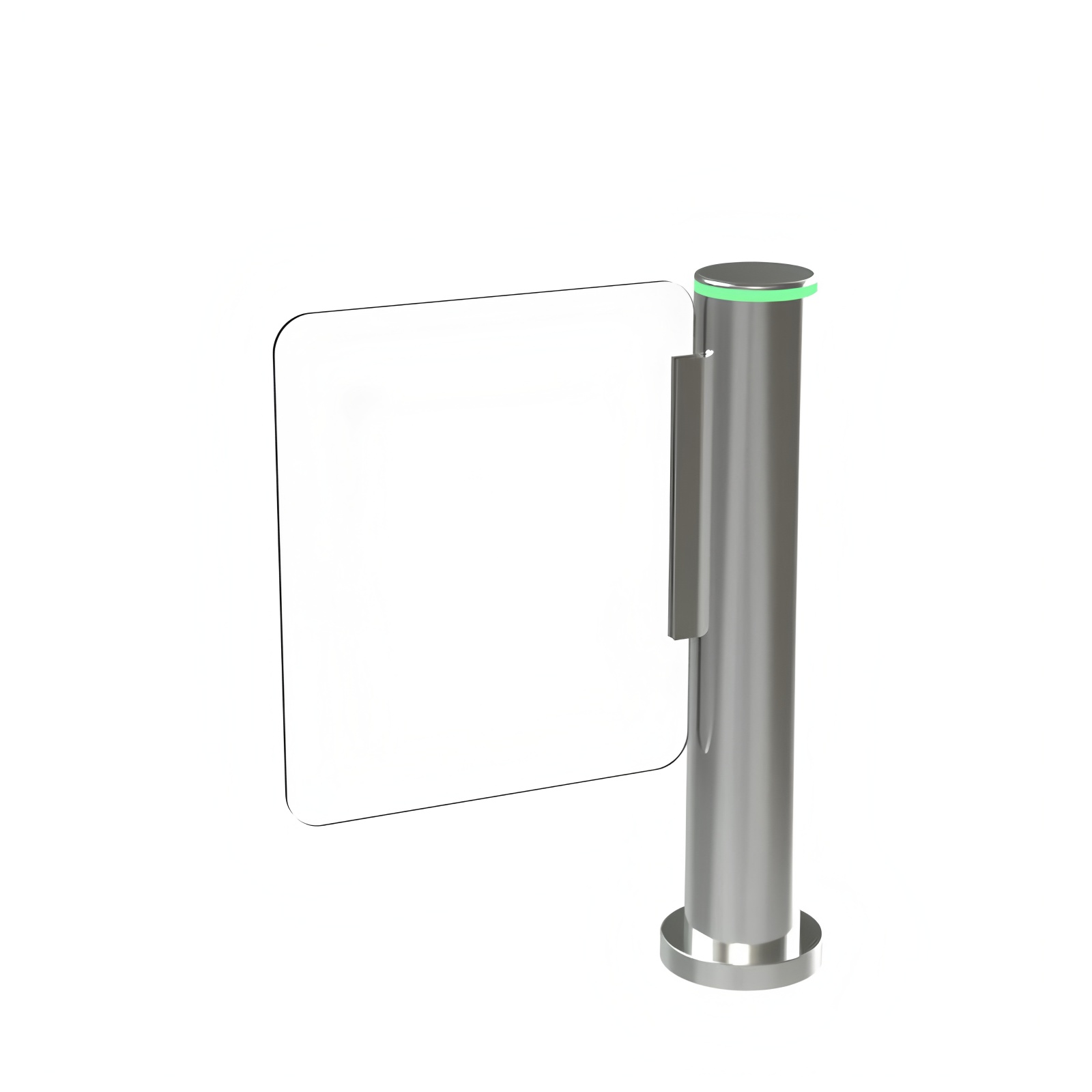

Office Building Speed Gate Entrance Attendance Security Access Control Gate
Introduction
The whole framework of these standard swing gate barriers is manufactured using SUS304 1.5-2.0mm stainless steel. It is rustproof and extremely durable. Fast access for authorized personnel. Aesthetically pleasing.
Parameters:
| Framework | 304 Stainless Steel |
| Dimensions | 168×1050mm |
| Weight | 90KG |
| Arm Length | 500-900mm |
| Dry Contact | 12V |
| LED indicating light | One |
| Card-reading window: | Two |
| Rated power | 120W |
| Operating temperature | -25℃ ~ +60℃, RH ≤90% |
| Related humidity | ≥90%RH |
| Comunication Interface | RS485,distance ≤1200m |
| Power supply | AC 220V/110V ±10% 50/60MHZ (optional) |
| OpeningTransit speed: | 30—45persons per minute |
| Closing Transit speed: | 25-35per minute |
1.Driving Motor: 24V
2. Weight: 30kg/pcs
3. Gate Open Signal: Dry Contact/ Relay
4. Casing Material: 304stainless steel
5 Reliability of the mechanism: 5million, no-fault
6. LED lights on arms is available when the acrylic arm is used
7. Working Direction :Bidirectional/Single directional
8. Emergency situation:open automatically when the electricity is cut off. Backup battery self-provided
9. Humidity: ≤90％
10. Working temperature:-20℃～60℃
11. Communication distance:≤1200 m
12. Communication interface :RS485
13. Anti-hit mechanism, automatically reset when encounter force impact
14. Feature: IC/ID reader, Barcode Reader, Face recognition, Fingerprint, other access control equipment, UPS, etc
15. Time needed for opening:0.2s
16. Working environment: Indoors
17. Application range: Community, Factory, Office Building, School, Place of the resort, etc
Turnstile Dimension:
Case picture:
