Product Name:
|
Kindergarden Swing Turnstile
|
Material Thickness:
|
1.5mm
|
|
Size:
|
1200*200*900mm
|
Direction:
|
Bi-directional
|
|
Material:
|
SUS304
|
Rated Power:
|
120W
|
Ticketing System Security Turnstyle Torniquete De Acceso Swing Barrier Speed Gate Turnstile System For Amusement Park

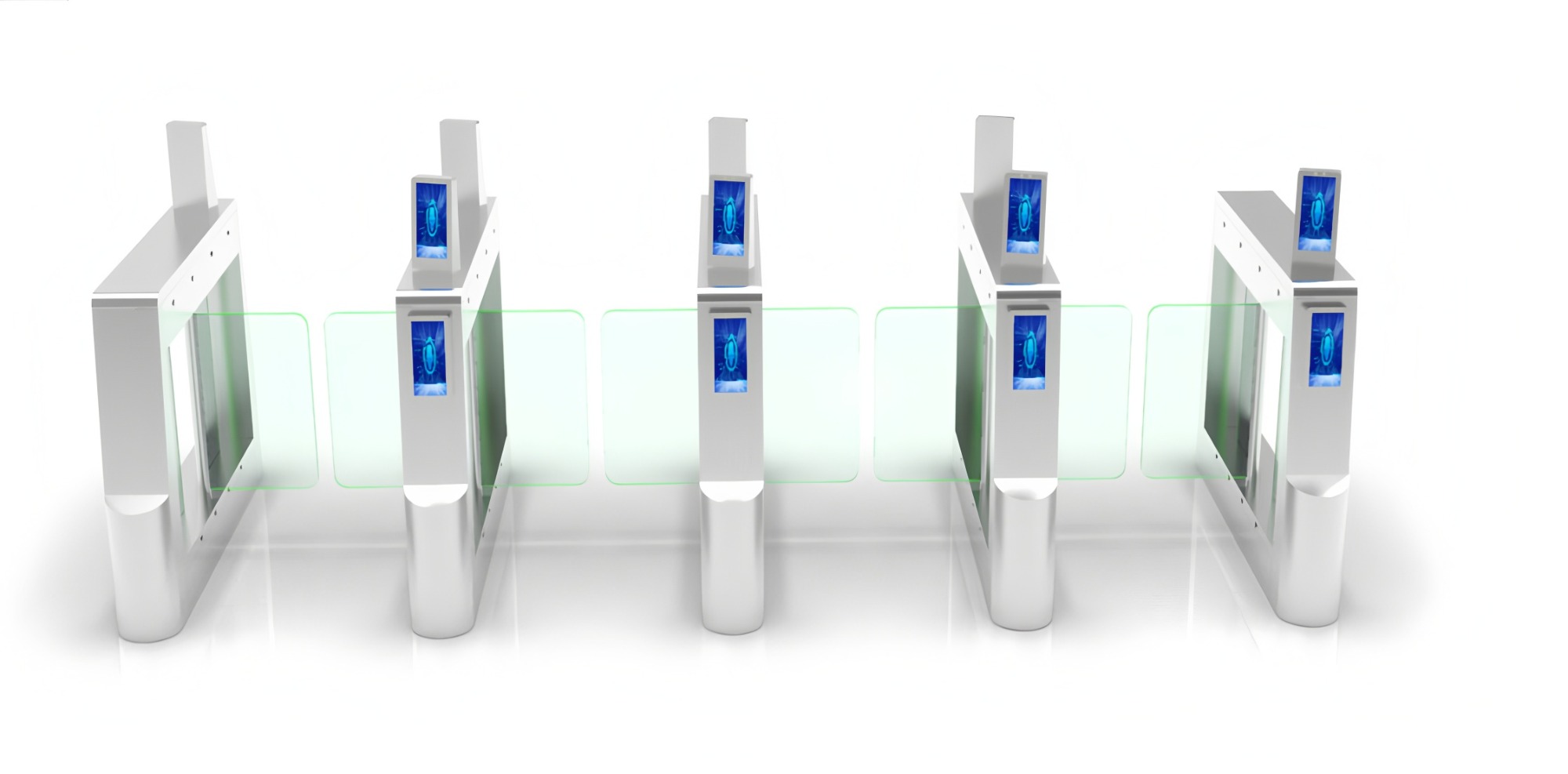

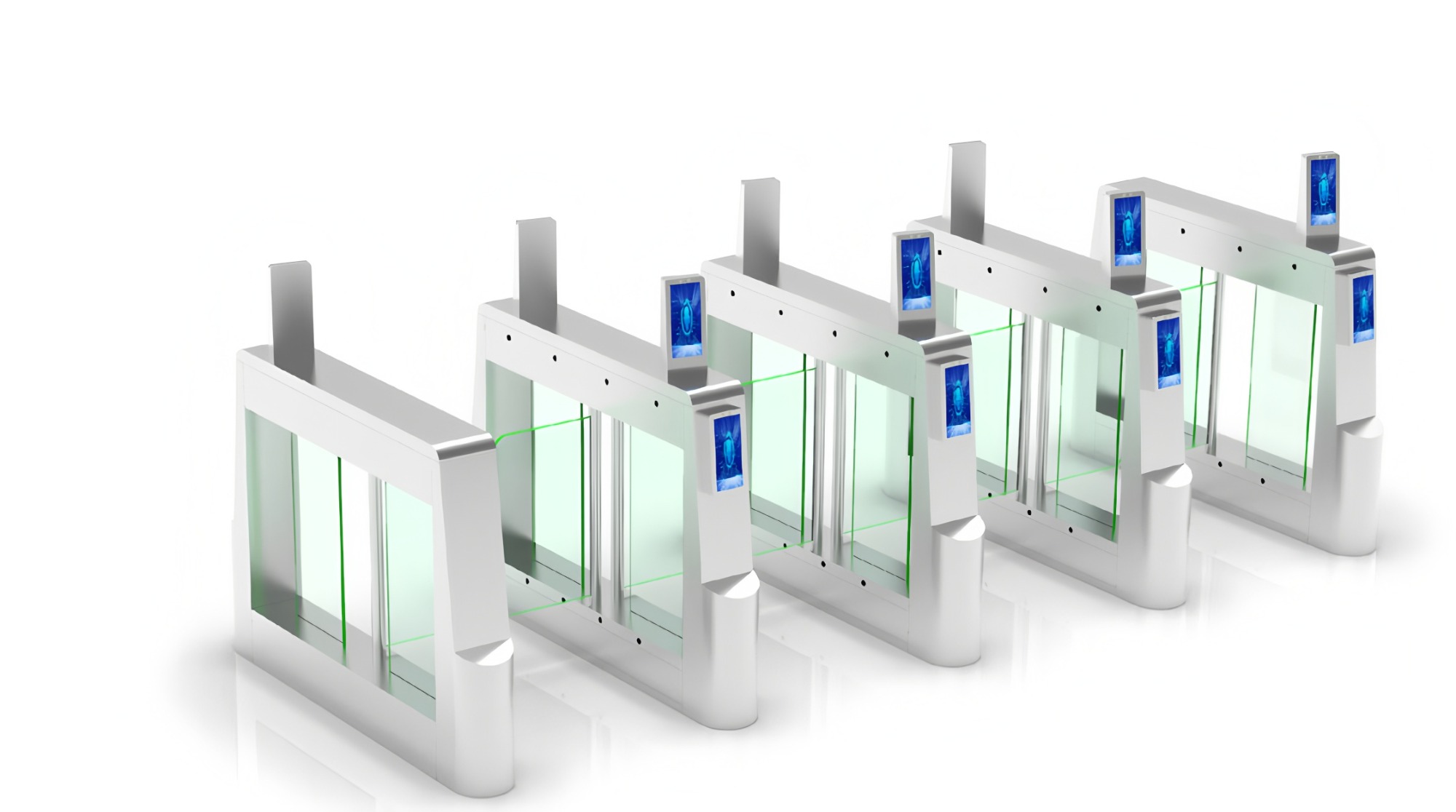

Swing Turnstile Gate Description
The swing turnstile gate, also known as a swing barrier or swing barrier gate, features a modern and slim design. It boasts rugged stainless steel enclosures and high-quality components to ensure smooth operation even in harsh outdoor environments, providing a long service life. Utilizing the latest technologies and an optimal brushless control scheme, the swing turnstile gate remains undamaged even when violently hit. The barrier locks in the middle position until the correct biometric or card verification signal is received, after which it opens, rejecting unauthorized entry.
|
Arm length |
500-900mm |
|
Dry Contact |
12V |
|
Operating temperature |
-25℃ ~ +60℃, RH ≤90% |
|
Related humidity |
≥90%RH |
|
Comunication Interface |
RS485,distance ≤1200m |
|
Power supply |
AC 220V/110V ±10% 50/60MHZ (optional) |
|
OpeningTransit speed: |
30—45persons per minute |
|
Closing Transit speed: |
25-35per minute |
Swing Turnstile Gate Variations
Available in a powder coat finish with multiple color options.
Offers a regular 600mm passage and a 900mm widened passage, accessible for people in wheelchairs or with baby strollers.
The swing material can be chosen from stainless steel or plexiglass.
Swing Turnstile Gate Applications
The adjustable aisle width and robust frame make the MS01B swing turnstile gate suitable for various locations, including but not limited to:
Hospitals
Shops
Customs ports
Sports facilities (e.g., basketball courts, gyms)
Factories
Industrial parks
Features
Photoelectric Sensors: Detect unauthorized entry, tailgating, illegal intrusion, reverse intrusion, and more.
Child Safety: Equipped with two sensors specifically for detecting children, ensuring safe passage.
Automatic Reset Function: Swing arms will lock automatically if nobody enters within 5 seconds (adjustable).
Adjustable Passage Width: Ranges from 600mm to 1100mm, suitable for disabled and trolley access.
Smooth Operation: Low noise system ensures smooth operation of swing barriers.
Anti-Collision Movement: Swing barriers reset automatically if strongly hit by a bicycle or trolley.
Access Control Integration: Compatible with any type of access control systems.
Ease of Use: Simple installation, operation, and maintenance.
Swing Turnstile Features:
Self-Diagnosis and Alarm: Simplifies user maintenance and operation.
Online Programmable Operation: Configure device settings via the main control board’s built-in keypad.
Anti-Injury Protection: Stops the motor within a preset time if an obstruction is detected, applying minimal force.
Anti-Breakthrough: Automatically locks the swing arm without an opening signal.
Adjustable Synchronized Arms: Ensures both arms operate in sync, especially for dual-arm setups.
Auto-Reset: Cancels access if not used within the set time after opening.
Fire Safety Compliance: The gate remains open during power outages for emergency access.
Card Reader Compatibility: Supports various card reading devices, operating via relay switch signals.
Bidirectional Swing: Controls pedestrian flow in one or both directions.
Remote Management: Control and manage the gate remotely using a management computer.
Delayed Auto-Reset: Standard reset time is 5 seconds after activation.
Expandable Features:
Audio and Visual Alarms: Includes alarms for unauthorized entry and anti-clamping.
Counting Function: Keeps track of passage numbers.
Infrared Reset: Enhances the reset functionality with infrared sensors.
Extended Housing and Arm Length: Customizable to meet specific needs.
