Control Mode:
|
Single/Double Direction
|
Frequency:
|
50/60Hz
|
|
Material:
|
Stainless Steel
|
Passage Width:
|
600mm
|
|
Power Consumption:
|
30W
|
Power Supply:
|
AC/DC
|
|
Safety Feature:
|
Anti-pinch
|
Voltage:
|
110V/220V
|
|
Working Humidity:
|
≤90%
|
Working Temperature:
|
-20℃~+60℃
|

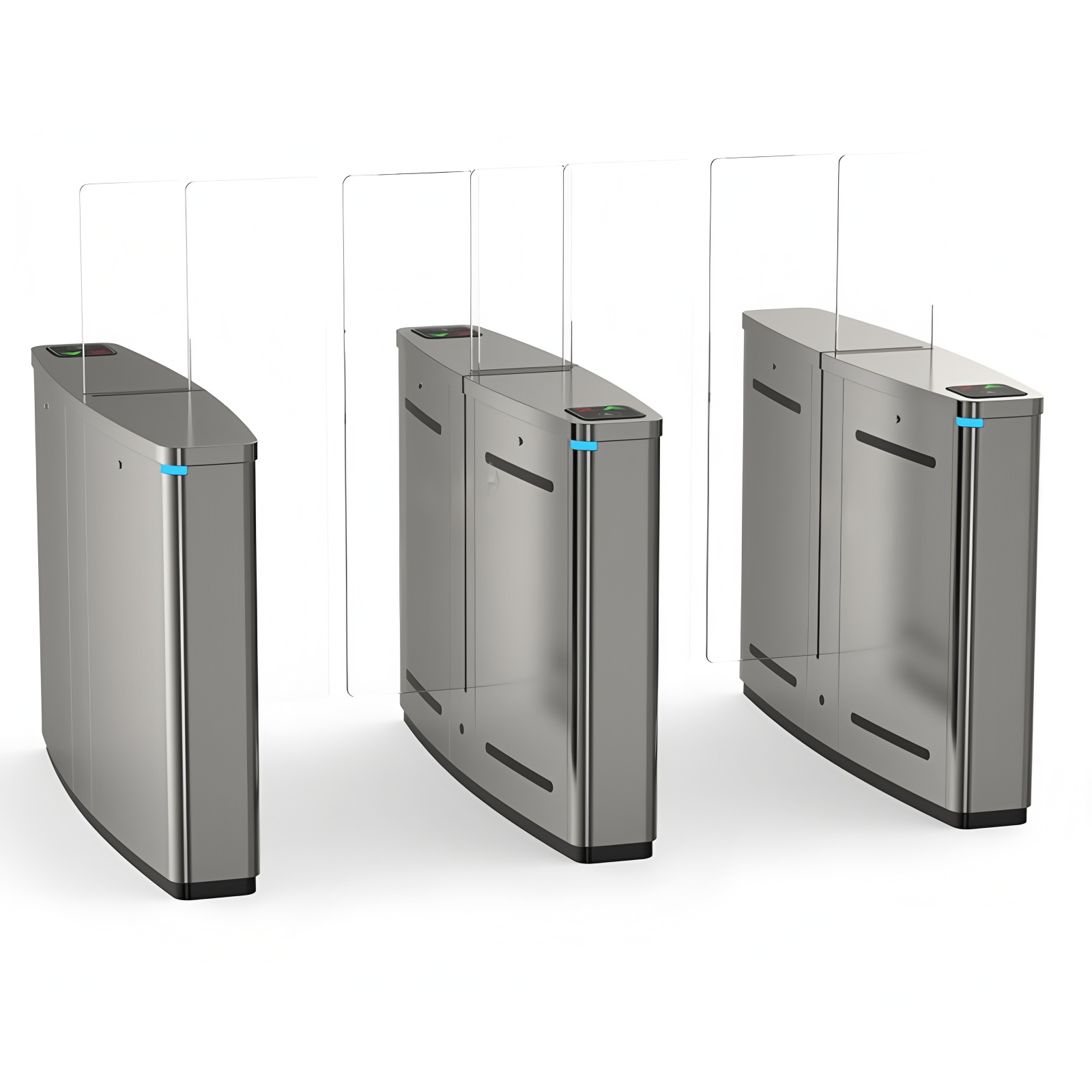

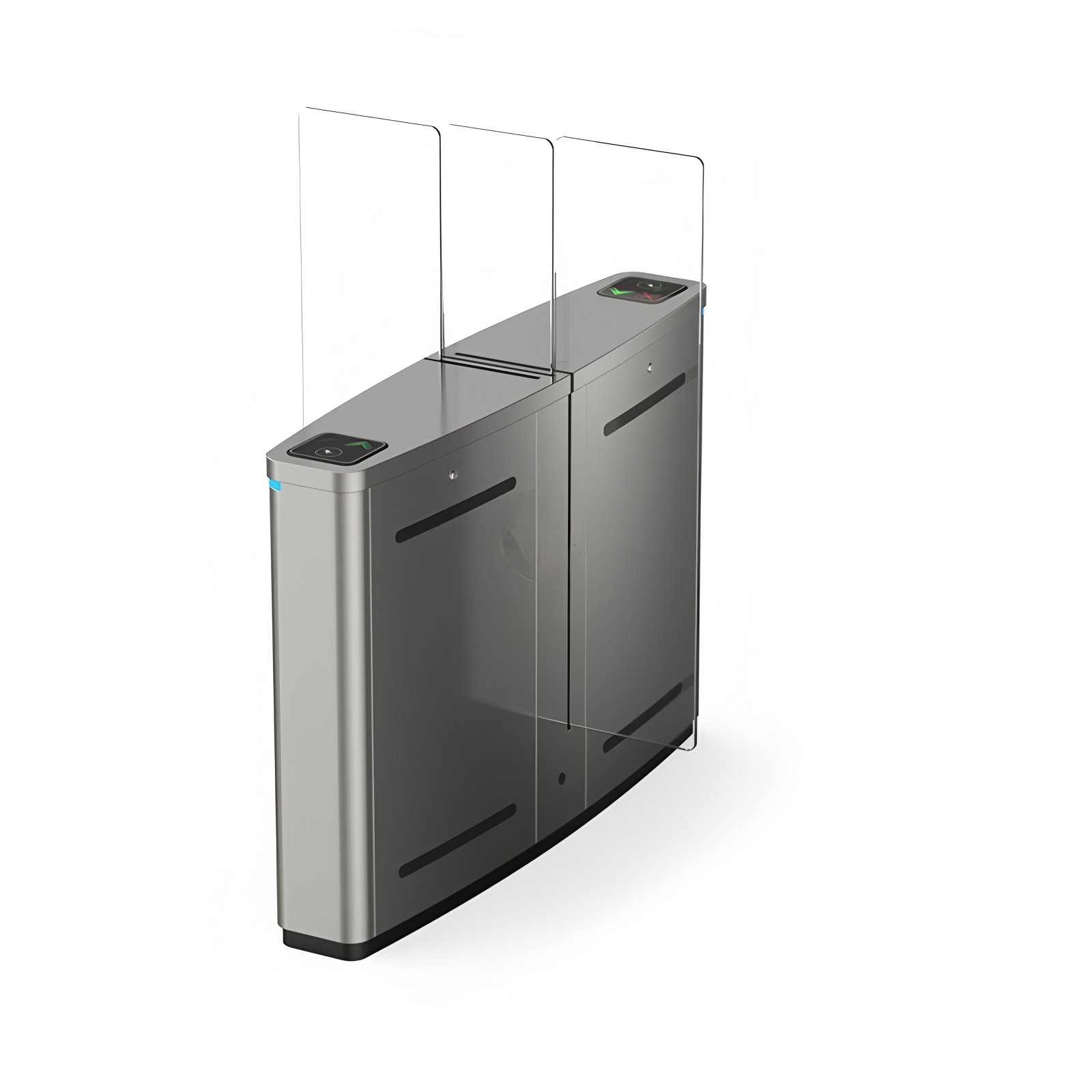

SLIDING GATE TURNSTILE
features an elegant design, high speed, high security, small noise operation, smooth running, and a long life span. It’s highly integrated to be compatible with face recognition temperature scanners, fingerprints access control, QR system, ESD access control RFID, etc. Being the speed flap barrier, the swing baffle opens automatically when power is off, free for passing for fire/ emergency exit requirements.
Product Function
Product parameters
|
hysical dimensions (mm):
|
1400(Length) * 320(width ) * 980 (height) customized optional
|
|
Cabinet material :
|
SUS304 stainless steel; Surface brushed treatment; Anti-fingerprint
|
|
Material thickness (mm):
|
1.5
|
|
Width of passage (mm):
|
600 (standard passageway)
|
|
Gate material :
|
Plexiglass
|
|
Gate dimension (mm):
|
275(Length)*1300(Height)*10(Thickness)
|
|
Gate open and close responding time:
|
＜0.1 seconds
|
|
Gate running speed:
|
Rad/s (adjustable)
|
|
Average times of failure-free operation :
|
≥5,000,000 cycles
|
|
Passageway target detection:
|
4 groups of active infrared detectors
|
|
Pass speed:
|
≥50 /minutes (Normally closed type)
|
|
Application environment
|
Indoor/outdoor
|
|
Operation temperature:
|
- 30°C~60°C
|
|
Operation humidity :
|
≤90%, none condensation
|
|
Power supply:
|
AC220V±,50Hz
|
|
Average power consumption (W):
|
60
|
