Material:
|
304 Stainless Steel
|
Specification:
|
1200*280*990mm
|
|
Work Voltage:
|
AC220V±10% 50HZ±10%
|
Core:
|
DC24V Solenoid Valve
|
|
Max Bearing Force:
|
80KG
|
Warranty:
|
1 Year
|

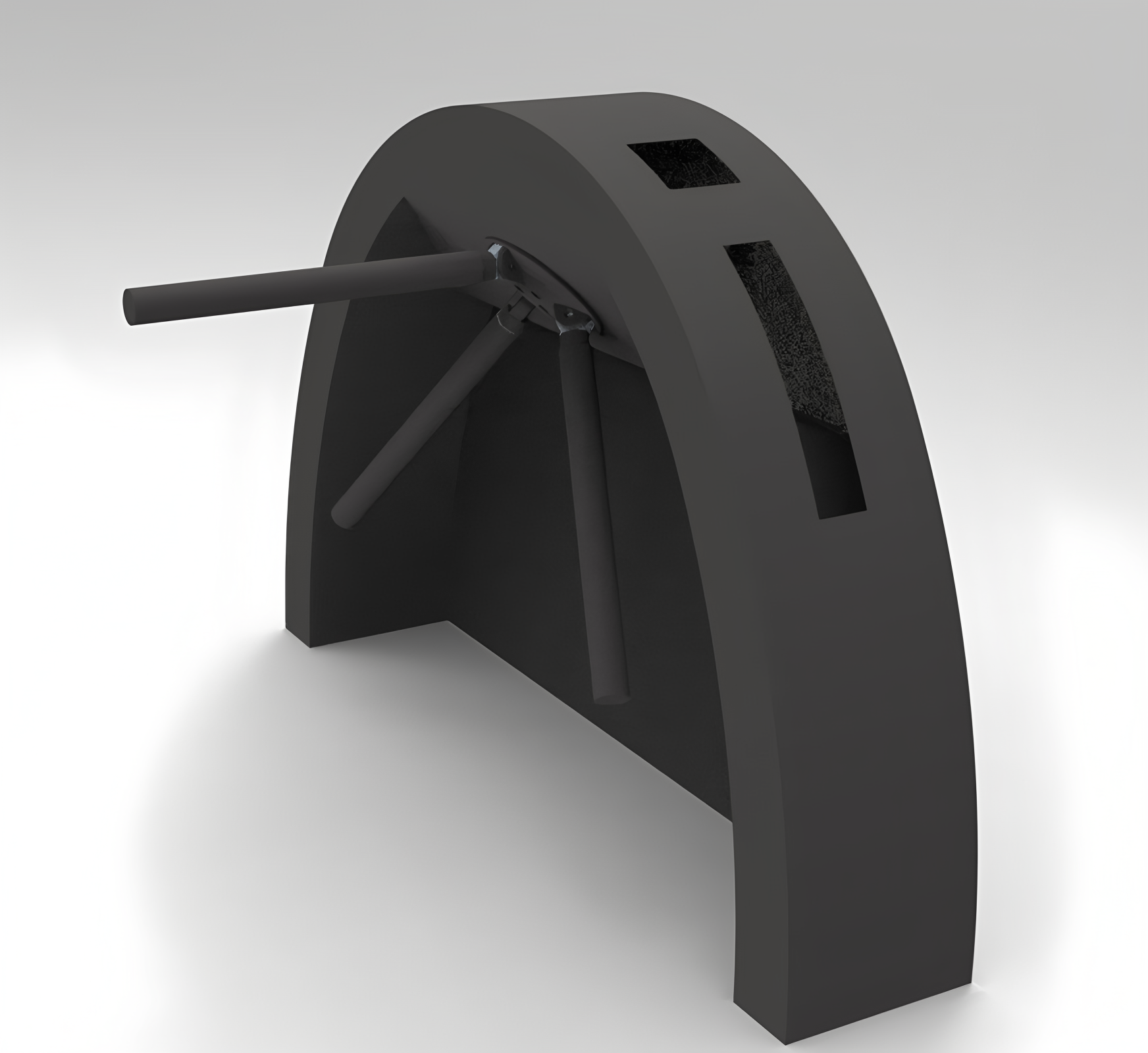

Automatic Tripod Turnstile Access Control Fingerprint RS485 Communication Interface Stainless Steel Barrier
【Tripod Turnstile Gate Features】
● The design is reasonable and reliable, with low noise, smooth operation and long service life.
● Standard switch signal input, convenient external switch or barcode, IC card, fingerprint and other access controllers to control the roller shutter action.
● A variety of working modes are available, including one-way/two-way current limiting, and multiple combinations of traffic modes can be set flexibly.
● Anti-backlash, pedestrians entering the passage from the opposite direction will be locked immediately.
● Anti-tailgating to prevent unauthorized situations involving too many people at one time.

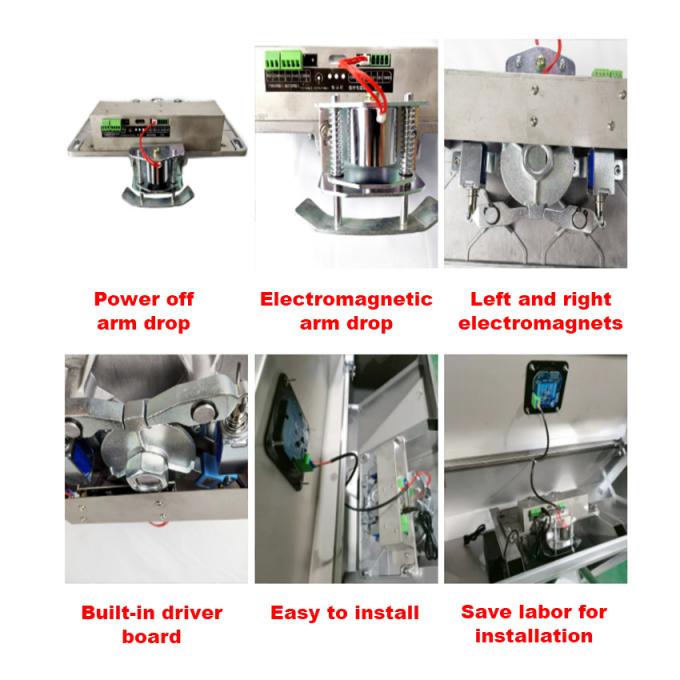

● Tripod Turnstile Gate has the function of lowering the pole when power is off and manually raising the pole when power is on, so as to quickly control the pole drop and organize the evacuation of personnel in an emergency.
●Tripod Turnstile Gate has a unified and standard external electrical interface, which can be connected with various reading and writing devices to facilitate system integration, and can realize remote control and management through the management computer.
● With automatic reset function. After reading the card or fingerprint, if the passer fails to pass within the specified time, the system will automatically cancel the pass authority of the passer, and the restricted pass time can be set by the administrator.
● Tripod Turnstile Gate Can be used in conjunction with other types of channel products.
1. Fully automatic Tripod Turnstile Gate:
◇ Compatible with IC, ID, magnetic cards, barcode cards, anti-static and other control devices
◇A variety of working modes are available: one-way/two-way
◇The Tripod Turnstile Gate lever operates smoothly and makes low noise
◇ With power outage emergency function, the gate pole will automatically fall when power is off and automatically go up when power is on.
◇ The control panel has counting function and LED digital display function (optional)
◇ The control panel has a memory function
◇ With standard input and output interfaces, it is the first choice of system integrators
2. Semi-automatic Tripod Turnstile Gate:
◇ Compatible with IC, ID, magnetic cards, barcode cards, anti-static and other control devices
◇ A variety of working modes are available: one-way/two-way
◇ The gate lever is unlocked quickly and reliably
◇ With power outage emergency function, the gate pole will automatically fall down when the power is off, and the hand will lift up the pole when the power is on.
◇ The control panel has counting function and LED digital display function (optional)
◇ The control panel has a memory function
◇ With standard input and output interfaces, it is the first choice of system integrators
3. Mechanical tripod turnstile gate:
◇ Unique positioning and reset system: automatic reset, able to always keep one of its rods in a horizontal position
◇ Tripod Turnstile Gate is a purely mechanical transmission product with no electronic control operation, simple structure and high reliability.
◇ No maintenance required, suitable for places with one-way current limiting management.
|
Arm length
|
500mm
|
|
Max lane width
|
550MM
|
|
Card reading window
|
standard or customized
|
|
Work environment
|
indoor or outdoor, 10℃~70℃
|
|
relative humidity
|
≤90%, no condensation
|
|
Barrier open time
|
0.2s
|
|
Transit speed
|
25-35people/minute
|
|
Emergency
|
auto drop for arm
|
|
Normal work life
|
3,000,000 times
|
|
Communication interface
|
RS 485, distance ≤1200m
|
