Product Nanem:
|
10 Million Operating Times Automatic Barrier Gate
|
Key Word:
|
Car Parking System Boom Gates, Boom Gate For Car Park
|
|
Open Time:
|
0.6s
|
Boom Type:
|
Straight, Folding, Fenceing Boom
|
|
Cabinet Material:
|
2mm Cold Roll Plate
|
Cabinet Color:
|
Grey/blue(optional)
|
10 Millon Operating Times Guaranteed Automatic Car Parking System Boom Barrier Gates For Car Park
1. Boom Barrier Gate Movement Features
◆ Highly integrated and integrated movement, the internal connecting rod structure of the movement adopts a hidden design and has a delicate structure.
◆ The internal screw reducer adopts screw transmission, which has high transmission efficiency and large output torque.
◆ The connecting rod structure parts are formed by molds, with high processing accuracy and stability.
◆ Servo motor drive, controllable speed, precise positioning, strong adaptability, stable operation, and relatively fast motor acceleration and deceleration dynamics.
◆ The servo movement is relatively self-locking, and the movement is relatively self-locking through the motor force to ensure that the rod cannot be lifted manually in the state of falling rod. When the power is off, the motor does not apply force, and the rod can be lifted, eliminating the clutch structure and hand-cranking structure.
◆ The motor and the reducer are directly connected, with high transmission efficiency and strong stability.
◆ The reducer housing is connected with a flange design, which does not require internal structure processing and the bearing position is accurate.
◆ The design of multiple thin wires through spring balance has a long service life and is not easy to break.
◆ The cast aluminum rod handle is used, and the rod head can be quickly disassembled. Adopt cast aluminum buckle, exquisite appearance.
◆ The core transmission part of the reducer is a ball screw pair, with precise assembly dimensions and durability.
◆ The rod has no dead point design, and the rod can be manually lifted without clutch after power failure
2. Boom Barrier Gate Chassis Performance Characteristics:
◆ Humanized appearance line design, simple and elegant, beautiful and bright.
◆ The box body is made of high-strength steel plate bending and welding, which is sturdy and durable.
◆ The chassis adopts upper and lower split design, which is beautiful and durable.
◆ The box cover, box body and door panel are split structures, which is convenient for color matching.
◆ The surface of the chassis is treated with phosphating process, which has the characteristics of rust prevention, UV resistance and not easy to change color under exposure to sunlight.

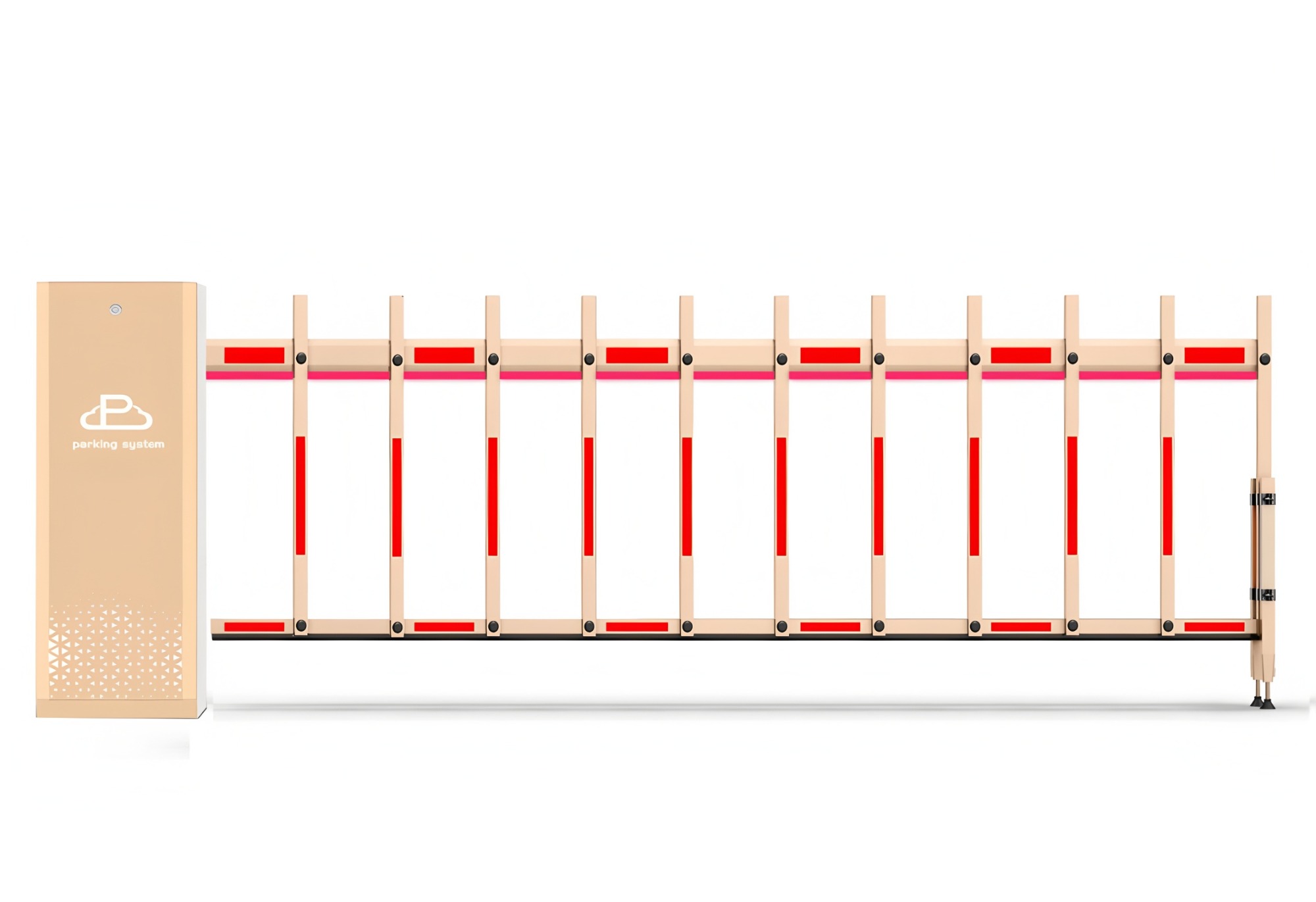

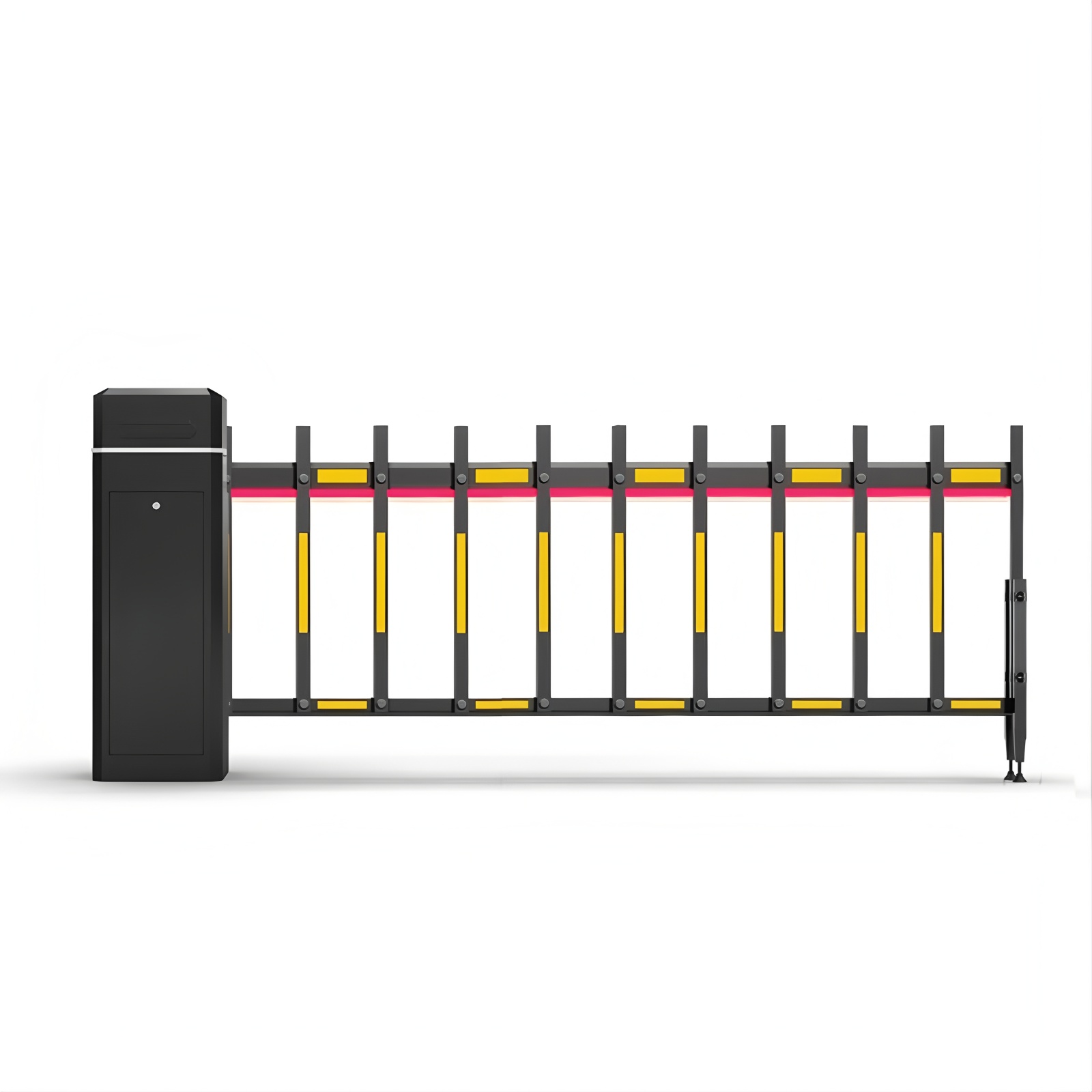

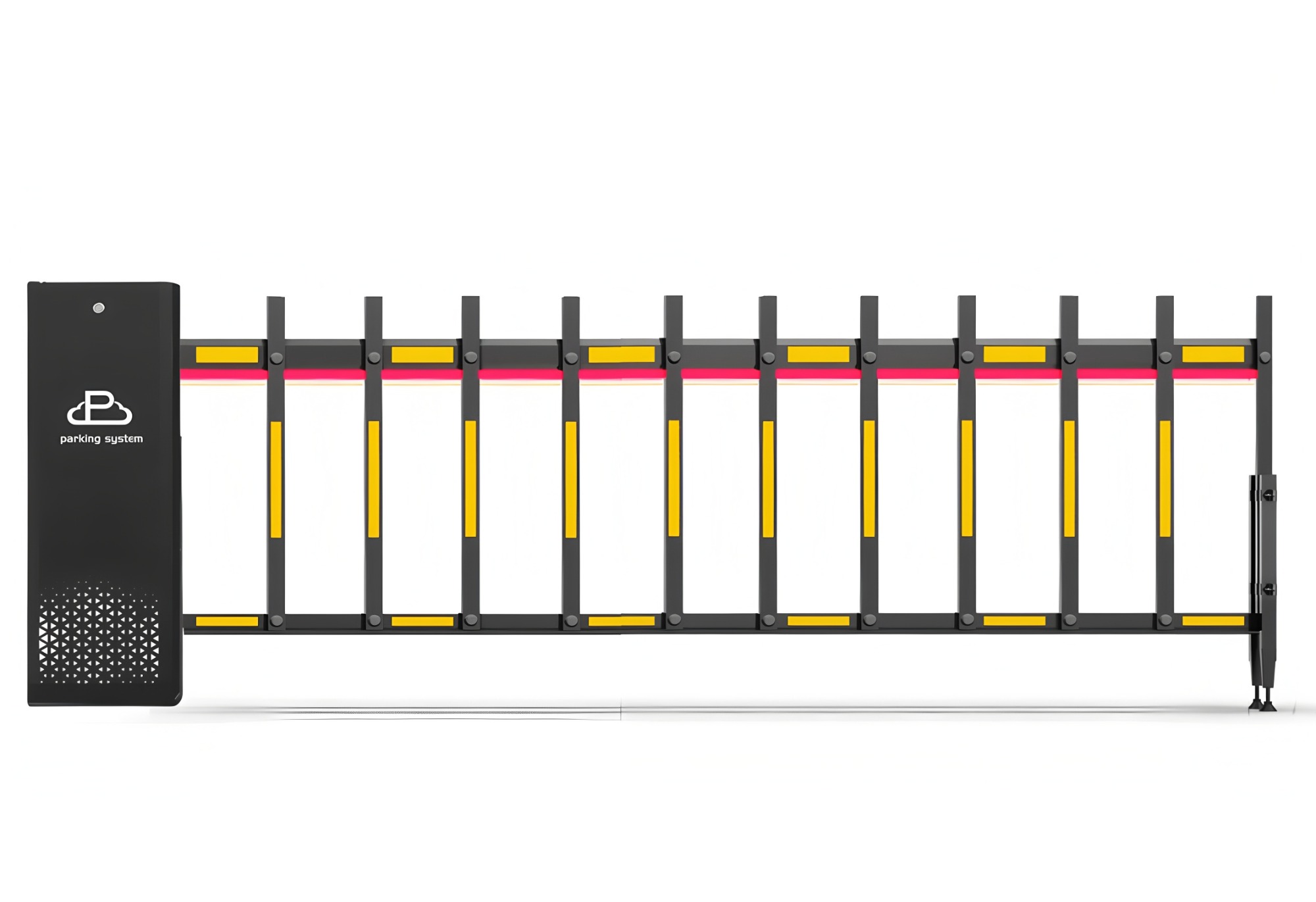

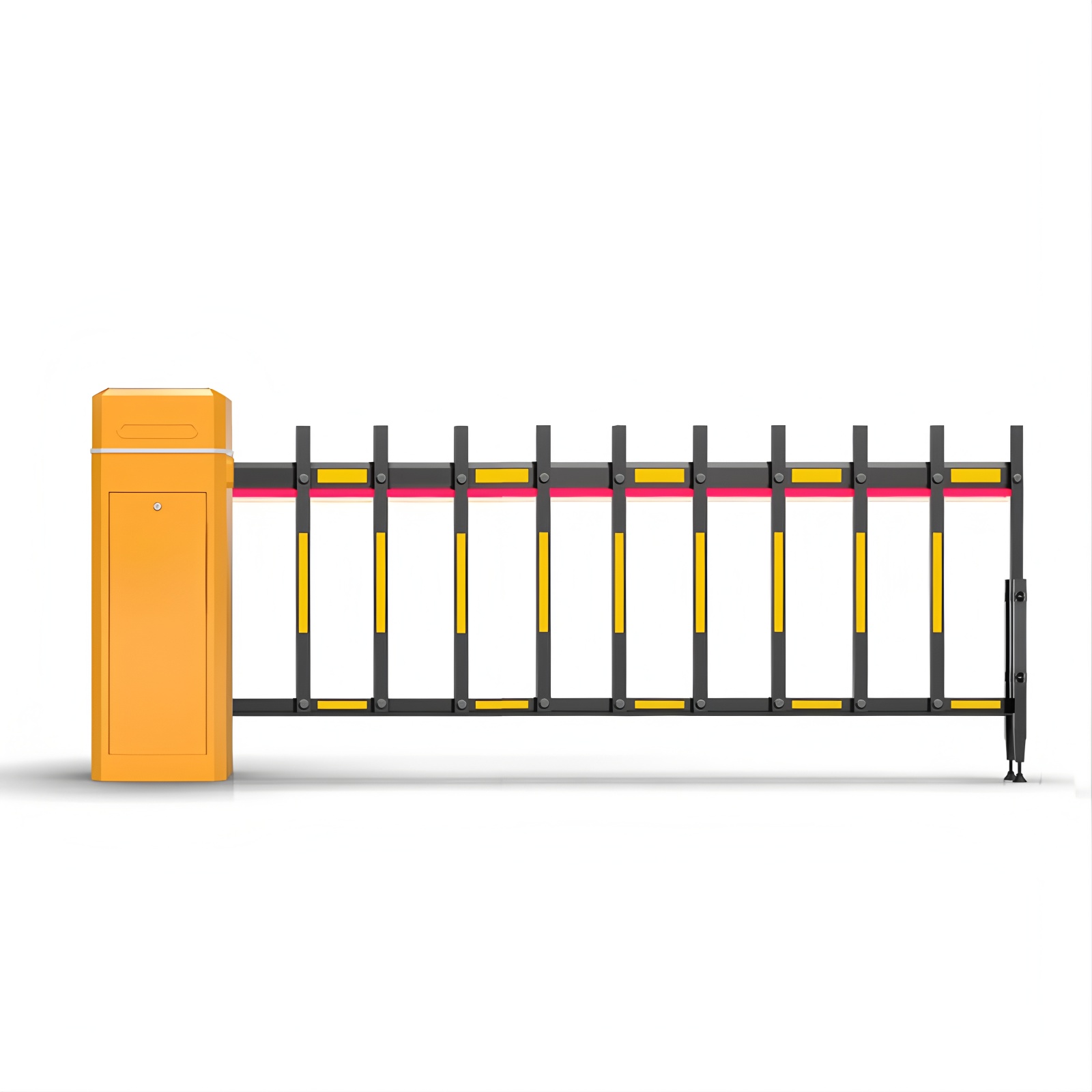

3. Boom Barrier Gate lever features:
◆ Surface spray treatment, color matching is available. The fence pole can be equipped with pressure wave anti-smashing function and anti-smashing rubber strips.
◆ The main pole, auxiliary pole and vertical pole are rotating pole-collecting structures, and the vertical pole of the fence pole is a front-to-back staggered and repeated pole-collecting structure.
◆ The front end of the fence pole is equipped with a landing support pole and rubber shock absorption.
◆ The vertical pole is connected to the main pole and auxiliary pole with engineering plastics, and there is no noise when rising and falling.
◆ After the fence pole is retracted, the vertical poles are arranged flat, regular and beautiful in appearance.
4. Features of the servo Boom Barrier Gate control system:
◆ The system buffers and decelerates when the lifting and lowering pole is in place, runs smoothly and does not shake the pole.
◆ After a power outage, the system locks the motor phase line to keep the lifting and lowering pole in a vertical and horizontal state.
◆ Intelligent perception of abnormalities such as motor stalling, overtime operation protection, rebound when encountering obstacles, broken poles, and artificial lifting poles.
◆ The intelligent servo control technology is used to ensure that the lifting and lowering poles are accurate and stable, and multiple expansion port functions are reserved.
◆ Real-time monitoring of the gate pole operation data, and self-judgment of the function of lifting the pole immediately when encountering obstacles.
◆ Multiple control modes: onboard buttons, remote control, external wire control, 485 and other control modes, to achieve functions such as raising and lowering the pole.
◆ Multiple application modes: with common, fleet, counting and other application modes for users to choose.
◆ Unlimited switch, after powering on, the onboard button or remote control starts the self-test, and the self-learning stroke rise and fall position and number of steps.
◆ Reserved 485 communication interface, the system can realize remote control, status data collection, abnormal real-time reporting and other functions.
