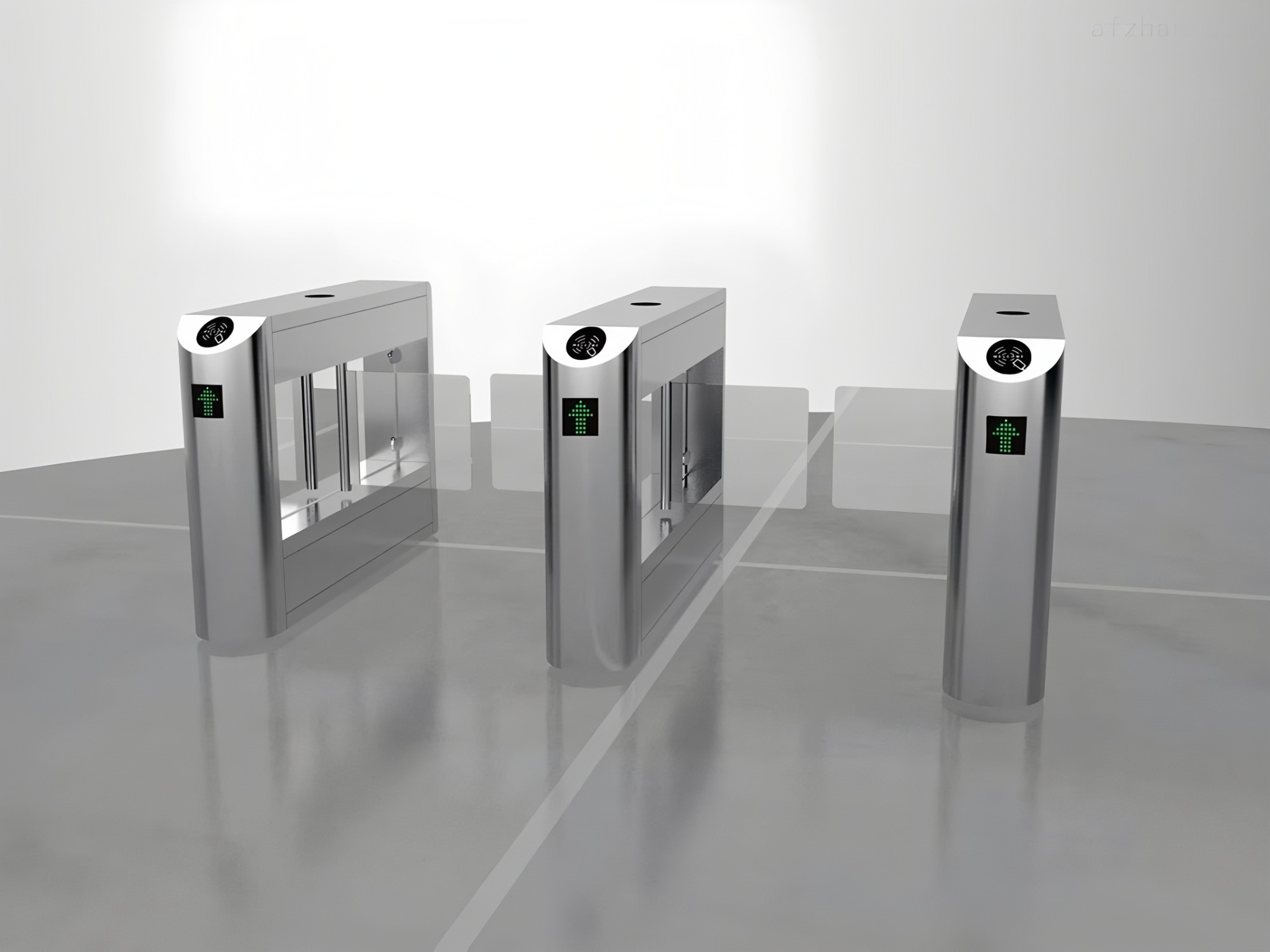

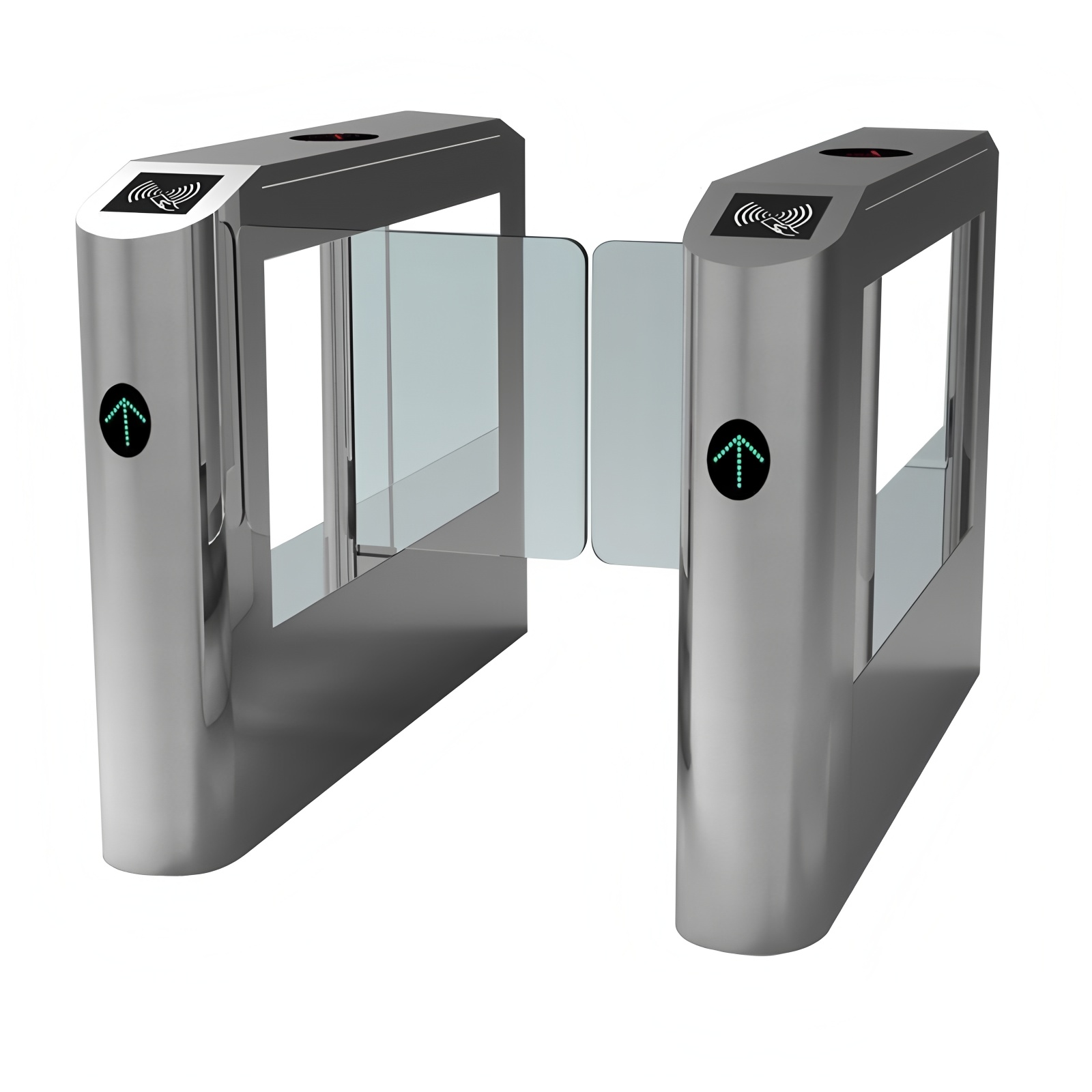

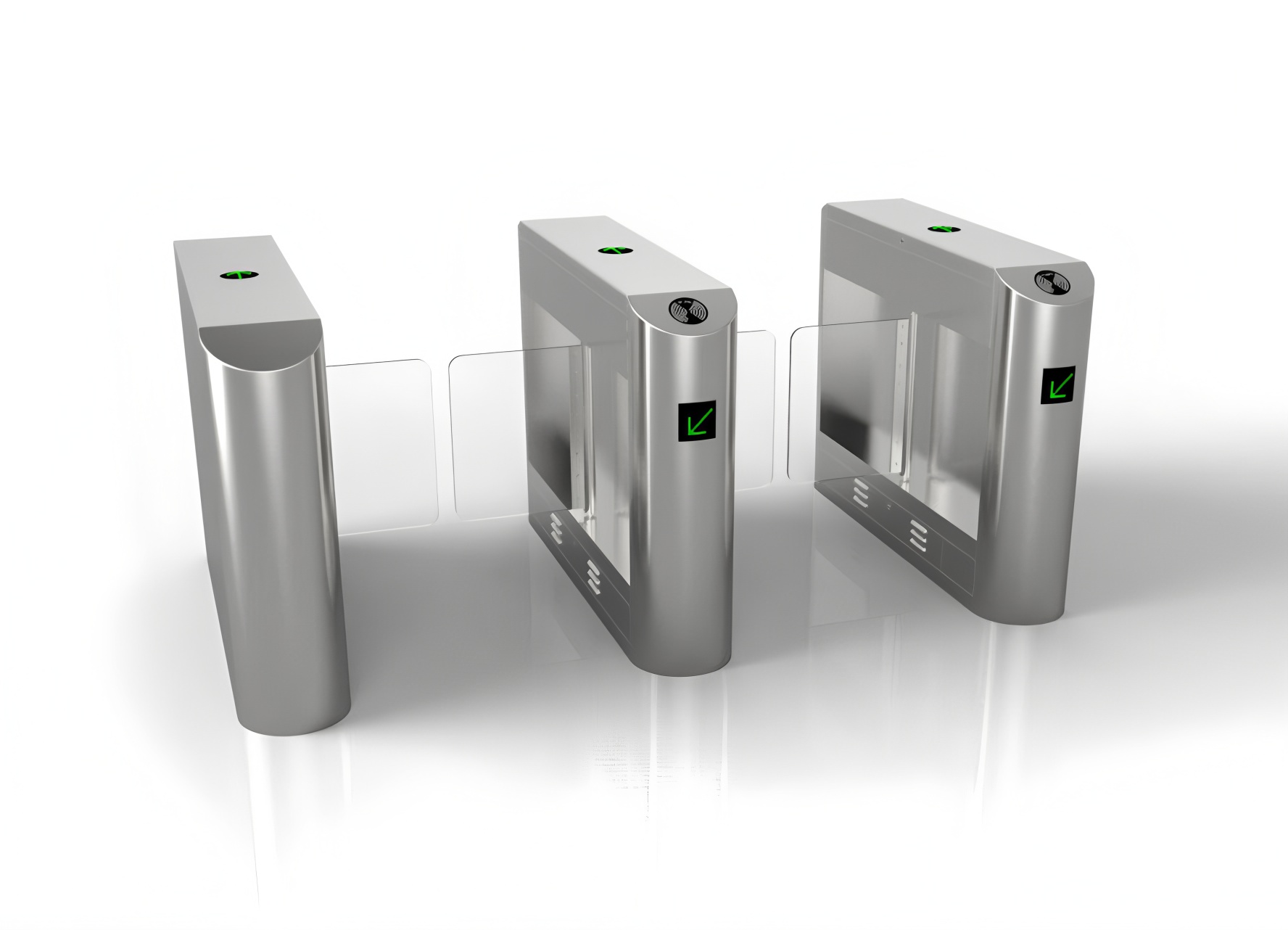

Automatic SUS304 Electronic Swing Turnstile Secure Facial Waterproof for Subway

We can provide OEM and ODM services. All of our products carry a 1 years warranty and durable maintenance and repair support. We also provide biometric devices, such as fingerprint scanner, face recognition camera. RFID card reader, QR code scanner. If you need to integrate these devices on the turnstile gate or have any questions, please feel free to let us know .

Technical Parameter:

1. Size: 1200*200*980 mm (can be customized)
2. Lane Width: 600 mm (Standard) 900 mm( Handicapped)
3. Arm Material: 10mm Acrylic
4. Passing speed: 35 person/min
5. Power supply: 110V/220V 50/60hz
6. Mechanism :DC Brushless motor mechanism
7. Driving Motor: 24V
8. Gate Open Signal: Dry Contact/ Relay
9. Weight: 70 kg/pcs
10. With 5pairs of sensors
11. Casing Material: 304 stainless steel and black acrylic
12. Reliability of the mechanism: 3 million-5 million, no-fault
13. Anti-hit mechanism, automatically reset when encounter force impact
14. LED light on arms is optional
15. LED sideboard
16. Working Direction: Bidirectional/Single directional

17. Emergency situation: open automatically when the electricity is cut off with a capacitor
18. Humidity: ≤90％
19. Working temperature: -20℃～60℃
20. Communication distance: ≤1200 m
21. Communication interface: RS485
22. Feature: IC/ID reader, Barcode Reader, Face recognition, Fingerprint, other access control equipment, UPS, etc
23. Time needed for opening: 0.2 s
24. Working environment: Indoors
25. Application range: Community, Factory, office building, School, Place of the resort, etc
