Luxury Swing Turnstile Biometric Access Control Products Facial Access Control

Description

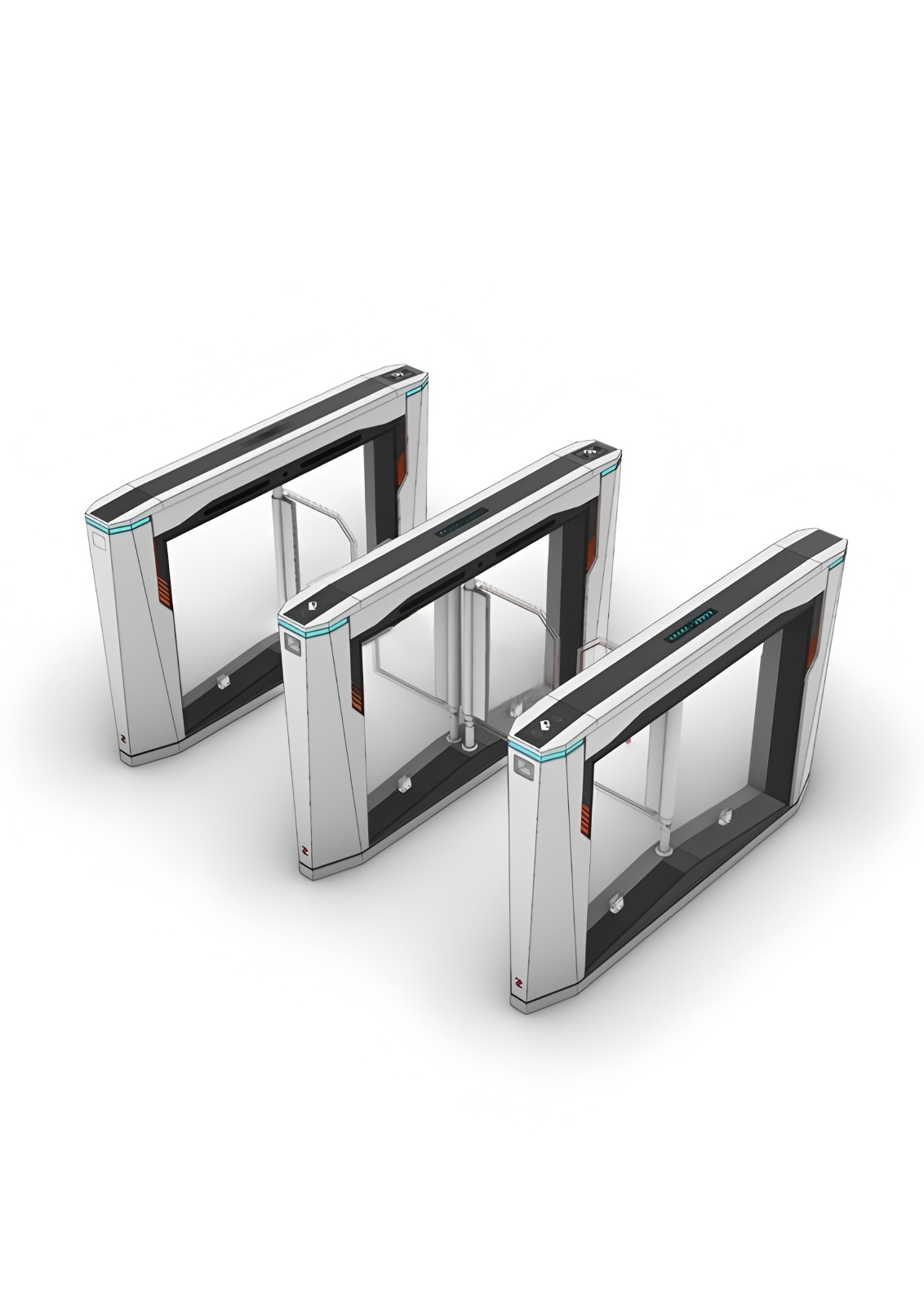

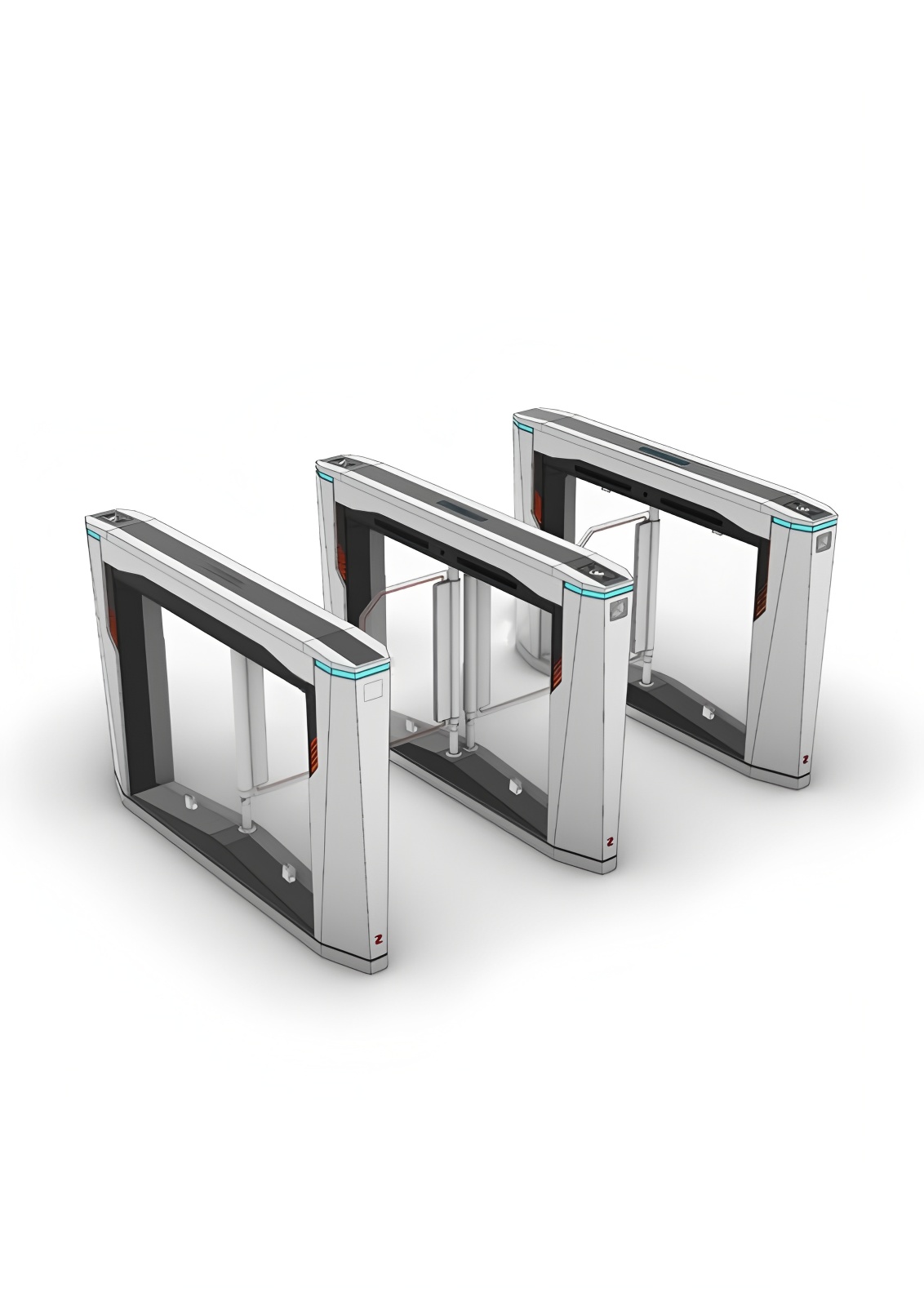

The ZT-987 Intelligent Clear Glass Swing Gate offers security, capability, sleekness, and beauty that enhances any entrance. It features a solid but open-design frame with glass swing-gate wings that swing under the cabinet for the widest passage space. Its bright, simple and elegant design features a durable stainless steel housing and mechanism modules imported from Europe. Brushless DC motors and precise positioning encoder ensures the swing gate can move quickly and accurately, stably and quietly, with low-power consumption and energy conservation. Products are well-researched and each unit goes through strict and careful inspection. This unit is widely used for sites requiring intelligent management for the passage of people – such as in a hotel, airport, school, factory, facility, etc. The equipment is provided with a standard electric interface for integration into a system with write/read facilities such as biometric access control, magnetic card, bar code card, ID card, or IC card.

FEATURES

• Low Glass Swing Gate with Stainless Steel Pedestal

• Standard Cabinet Length (1200mm) or Long Cabinet (1600mm)

• Bi-directional Passage

• Automatic intelligent detection

• Rounded Ends with LED indicator lights

• The turnstile opens automatically to evacuate people in the event of an emergency, such as fire, power failure, etc.

• Mechanical anti-clamping functions for safety.

• The gate can be pushed slowly when a sudden impact force is applied beyond the safety range so as to protect the machine and the pedestrian effectively.

• All electric modules are designed to operate under a low voltage and configured with a residual current protective device for safety.

• Main Technical Specifications

  • 1) Power voltage: AC100~240V, 50Hz

  • 2) Operation environment temperature: -15℃~ 60℃

  • 3) Relative humidity: less than 95% not condensed

  • 4) Passage width: 650mm Standard, 900mm Wide

  • 5) Passing speed: 20-40 person/min

  • 6) Main-board voltage: 24VDC

  • 7) Max current: 5A

  • 8) Working Environment: Indoor/Outdoor

  • 9) Input port: dry contact signal

  • 10) Communications port: RS232/RS485 electric standard, communications range: ≤1200m.

ADDITIONAL OPTIONS

• Upgrade to taller glass panels

• 8-Digit Resettable Counter

• Built-in Readers (face recognition, fingerprint identification, ID card recognition system, passport scanner, QR code system, etc.)

• Integrate with Access Control System, Ticketing, Time and Attendance, Visitor System etc.

• More options available upon request

FINISH

• 304 Stainless Steel

• Clear Glass Swing Gate

• Green and Red Indicator Lights

• Custom Gate Materials and Colors available
