Highlight:
BLDC Motor Flap Barrier Turnstile
,
automatic systems turnstile Anti pinch
,
Flap Barrier Turnstile Anti pinch
|
Direction:
|
Can Be Set As Single Or Double
|
Control Input:
|
Dry Contact/relay Signal
|
|
Drive Mode:
|
Brushless DC Motor
|
LED Indicator:
|
Red And Green
|
|
Passage Width:
|
600mm~1000mm
|
Packing:
|
Wooden Box
|

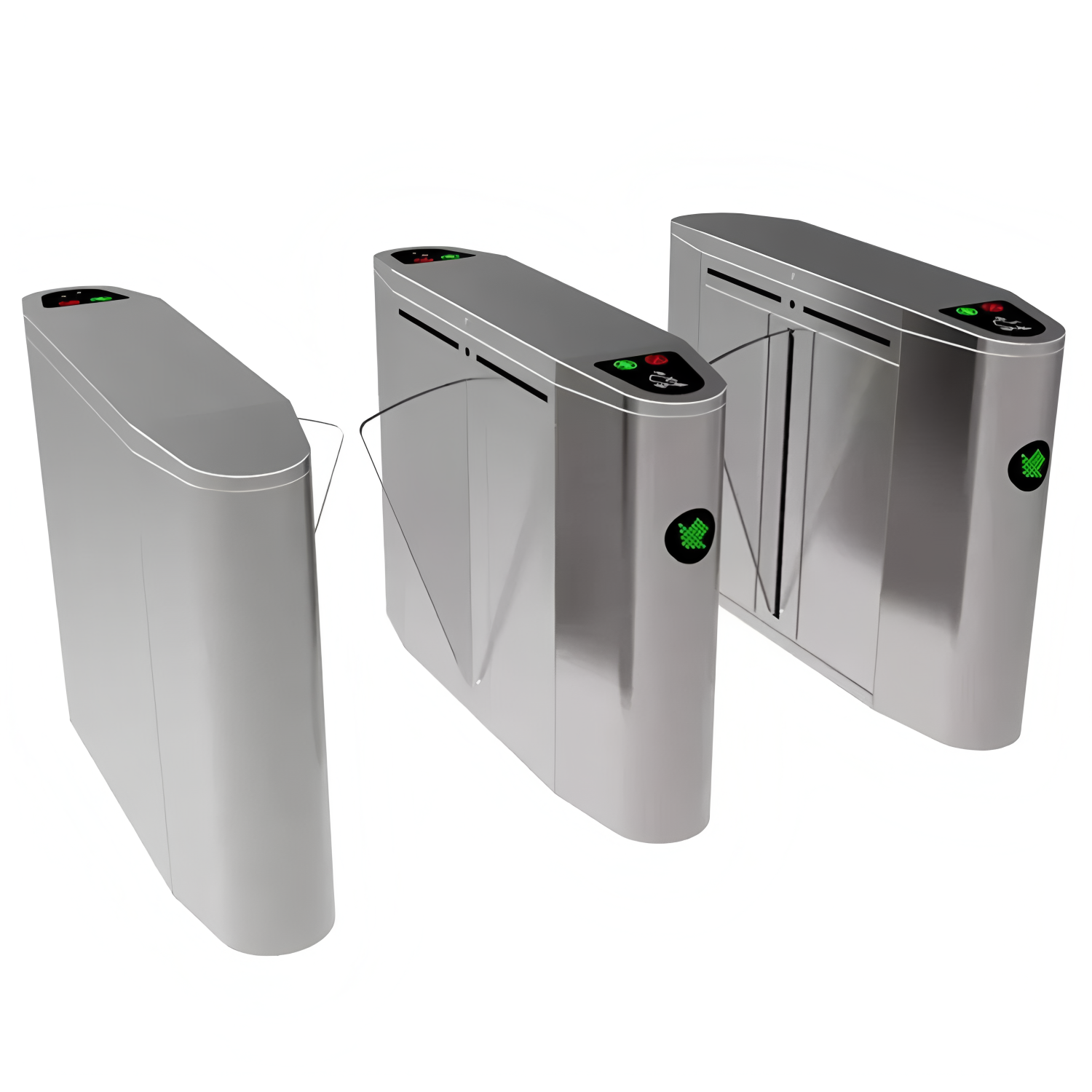

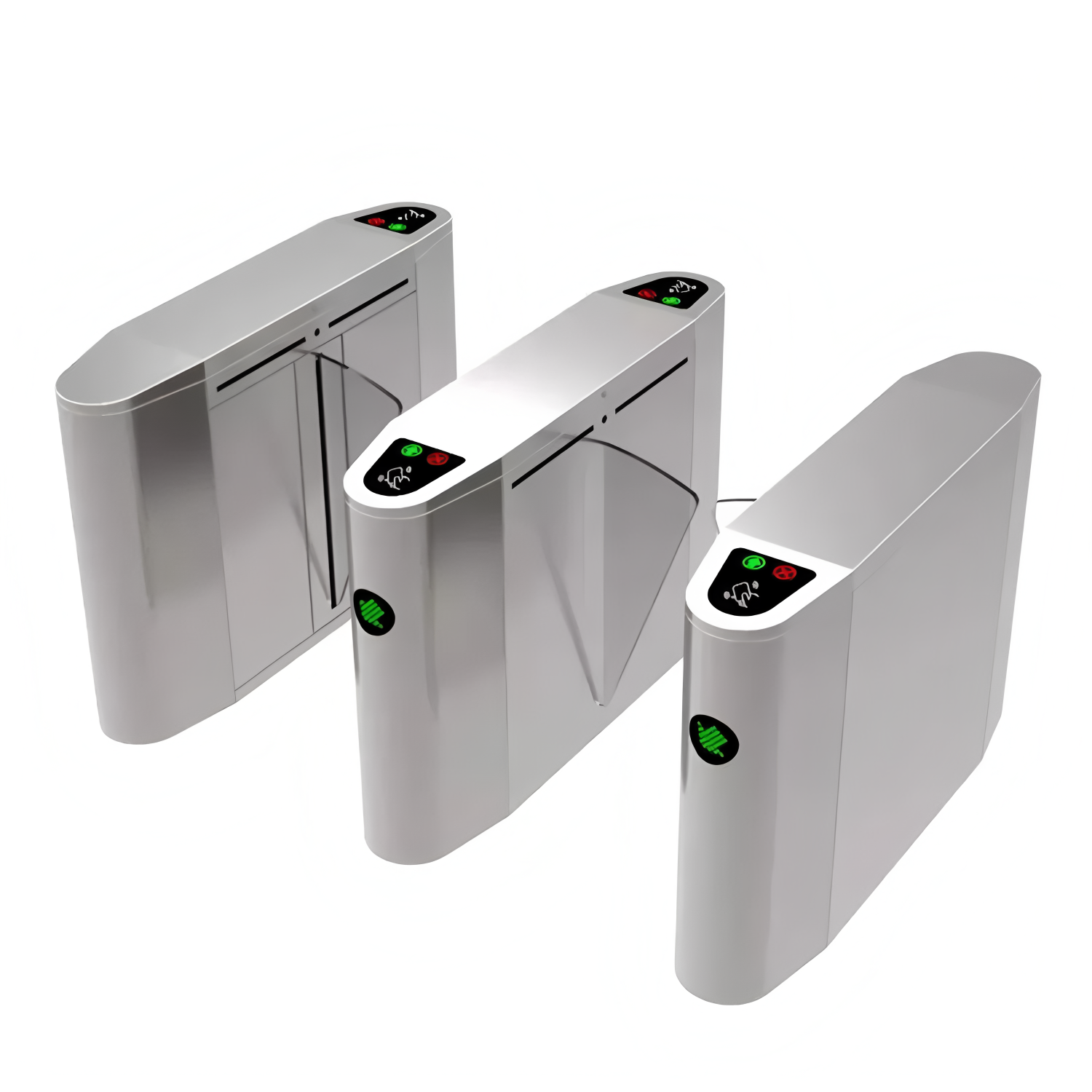

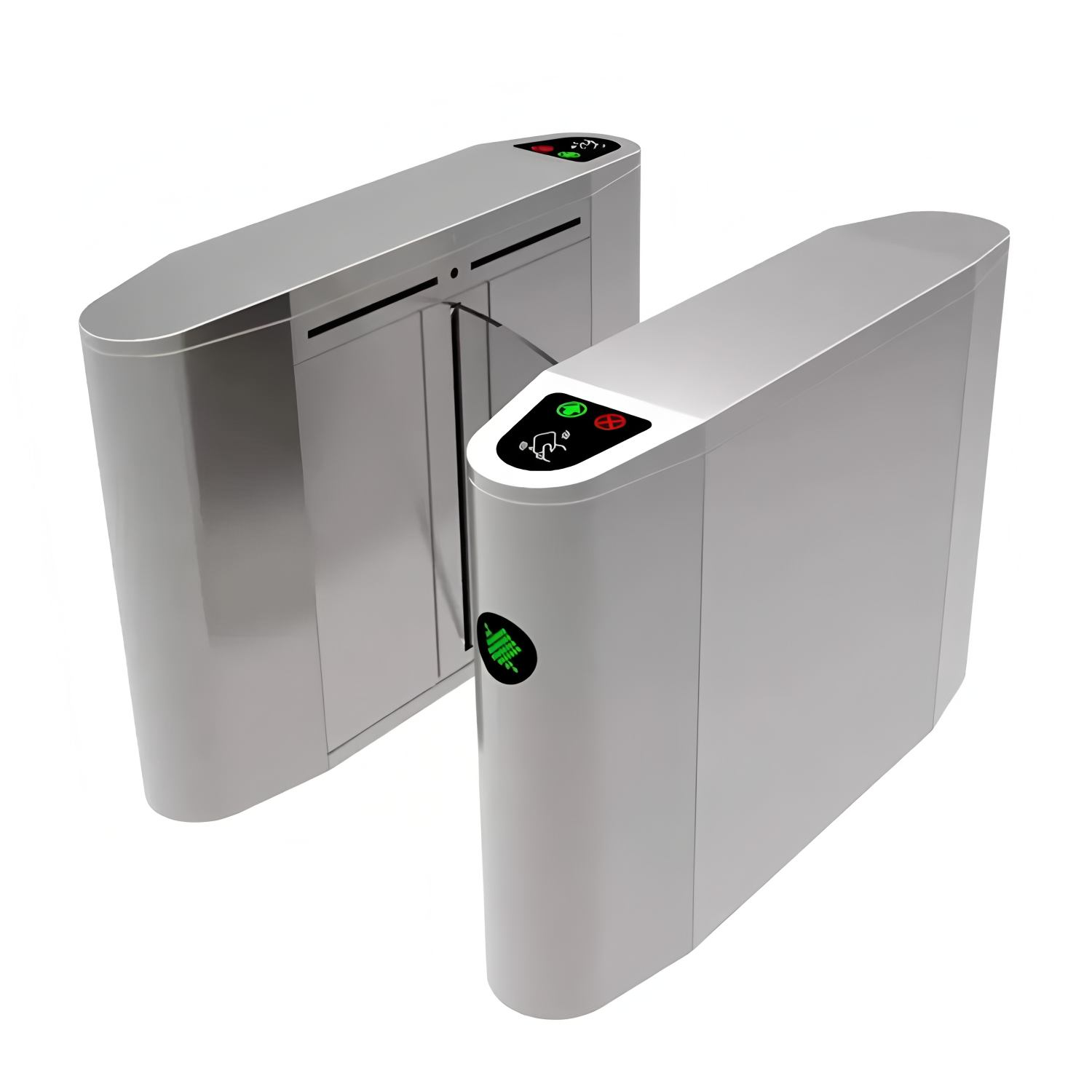

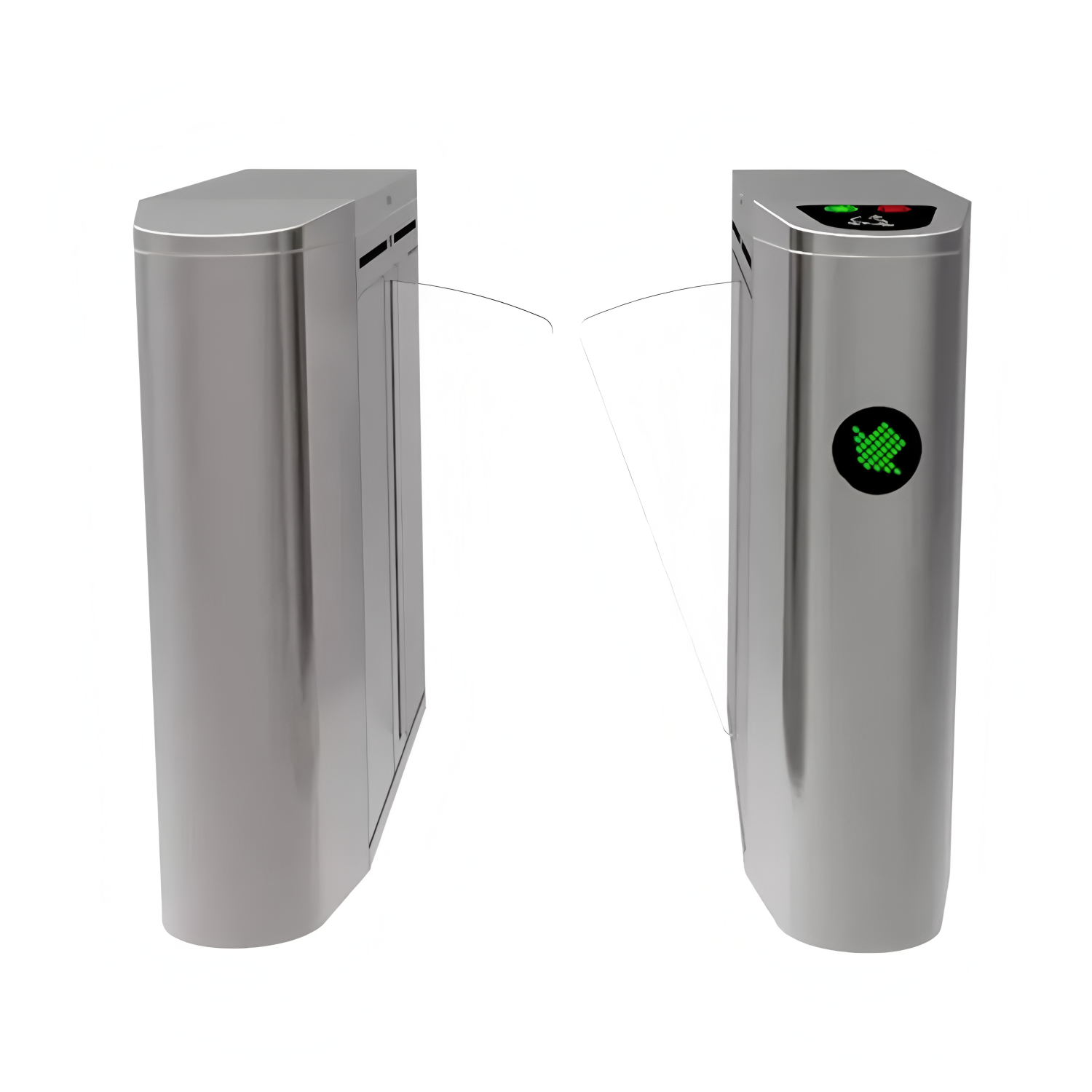

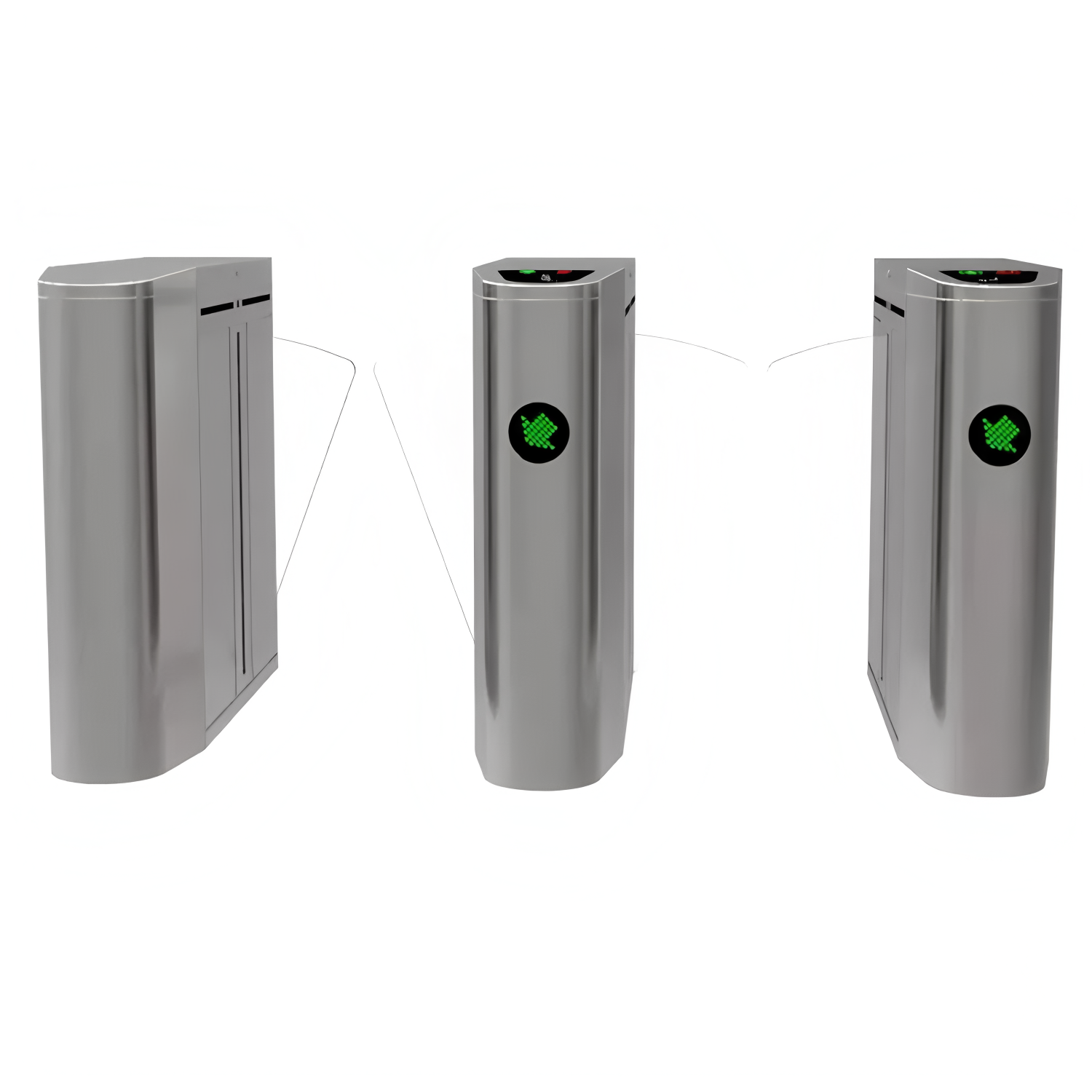

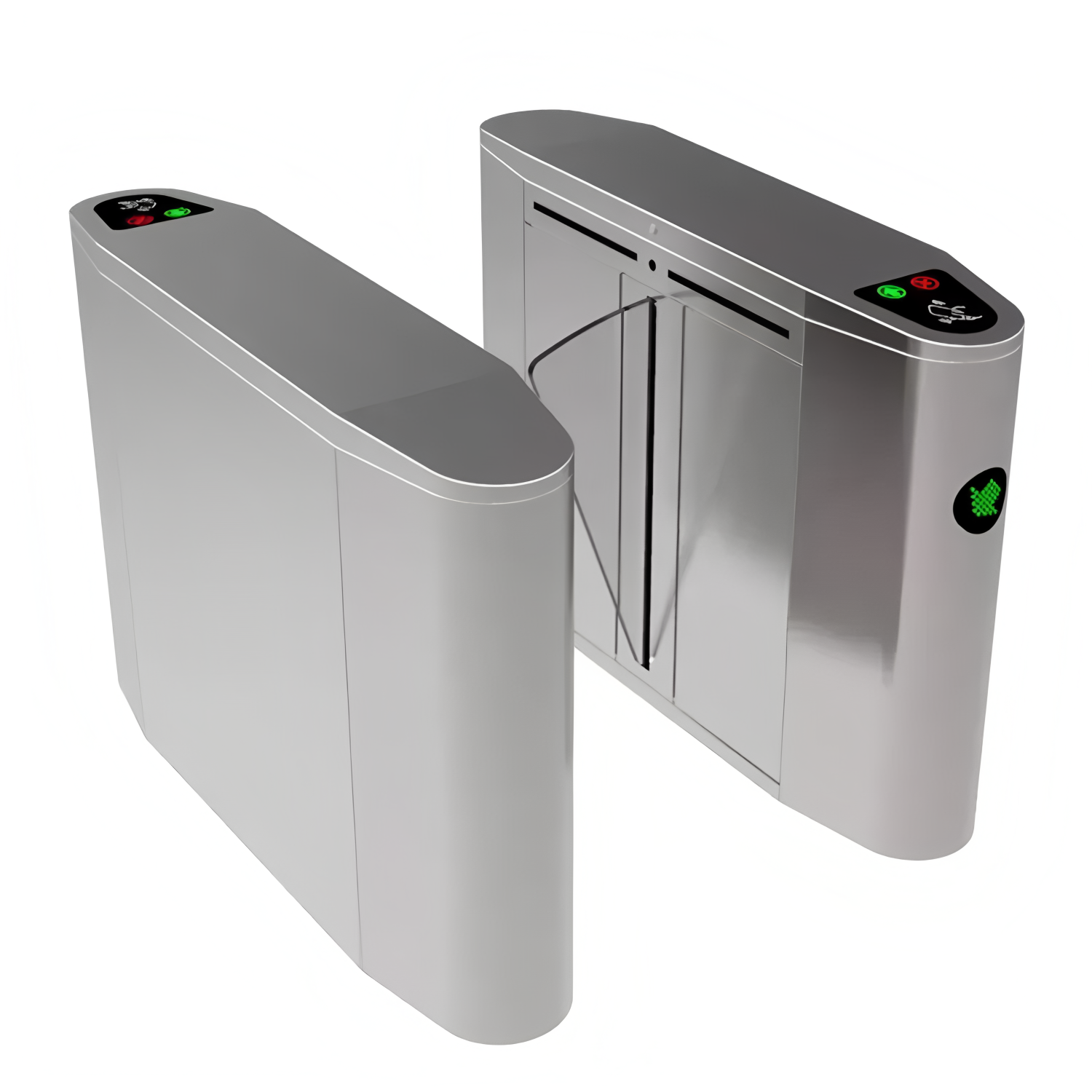

BLDC Motor Automatic Systems Flap Barrier Turnstile Anti Pinch
Easy to Use BLDC Motor Flap Barrier Turnstile Bi-direction Anti-pinch Gate Normally open and closed
It possesses superiority incomparable with the traditional management mode. Whether on the control right of passenger for passing, or on tolling, attendant or counting of the passenger, there will be a great deal of man power and material, a lot of spending, a large amount of work and a very low efficiency resulted with the traditional management mode. However, it is the strong merit point of the intelligent passage management product to solve the problems of this kind. It is the scientific crystallization of the highly development of social civilization and it opens a new era for the scientific management.
Functions:
|
|
|
|
|
|
|
Self-developed planetary gear reducer structure, driven by DC permanent magnet motor, compact structure, large torque, low noise
and wear resistance.
|
|
|
|
Self-developed servo control system, precise control, more flexible running, less mechanical impact and longer service life.
|
|
|
|
Frequency conversion technology, running speed adjustable, automatic opening when power off, meet different access requirements
and have a better experience.
|
|
|
Mechanical Transmission Parts
|
Precisely made of high-strength plastic, pure mode design, improving the accuracy of spare parts and assembly, more compact
operation, smaller operation gap, and longer service life.
|
|
|
|
Made by plastic mold, standardization and refinement, surface treatment technique, the best visual effect of lighting.
|
|
|
RS232 Communication Module
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Technical Data:
1. Working Temperature: -25℃～+70℃
2. Power Supply: AC110/220V±10%
3. Input Voltage of Controller: DC24V ±10%
4. Working Voltage of Motor: DC24V
5. Motor Power: 50W
6. Relative Humidity: 90% (no condensation)
7. Material of Cabinet: 304 stainless steel
8. Width of Passage: 600mm (a pair)
9. Opening & Closing Speed: 0.2~1 seconds adjustable
10. MTBF: 10,000,000 times
