Lane Width:
|
550~600mm
|
MCBF:
|
≥3,000,000 Times
|
|
Material:
|
304/316 Stainless Steel
|
Passing Speed:
|
35-45 Persons/min
|
|
Service Life:
|
≥5 Years
|
Size:
|
1400mm(L) X 300mm(W) X 980mm(H)
|

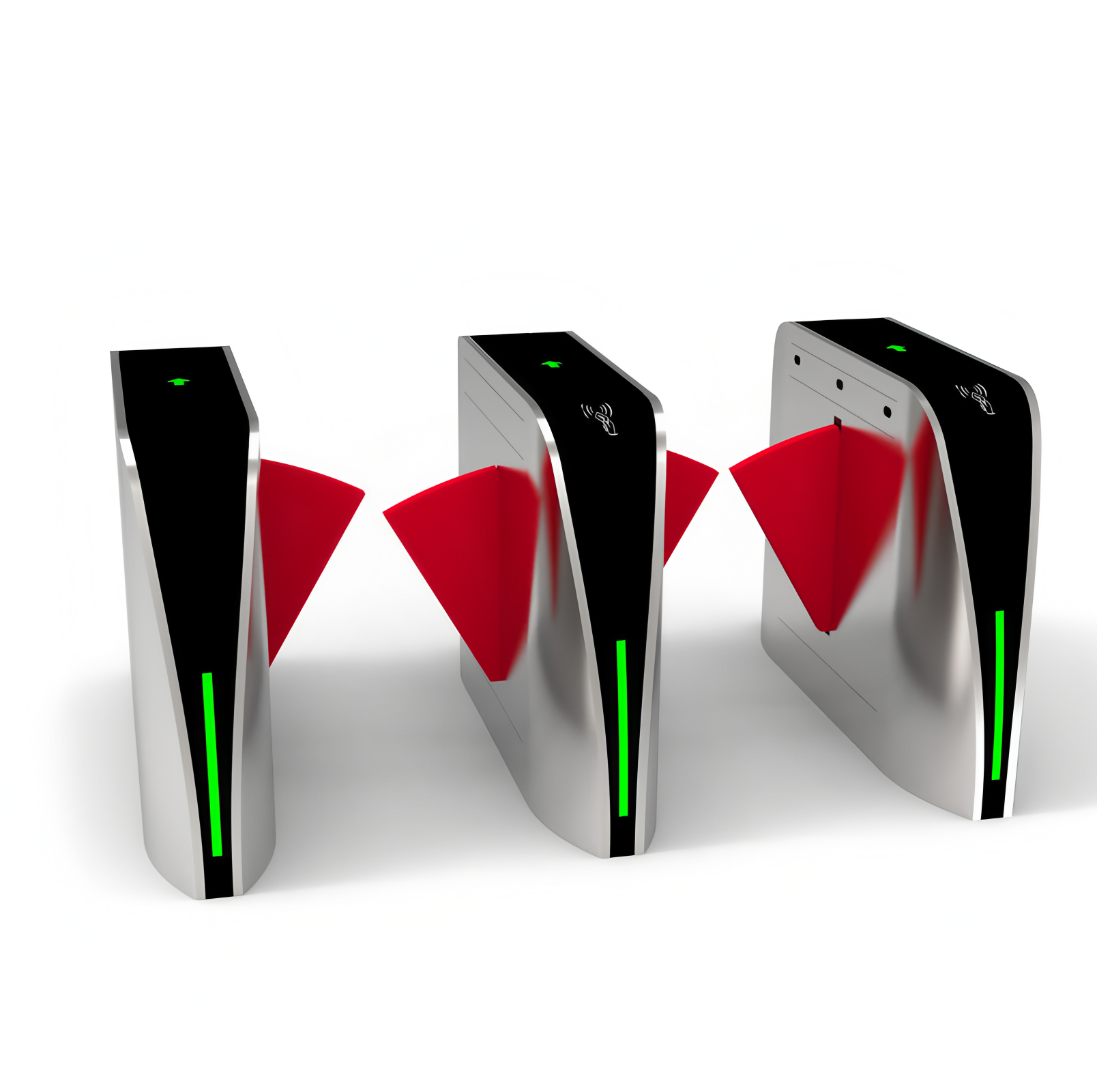

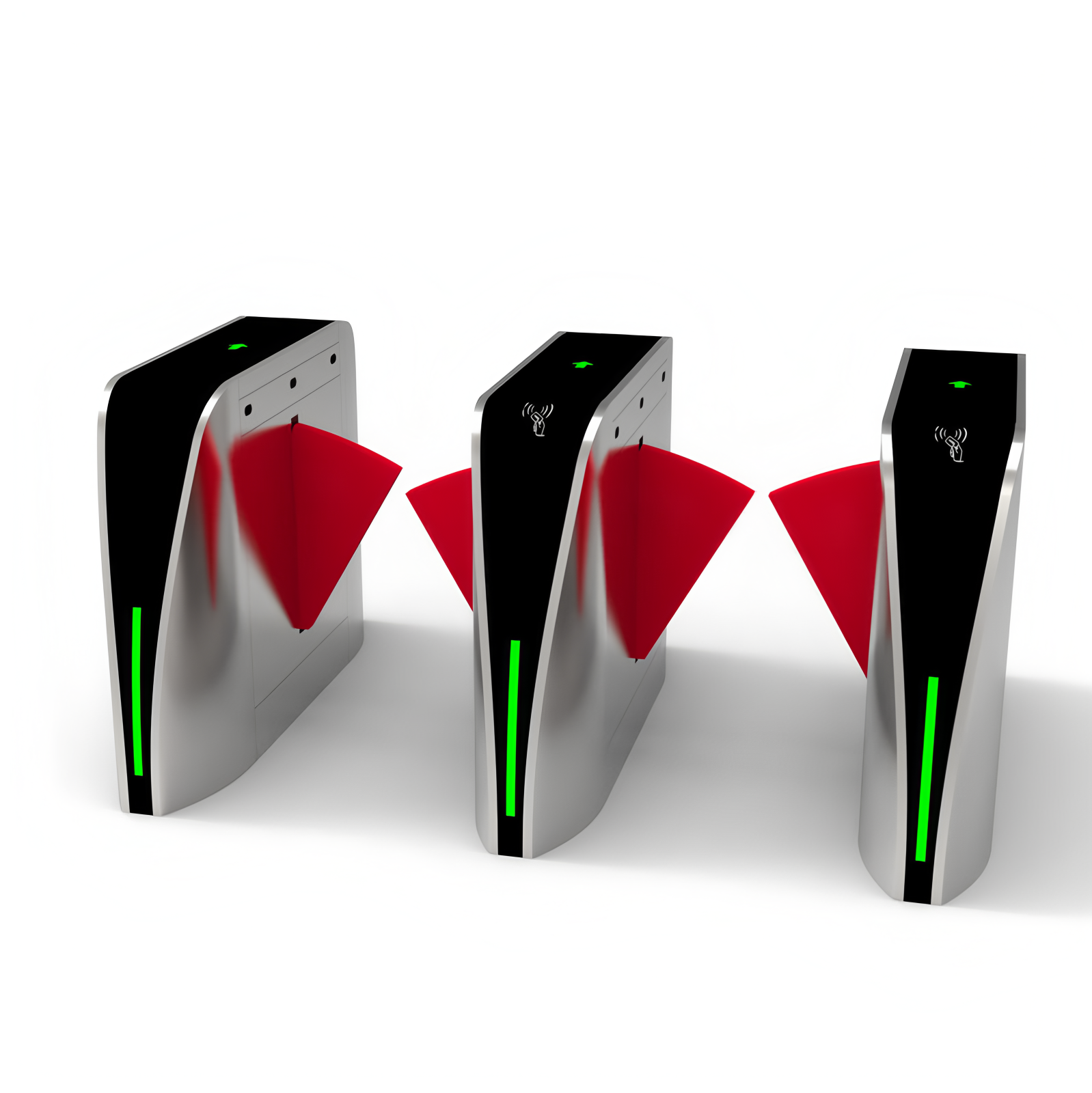

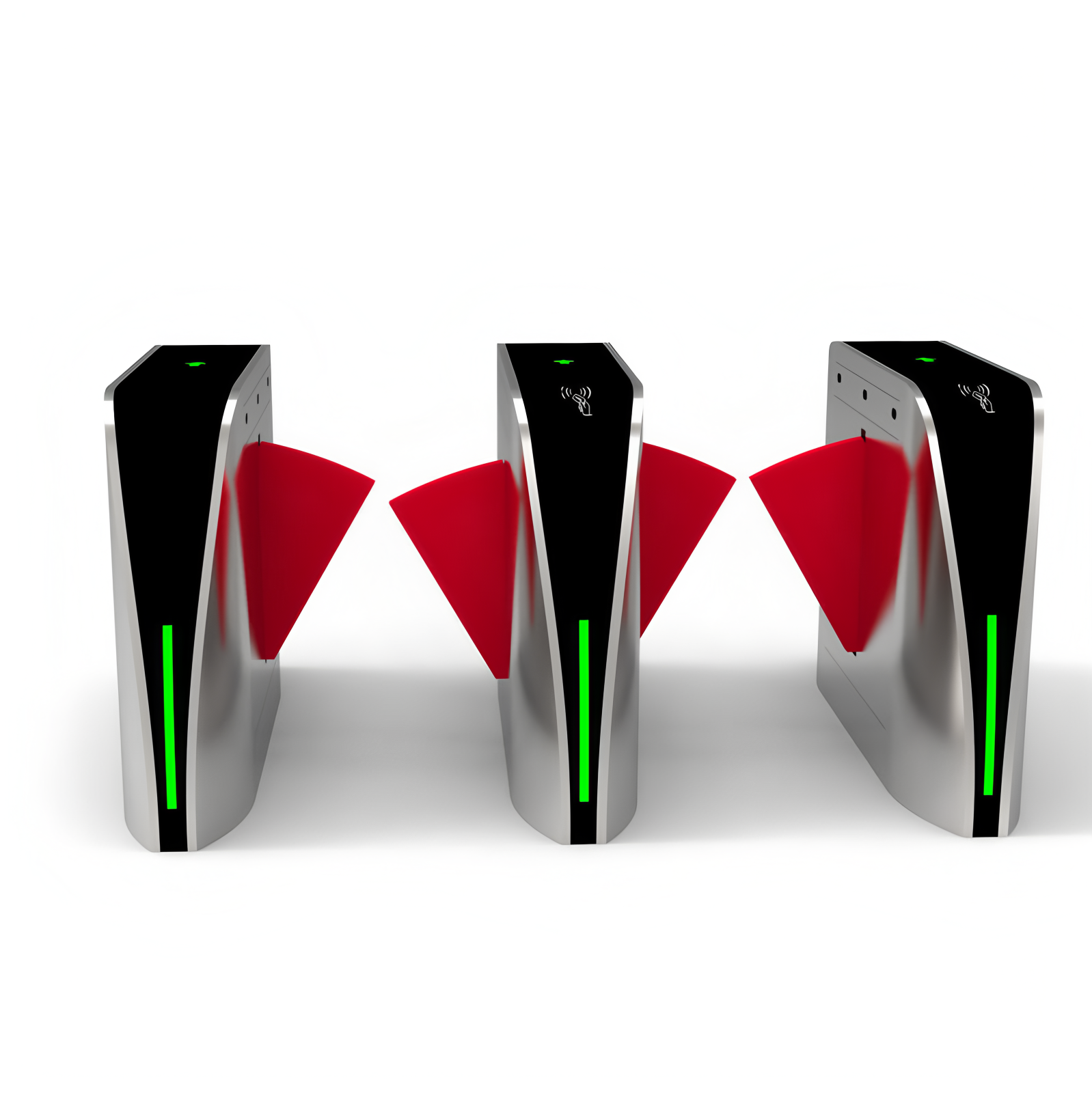

Brushless Servo Motor Flap Barrier Turnstile Gate Smart Access Control For Office Science Museum
A flap turnstile is a type of barrier gate commonly used in areas such as public transportation stations, stadiums, and other high-security locations. It consists of movable flaps that restrict access to one person at a time. The flaps are locked in a closed position until a valid authentication method, such as a ticket or access card, is presented. Once the authentication is verified, the flaps momentarily open, allowing the person to pass through. Flap turnstiles are designed to efficiently control the flow of people while ensuring security and preventing unauthorized entry.
This type of gate is suitable for public occasions with large flow of people. Its service life and safety are the primary considerations of the product. The whole system uses stepless positioning device, the operation process is controlled by sensors, no mechanical collision, so as to achieve stable operation, low noise and less wear. According to a large number of project actual use data summary, the actual service life of the equipment is more than 5 million times. Magnet adsorption, belt drive, servo mobile positioning driver and other high price components are designed to avoid injuring pedestrians
Features:
1. Fault detection and alarm functions, easy to use and maintenance
2. The running status can be programmed and controlled with the built-in keyboard on the main board
3. Mechanical anti-pinch function. If the gate meets resistance in the reset process, motors will stop working automatically within the prescribed time and reset again after the default delay (till fully reset)
4. Anti-breakthrough function. The gate is locked automatically until opening signal received
5. Support infrared photocell for anti-pinch and reset function
6. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically
7. Gate can be set as normally open or normally closed
8. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Access controller needed)
9. Direction can be set as single-direction or bi-direction
10. LED direction indicator
11. Gate auto opens when power off and auto close when power on
12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.
Parameters:
|
Power supply
|
AC100V~240V; DC24V
|
|
Motor voltage
|
DC 24V
|
|
Access device input voltage
|
Dry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA
|
|
Direction
|
Can be set as single or double
|
|
Max flow rate
|
30 to 35 person per minute
|
|
Openning/closing time
|
1s
|
|
Flap lenght
|
270mm
|
|
Flap material
|
Acrylic or pu foam
|
|
Working temperature
|
-20°C~+60°C
|
|
Working humidity
|
0~95%RH
|
|
Application
|
Indoor/ outdoor with tent
|
what is advantage for flap turnstile?
1. Improved security: Flap turnstiles provide effective access control, allowing only one person to pass through at a time. The flaps restrict unauthorized entry and deter tailgating or piggybacking.
2. Space efficiency: Flap turnstiles are relatively compact and require less floor space compared to other types of turnstiles or gates. This makes them suitable for areas with limited space, such as airports, train stations, and stadiums.
3. User-friendly: Flap turnstiles offer a user-friendly experience, as they allow individuals to pass through easily without the need for physical contact or guidance from security personnel. They are equipped with sensors that detect the presence of a person and automatically open and close the flaps.
4. Integration capabilities: Many flap turnstiles can be easily integrated with access control systems, such as card readers, biometric devices, or ticketing systems. This enables seamless integration with existing security infrastructure and enhances overall access management.
5. Durability and reliability: Flap turnstiles are typically designed to withstand heavy usage and harsh weather conditions. They are made of sturdy materials, such as stainless steel, which allows for long-lasting performance and minimal maintenance requirements.
6. Customizability: Flap turnstiles can be customized to fit in with the aesthetic of their surroundings, whether it is a modern office building or a heritage site. They are available in various finishes and can also be branded with company logos or signage.
