Features:
|
One By One Entry
|
Type:
|
Single Core And Dual-core Turnstile
|
|
Application:
|
Office School Park Supermark Subway
|
Automatic Reset Function:
|
Yes
|
|
Production Process:
|
CNC Laser Cutting
|
Power Supply:
|
AC220V/110V
|

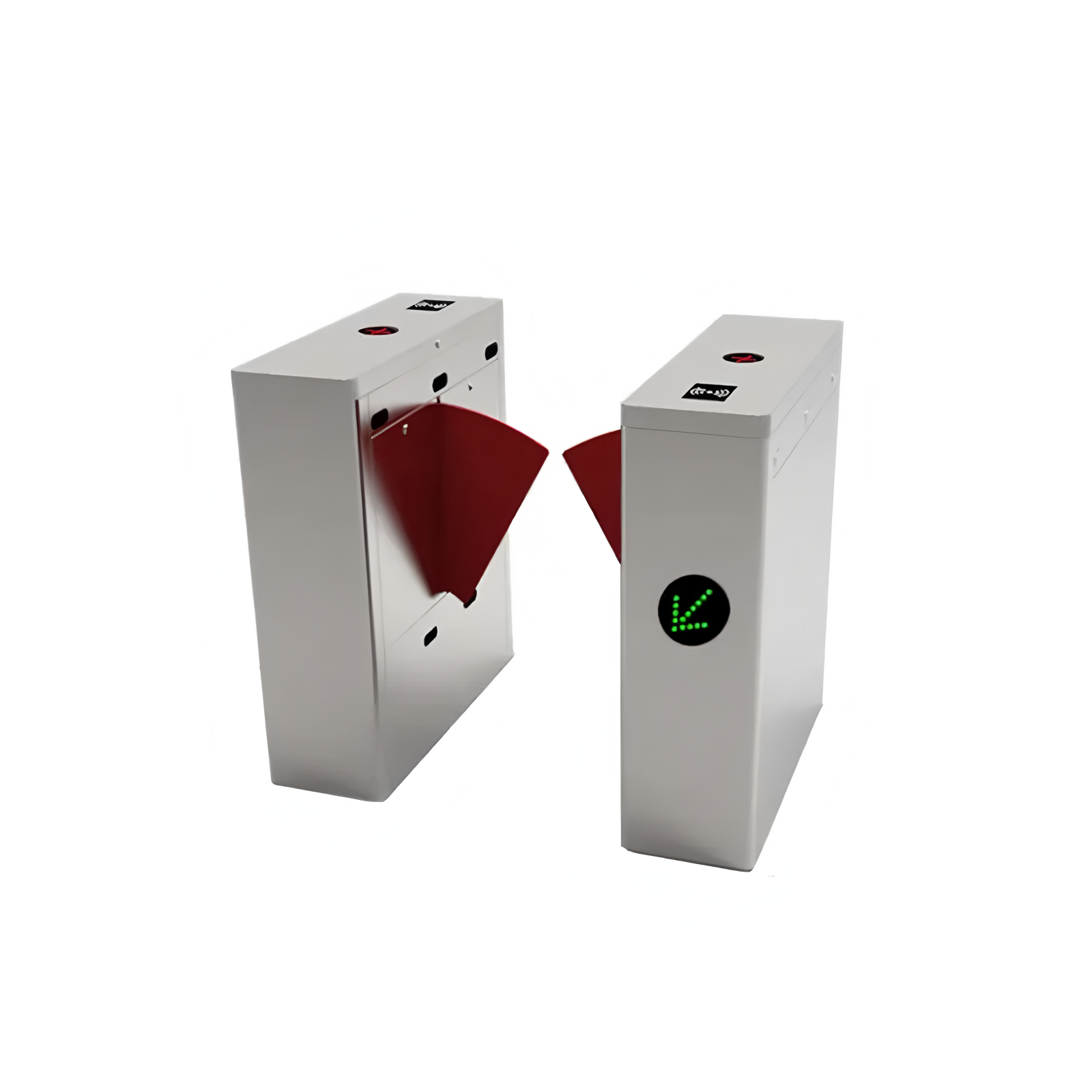

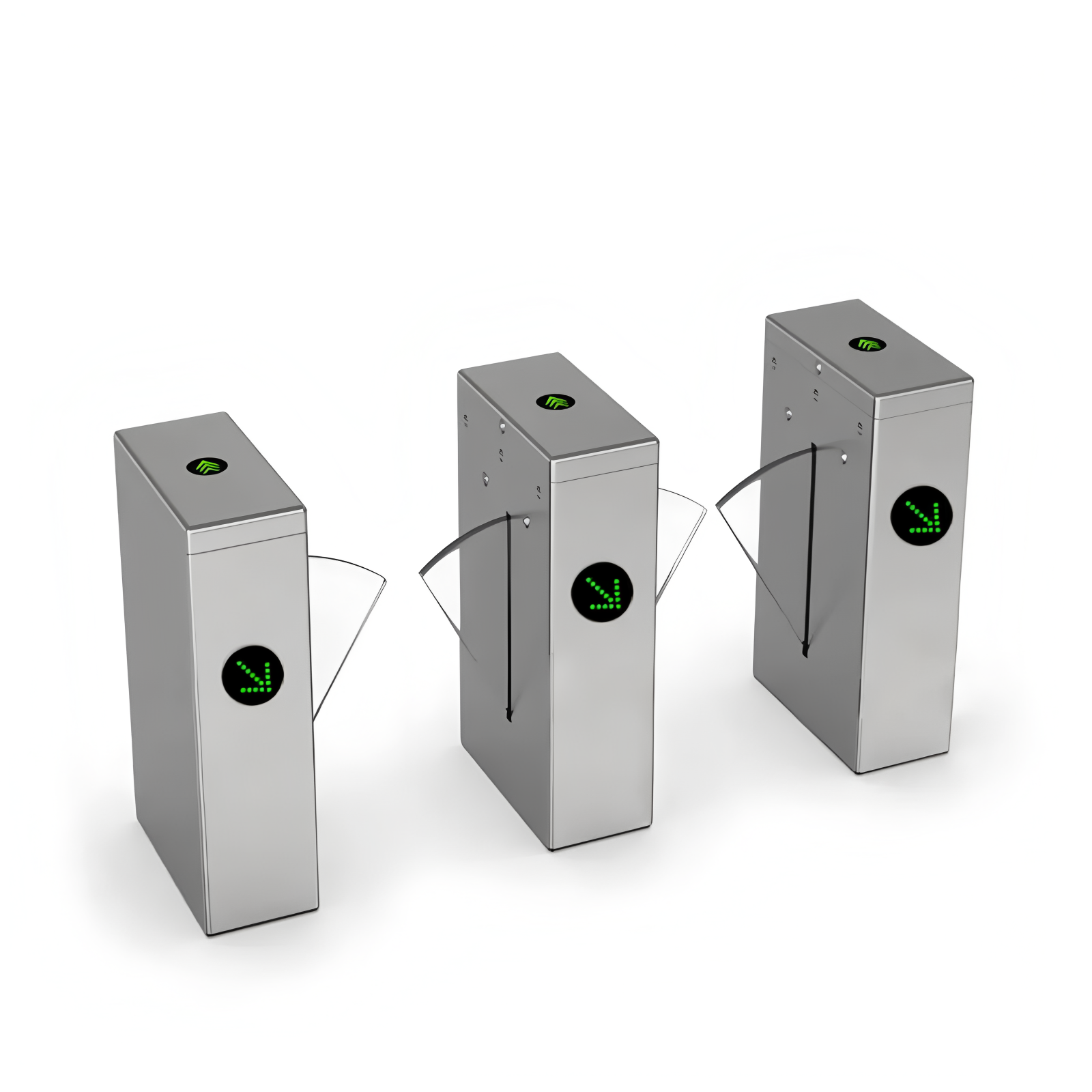

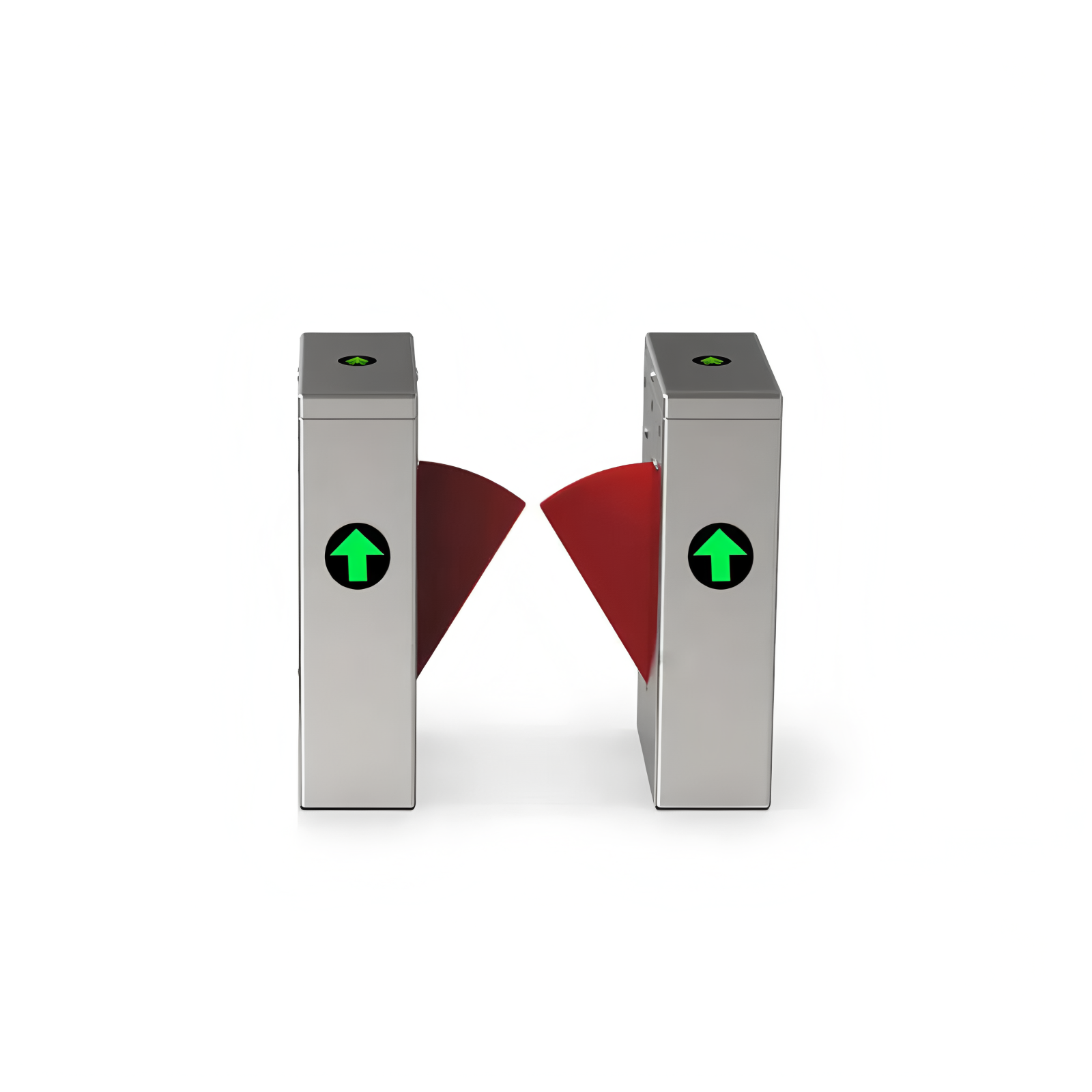

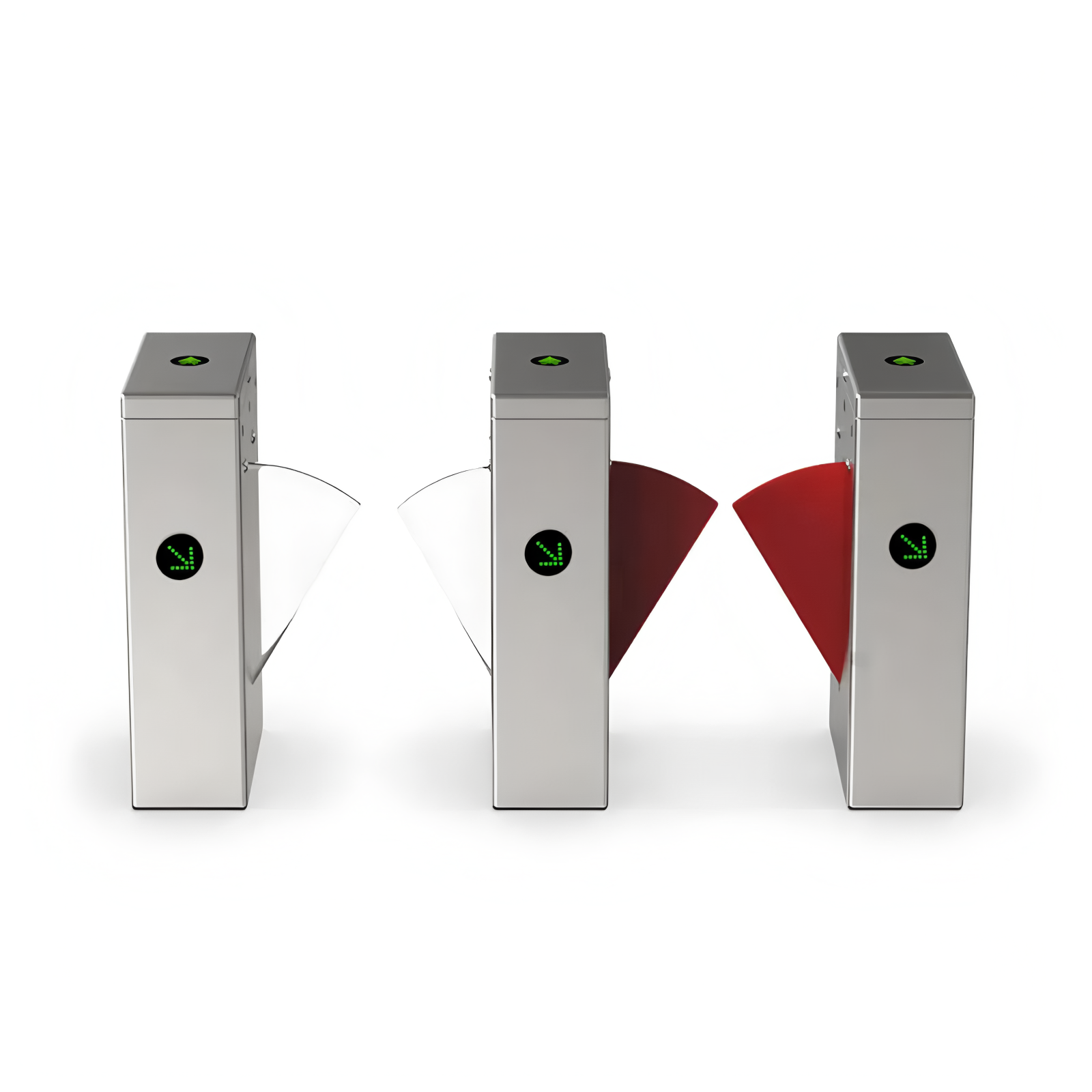

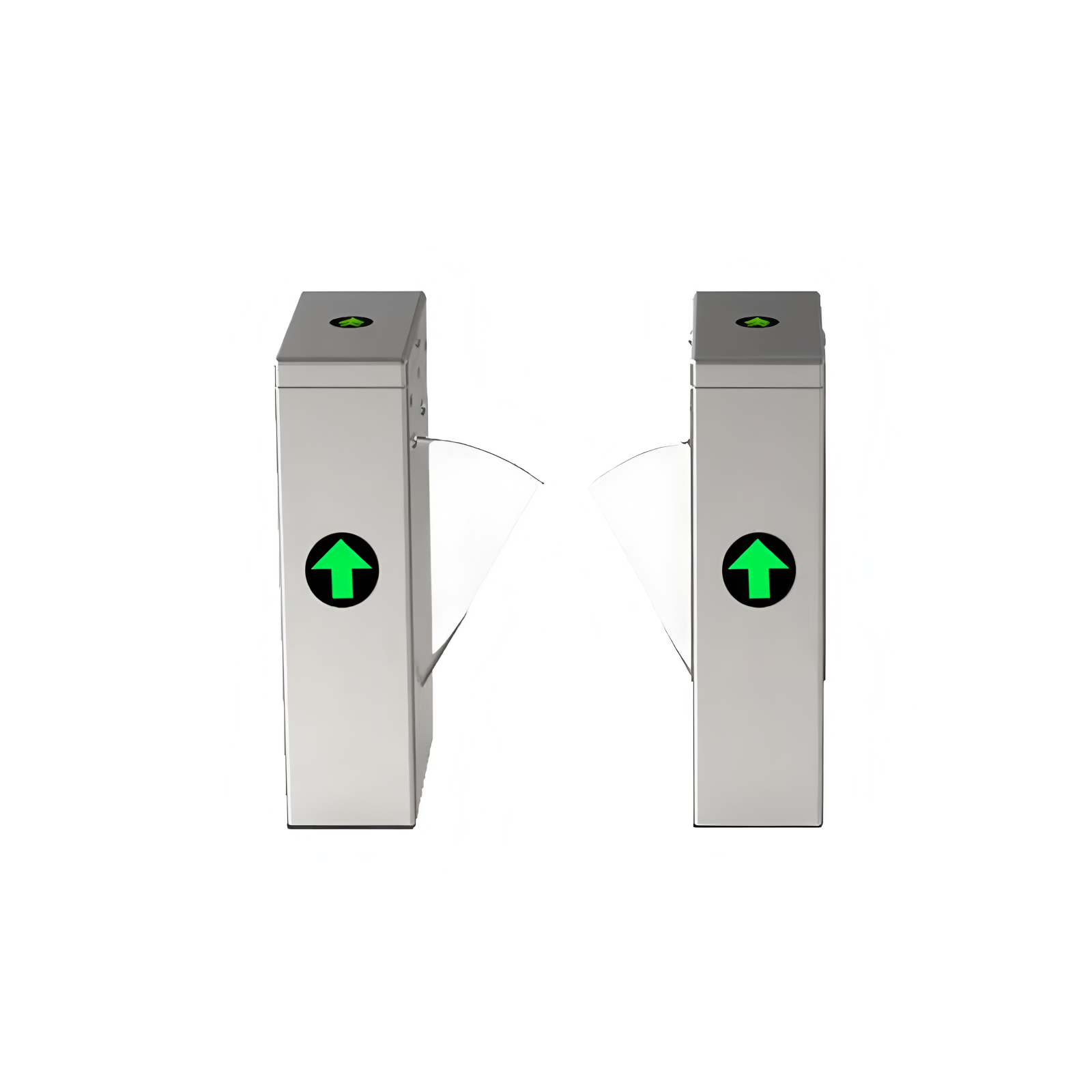

Emergency Open Flap Turnstile Gate Automatic Door Strong Stereo Protection Ability
Flap turnstile is a high-tech product for intelligent management of personnel channel. It is an upgraded product of tripod turnstile and swing turnstile. The product has exquisite workmanship, fully functional, and classic design. It is mainly used in high-end places such as high-grade residential areas, intelligent buildings, hotels, subways, docks, clubs, gyms and so on. The equipment organically integrates mechanical, electronic, microprocessor control and various identification technologies, which is convenient to be compatible with the use of card reading and identification equipment such as IC card, ID card, bar code and fingerprint.
Features:
1.Heavy duty stainless steel Flap Barrier
2.LED Direction indicators at each side
3.Selectable operating modes- single direction, bi-direction, always free or alwase locked
4.IP55 Weatherproof Protection rating
5.Automatic reset of barrier gate after each passage
6.Adjustable time out delay.
7.Double anti-clipping function, photocell anti-clipping and mechanical anti-clipping
8.Integration support with any RFID/Biometric Reader through NO input
Parameters:
|
item
|
value
|
|
Power supply
|
AC220V±10V, 110V±10V, 50HZ/60HZ
|
|
Motor
|
DC motor
|
|
Passage Width
|
550mm( 900mm optional)
|
|
Passing Speed
|
Normally open-50persons/min; Normally closed-50persons/min
|
|
Manufacturing Technique
|
CNC laser cutting
|
|
Gate Opening and Closing time
|
≤ 0.4S
|
|
Working environment
|
indoor and outdoor(added the rainshed)
|
|
Motor Operation Speed
|
1600R/Min
|
|
Communication Distance
|
≤1200M
|
|
Input Connection
|
＋12V Level Signal or Pulse Wide>100ms Pulse Signal,Current>100ms
|
|
Running Life
|
5--8 Million(Continuous Opening and Closing Operation)
|
|
Size
|
1400*280*985mm
|
|
Relative Humitity)
|
<95%,no densation
|
|
Working Temperature
|
-45℃-60℃
|
|
waterproof level
|
IP 54
|
|
Colour
|
SSB(US32D)-Stainless Steel Brushed / Powder Coating(Optional), or other Colour you like
|
|
Operation Place
|
Subway Station, Hoverport, Tourism Sports,Exhibition, Swimming Hall,Residence Area,Enterprise’s Entrance and Exit Attendance,G
ateway Guard,Charge Management,Special Access Control |
Application:
