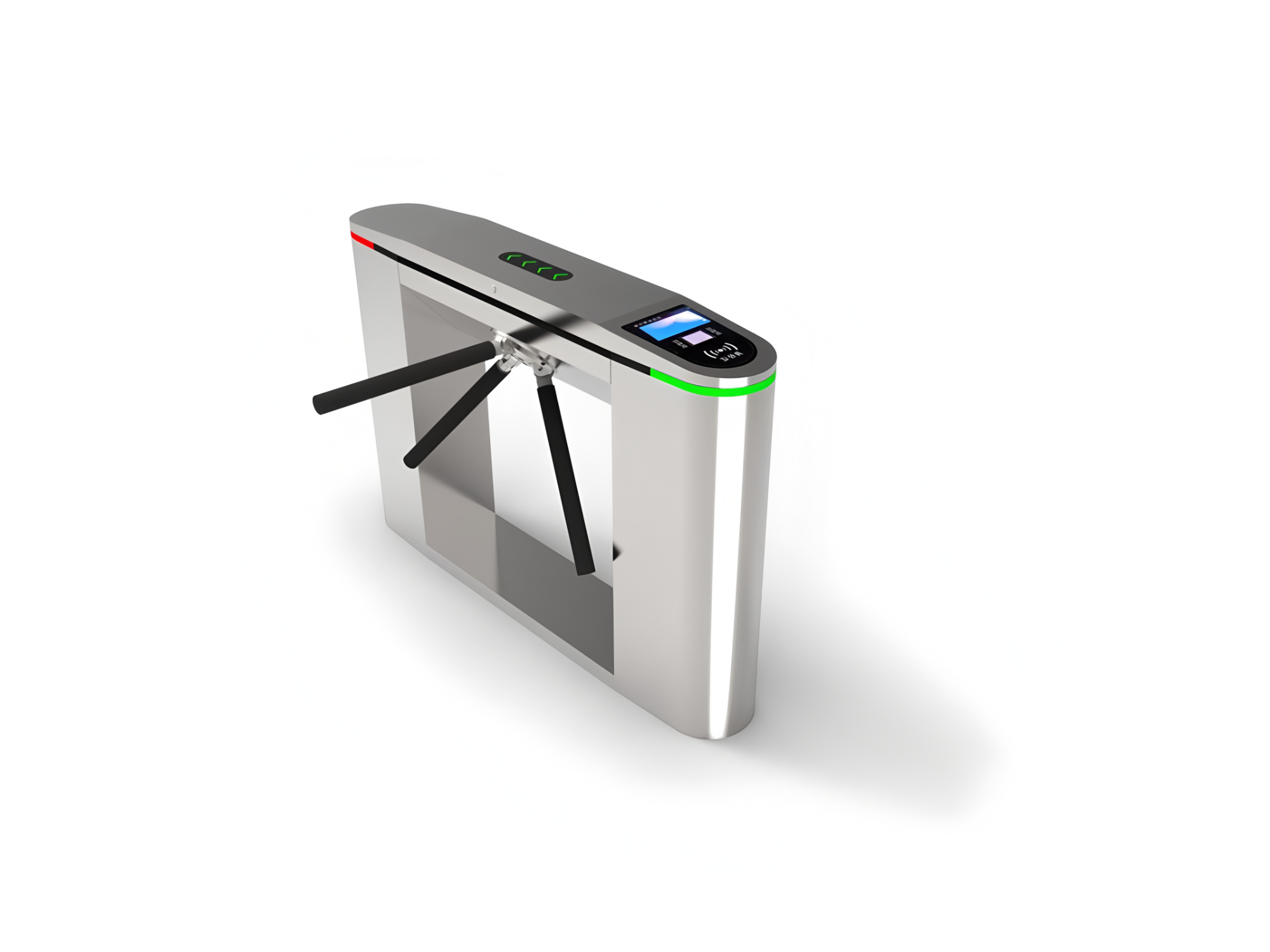

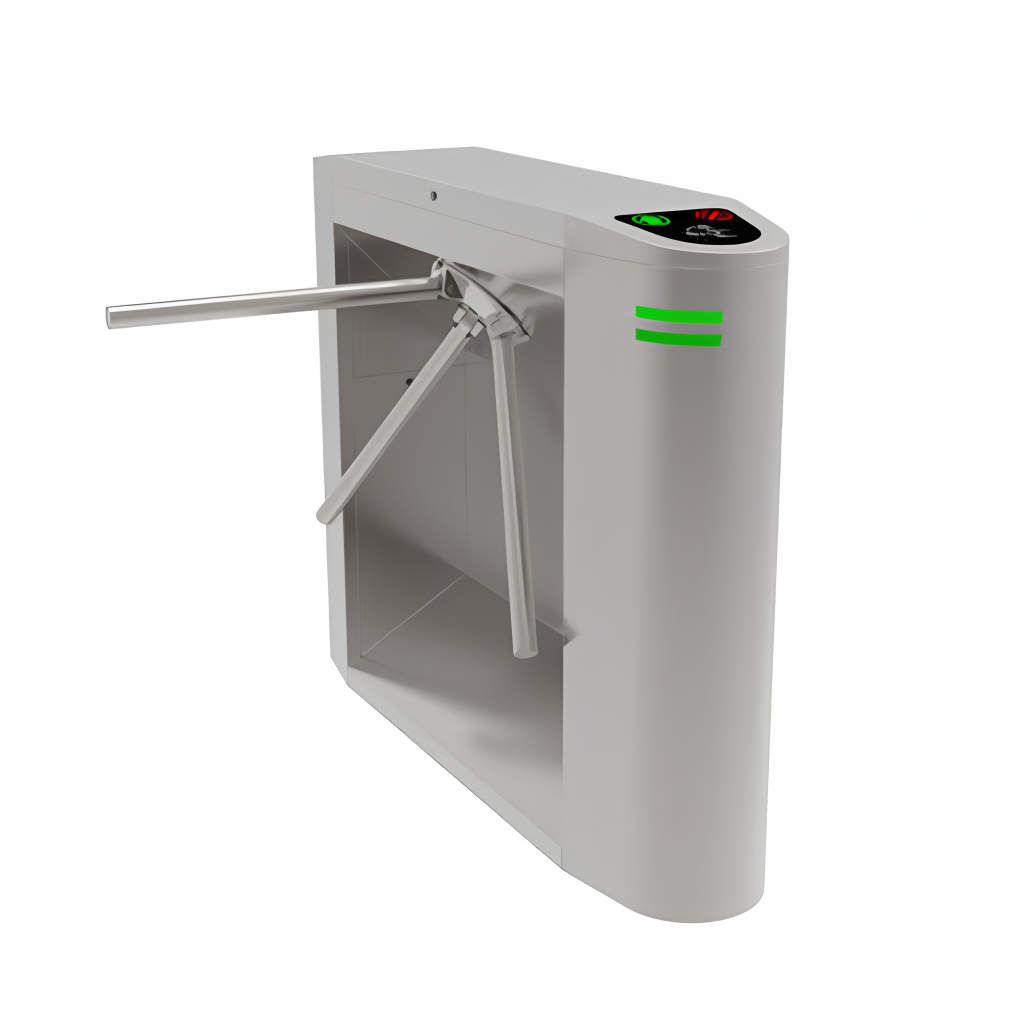

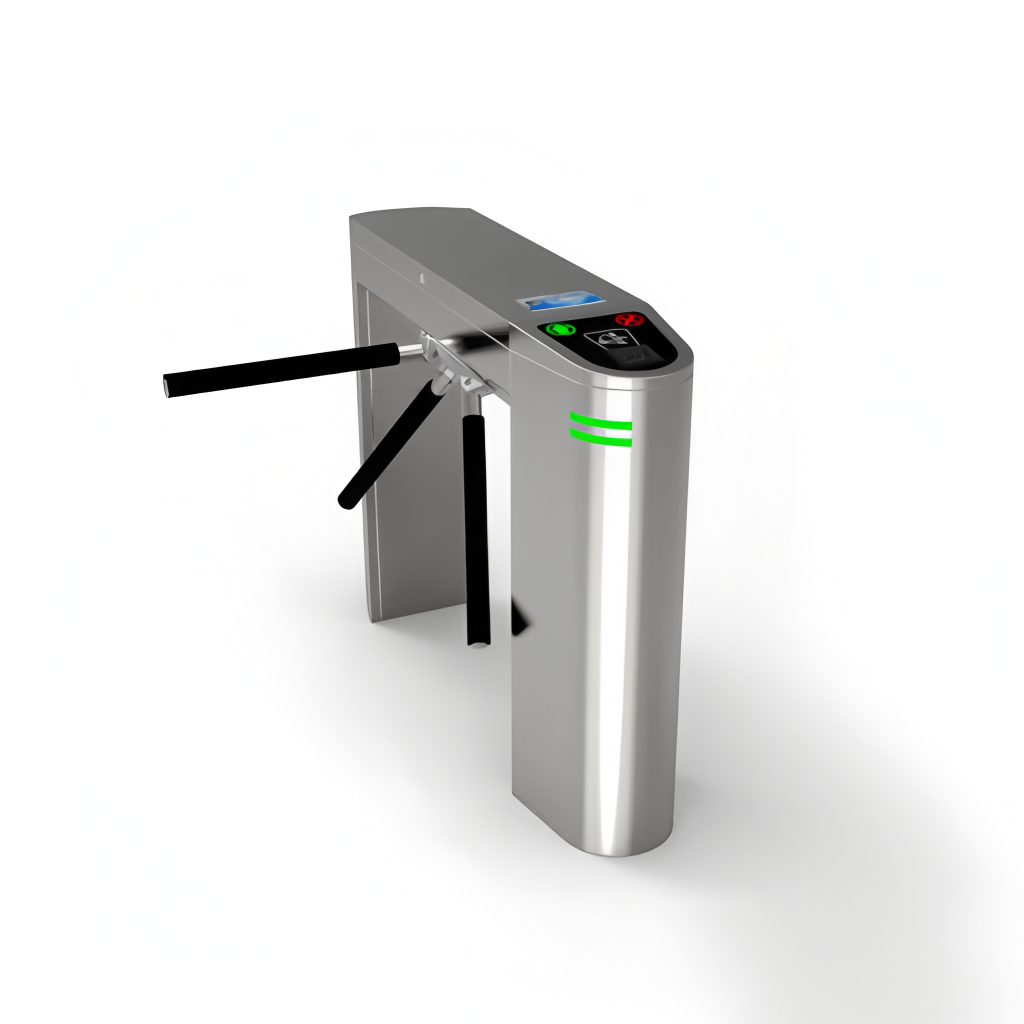

tripod turnstile is a controlling device. which designed for pedestrian access control. It used in gymnasium, tourist attractions, factory, train, station, and so on. Indoor and outdoor.Tripod turnstile is a most effective-cost way to control pedestrian access. high reliability.
This series of automatic tripod turnstiles adopt the unique technology of our company--precise photoelectric registration and gear structure to orient the closure. The turnstile will be unlocked and reset by the specific motor. The closure is precise and stable. Furthermore, these products adopt standard electrical sockets, which can be integrated with magcard, code cards, ID cards, IC cards, etc.
Parameters
|
Barrier Arm material
|
SS304
|
|
Production Process
|
CNC Laser Cutting
|
|
Size
|
1200*280*980mm
|
|
Power input
|
AC100-240V,50/60HZ
|
|
Operation voltage
|
DC24V, 3A, Power: 40W
|
|
Electromagentic
|
Duty Cycle 100%
|
|
Barrier Arm Lenght
|
510-550mm
|
|
Arm Max Applied Force
|
55Kg
|
|
Passage direction
|
Single directional/Bi-directional(Optional)
|
|
Throughput Rate
|
30-35 persons/minute
|
|
Operating time
|
0.2 seconds
|
|
Automatic Reset Function
|
Automatically locked within set time(Adjustable)
|
|
Operation Humidity
|
0~95%(No Freezing)
|
|
Operation Temperature
|
-15℃~+60℃
|
|
Operation Eenvironment
|
Indoor,Outdoor(Shelter)
|
|
Protection Level
|
IP45
|
|
Communication interface
|
TCP/IP
|
|
MCBF
|
5,000,000 Cycles
|
Functions & Features
1. Card reader available, support WEIGAND 26/34 communication card reader.
2. Bi-directional pass/any single direction
pass(adjustable).
3. Arm auto-drop when power off and auto rise up when power on and auto stop on an obstacle.
4. Traffic light indicator/Pass direction indicator.
5. Alarm light available(optional function)/Remote control available (optional function)/Counter available (optional function).
6. RS232 socket available which can connect to a computer. It can also connect to a computer by Internet LAN socket (Optional function).
Advantage:
1.The electric control adopts DC motor to drive stable and reliable, and has low failure rate.
with ultra high light traffic indicator.
In the case of a man who does not swipe card, the alarm will prompt the traveler to swipe card.
3. Alarm Function:
when a pedestrian swipes the card, the device alarms the alarm.
4.Check the following function:
The device will alarm when first people swipe card when second people doesn't.
5.The automatic delay function:
prevent people not hitting.
6.Various control functions:
By set the setting, the brake machine can be set at special time to be a regular open mode.
It satisfies a large number of people.
7.The mode of choice:
To meet the different requirements, set up as a two-way credit/one-way credit card/free pass.
8.Various control functions:
external button, remote control, bar code,IC or ID card, QR Code, ESD Tester, Face recognition,etc.
Application
This model is widely used in bus station, port, subway, factory, mansion, residential area, hotel, companies and so on any place that requires a smart flow control.
