Highlight:
DC 24V Sliding Gate Turnstile
,
DC 24V retractable flap barrier
,
retractable flap barrier 30 person per minute
|
Control Mode:
|
Button, IC Card, Remote Control
|
Life Span:
|
≥5 Million Times
|
|
Power:
|
50W
|
Protection Level:
|
IP67
|
|
Working Humidity:
|
≤95%RH
|
Working Temperature:
|
-20℃-70℃
|

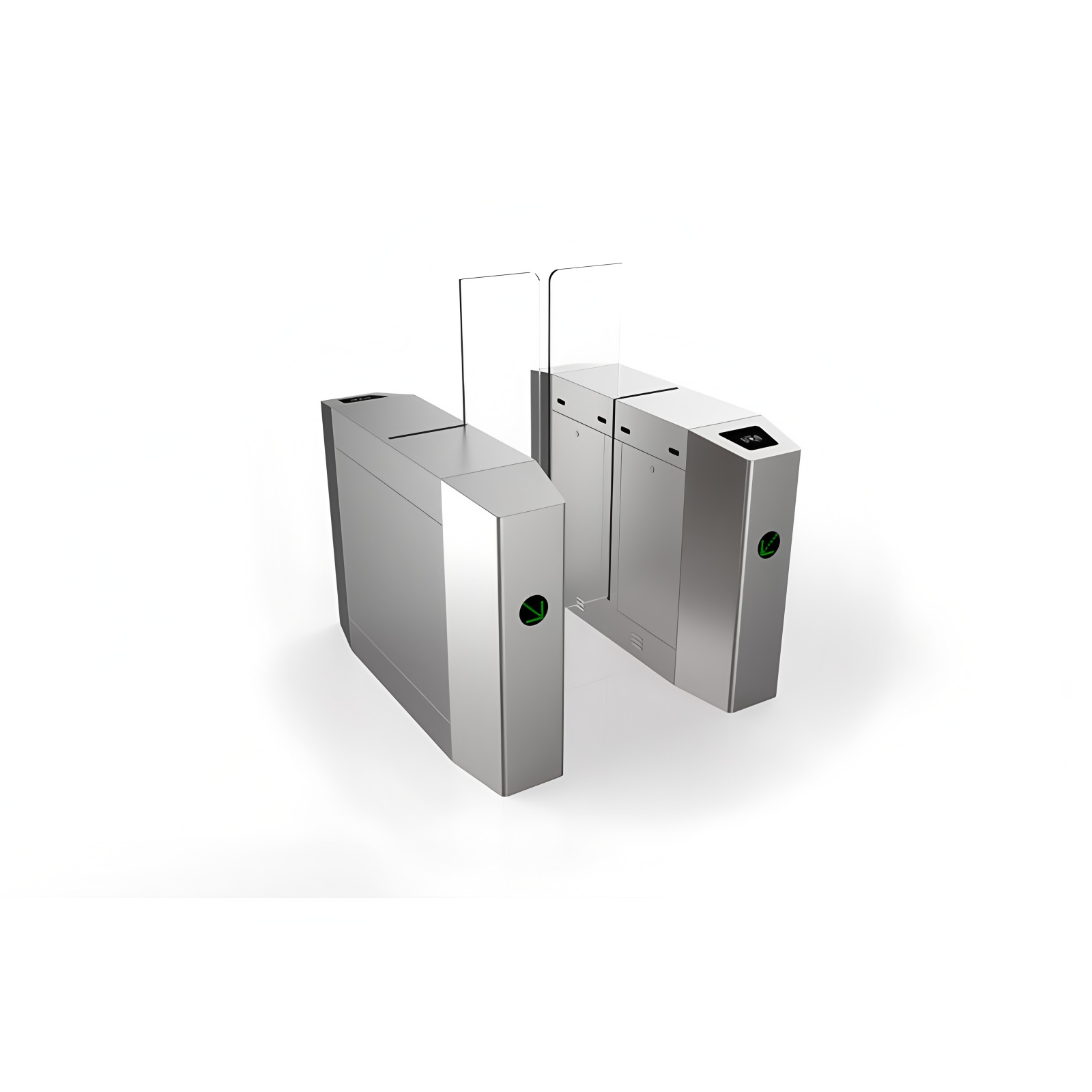

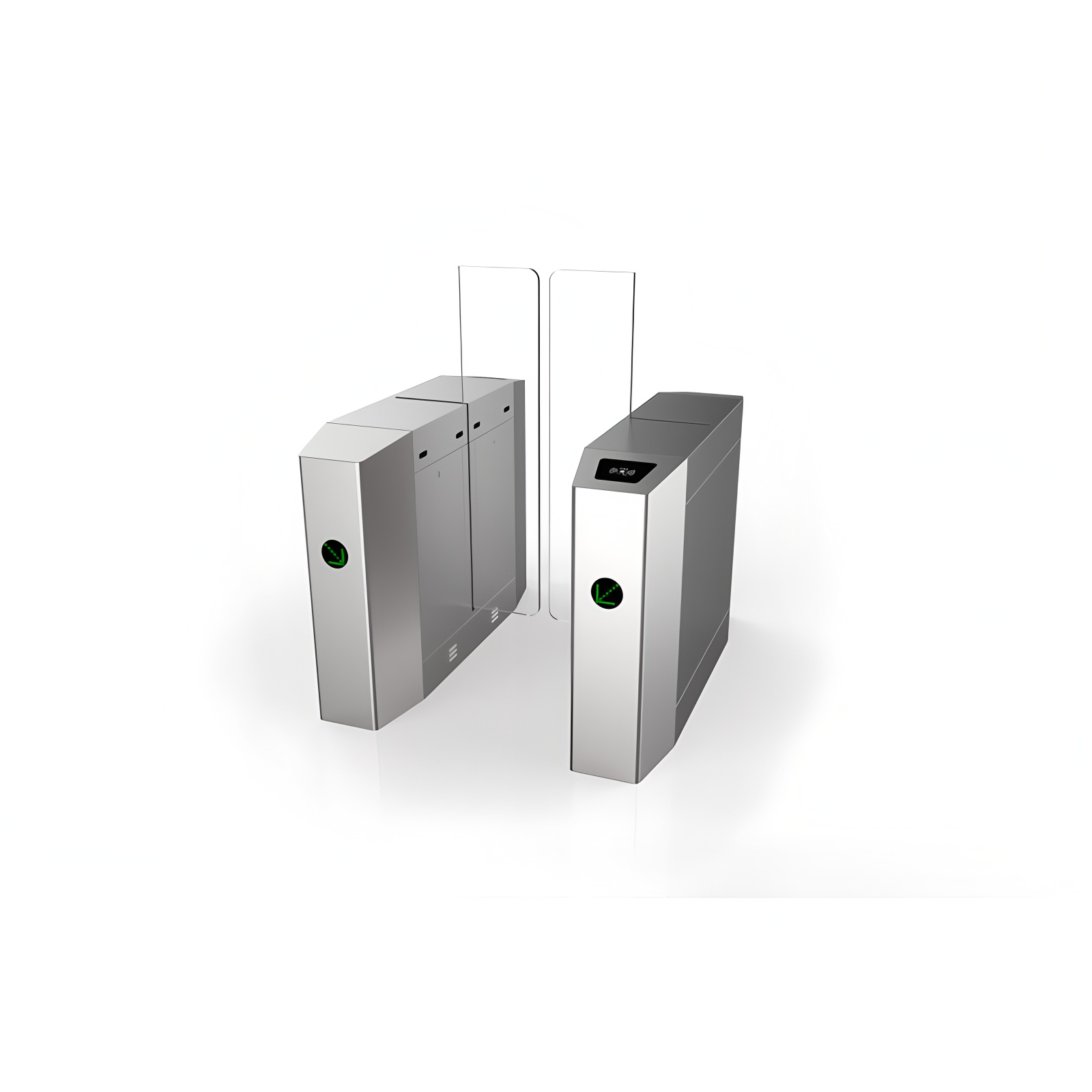

DC 24V Sliding Gate Turnstile Retractable Flap Barrier 30 Person Per Minute
RFID card reader Access Control Sliding Turnstile Entrance Scan System Security Road Barrier Speed Gates Flap
Product Description
After many years of research and development, our business has developed the clever sliding barrier (half height or full height optional), which naturally integrates mechanical electronics microprocessor control, and a variety of various reading and writing tools. By working out various reading and writing devices, employing dependable performance safety protection tools, a real-time alert system, and a direction indicator interface, it is possible to realize access to intelligent control and management through cooperative effort.
| Power supply |
AC220±10%V 50Hz/AC110±10% 60Hz |
| Motor voltage |
DC 24V |
| Access device input voltage |
Dry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA |
| Direction |
Can be set as single or double |
| Max flow rate |
30 person per minute |
| Flap openning/closing time |
1s |
| Flap lenght |
250mm |
| Flap material |
Acrylic |
| Working temperature |
-20°C~+60°C |
| Working humidity |
0~95%RH |
| Application |
Indoor/ outdoor with tent |
Tips:
1.The product appearance can be customized according to the different needs of the customer.
2.Due to the constant upgrading of the product, the final product appearance differs somewhat from the pictures.
3.Customers can specify the logistics.
Functions & Features
1. Fault detection and alarm functions, easy to use and maintenance
2. The running status can be programmed and controlled with the built-in keyboard on the main board
3. Mechanical anti-pinch function. If the gate meets resistance in the reset process, motors will stop working automatically within the prescribed time and reset again after the default delay (till fully reset)
4. Anti-breakthrough function. The gate is locked automatically until opening signal received
5. Support infrared photocell for anti-pinch and reset function
6. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically
7. Gate can be set as normally open or normally closed
8. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Access controller needed)
9. Direction can be set as single-direction or bi-direction
10. LED direction indicator
11. Gate auto opens when power off and auto close when power on
12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.
