Housing Material:
|
1.5mm~2.0mm #304 Stainless Sheet
|
Dimension:
|
1400 X 120 X 980mm
|
|
Power Supply:
|
AC220V / AC110V, 50/ 60 Hz
|
Channel Width:
|
600~900mm
|
|
Communication Interface:
|
RS485
|
Drive Motor:
|
DC Brushless Motor
|

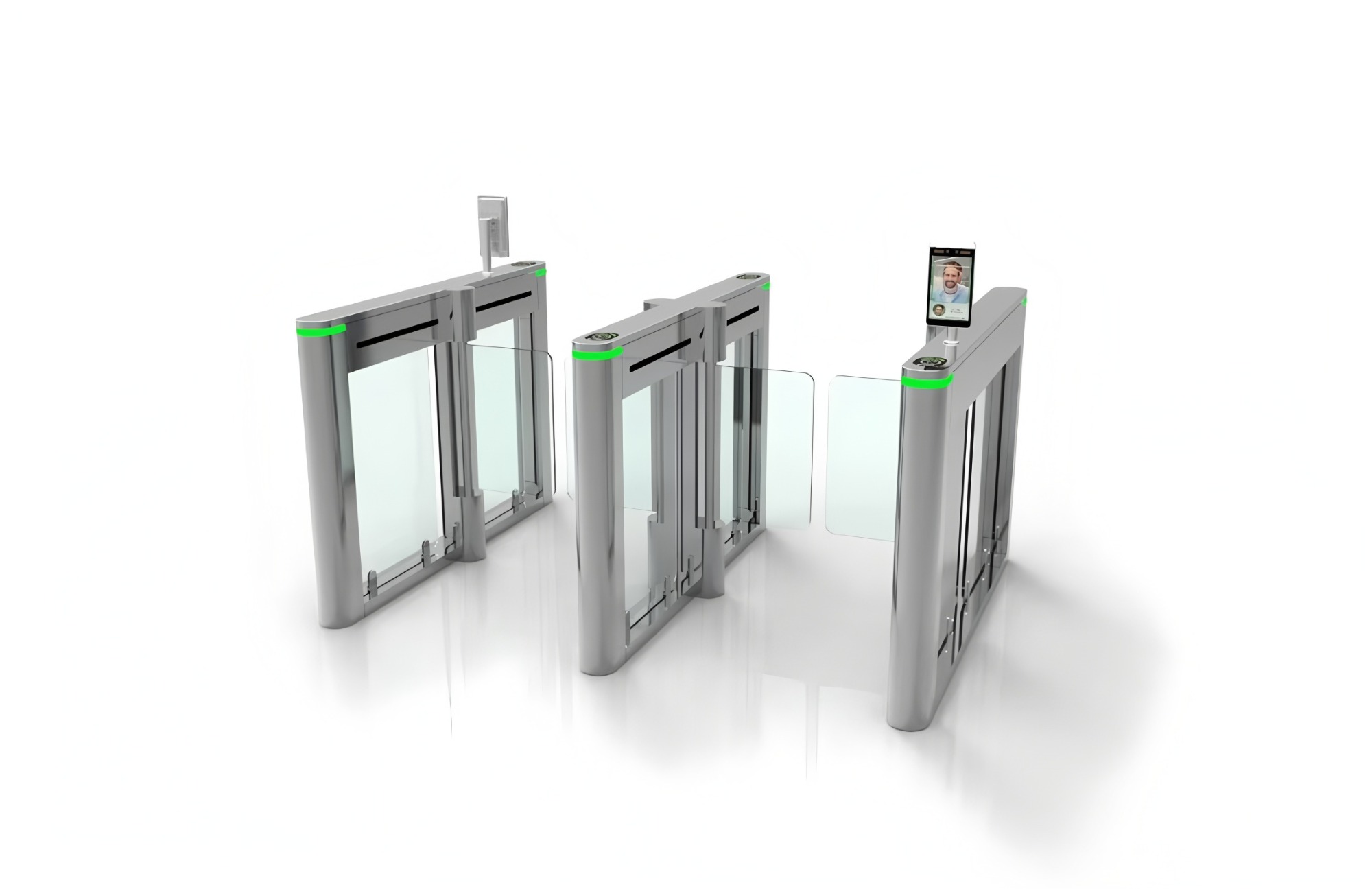

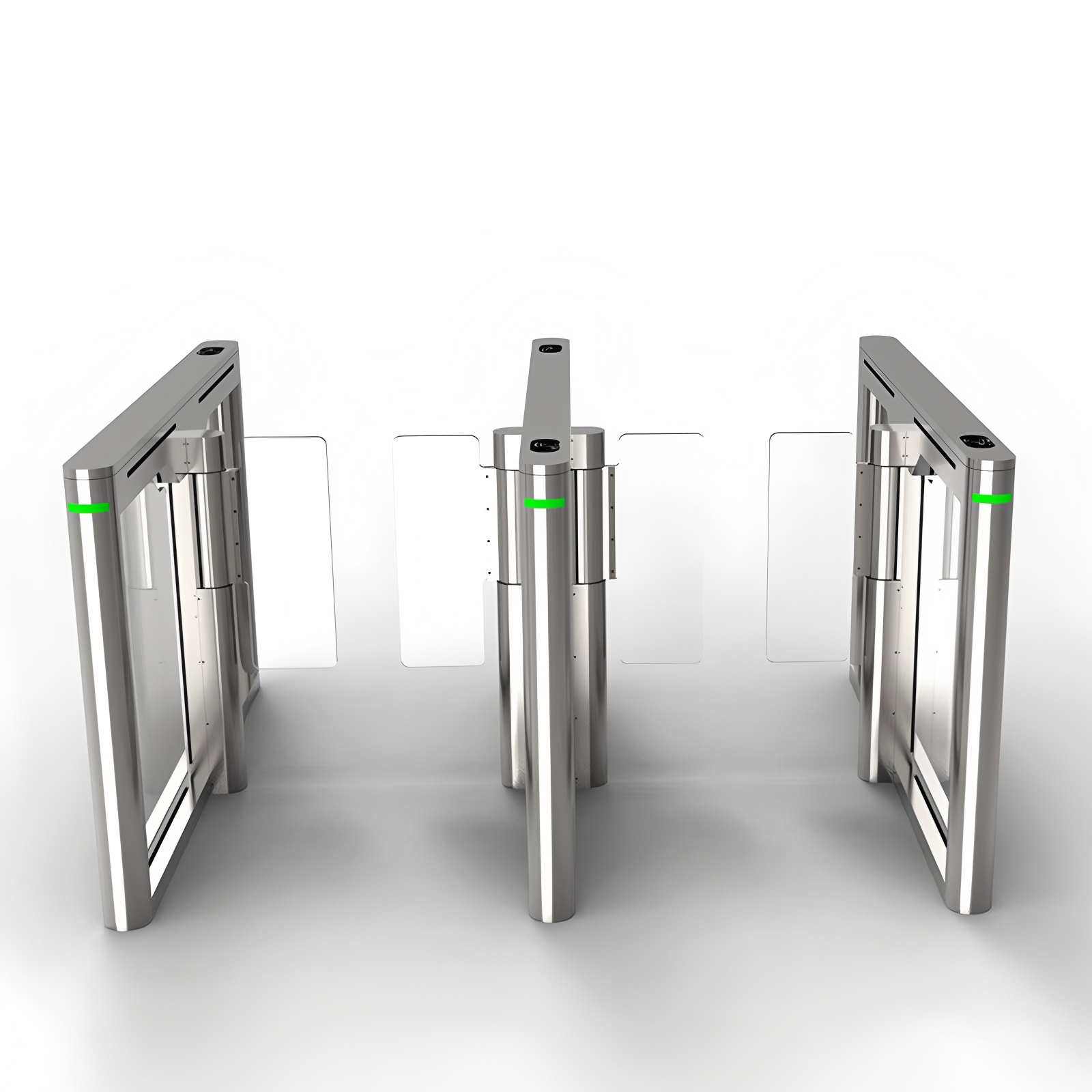

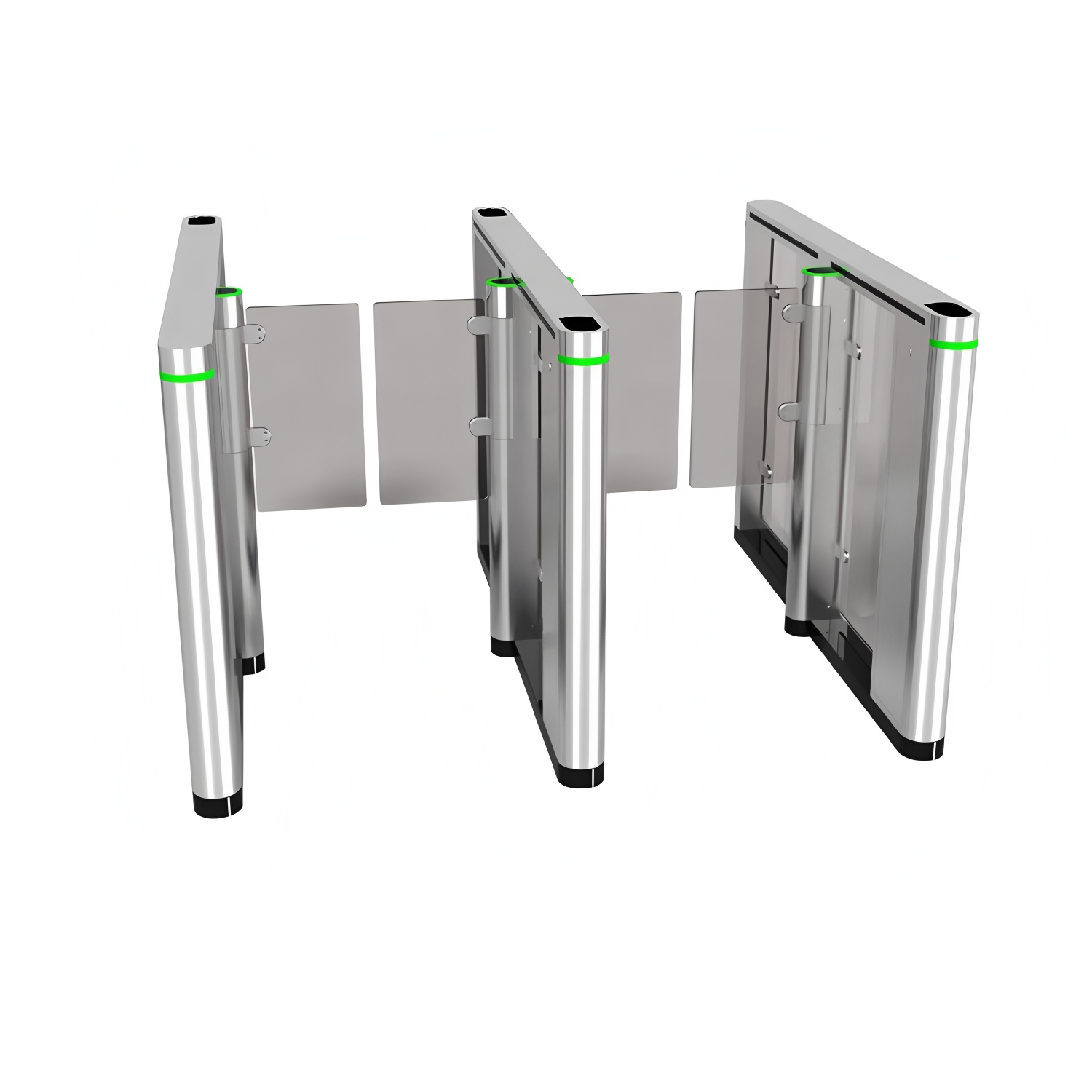

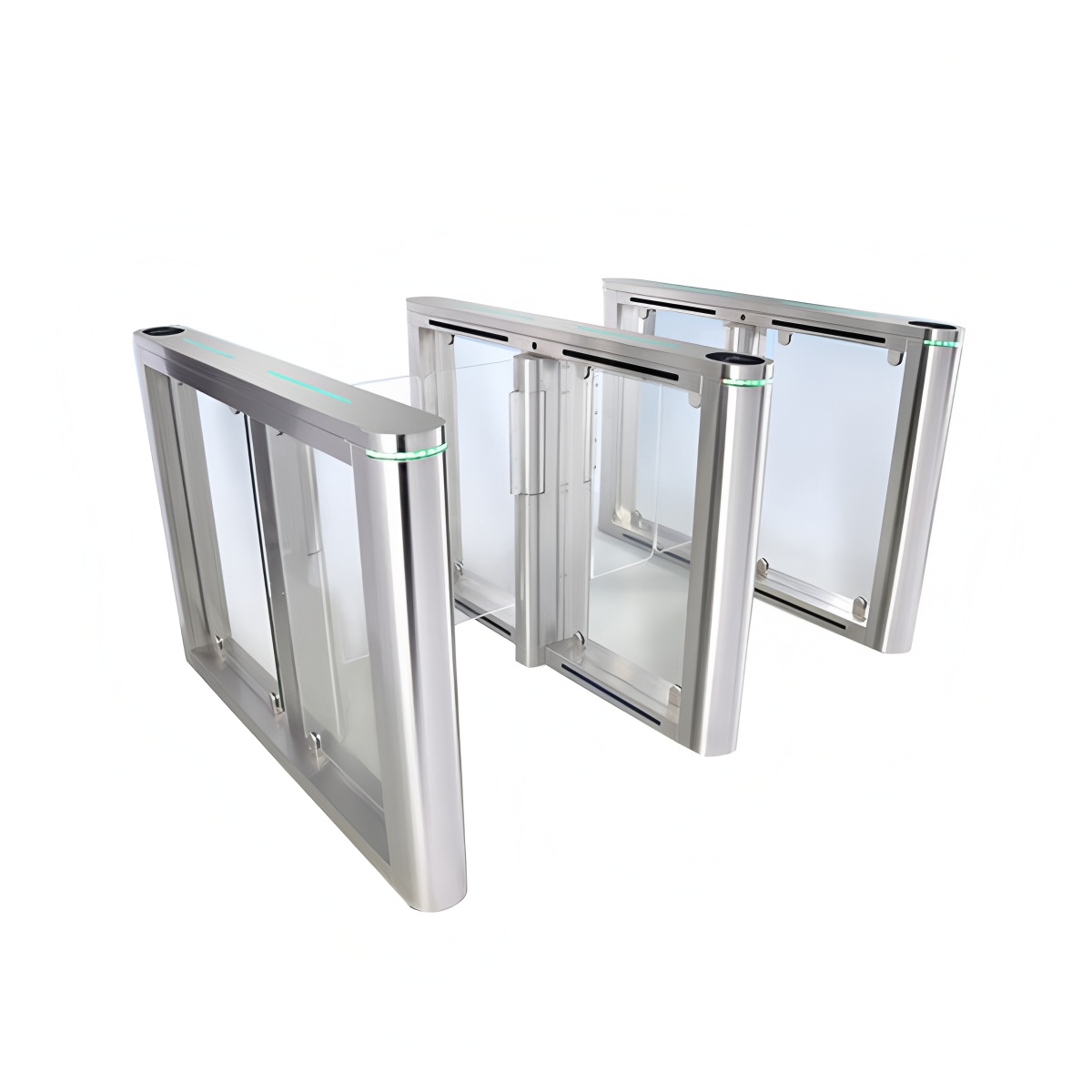

High Quality Speed Gate Turnstile For School Security Management
Brief Introduction
ZT-947 Speed gate is designed with more compact space and stronger visual impact and widely used in high security applications to control pedestrians entering or exiting restricted areas. Equipped with advanced servo motor or DC 24V brushless motor, it features noise-free operation, small dynamic forces, impact detection, almost no abrasion and fastest opening/closing time. One-way or bidirectional operational mode available for specific applications;Meanwhile, it is compatible with any access control devices such as card readers, fingerprint readers, ticketing devices and facial recognition devices.
Features

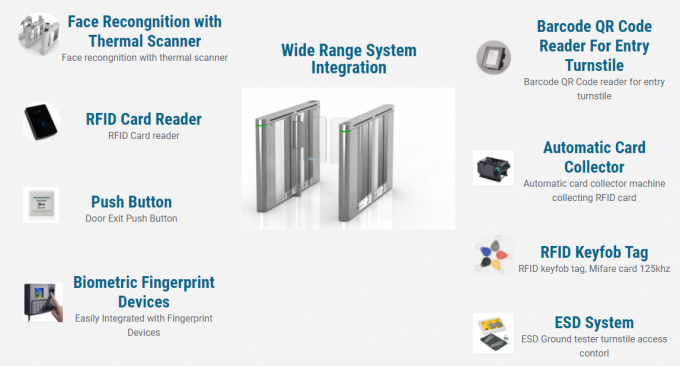

1. Compatible with any type of access control systems such as facial recognition system, ticketing system.
2. Equipped with sensors to detect unauthorized entries or tailgating attempt
3. Auto Reset: the lane close automatically if the pedestrian does not pass within pre-set time
4. Auto open to ensure passage free when power failure or emergency.
5. Low power consumption and low noise operation
6. Low maintenance cost and easy to use and install.
7. One-way or bi-directional operational mode

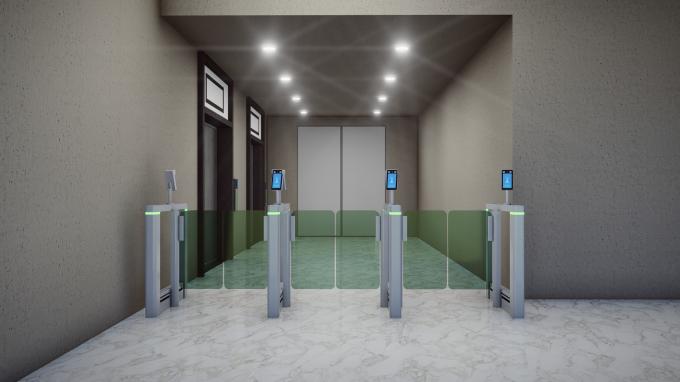

Applications
Government
Park
School
Residential area
Office building
Metro terminal
Factory
Parameters
| Drive Motor | DC 24V brush motor or servo motor |
| Pass Speed | 30 ~35 persons per minute |
| Input Interface | Dry contact signal or +12V level signal or DC12V pulse signal |
| Rotating Direction | Bi-directional |
| Communication interface | RS485 |
| Gate open when power failure | Yes |
| Open Time | 0.2 second |
| Life Cycle | >5 million times |
| Working Temperature | -30°C~+70°C |
| Working Environments | Indoor, outdoor (with shelter) |

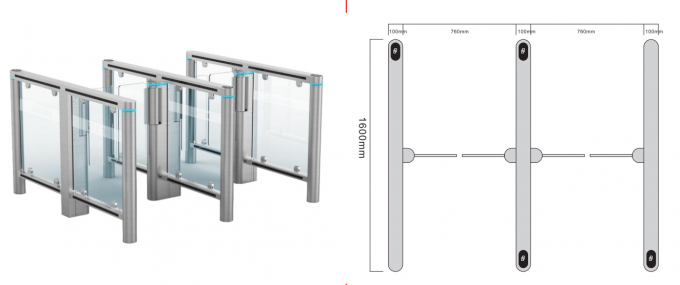

Size :
