Material:
|
304 SS
|
Type:
|
Single Core
|
|
Dimension:
|
1200 * 280 * 980 (mm)
|
Model:
|
ZT-804
|
|
Warranty:
|
12 Month
|
Application:
|
Sporting Venues
|

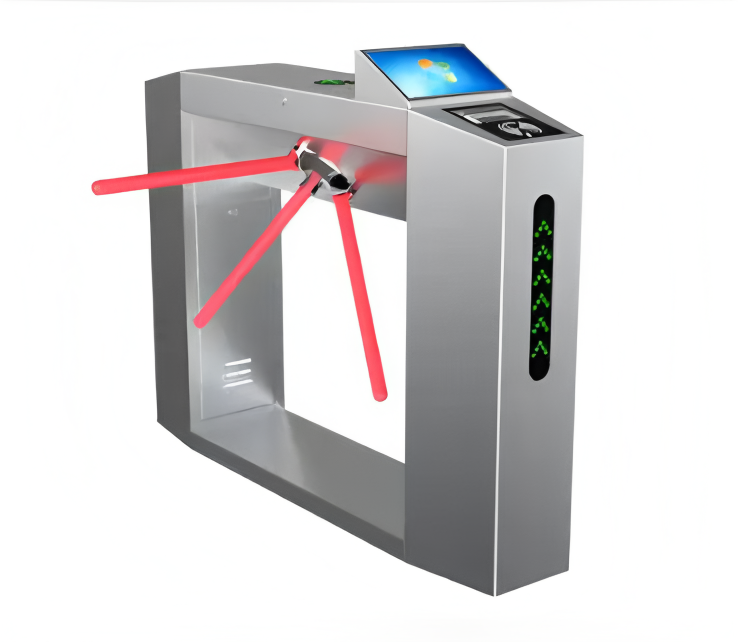

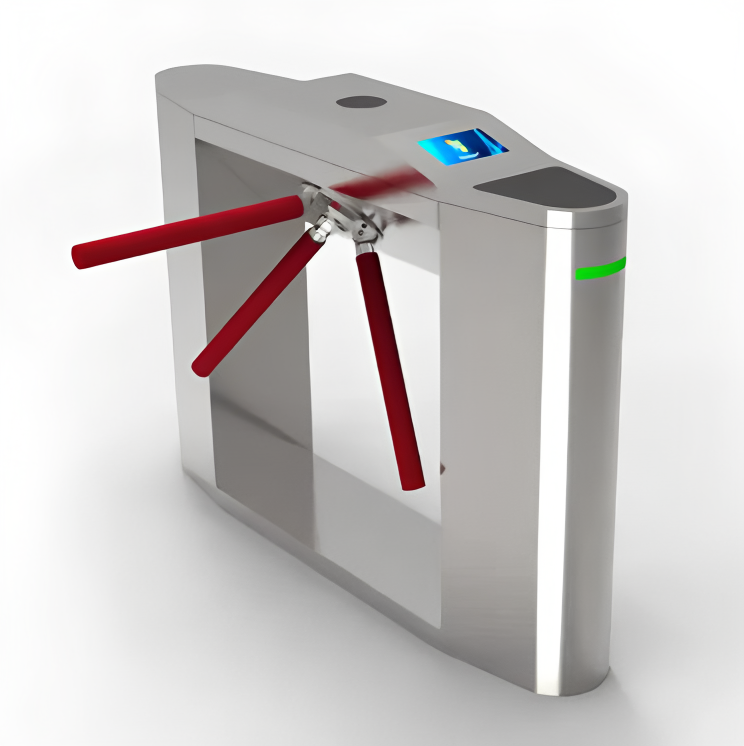

Cardlan Tripod Turnstile Gate With Rotating Barrier Movement Function
Production description:
This equipment is integrated with mechanism, electric and micro-controller and various kinds of identification technologies, compatible with IC, ID, barcode, fingerprint reader and so on to provide intelligent control and management to flow control. Durable, anti-rusty. Provide orderly passage to people, anti-illegal entry or exit, smooth operation, low noise. Arm drops off in condition of emergencies.
Paramerers:
|
work voltage
|
AC220V±10% 50HZ±10%
|
||
|
Core
|
DC24V solenoid valve
|
||
|
Arm length
|
500mm
|
||
|
Max bearing force
|
50kg
|
||
|
Rated power
|
120W
|
||
|
Operating temperature
|
-25℃ ~ +60℃, RH ≤90%
|
||
|
Related humidity
|
≥90%RH
|
||
|
Comunication Interface
|
RS485,distance ≤1200m
|
||
Main features:
| Functions and features | full-auto | semi-auto | manual |
| 1,Malfunction self-check and alarm reminder, ease of maitenance and use | √ | × | × |
| 2,Running method can be set through small buttons on the control panel | √ | √ | × |
| 3,How arm reacts in emergency | drop automatically | drop automatically | no movement |
| 4,How arm reacts when power on | go up automatically | go up by hand | no movement |
| 5,Self-reset. pass right will be cancelled if people do not go through within a set time, the default time is 10s ( 0-60 adjustable) | √ | √ | × |
| 6,Compatible for access control system, consumption system, E-ticekt system, biometric system, ESD system and so on | √ | √ | × |
