Full Automatic Swing Turnstile RFID SUS304 for Supermarket Swing Barrier Turnstile

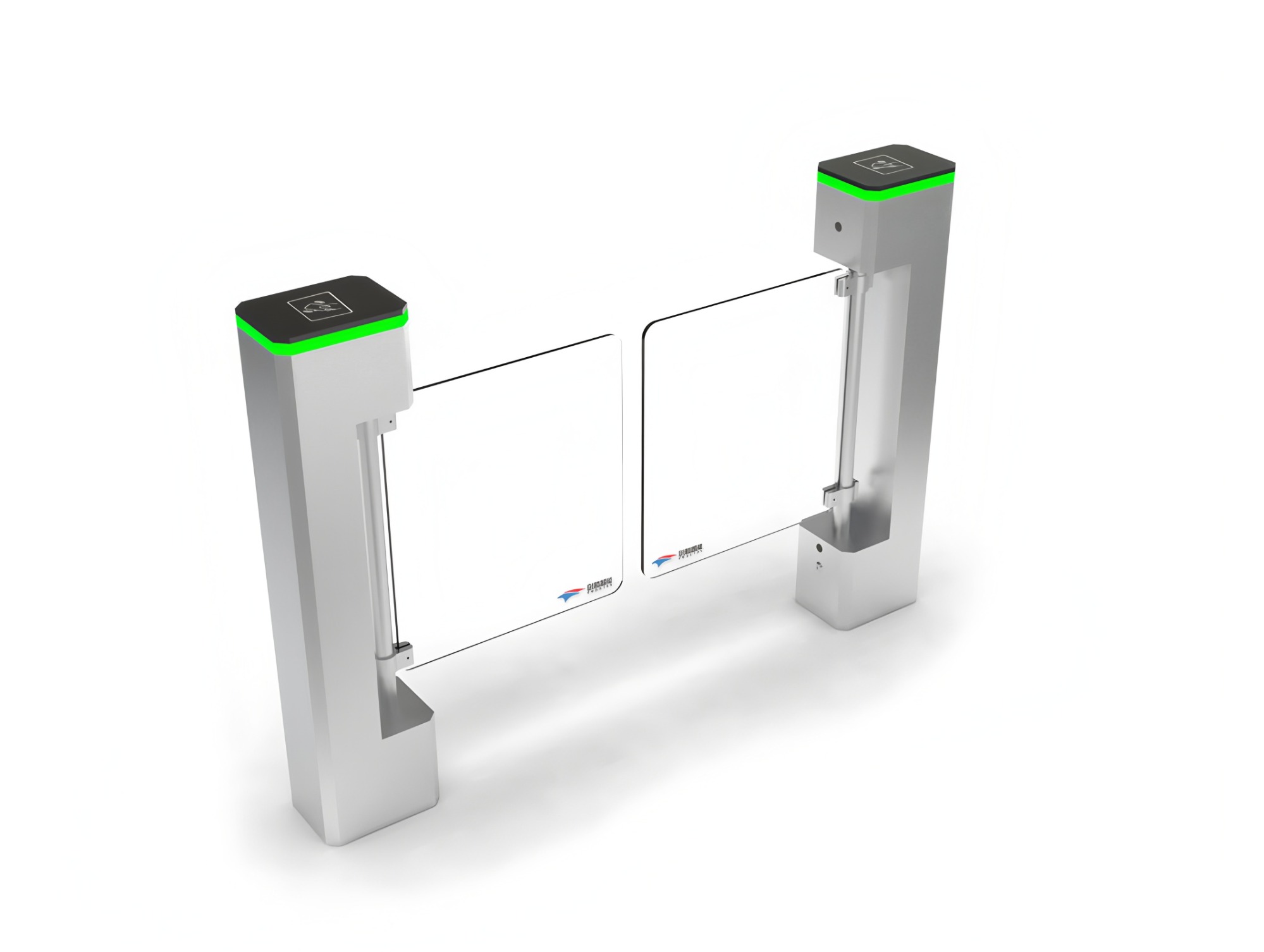

The ZT-920 is a single lane swing barrier turnstile series designed for smooth and silent operation and draws very little power. It’s made of stainless steel which makes it highly durable. It is designed to restrict access to areas for which handicap access (ADA) is required. The ZT-920 tempered-glass barrier is normally held in a locked position, thus denying passage to the secured side. ZT-920 standard configuration ships with a tempered glass barrier. However, the option for a stainless steel bar as a barrier is also available. It provides both security and convenience for all customers requiring a wider lane than which traditional turnstiles normally provide. Upon the reader (RFID and/or fingerprint) positively recognizing a user’s valid access card or fingerprint, its barrier swings open automatically, thus allowing users passage to the secured side.

Features

Reliability

Safety Features

• • SUS304 stainless steel body provides ultra-high durability
  • High quality electrical components
  • Barriers swing automatically during emergencies
  • Smooth and quiet operation and without exposed screws
  • Durable electrical components
  • Ergonomic design allows card & fingerprint authentication faster & simpler for users
  • Varied pass mode can be chosen flexibly Standard signal input port, can beconnected with most of the access control board, fingerprint device and scannerother equipment

The turnstile has automatic reset function, if people swipe the authorized cardbut don't pass through within the settled time, it need to swipe card again forentry
Card-reading Recording function: single-directional or bi-directional access canbe set by the users
Automatic opening after emergency fire signal input
Pinch protection
Anti-tailgating control technology :Automatic detection, diagnosis and alarm,sound and light alarm, including trespassing alarm, anti-pinch alarm and anti-tailgating alarm
Self diagnostic and alarm function for convenient maintenance and use.The gate will automatically open when power failure (connect 12V batteryApplications: Supermarket, Campus, Community, Factory, Construction site, etc​

**Swing Barrier Gate: Advanced Access Control for Versatile Applications**

Our swing barrier gate is a state-of-the-art solution for managing entry and exit points, ideal for locations where only individuals, those carrying luggage, or people with disabilities are permitted. With its ability to create wider passageways compared to flap barriers, the swing barrier gate can accommodate pedestrians, bicycles, e-bikes, and other non-motorized vehicles.

**General Features:**

1. **Self-Diagnosis and Alarm:** The swing barrier gate performs automatic fault detection and provides alarm notifications, ensuring ease of maintenance and use.

2. **Programmable Operation:** Configure the device's operating status through the built-in keypad on the main control board.

3. **Dual Anti-Clamping Protection:** The mechanical structure and sensors prevent injuries by stopping the swing arm when an obstruction is detected, with minimal force (≤2Kg).

4. **Audio and Visual Alarms:** Includes alarms for unauthorized entry and tailgating.

5. **Anti-Breakthrough:** The swing arm locks automatically without an opening signal.

6. **Synchronized Arms:** Ensures the arms move in sync.

7. **Auto-Reset Function:** If passage is not completed within the set time, the system cancels the user’s access permission (standard reset time is 5 seconds).

8. **Fail-Safe Mechanism:** The gate opens automatically in case of a power failure and closes when power is restored.

9. **Card Reader Compatibility:** Compatible with various card reading devices, operating via relay switch signals.

10. **Bidirectional Control:** Allows one-way or two-way pedestrian control.

11. **Remote Control:** Can be managed and controlled remotely through a management computer.

**Product Features:**

1. **Self-Diagnosis and Alarm:** Simplifies user maintenance and operation.
2. **Online Programmable Operation:** Configure device settings via the main control board’s built-in keypad.
3. **Anti-Injury Protection:** Stops the motor within a preset time if an obstruction is detected, applying minimal force.
4. **Anti-Breakthrough:** Automatically locks the swing arm without an opening signal.
5. **Adjustable Synchronized Arms:** Ensures both arms operate in sync, especially for dual-arm setups.
6. **Auto-Reset:** Cancels access if not used within the set time after opening.
7. **Fire Safety Compliance:** The gate remains open during power outages for emergency access.
8. **Card Reader Compatibility:** Supports various card reading devices, operating via relay switch signals.
9. **Bidirectional Swing:** Controls pedestrian flow in one or both directions.
10. **Remote Management:** Control and manage the gate remotely using a management computer.
11. **Delayed Auto-Reset:** Standard reset time is 5 seconds after activation.

**Expandable Features:**

1. **Audio and Visual Alarms:** Includes alarms for unauthorized entry and anti-clamping.
2. **Counting Function:** Keeps track of passage numbers.
3. **Infrared Reset:** Enhances the reset functionality with infrared sensors.
4. **Extended Housing and Arm Length:** Customizable to meet specific needs.

**Applications:**

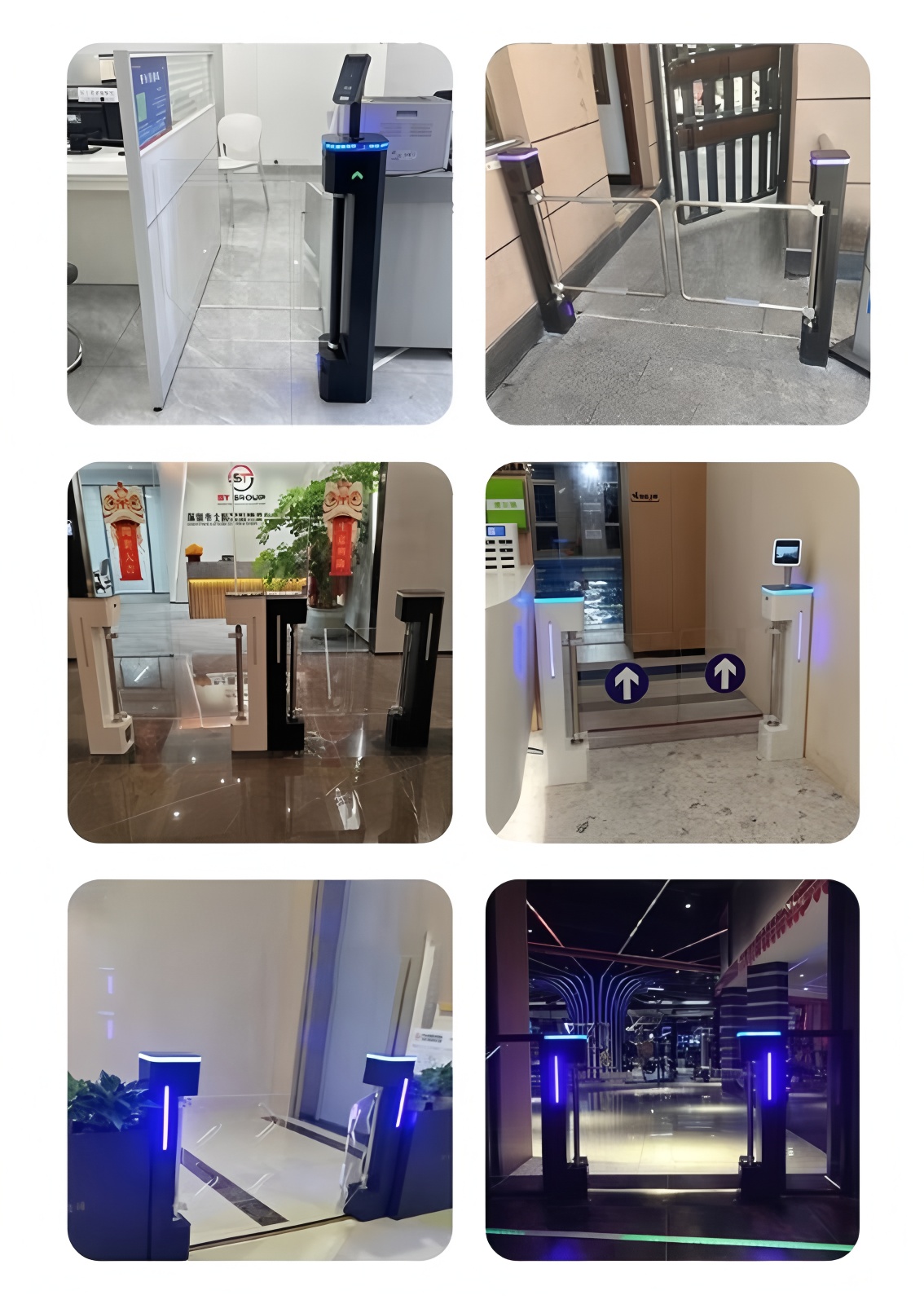

Our swing barrier gates come in various designs including vertical rounded, bridge trapezoidal, and dual-motor options. They are perfect for managing access in businesses, organizations, clubs, hotels, factories, libraries, residential areas, and schools.

---

This introduction highlights the key features and benefits of your swing barrier gate, making it attractive to potential customers in diverse applications.
