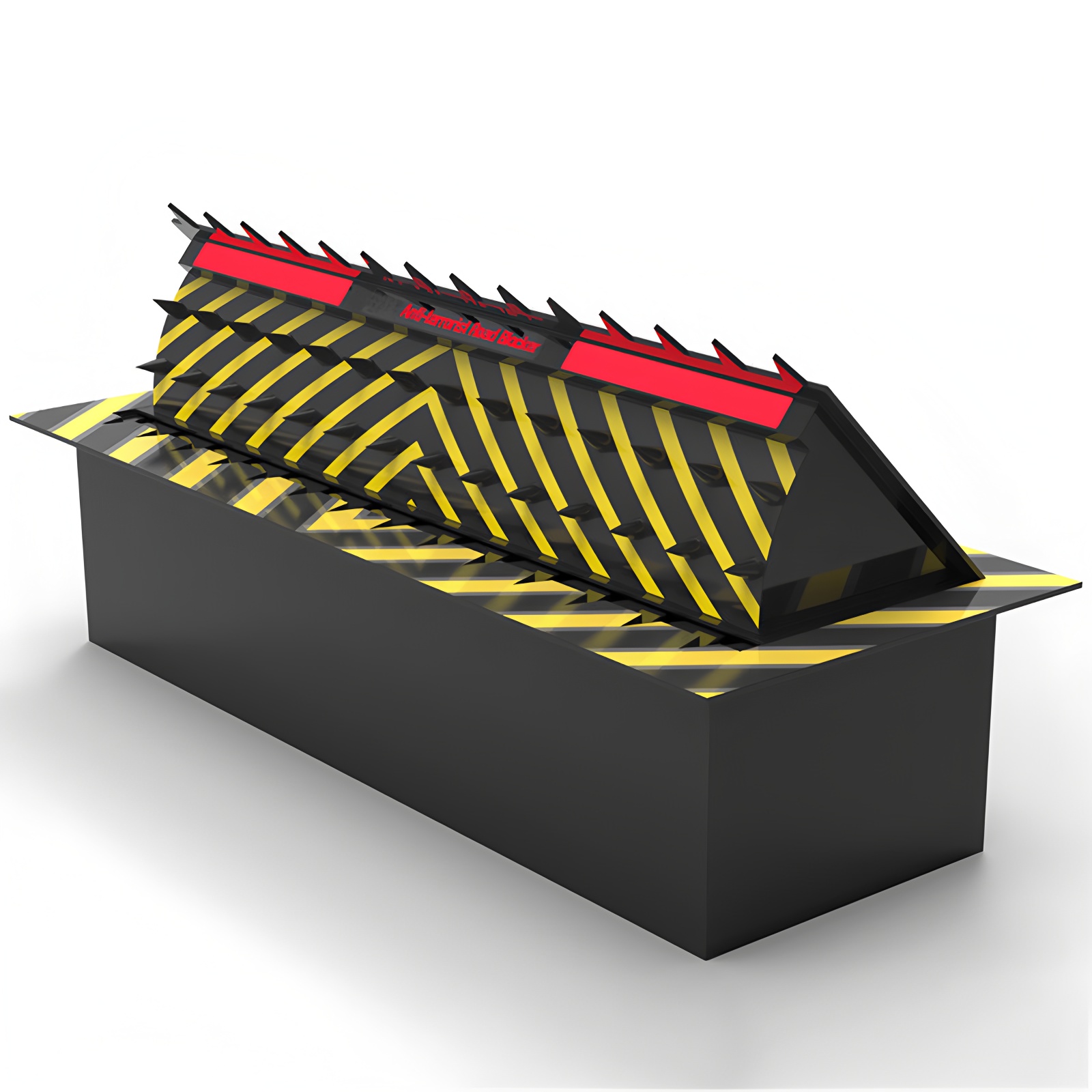

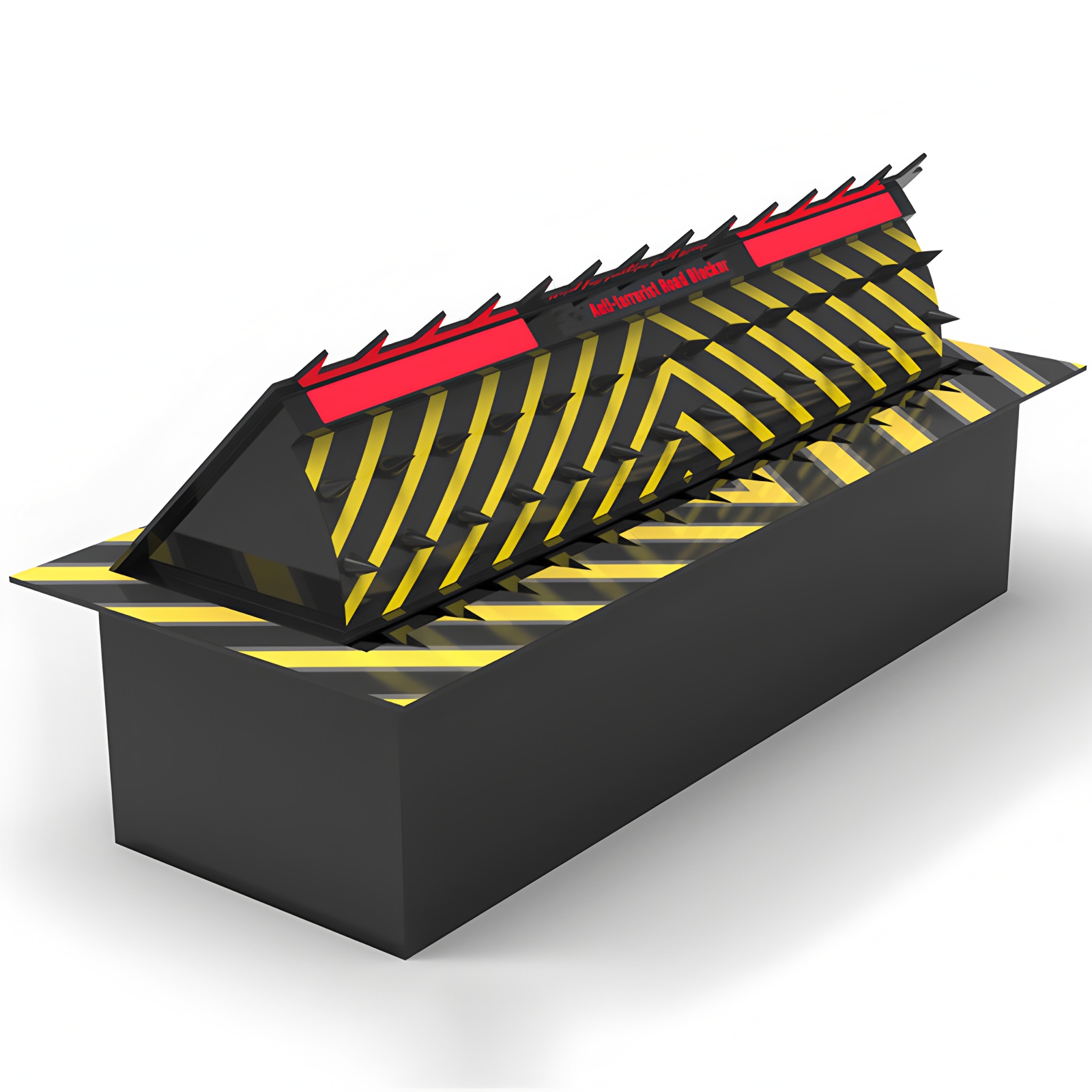

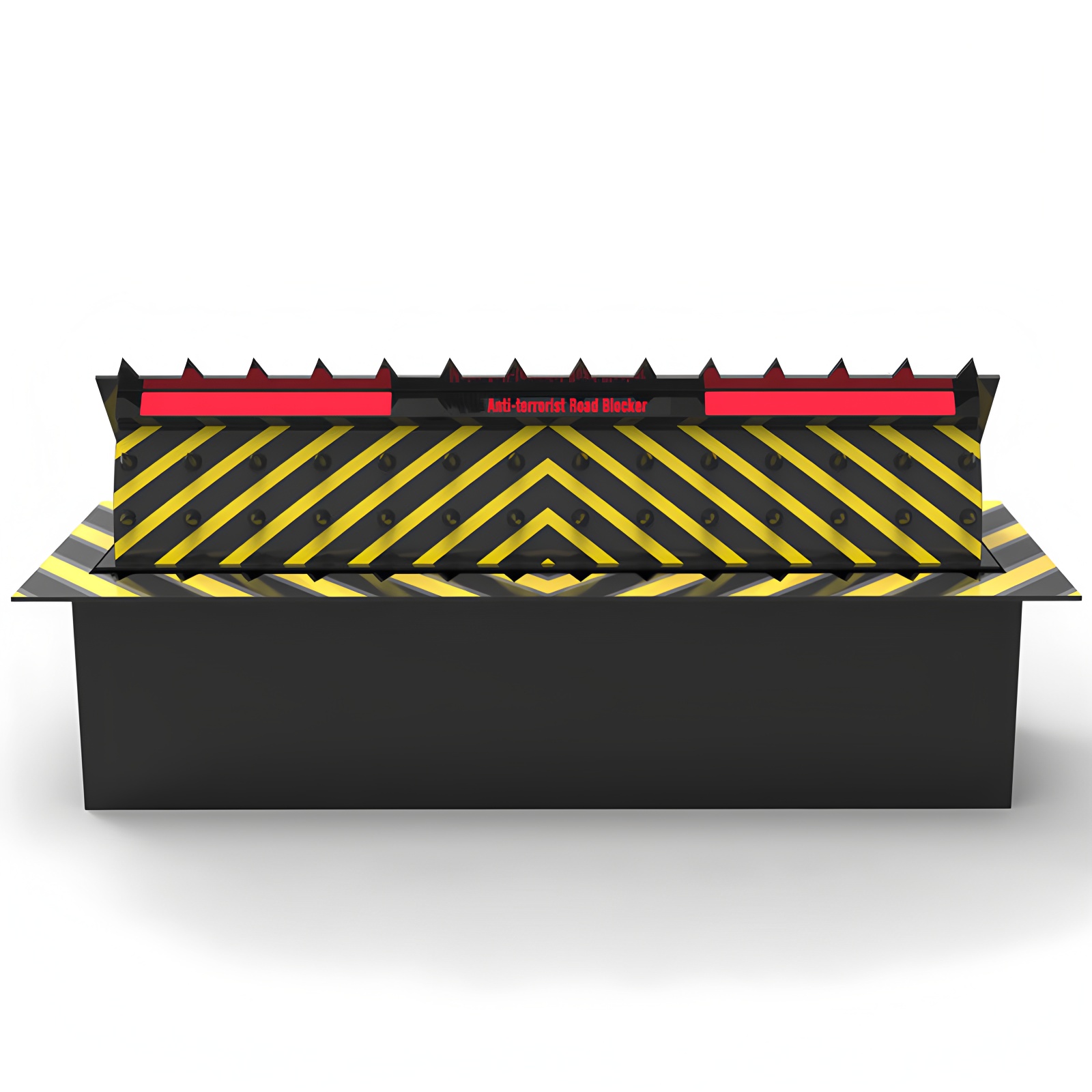

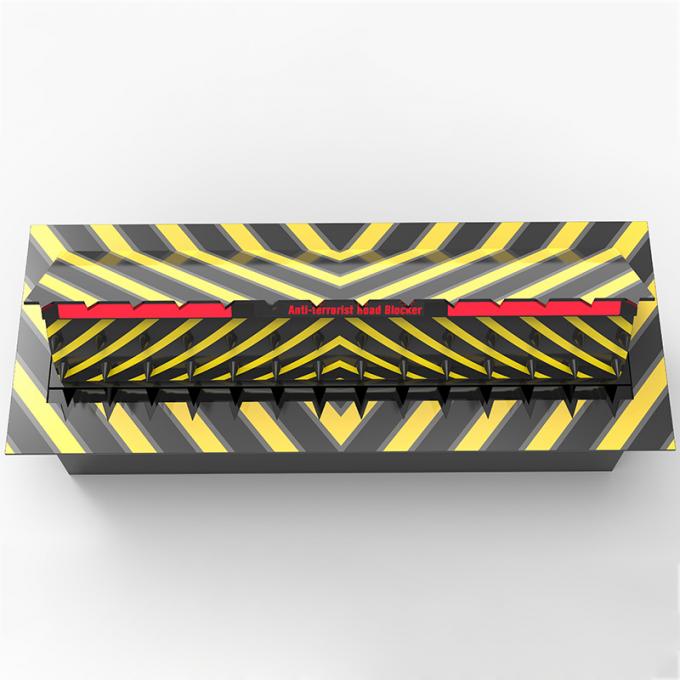

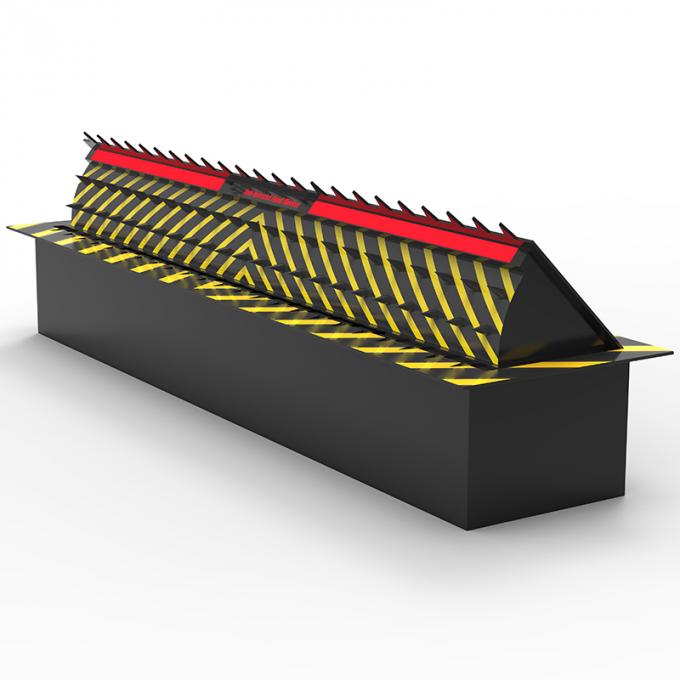

Anti-Terrorist Heavy Duty Automatic Road Blocker

A road block refers to a temporary or permanent obstruction on a roadway, intentionally set up by authorities to control or restrict vehicular or pedestrian movement. Road blocks are typically established in response to emergency situations, such as accidents, natural disasters, or security concerns. They can also be used for traffic control purposes during special events or construction work. The intention behind road blocks is to ensure safety and maintain order on the roads

A hydraulic road block is a type of security barrier used to control vehicle access in high-security areas or areas that require temporary traffic control. It consists of a sturdy metal structure embedded in the ground, usually at the entrance or exit point of a facility or restricted area.

The hydraulic mechanism allows the road block to be raised and lowered as needed. When the road block is in its raised position, it prevents vehicles from passing through. When lowered, vehicles can freely pass over it.

Hydraulic road blocks are often used in military installations, government buildings, embassies, airports, and other locations where strict vehicle access control is necessary. They enhance security by effectively stopping unauthorized vehicles from entering restricted areas and can be easily operated by trained personnel.

.

We can provide OEM and ODM services. This automatic road blocker can be equipped with a card reader, which can automatically control the lifting of the hydraulic rising bollards through card swiping. It can also be equipped with a parking turnstile gate or access control. It can also be connected with the management system and the charging system and controlled by the computer. You can also customize the LED flashing function to flash warning during column activity and light warning at night. You can also customize the audible alarm and intermittent alarm. If you want to customize a hydraulic rising bollard, please contact us

Automatic road blocker is a kind of traffic security equipment with good characteristics (such as anti-collision, anti-terrorism, anti-rust, corrosion resistance, long service life, etc.), which is used to prevent unauthorized vehicles from forcibly entering, and has high practicability, reliability, and safety.

Automatic road blocker is widely used in highway toll stations, checkpoints, prisons, airports, government agencies, embassies, military bases, customs, banks, industrial and mining enterprises, ports, warehouses, parking lots, and all places where vehicle traffic is restricted.

Automatic road blocker is one of the highest security vehicle access control systems in which a vehicle without permission cannot enter. Tyres of the unpermitted vehicle split open immediately, therefore the vehicle moves only a few more meters and is stopped. The jaws of the tire killer move all together. Electro drive unit is placed to one end of the tire killer, it stands above the ground level and is a complete assembly with the body. In this way, both smooth transmission of motion and minimum effect of external factors are achieved.

Automatic road blocker parameters:

Weight: 1.5T

IP rate: IP68

The roadblock has a buffer function

Buffer time: 0.2-0.5s

LED light with various color options

Traffic light, boom barrierLink-control interface

In case of a power outage, the roadblocks can be manually raised and lowered

Reliable structure, heavy-duty load, smooth action, low noise.

Remote control distance: 50-100m(According to the environment)

In raising and falling, a reversible operation is available.

The device running noise≤60decibel

The hydraulic cylinder is double-sealed to ensure a waterproof rating

The hydraulic drive comes with a hydraulic lock

Welding steel cylinder

PLC programming command control system

Control solenoid valve 24V

Lifting solenoid valve 24V

The control box displays text adjustable(Up, Down, Action, and Time control adjustable)

Text display with Chinese and English bilingual

PLC built-in encryption system

Text LCD display, precision start time setting

Heavy-duty hydraulic cylinders: HOB63-200CA+I Stroke200 Heavy-duty Industrial Level

Double dynamic double oil pump 2.3ML/time

Oil container:60liter

Hydraulic oil hose: PT international interface, 1/2 Double wire high-pressure hose

Road blocker size: Standard Length is 3 meters or 5 meters

L2000(cm)*W1000(cm)*H760(cm), Rising height:500(Customized)

L2500(cm)*W1000(cm)*H760(cm), Rising height:500(Customized)

L3000(cm)*W1000(cm)*H760(cm), Rising height:500(Customized)

L3500(cm)*W1000(cm)*H760(cm), Rising height:500(Customized)

L4000(cm)*W1000(cm)*H760(cm), Rising height:500(Customized)

L4500(cm)*W1000(cm)*H760(cm), Rising height:500(Customized)

L5000(cm)*W1000(cm)*H760(cm), Rising height:500(Customized)

L5500(cm)*W1000(cm)*H760(cm), Rising height:500(Customized)

L6000(cm)*W1000(cm)*H760(cm), Rising height: 500(Customized)
