Product Name:
|
Advertisement Barrier Gate
|
Model Number:
|
ZT-YJ01
|
|
Advertisement Barrier Gate:
|
Stainless Steel
|
OEM/ODM:
|
Supported
|
|
Warranty:
|
2 Years
|
Standard Accessories::
|
Standard Accessories
|
Boom Barrier Gate Performance Characteristics
1. Special rotating structure, no gears, no belt rotation, no maintenance required, stable use and longer life.
2. The specially designed balance structure enables the gate lever to start slowly, run quickly and stop slowly.
3. Eliminates jitter caused by gate rod operation.
4. The gate rod operates permanently at 90 degrees to eliminate accidents caused by malfunction and 360-degree operation.
5. Specially designed low-speed aluminum shell motor and integrated gearbox design, low noise and fast heat dissipation.
6. The driving mechanism is designed with an intelligent overheating protection system, which controls the temperature rise of the motor under frequent use so that the motor is not easily burned out.
|
Working voltage |
220VAC ±20% / 50HZ. |
|
Motor power |
140W/200W |
|
Operation time |
6s |
|
Remote control distance |
≤50m |
|
Operating ambient temperature |
industrial grade (- 30 ℃ ~ 70 ℃). |
|
Rated Speed |
1350r/min |
|
Protection level |
IP44 |
|
Reduction ratio |
5:1 |
|
Boom length |
0-4.5m |
|
Communication Interface |
RS485 electrical standards |
Features
1.The case is durable and waterproof, which can be used in outdoor environment.
2.Simple and elegant appearance, with the best Angle of advertising lamp box and flip board advertising.
3.Multiple control mode user selection: Push button of external control box to lock up, drop stop, windproof manually, and can use remote control device to long distance control the barrier gate.
4.Used with vehicle detector, have the function of "Boom automatically down after the car passed " and "rod car automatically lift up when car passing during boom down" etc, which can make the machine has the automatic switch-off and anti-smash the car function.
5.The system adopts standard electrical interface, which can be easily connected to other systems selected by the user.
Product details

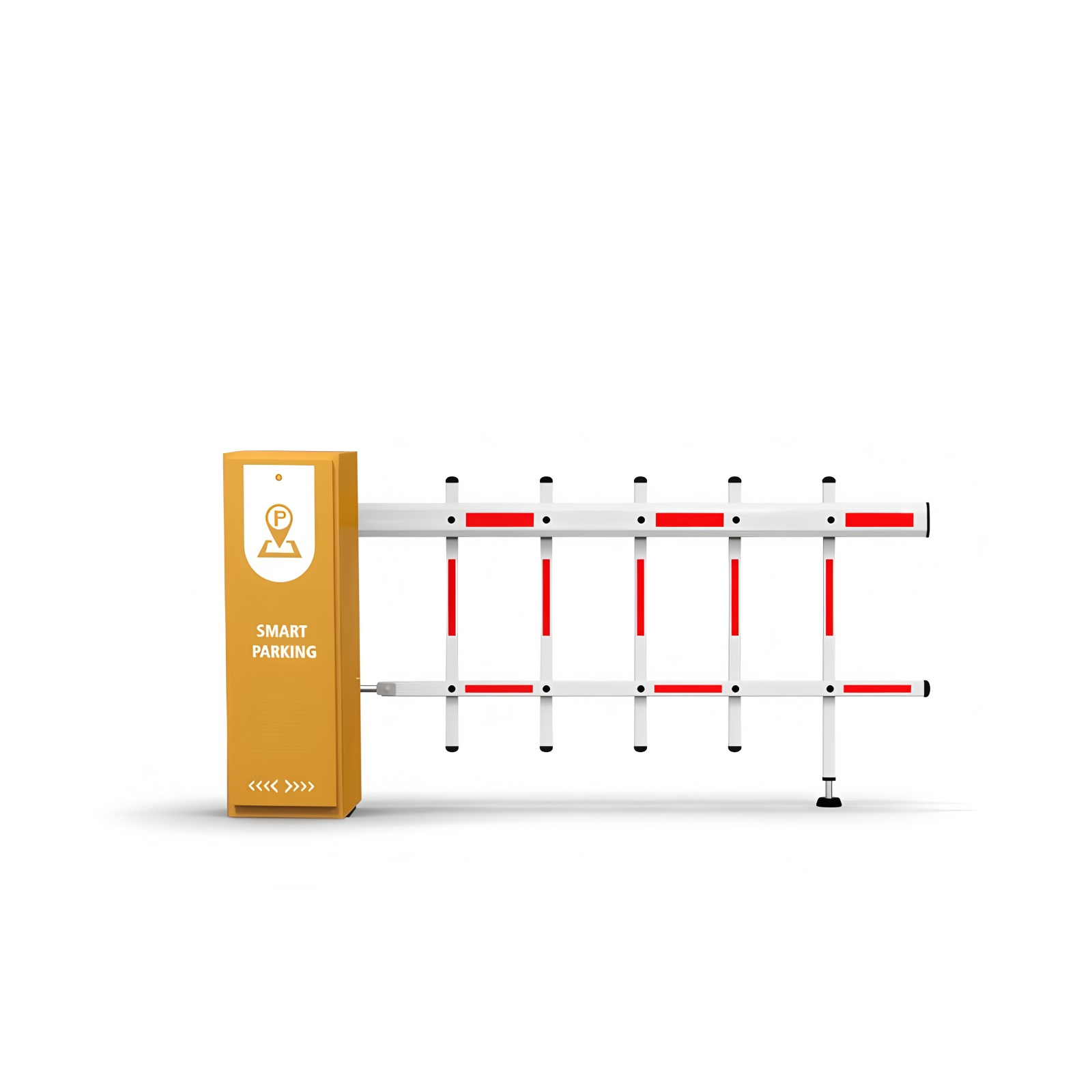

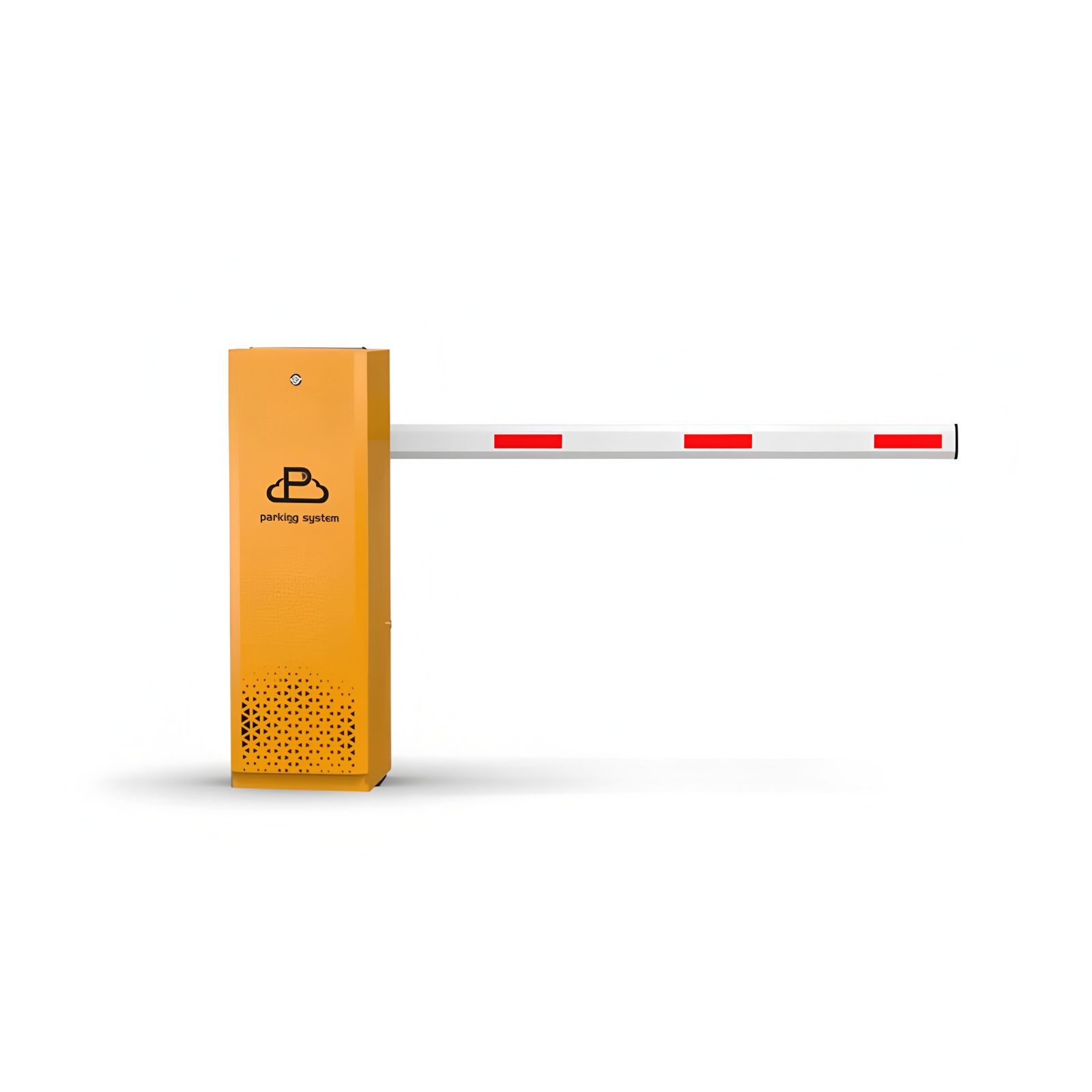

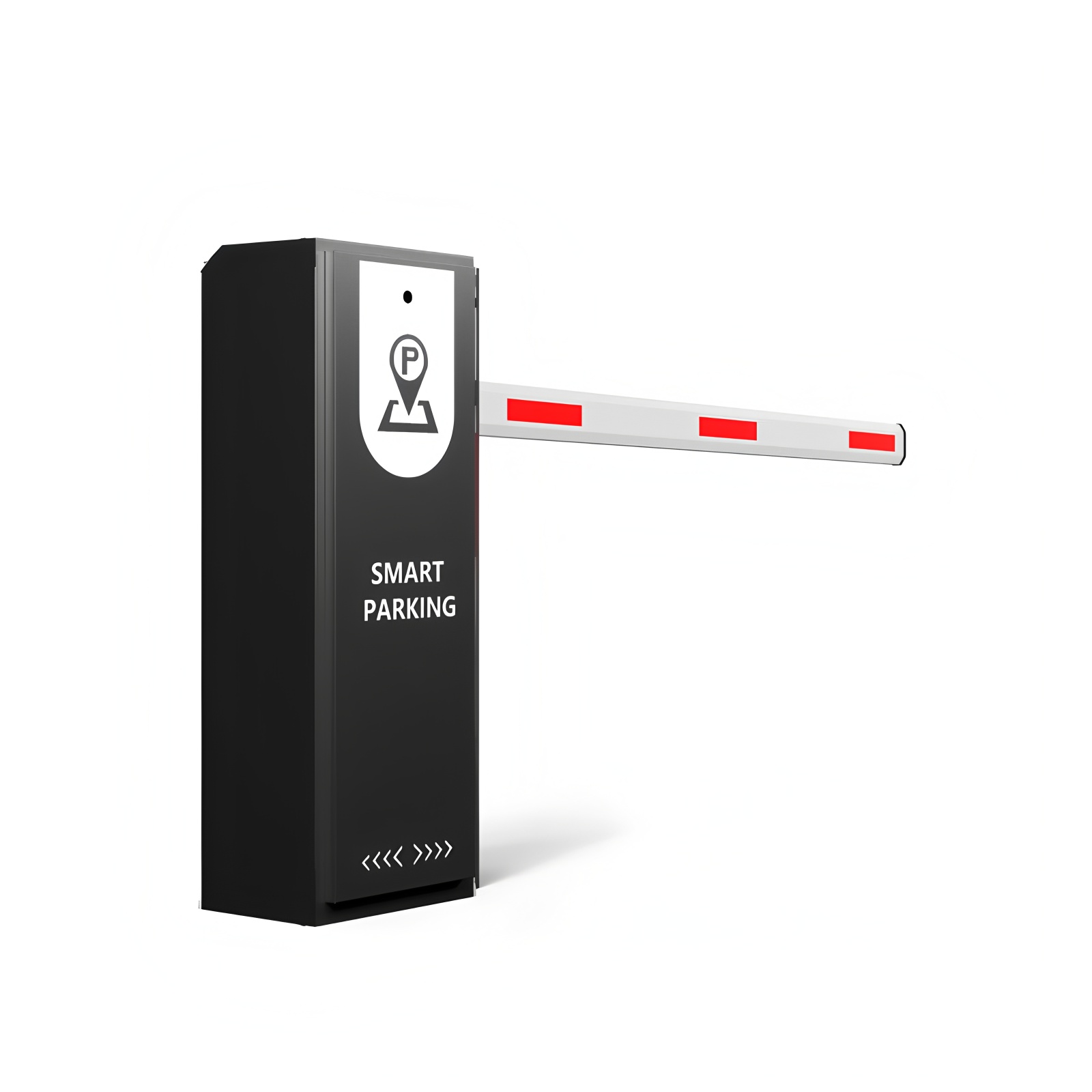

Traffic Boom Barrier Gate
1. Ordinary AC movement
1. Integrated movement structure, small size and light weight.
2. Integrated gear and turbine two-stage reduction structure.
3. It adopts four-stage AC motor, which generates little heat and can be used frequently.
4. Power outage with manual crank lever.
5. The reducer and motor are painted dark gray as a whole.
6. The motor and reducer are designed to be flangeless and have low noise.
7. The reducer box has no flange design, no separate structure processing, high precision and fast speed.
8. The four-link intermediate arm is made of high-strength cast aluminum and is lightweight.
9. The movement is wall-mounted and is easy to assemble and disassemble.
10. Using multiple thin wires with spring-balanced design, it has a long life and is not easy to break.
2. Chassis
1. Humanized appearance line design, simple and elegant, beautiful and bright.
2. The box body is formed by bending and welding of high-strength steel plates, which is strong and durable.
3. The chassis adopts a coherent design from top to bottom, which is beautiful and durable.
4. The box body and door panel are of separate structure, which facilitates color matching.
5. The surface treatment of the box is automotive paint process, and the surface weather resistance can reach 10 years.
3. Ordinary AC motor control system
1. Can be connected to the parking lot charging system.
2. Long-distance remote control.
3. Highly integrated, ultra-stable control board.
4. Built-in ground-sensing anti-smash interface.
5. It has the function of delayed rod drop.
6. Optional wireless key box.
7. An additional constant temperature device can be added.
8. Multiple lifting and landing speed options.
