Product Name:
|
Advertisement Barrier Gate
|
Model Number:
|
ZT-217
|
|
Advertisement Barrier Gate:
|
Stainless Steel
|
OEM/ODM:
|
Supported
|
|
Warranty:
|
2 Years
|
Standard Accessories::
|
Standard Accessories
|
Product Description

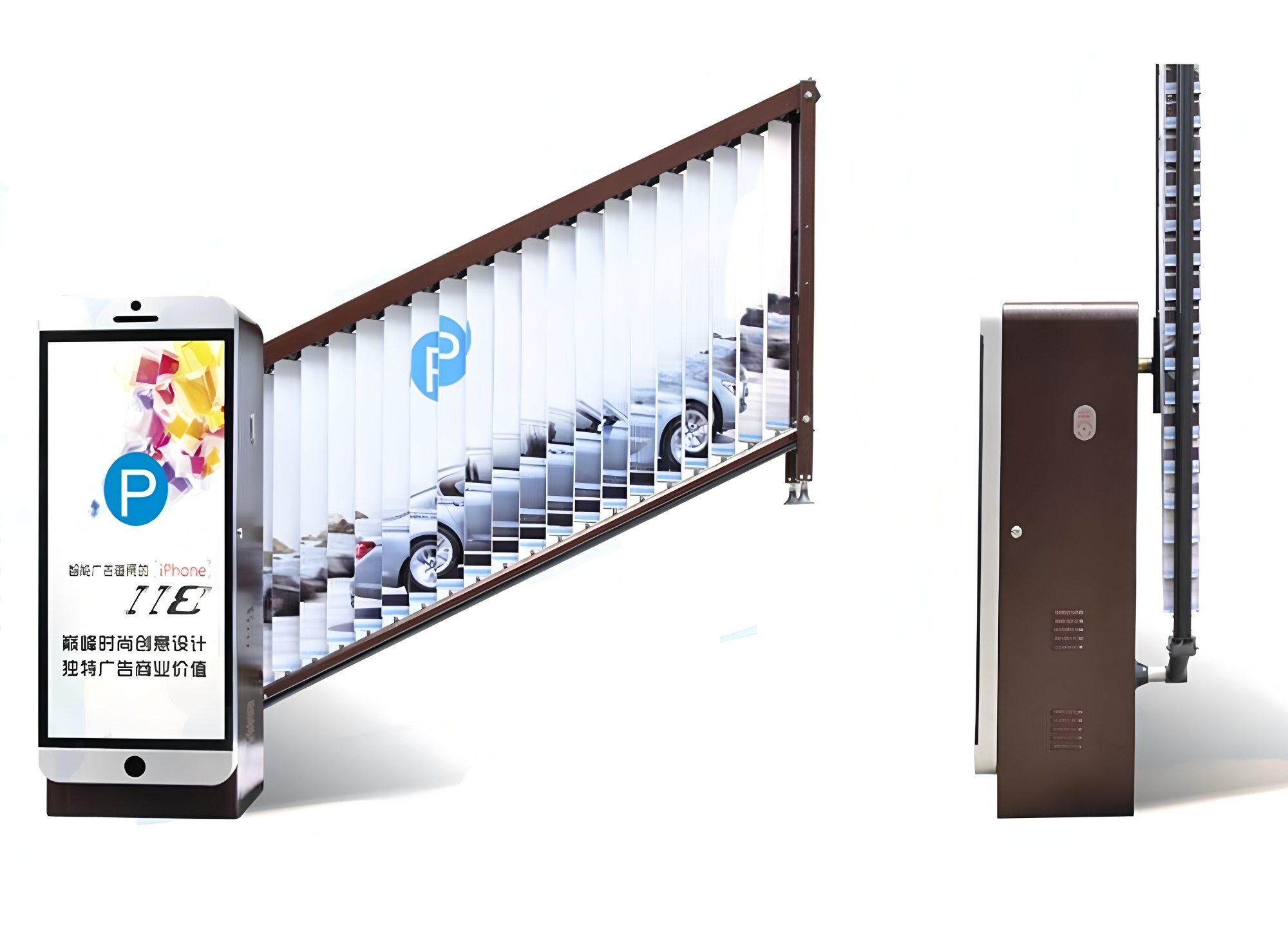

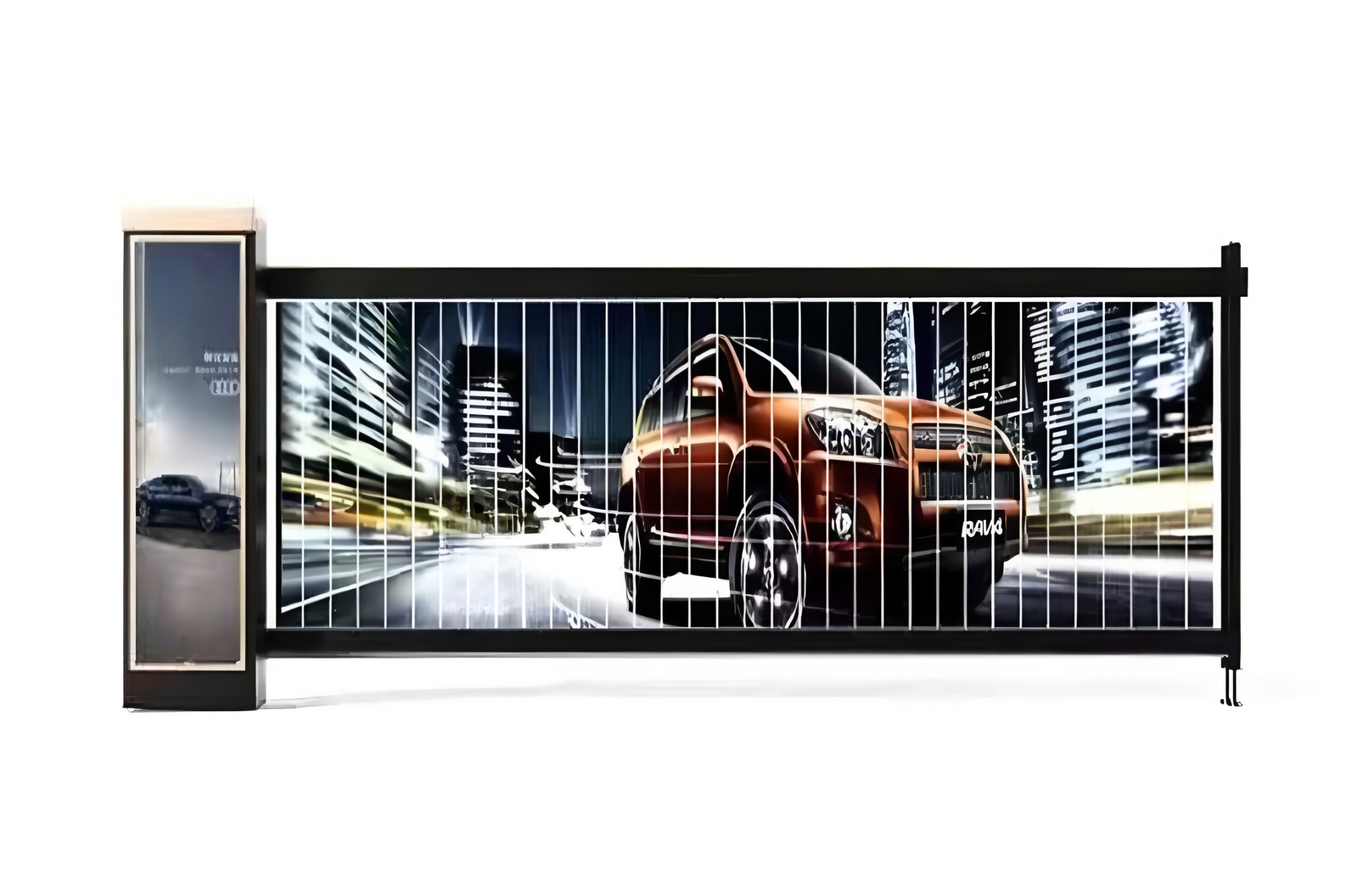

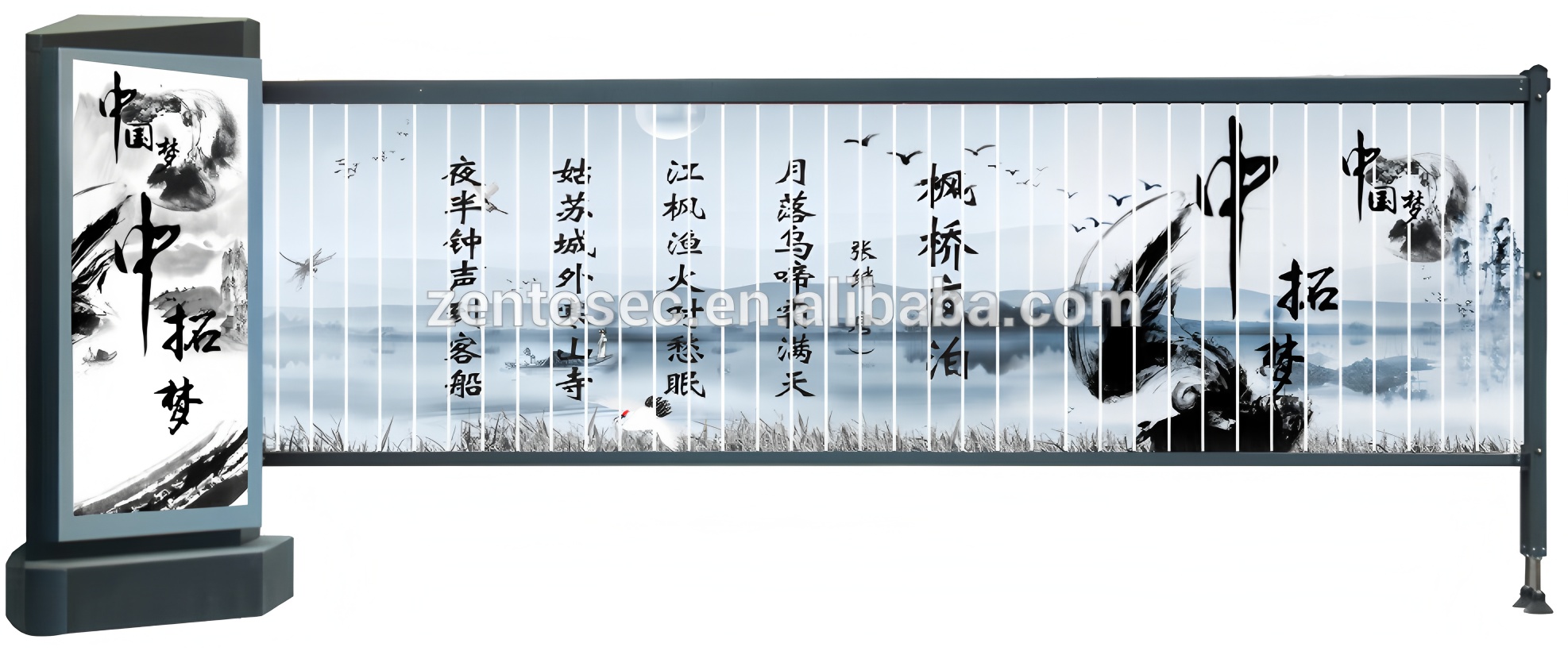

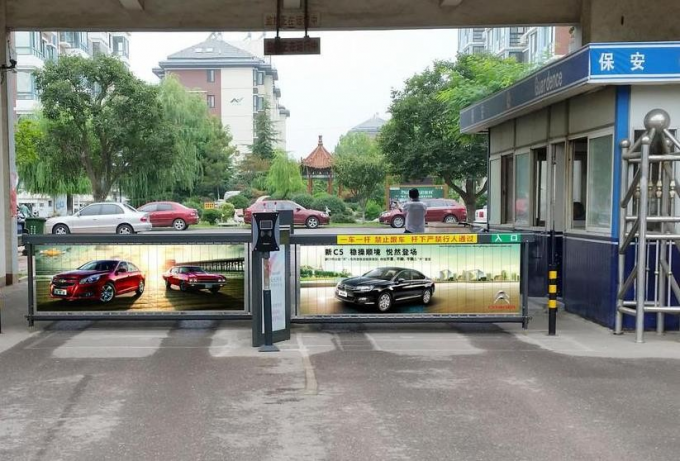

Advertising Barrier Gate is a kind of unique and effective high-quality emerging media, refers to the city building, community, shopping malls, hotels, parks and other entrances and resettlement management way brake arm suspension characteristics of alloy plane advertisement carrier.
1.Machine core with compression spring, effectively avoids the accidents caused by spring breaking.
2.Advertising board is independent motor and control system, When encountered strong winds, the remote control can open the Advertising board to avoid damage.
3.The multiple protection measures (wind protection, motor thermal protection, anti-surge protection, anti-lightning protection, etc.), so that the operation of the barrier safety and reliability has been greatly improved.
4.Customize boom lengths
5.Easy to integrate with other systems.
|
Working voltage |
220VAC ±20% / 50HZ. |
|
Motor power |
140W/200W |
|
Operation time |
6s |
|
Remote control distance |
≤50m |
|
Operating ambient temperature |
industrial grade (- 30 ℃ ~ 70 ℃). |
|
Rated Speed |
1350r/min |
|
Protection level |
IP44 |
|
Reduction ratio |
5:1 |
|
Boom length |
0-4.5m |
|
Communication Interface |
RS485 electrical standards |
Features
1.The case is durable and waterproof, which can be used in outdoor environment.
2.Simple and elegant appearance, with the best Angle of advertising lamp box and flip board advertising.
3.Multiple control mode user selection: Push button of external control box to lock up, drop stop, windproof manually, and can use remote control device to long distance control the barrier gate.
4.Used with vehicle detector, have the function of "Boom automatically down after the car passed " and "rod car automatically lift up when car passing during boom down" etc, which can make the machine has the automatic switch-off and anti-smash the car function.
5.The system adopts standard electrical interface, which can be easily connected to other systems selected by the user.

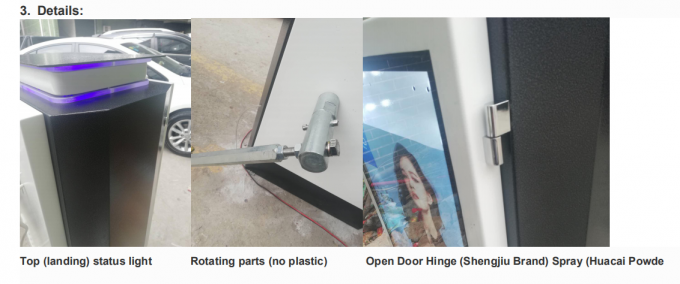

Product details

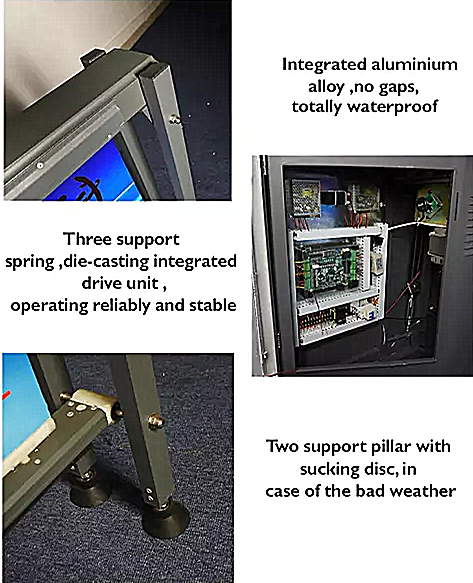

Transmission and Hardware
1. The transmission adopts a non-constant speed double dead center four-link mechanism. Smooth rod drop.
2. Group spring balancing mechanism is adopted.
3. Combination of Hall limit and structural limit is adopted.
4. Transmission balance design is adopted.
5. Pure Copper Motor and High Precision Turbine Gearbox.
6. The speed can be changed by 6.0 seconds. 4 meters barrier arm.
7. The left and right limits are clearly defined, and the magnet non-contact limit is adopted to adjust the horizontal and vertical positions. (clockwise and counterclockwise).
8. All control circuits support fire-fighting interfaces.
9. Ground Sensing Radar Protection Supporting Infrared Pressure Waves.
10. Waterproof, dust-proof and moisture-proof
11. The chassis is made of 2.5 quality cold steel, and some key structural members are not less than 20 mm.
12. The transmission parts adopt CNC to process structural parts, thus eliminating the use of cast structural parts.
13. The flap is non-powered rotates flexibly.
14. Blade 90*745*5 (light aluminum alloy T6061).
15. The main rod is 120*100 (hard aluminum alloy T6063).
16. The blade rotating structure is made of PA66+30% fiber with self-lubrication.
17. The landing pole is made of superior strength glue.
18. The traffic lights in the light department are smart and exquisite.
19. The standard high-brightness large LED lamp lasts 100,000 hours.
20. The installation of advertisement picture adopts two ways: magnet and clamping bar.
21. Pull-in replacement of advertisement pages.
22. When the brake lever falls horizontally in place, the six-stage deceleration is realized by connecting rod and electric control, and the running curve is smooth (patented technology).
23. When the brake lever falls horizontally, it does not need to fall to the ground to support the lever, which is the first in the peer (patented technology).
24. Unique appearance (patented technology).
25. No external equipment is needed to prevent smashing and blocking (patented technology).
26. The motor uses 180W and 250W optional power.
Optional (Control Item)
1. Support remote monitoring and transmission of pictures
2. Support lifting status feedback
3. LCD display is supported.
4. The backlight emits light.
Product advantages
1. OEM Brand, Logo, Label available
2. 1 Year Standard Warranty, excellent after-sales service
3. 24h*7d at your service to give you best support
4. Fast finishing time for you to become more competitive at your local market :3-5 days for small order.
5. Detailed installation manual and wiring diagram to make everything be eas
