Arm Type:
|
Straight, Folding, Fencing
|
Model Number:
|
ZT-210
|
|
Product Name:
|
Boom Barier Gate
|
OEM/ODM:
|
Supported
|
|
Warranty:
|
2 Years
|
Color:
|
Gray,yellow,red
|
Intelligent Automatic Car Parking System is a high performance parking lot charging management system. It combines vehicle detection, computer network, video surveil lance,image identification, realize the full-automation management of in and out vehicles. It is mainly for large underground parking lots,like Government building,Super market.,Shopping Center,Highway station and other public parking lots.
|
Boom Barrier gate Arm Length |
max 6m |
|
Boom barrier Rail up or down time |
4s-6s |
|
Related Motor Power |
Turbine vortex pole motor 80W |
|
Working Temperature |
-40 degree to 60 degrees |
|
Operation Humidity |
≤90% |
|
Protection grade |
IP65 |
|
Voltage |
110V~220V/50Hz~60Hz |
|
Motor rated power |
80W |
|
Remote controller |
2 pcs(free for barrier gate) |
Product Description
Backed by a rich industry experience, we are engaged in offering an optimum grade of Automatic Barrier that is used in parking areas. The offered barrier is precisely designed under the guidance of experienced professionals using the best quality raw material and advanced technology. Our provided barrier is available in different sizes, designs and specifications as per the requirements of our clients. Moreover, this barrier is highly praised in the market owing to its easy usage and smooth finish.
Product Parameter:
Chassis size: 340mm×270mm×1090mm
Working voltage: 220V
Motor specification: 90W
Remote control distance: ≤30m
Landing stick time: fast 1.5s/medium speed 3s
Protection class: IP44
Ambient temperature: -30℃～80℃
Limit length of brake lever: 4.5 meters at medium speed, 6 meters at slow speed, standard use of telescopic rubber bar
With the support rod (Heri pure copper motor two-stage speed change), the 24-hour operation is not hot. , two remote controls. With 100*45 brake rod or 100*50 telescopic rod, with 100*50 telescopic rod, or golden oval rod, door panel black tempered glass, blue backlight. Dome light blue back
Support counting function, support relay signal and high-level signal input, support landing limit signal output, small angle shielding ground sense
Product details
1.Special balancing and driving mechanism design makes the barrier boom running up and down steadily and smoothly, nonstant speed operation, which eliminates the bad operation occurred while barrier boom is lifting and falling, like fast-acceleration or sudden-stopping occurred while the boom running.
2.In case of the power failure, can adjust the lever by hand.it's sample operation and convenient, effortless.
3.Motor adopts turbine worm drive cutting power, low noise. Casing made of aluminum alloy material, fas-heating dissipation and nice-looking.
4.Control system adopts microcomputer intelligent technology, humanized control, stability is good. Suitable for all kinds of intelligent parking places and various campus courtyard gate vehicle crossings.
5.The length of arm can be customised.
Function
1. Auto pass (optional).
2. Support the external and internal VEHICLE LOOP DETE(optional).
3. Support the INFRARED PHOTOCELL for anti-bumping further(optional).
4. Unique remote controller,3 buttons to control the barrier safety and easy using.
5. One balance spring is suitable for all types of boom.

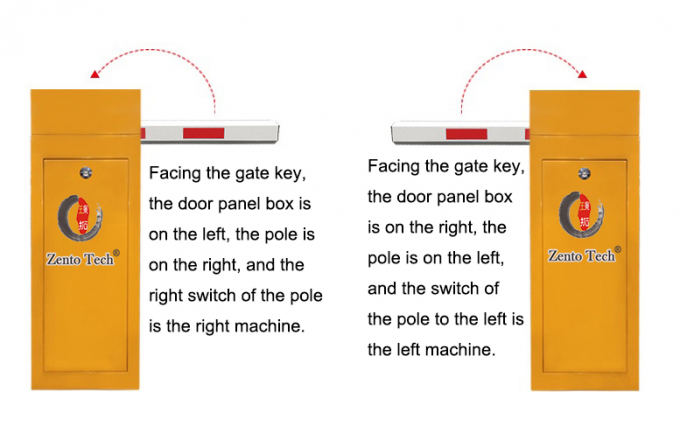

6. Boom can rise and fall on left /right sides by setting on the machine.
7. Unique manual release can stop the boom at any angle.
1. OEM Brand, Logo, Label available
2. 1 Year Standard Warranty, excellent after-sales service
3. 24h*7d at your service to give you best support
4. Fast finishing time for you to become more competitive at your local market :3-5 days for small order.
5. Detailed installation manual and wiring diagram to make everything be easy
