Highlight:
Marble Cover stainless steel turnstile
,
Marble Cover Sliding Gate Turnstile
,
Sliding Gate Turnstile Anti breakthrough
|
Communication Interface:
|
RS485
|
Current:
|
1A
|
|
Humidity:
|
≤90% RH
|
Passing Speed:
|
30-40persons/min
|
|
Power Supply:
|
AC/DC
|
Protection Level:
|
IP54
|
Marble Cover Speed Gate Sliding Gate Turnstile Anti Breakthrough
Access Control Pedestrian stainless steel turnstile High Level Marble Cover Speed Gate Sliding Turnstile Gate
Production description

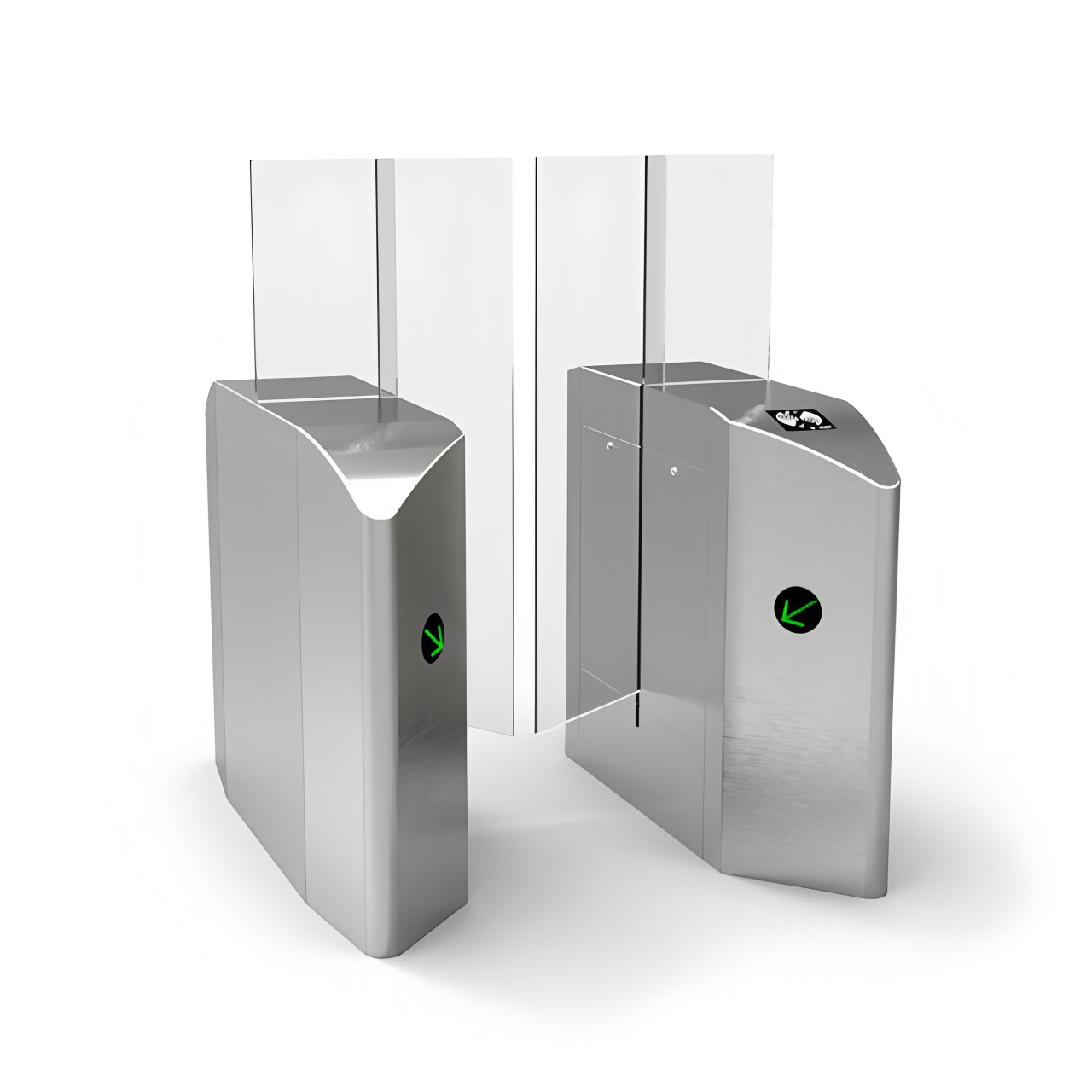

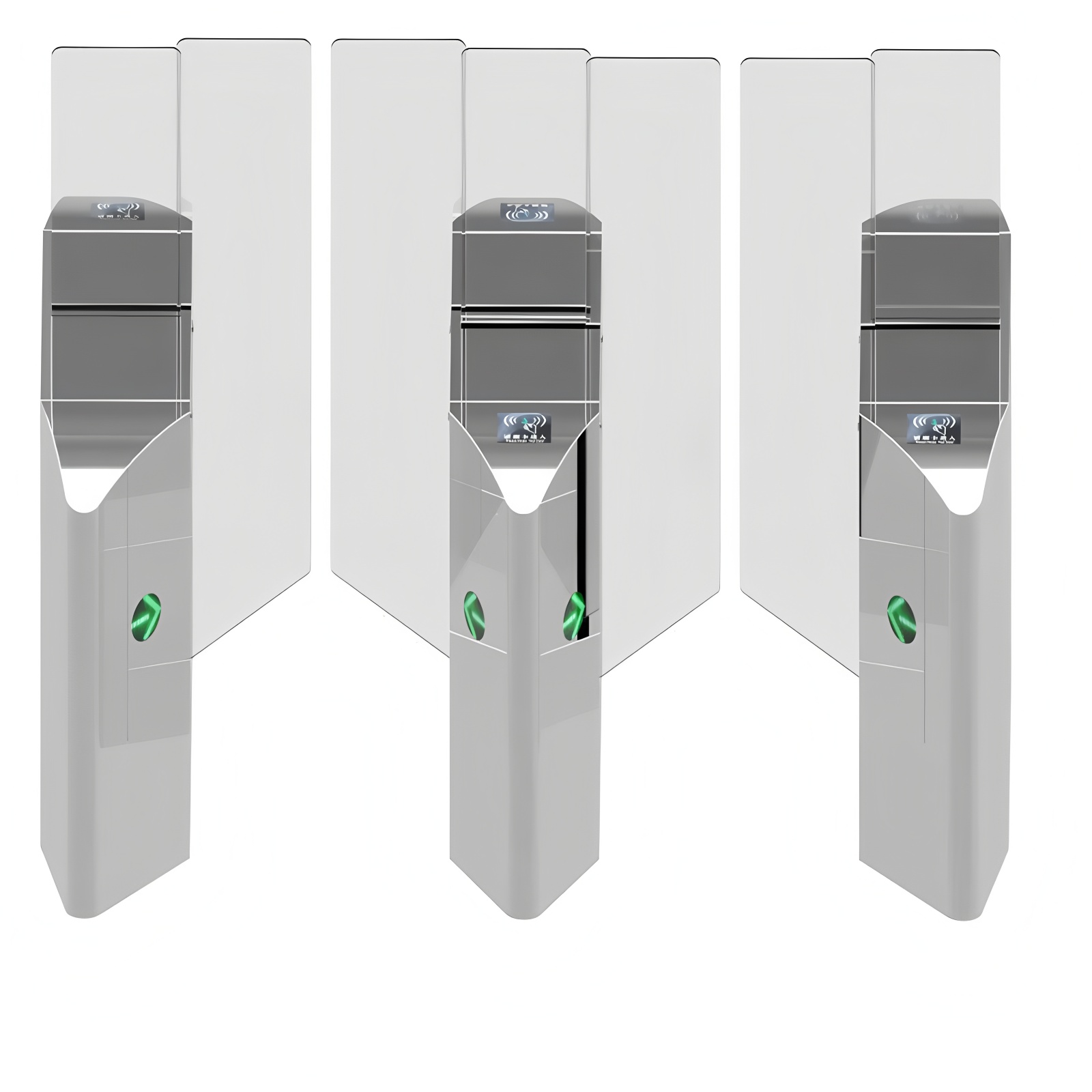

Intellgient sliding barrier(half height or full height optional) is the intelligent access management produced by our company after several years R & D, this equipment organically integrate machinery electronics microprocessor control,and all kinds of different reading and writing equipment. Through figuring all kinds of different reading and writing equipment,and adopting reliable performance safety protection devices real-time alarm system, and direction indicator interface, realizing the access intelligent control and management by the mutual coordination.
1. Fault detection and alarm functions, easy to use and maintenance
2. The running status can be programmed and controlled with the built-in keyboard on the main board
3. Mechanical anti-pinch function. If the gate meets resistance in the reset process, motors will stop working automatically within the prescribed time and reset again after the default delay (till fully reset)
4. Anti-breakthrough function. The gate is locked automatically until opening signal received
5. Support infrared photocell for anti-pinch and reset function
6. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically
7. Gate can be set as normally open or normally closed
8. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Access controller needed)
9. Direction can be set as single-direction or bi-direction
10. LED direction indicator
11. Gate auto opens when power off and auto close when power on
12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.
Product Specs
|
|
|
|
|
|
Access device input voltage
|
Dry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA
|
|
|
Can be set as single or double
|
|
|
|
Flap openning/closing time
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Indoor/ outdoor with tent
|
