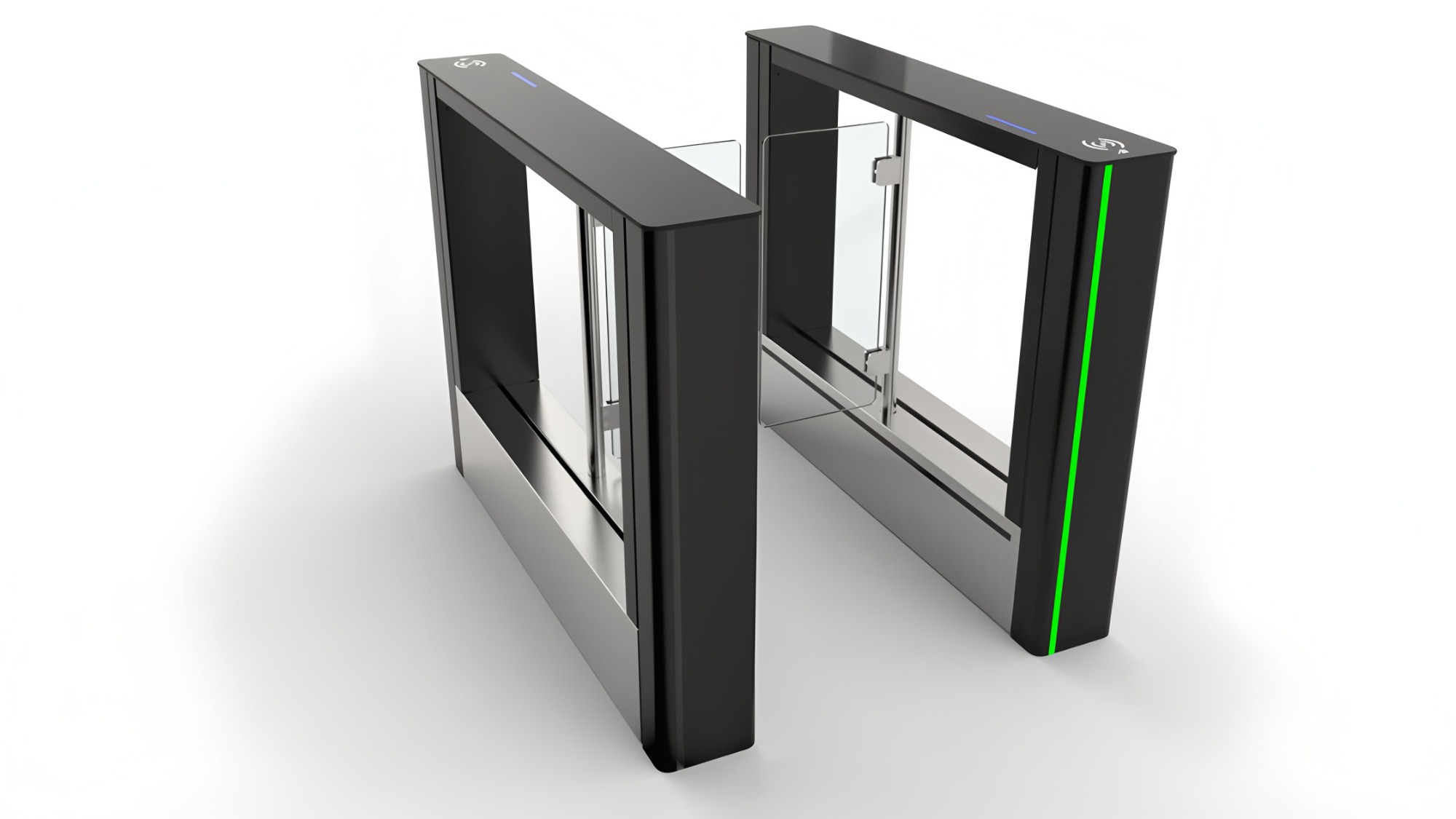

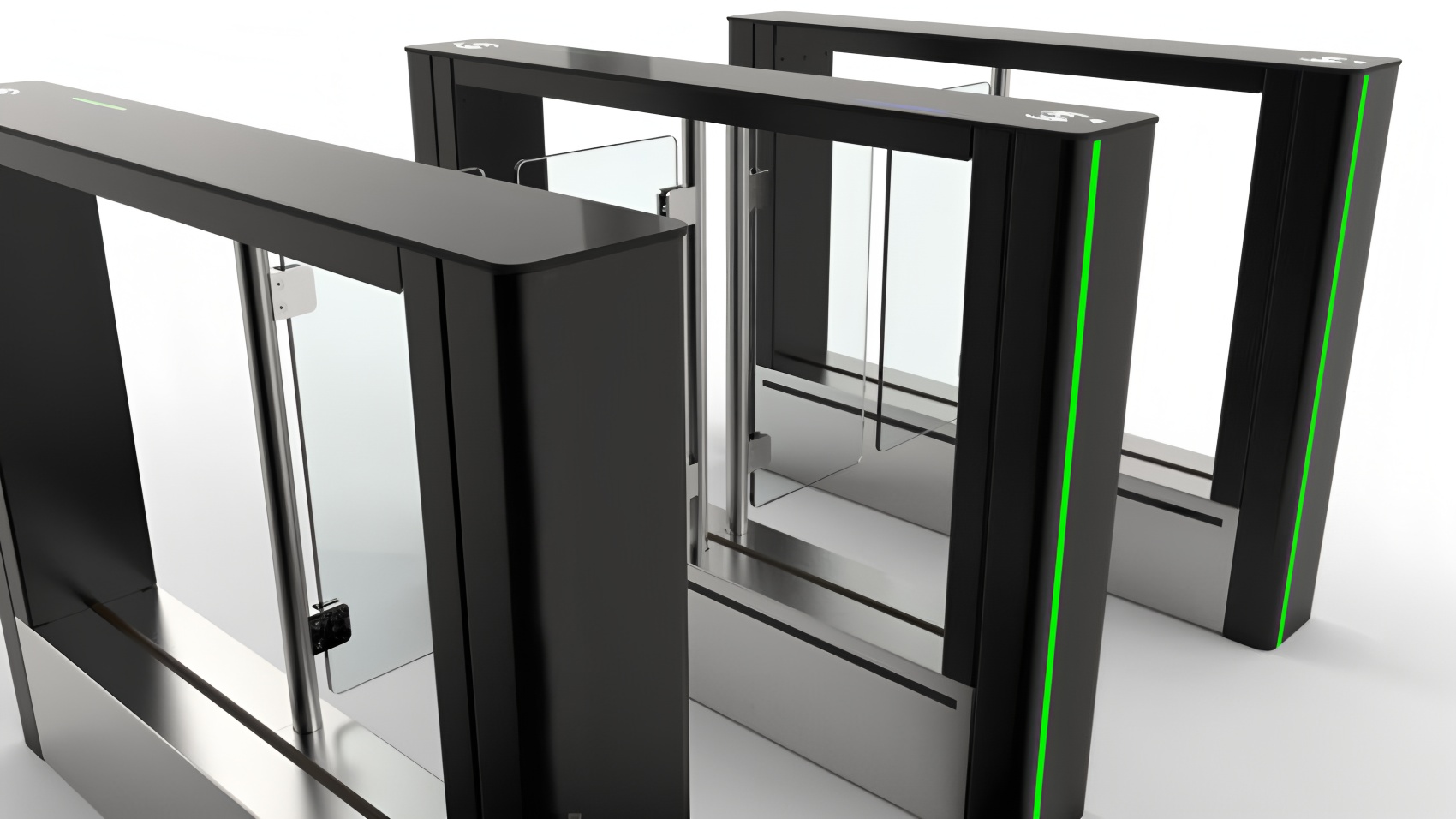

OEM Swing Turnstile Barrier Price Access Control Turnstile Gate

Face recognition & temperature detection swing gate turnstile is equipped with face recognition module and temperature detection modules, can realize non-contact rapid detection of body temperature and recording and other functions. It can set the temperature threshold. When the body temperature of the pedestrian is above the threshold, the turnstile will alarm and close, not allowing that pedestrian to pass through.

Unique Advantages

Fast temperature detection to improve efficiency: Using thermal imaging body temperature screening, the body surface temperature is detected by a thermal imager (non-contact method); abnormal body temperature targets are quickly screened with high screening accuracy and fast discrimination.

Lower operating costs: non-contact verification / temperature detection to reduce safety operating costs; conduct preliminary temperature detection on pedestrians to save manpower and equipment resources.

Real-time voice broadcasting: When pedestrian with abnormal temperature is detected, the real-time voice broadcasting will be performed to prompt relevant personnel for further processing.

Verification of identity and fast deployment of corresponding work: It can quickly identify pedestrians with abnormal temperature, and do a good job of pre-warning, handling during the event, and tracing after the event.

Artificial intelligence: With 2 million pixel thermal imaging temperature detection & face recognition panel machine, it is embedded with lightweight convolution neural network deep learning algorithm (CNN), and integrated with high precision thermal imaging temperature detection chip and image ISP processing technology.

Mask recognition: Masks can be accurately identified. Upon finding pedestrian without mask, it can immediately snap a shot and play a voice warning. When the mask is worn correctly, the turnstile will open after the face recognition comparison is passed, and the accuracy is over 90%.

High compatibility: Support HTTP protocol; rapid development and integration; it can provide data interface for other health management platforms, achieving health big data linkage.

High temperature detection accuracy: ±0.3℃ (for 35~39℃); ±1℃ (for 0-35℃ or 39~70℃), ±2℃ (for other temperatures).

All-around Personal Safety Protection

When power is off, the turnstile will open automatically to evacuate people in the event of an emergency.

Adopted infrared anti-clamping, mechanical anti-clamping and anti-collision by advanced electric current detection, it can achieve excellent anti-clamping and effectively protects pedestrian's personal safety.

With over force feedback control design, the swing gate can be slowly pushed when it is subjected to an instantaneous impact force beyond the safety range, to reduce the impact force of the mechanism and the counterforce on pedestrian, effectively protecting the mechanism and pedestrian.

All electrical modules use safety voltages below 24V and are equipped with residual current protectors to prevent pedestrians from being injured by electric shock.
