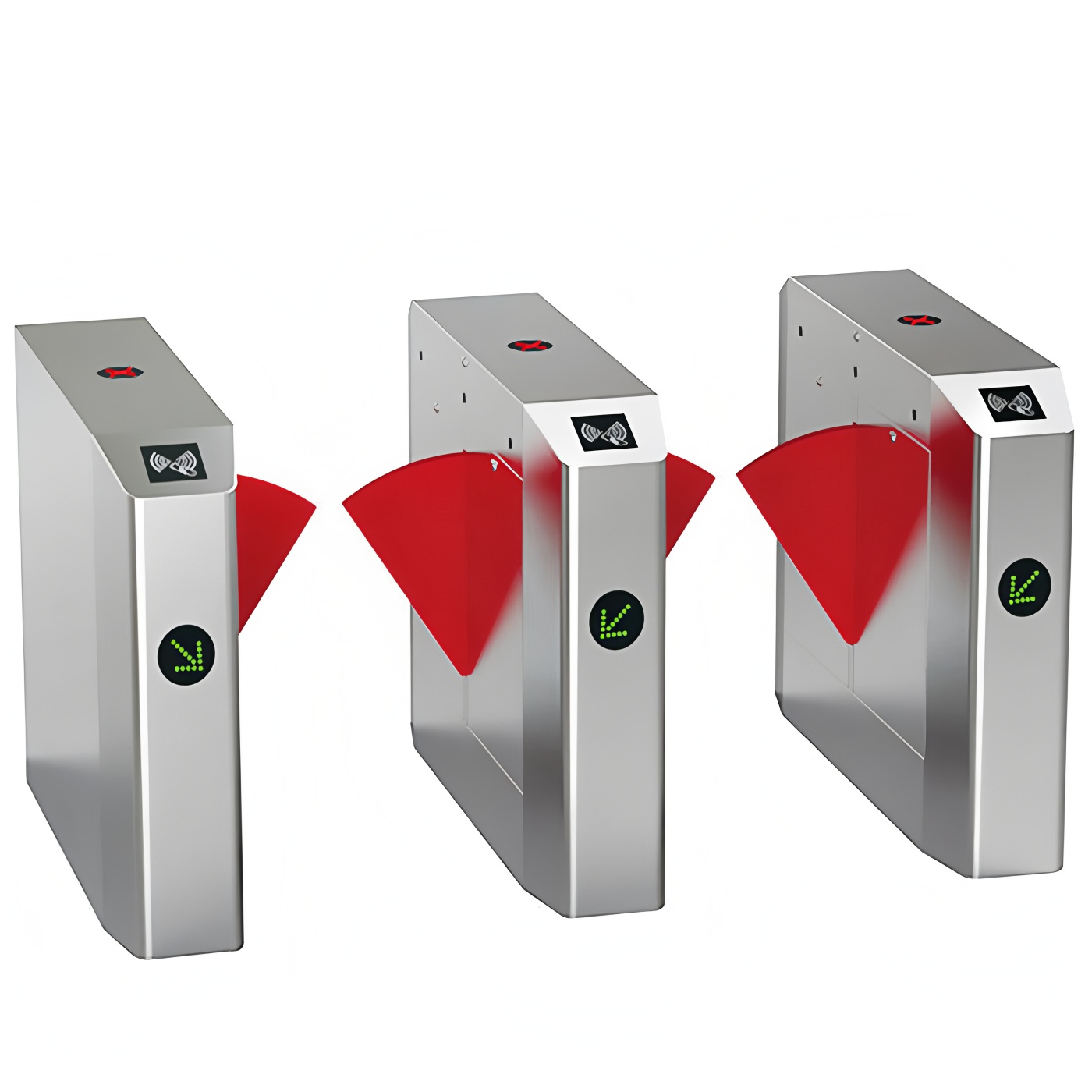

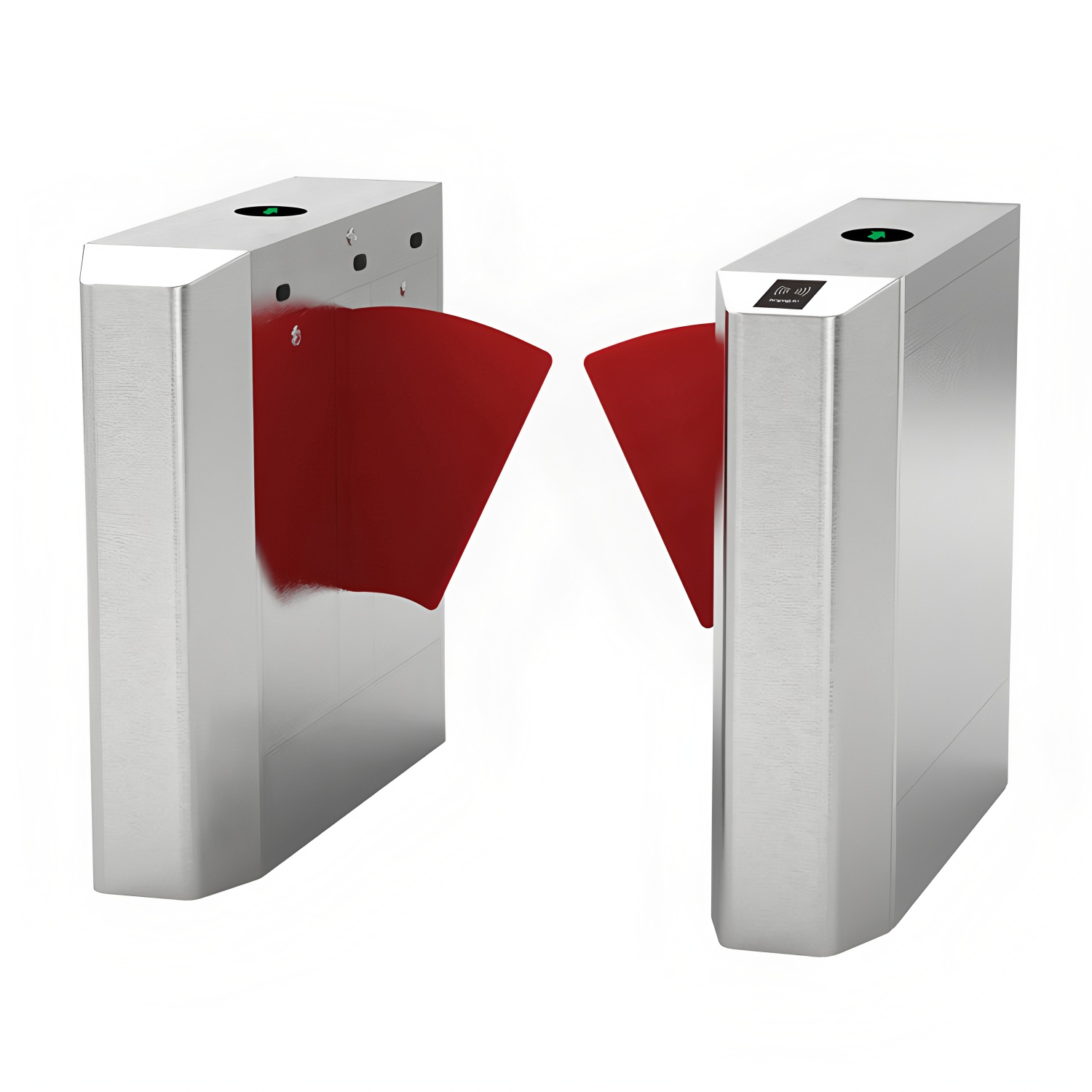

Passage Width 550-600mm Retractable Flap Barriers Wing Gate Turnstile IP40

Item No.: CL-936A
Product Details
Place of Origin: Shenzhen China
Brand Name: Cardlan
Certification: CE ISO9001 ROHS
Model Number: CL-936A
Description
Description
Highlight:

wing gate turnstile IP40

Passage Width 600mm wing gate turnstile

retractable flap barriers IP40

Communication Interface:
RS485/TCP/IP
Lifespan:
5 -8 Million Times
Passage Speed:
30-40 Persons/minute
Passage Width:
550-600mm
Power Supply:
AC220V/110V
Warranty:
1 Year
Weight:
60KG
Working Environment:
Indoor/Outdoor
Passage Width 550-600mm Retractable Flap Barriers Wing Gate Turnstile IP40

Access Control Turnstile Stable Quality CE Approved Door for Public Office Entrance

Passage Width 550-600mm Retractable Flap Barriers Wing Gate Turnstile IP40 0

1. Fault detection and alarm functions, easy to use and maintenance.
2. The running status can be programmed and controlled with the built-in keyboard on the main board.
3. Mechanical antipinch function. If the gate meets resistance in the reset process,motors will stop working automatically within the prescribed time and reset again after the default delay (till fully reset)
4. Anti-breakthrough function. The gate is locked automatically until opening signal received.
5. Synchronization functions (for dual gate equipment).
6. Automatic reset function. Should the user fail to pass within the prescribed time, the system will cancel the authority of the current user automatically.
7. Gate can be set as normally open or normally closed.
8. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc.
9. Direction can be set as single-direction or bi-direction.
10. LED direction indicator.
11. Gate auto opens when power off and auto close when power on, complying with fire safety requirements.
12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.
13. Counter function (optional).
14. Support infrared photocell for anti-pinch and reset function



Technical Data:

1. Working Temperature: -20℃~+65℃

2. Power Supply Input Voltage: AC220V±10%, AC110V±10%

3. Motor Voltage: DC24V

4. Enclosure Rating: IP40

5. Passing speed: 30-40 people/minute

6. Duty Cycle: 100%

7. Material of Cabinet: 304 stainless steel

8. Width of Passage: Standard 600mm, Max 800mm (a pair)

9. Opening & Closing Speed: 0.6 seconds

10. MTBF: 3,000,000 times

11. Wing Material: Tempered Glass
12. Cabinet Dimension (W*D*H): 1200*200*980mm





No.
Item
Functions & Features
1
Motor
Self-developed DC24V brushless motor&control system, High efficiency, low energy consumption, low noise, long life, high reliability.
2
Control System
Voice function, trumpet optional. left, right, left & right opening adjustable.
3
Physical Anti-pinch Protection
Sensitivity can be adjustable
4
IR Sensor Anti-pinch Protection
Double Protection for safty
5
Operation during Power-off
Opening when power off, DC12V backup battery optional.
6
Motorcade Passing, Counting, Auto-aging Test, Delay Auto-closing, Relay Signal Output, RS485 Communication
Support
7
Illegal intrusion, Trailing passing, Detention, Reverse passing, and IR anti-pinch.
Access logic detection available
8
Warranty Period
12 months for motor and control board





APPLICATIONS:
1.Bus station, school,factory entrance and exit management
2.Tourist attraction Ticketing system
3.Time attendance, access control, consumption management for Building office
4.Special aaccess management system
