Place Of Origin:
|
Guangdong, China
|
Brand Name:
|
Cardlan
|
|
Model Number:
|
ZT-803B
|
Normal Work Life:
|
3 Million Times
|
|
Passing Speed:
|
35-40 Persons/min
|
Type:
|
Bi-direction/Uni-direction
|

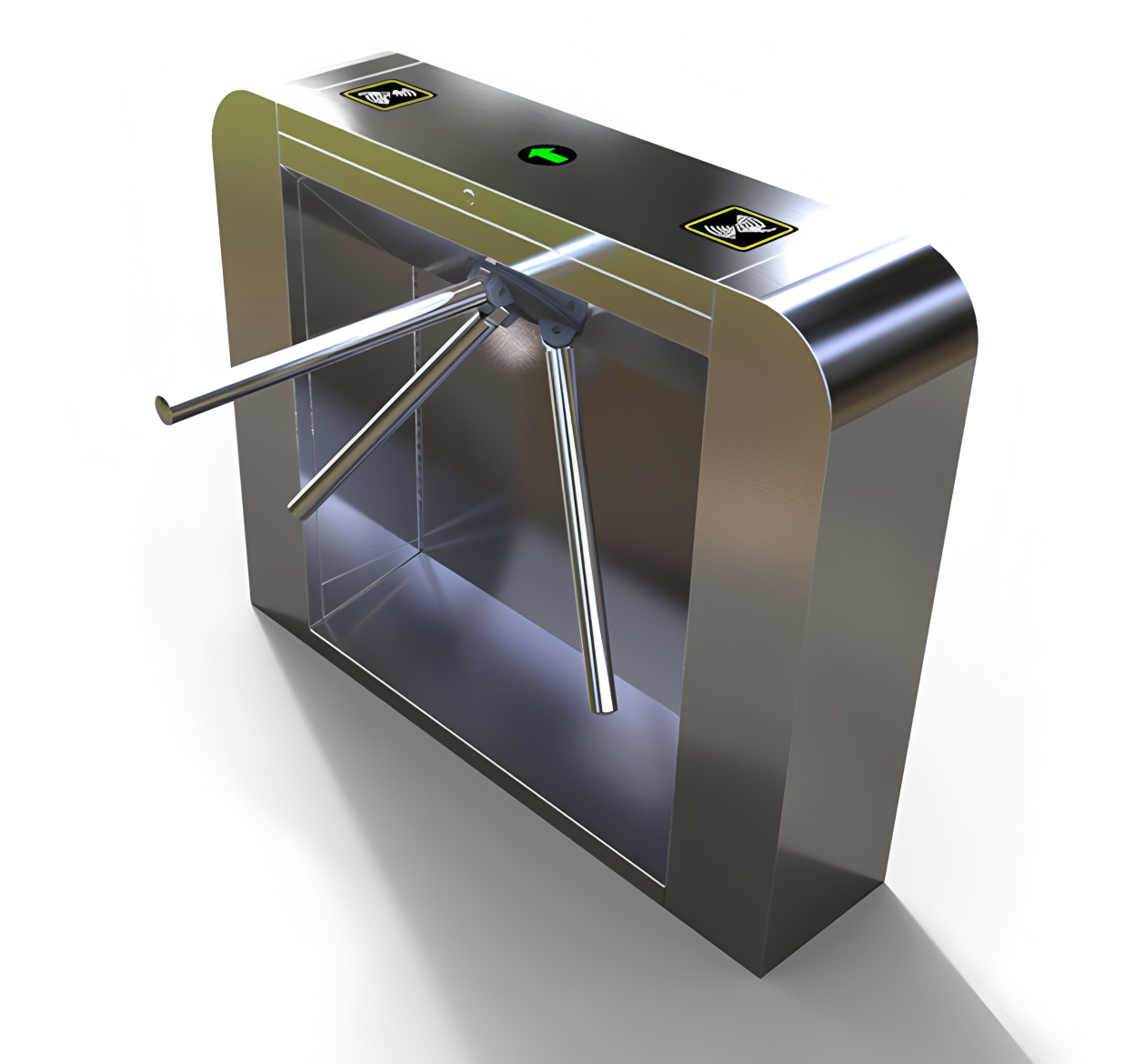

Automatic Bridge Tripod Turnstile Gate With Facial Recognize Access Control System
Product description:

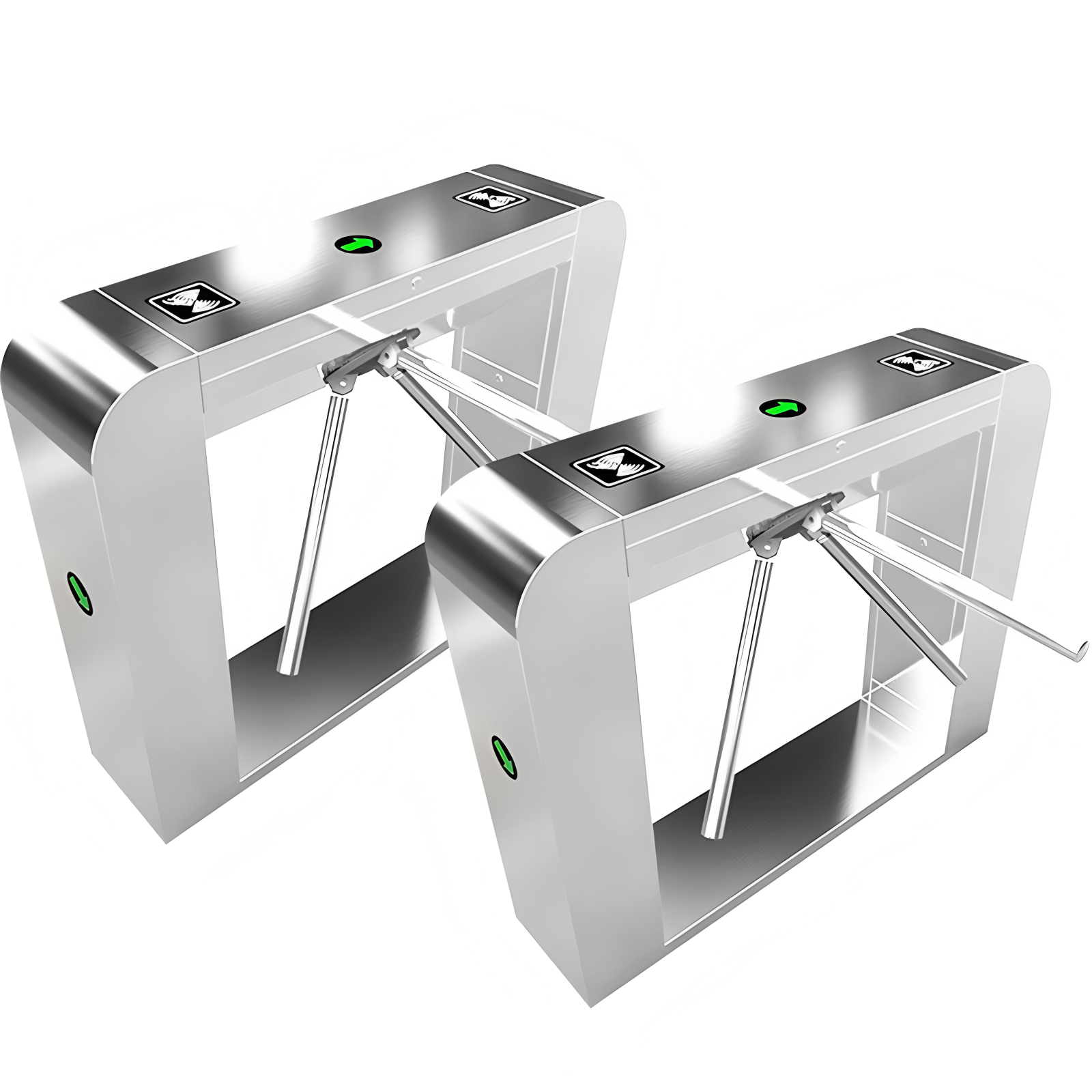

Turnstiles offer an effective solution for pedestrian access control. These box tripods are ideal for the entrances where fast pedestrian throughput and aesthetics must come with a sufficient degree of access security. Installed in one line, the turnstiles form passageways without installation of extra guide barriers.
Parameters:
|
Framework
|
304 Stainless Steel
|
|

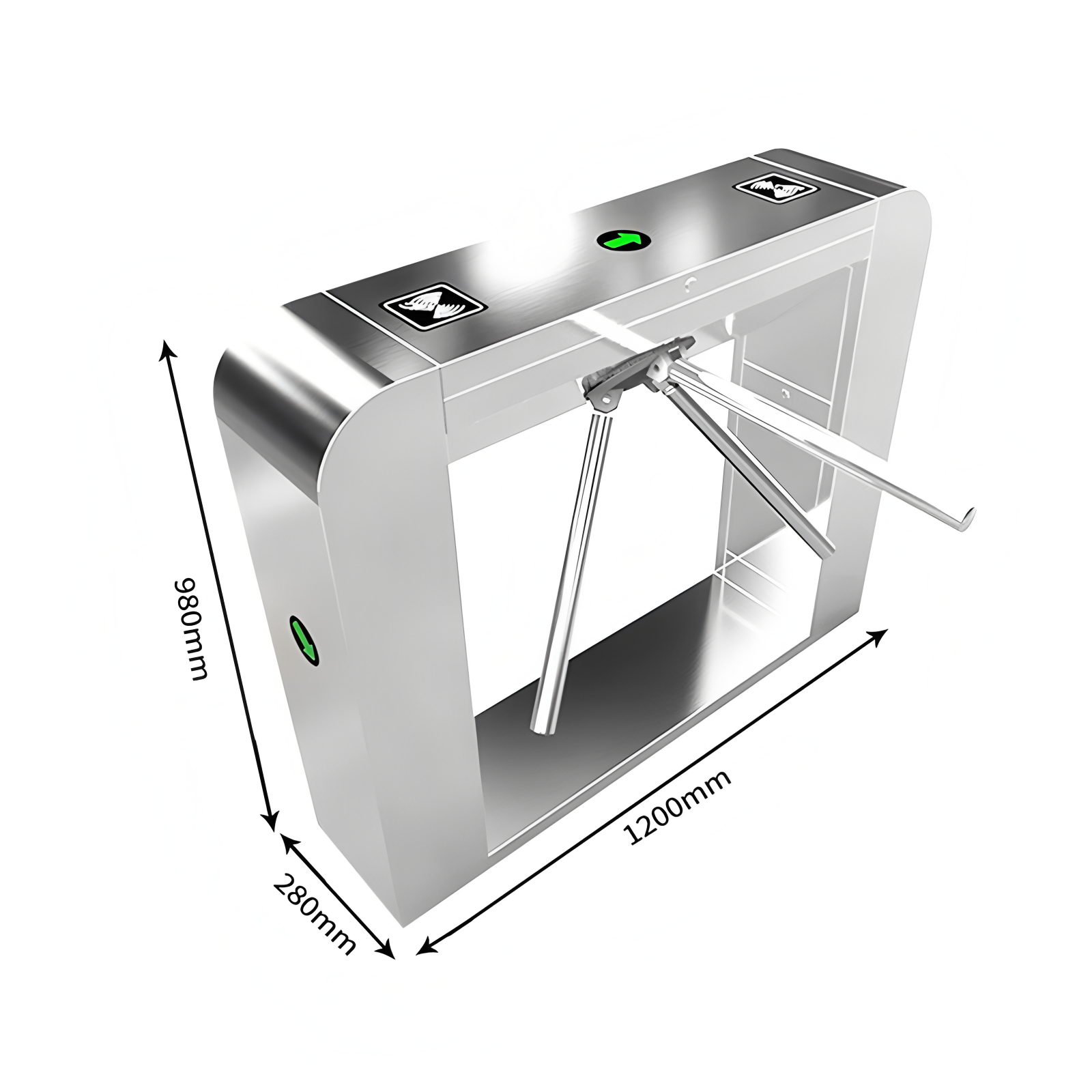

Dimensions
|
1200*280*990 mm
|
|
Passage width
|
550mm
|
|
LED indicating light
|
One
|
|
Card-reading window:
|
Two
|
|
Rated power
|
120W
|
|
Operating temperature
|
-25℃ ~ +60℃, RH ≤90%
|
|
Related humidity
|
≥90%RH
|
|
Opening Time
|
0.2s
|
Details:
Functions:
1. With fault self-checking and alarm prompt function, it is convenient for users to maintain and use;
2. A variety of traffic modes can be set.
3. Anti-shock function, the gate is automatically locked when the gate opening signal is not received;
4. Sound and light alarm when there is a illegal break-in and trailing;
5. Infrared anti-pinch function, when the gate is reprocessing, the gate will automatically return to the open stateif the
infrared detects a person in the passage;
6. The swing arms can be adjusted at the same time (for double swing conditions)
