Place Of Origin:
|
Guangdong, China
|
Material:
|
SUS304
|
|
Work Voltage:
|
AC220V±10% 50HZ±10%
|
Colour:
|
Optional
|
|
Warranty:
|
1 Year
|
Certificates:
|
CE、Rohs
|

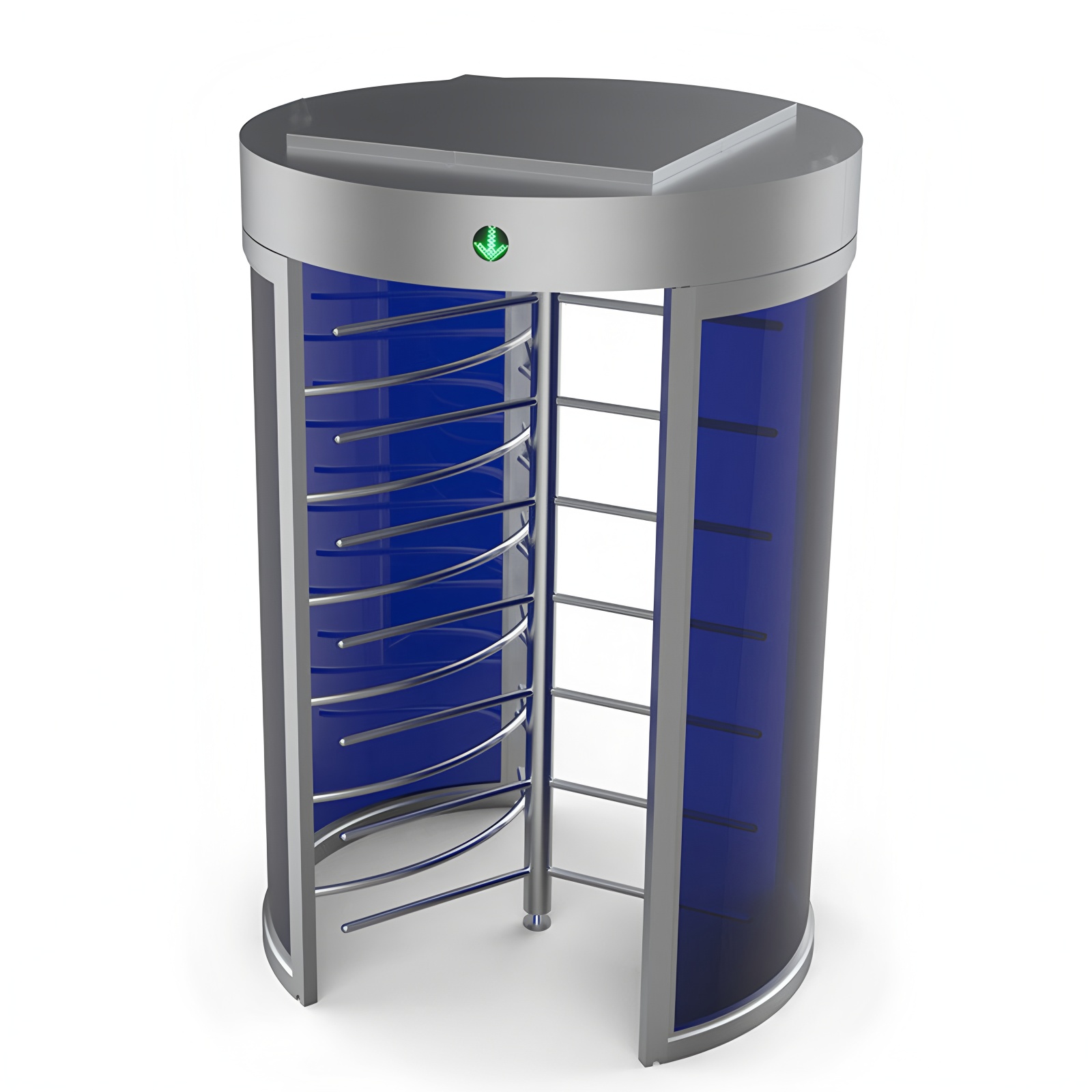

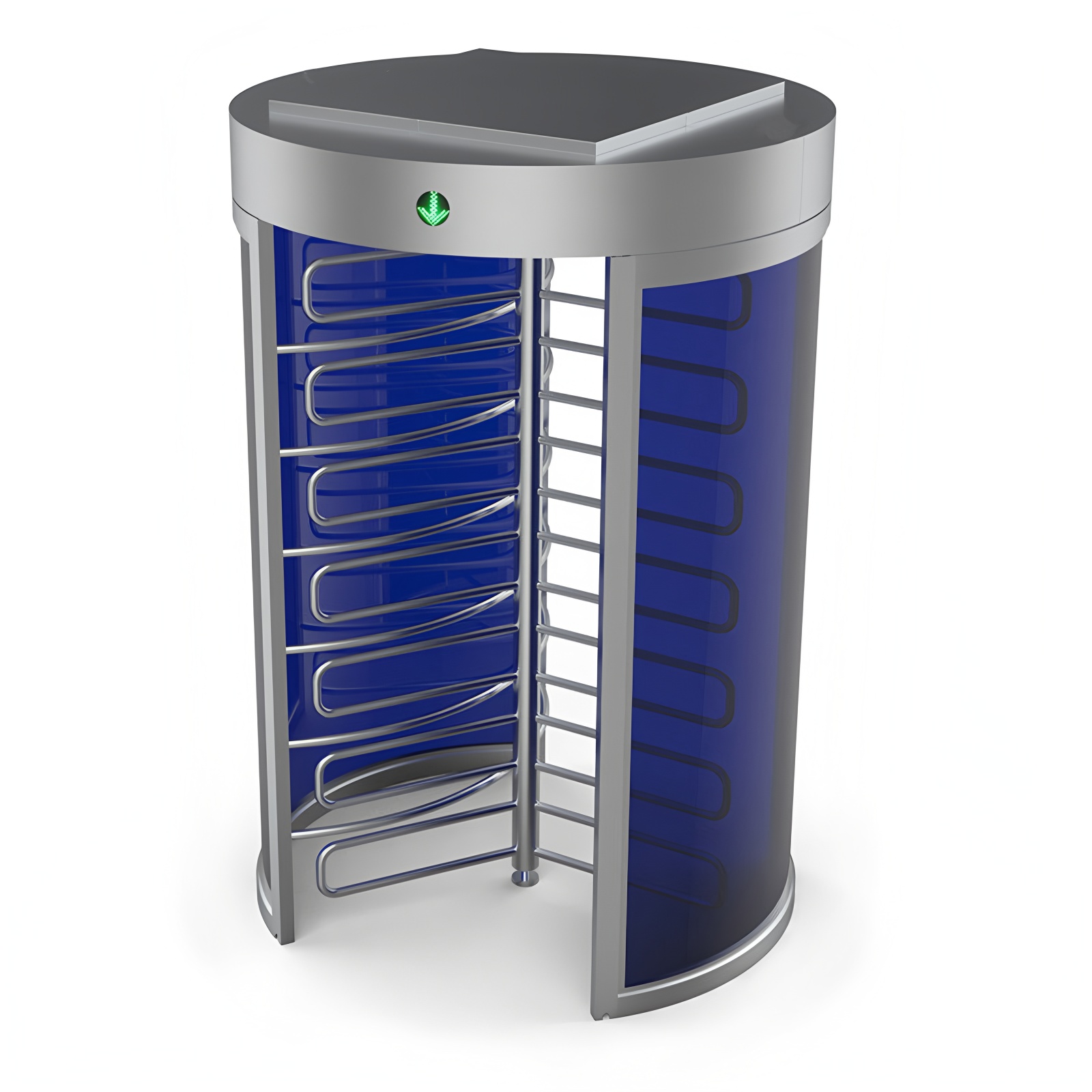

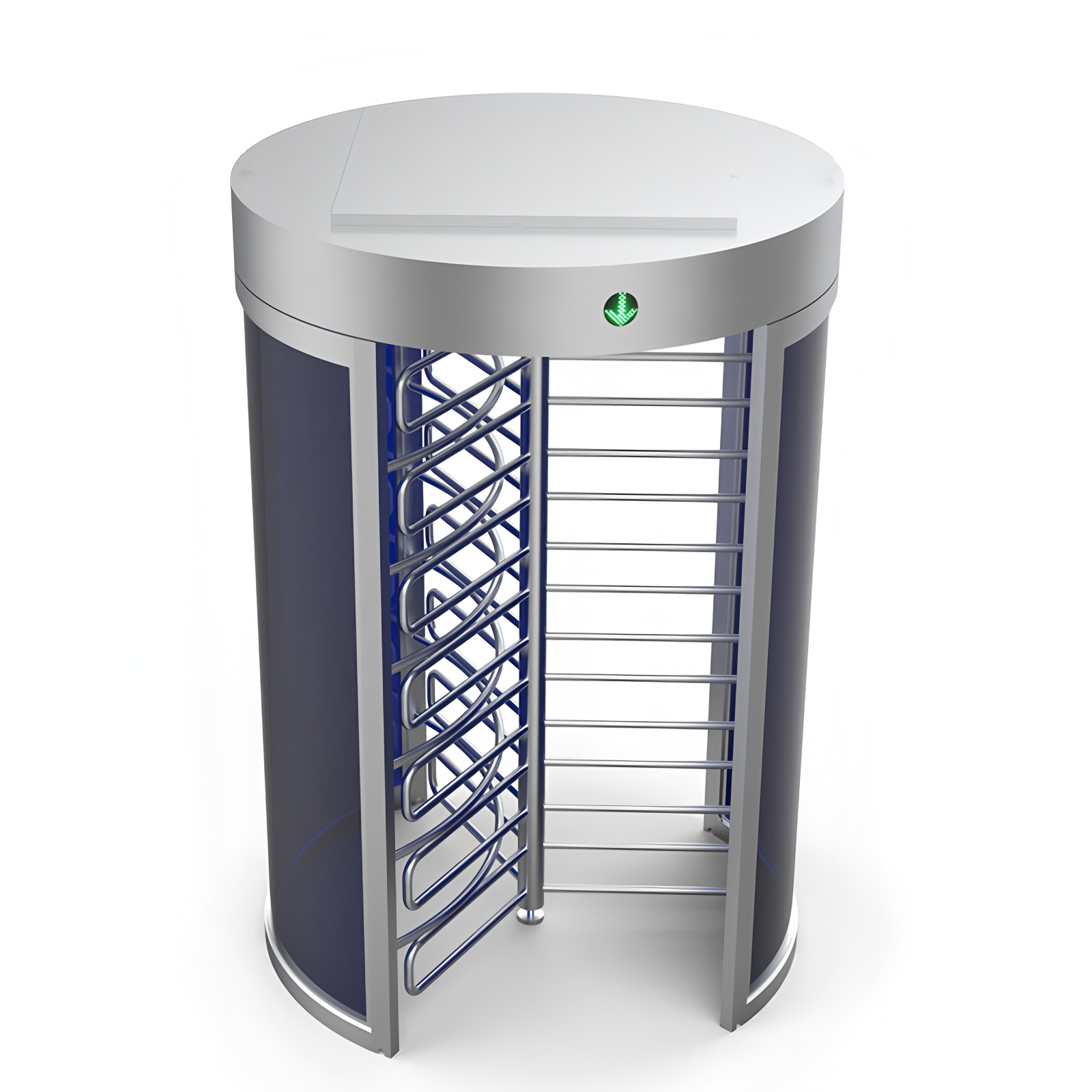

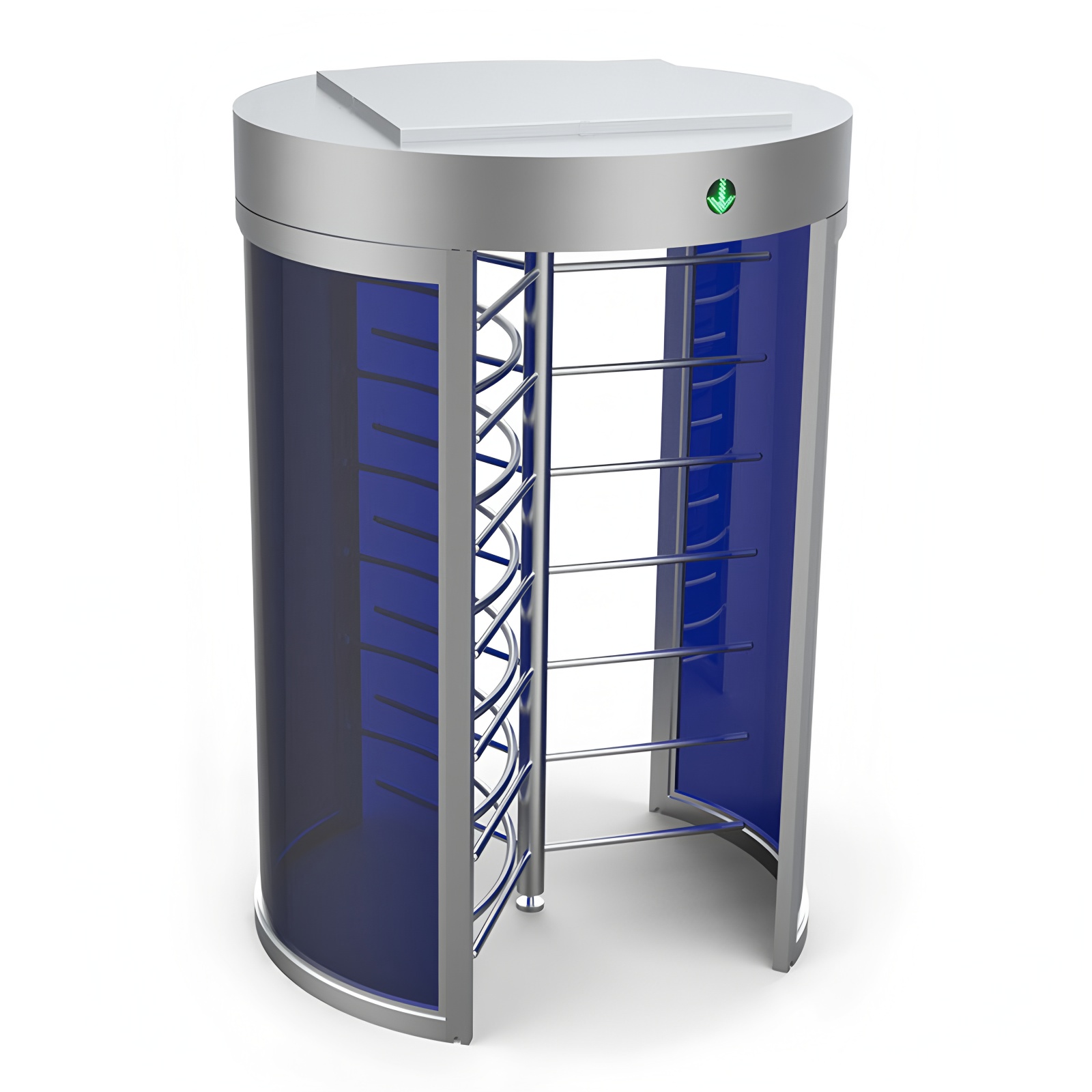

RFID Card Reader Double Lane Full Height Turnstile For Access Control System For Security Airports
Full-height gates are also called high turnstiles and full-height gates. They are different from ordinary gates. They have three or two rows of rods that rotate to allow entry and exit. Similar to revolving doors, they are made of stainless steel and can be used indoors and outdoors. Realize the control of personnel entry and exit, one person per pole. It is used in places that require high security, such as high-security high-end residential areas, important operating areas of energy plants, and prisons
Full-height turnstile features
◇ Full-height turnstile has a fault self-diagnosis function to facilitate user maintenance and use.
◇ Full-height turnstile has a variety of working modes to choose from, including two-way card reading to limit t
raffic, reading the card on one side and blocking traffic in the other direction, or reading the card on one side and allowing free passage in the other direction.
◇ Full-height turnstile has two-way free passage when power is off, and automatic recovery locking function when power is on, so as to quickly organize personnel evacuation in an emergency.
◇ Anti-collision function, the fence will automatically lock when the gate opening signal is not received.
◇ When the door opening signal is received, the electromagnet automatically opens, and the arm rotates 120 degrees or 90 degrees with the gentle push of the hand. The door will stop rotating forward and lock automatically.
◇ Adopts an advanced transmission system to make the locking and unlocking of the gate at zero position more accurate and reliable.
◇ Full-height turnstile has a unified and standard external electrical interface, which can be connected with various reading and writing devices, receive relay switching signals, and facilitate system integration.
◇ Remote control and management can be realized directly through the management computer.
◇ With automatic reset function. After reading the valid card, if the passer fails to pass within the specified time, the system will automatically cancel the pass authority of the passer, and the restricted pass time can be set by the administrator.
◇ The entire system operates smoothly and has low noise;
Full Height Turnstile Gate Specifications
◇ Single door body specifications
90 degree turnstile: outer diameter 1450mmX height 2350mm (can be customized according to customer requirements)
120 degree turnstile: outer diameter 1500mmX height 2350mm (can be customized according to customer requirements)
◇ Double door body specifications
90 degree turnstile: outer diameter 2500mmX height 2350mm (can be customized according to customer requirements)
120 degree turnstile: outer diameter 2400mmX height 2350mm (can be customized according to customer requirements)
◇ Processing technology: CNC cutting, surface polishing, plastic spraying
◇ Equipment weight: single door 250KG double door 460KG (for reference only)
◇ Material: 304/316 stainless steel
◇ Main material stainless steel thickness: 3.0mm Fence pole thickness: 1.5mm
◇ Arm length: 600mm (can be produced according to customer requirements)
◇ Passage width: no more than 700mm
◇ Power outage control mode: free passage/no passage (optional)
◇ Access mode: one-way, two-way (optional)
◇ Pass flow: normally closed mode 25 people/minute; normally open mode 40 people/minute
◇ Shell protection: sealed and waterproof
◇ Working voltage: AC220±10%V/50±10%HZ
◇ Input interface: dry contact signal or 12V/24V pulse signal with pulse width ≥50ms, drive current ≥10mA
◇ Turnstile opening and closing time: 1-2 seconds
◇ Temperature: -40℃——80℃ Humidity: 5%——95%
◇ Extended functions: counting function, display screen, direction indicator board, ceiling light, frame barrier
◇ Protection level: IP65
◇ Working environment: indoor/outdoor
Full-height turnstile - scope of application
* Management of entrance and exit channels for stations, enterprises, communities, factories, docks, and tourist attractions
*Convention and exhibition, building, hotel, government, bank, airport channel management
* Import and export attendance, access control, and consumption management of enterprises and institutions
* Special channel control
