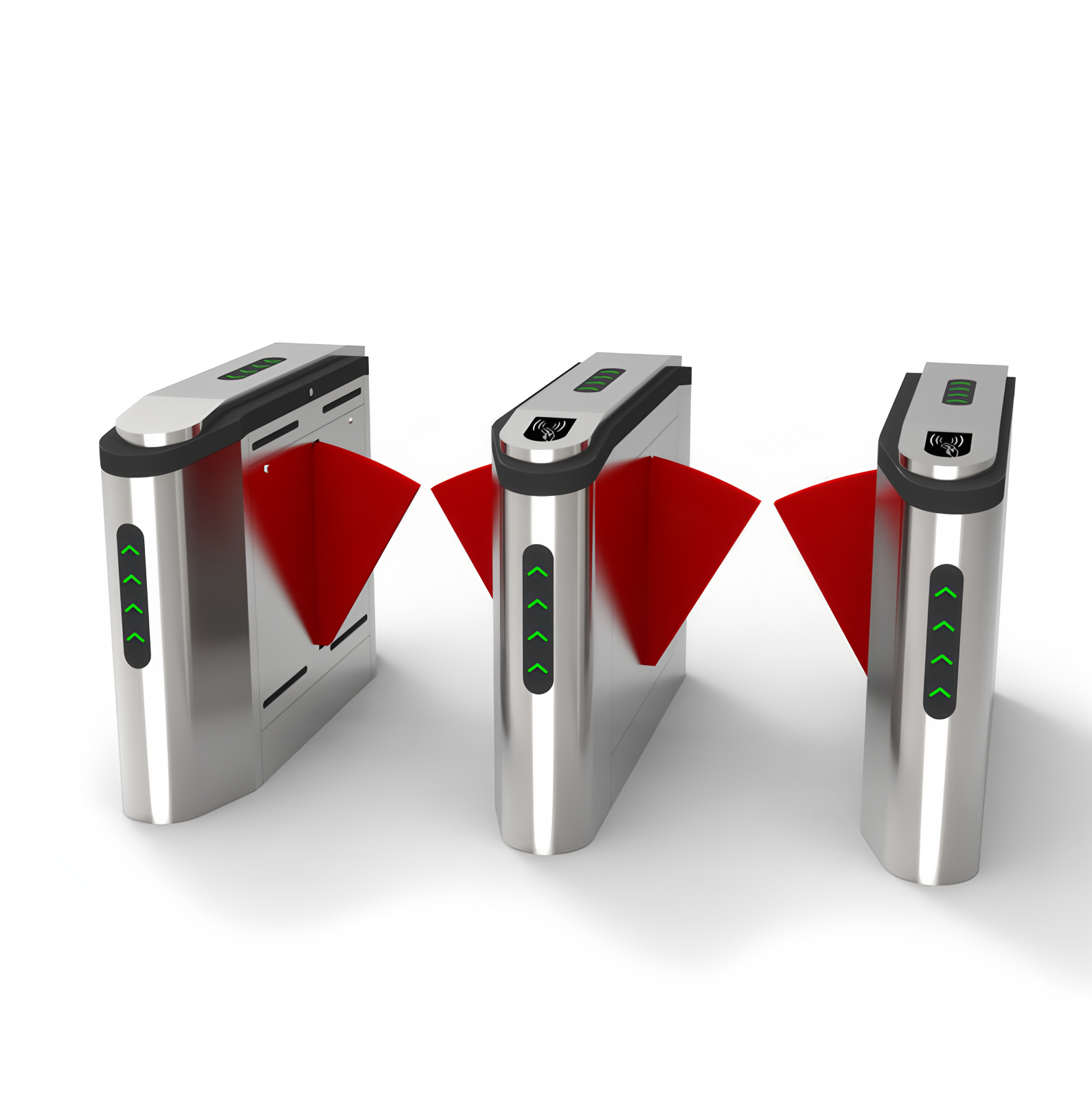

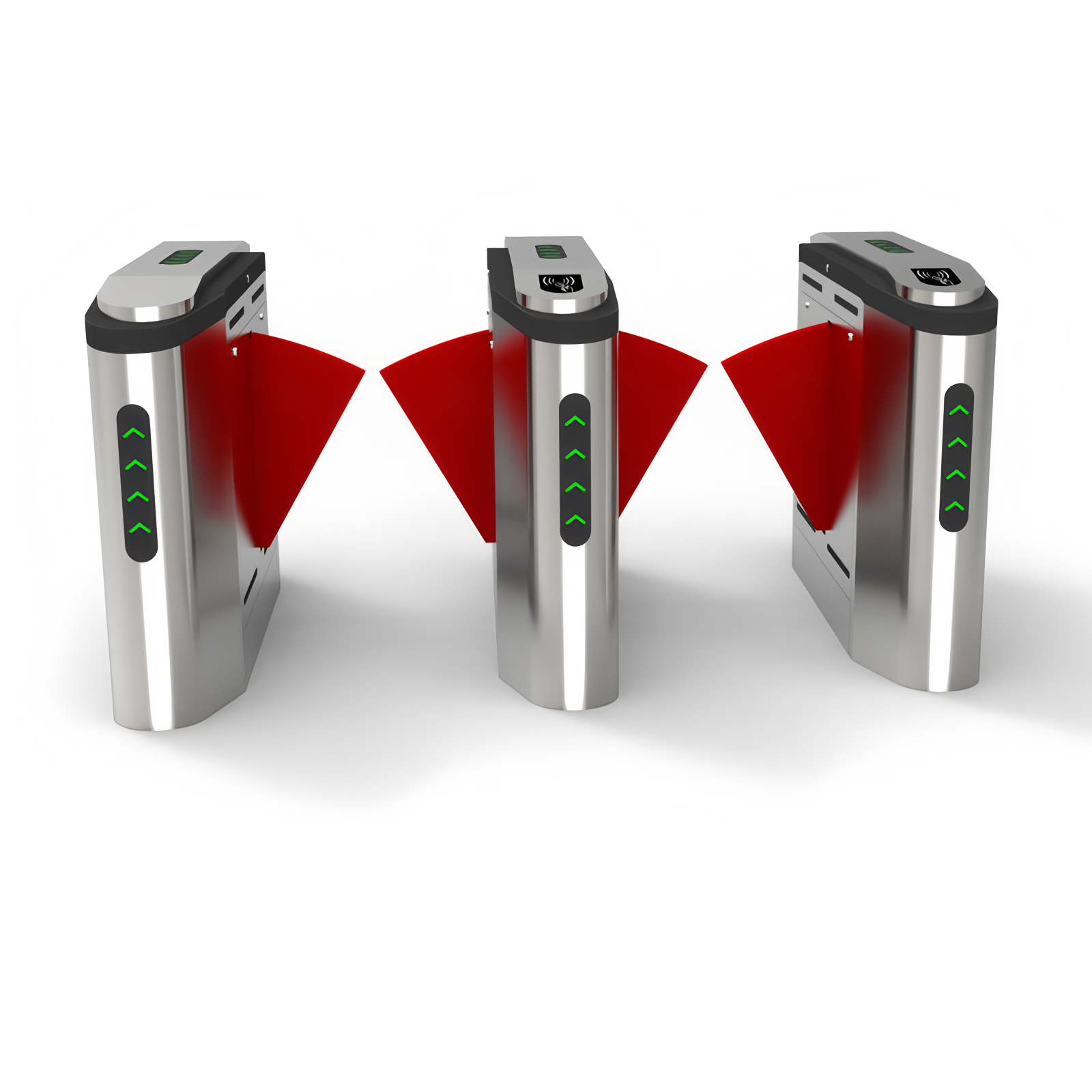

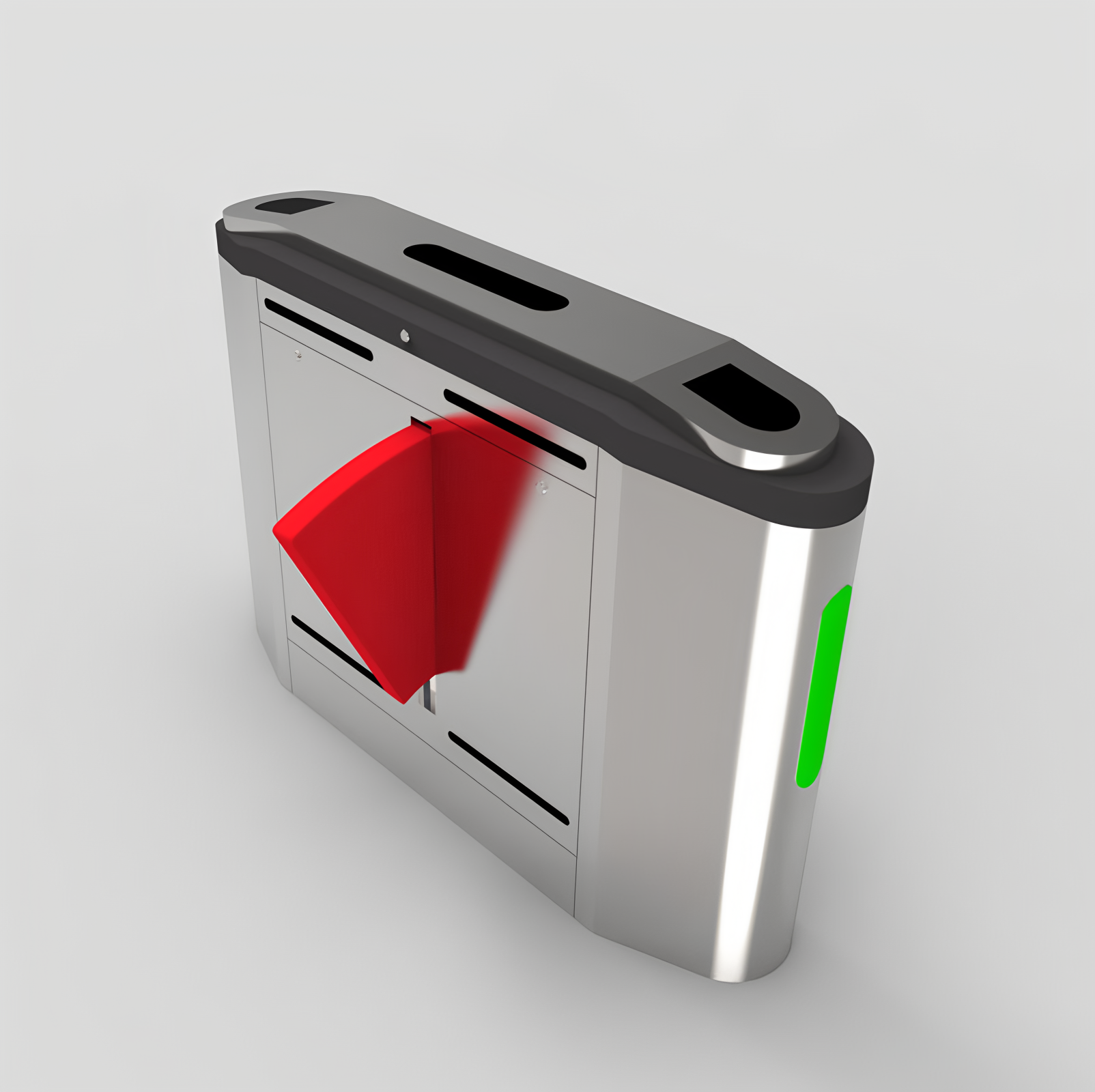

Flap Barrier Turnstile Gate Access Control System with Face/Fingerprint/RFID Card Reader Support Single/Dual Lane

Cardlan flap barrier turnstile is a space efficient security barrier, with a compact design, and offer sufficient space to integrate any access control system. The device works bi-direction to control the entrance. It has a good performance for clear lane when opening. With the modular design, the maintenance of the device is easy and fast.

Features

1/ SUS304 stainless steel cabinet (316 optional)
2/ Bi-directional operation
3/ Adjustable time out delay
4/ Easy and simple installation process, easy to maintain
5/ Flexible flap color including blue, red and transparent

(1) Automatic return function: After the passage process is completed, the brake wings automatically return to the initial blocking position.

(2) Power-off and opening function : When the power is off, the system will automatically open the brake wings to open, which is convenient for evacuation of the crowd and meets fire protection requirements.

(3) Anti-illegal intrusion function: When the card is invalid, there is no card swiping, or the passage is forbidden, the forcible entry into the channel will be regarded as illegal intrusion, and the system will automatically alarm and close the flap.

(4) Anti-reverse intrusion function: Before the end of the passage process in a certain direction, pedestrians entering the passage from the opposite direction will be regarded as reverse intrusion, the system will automatically alarm and close the wing.

(5) Anti-trailing function: The photoelectric switch detects the pedestrian traffic situation, and detects the following phenomenon (the people behind are close to the person in front, intending to pass without swiping the card), the system will automatically alarm and close the brake wings.

(6) Intelligent linkage alarm: including illegal intrusion, reverse traffic and other alarms, which can be linked with other alarm monitoring equipment and can be heard.

(7) Anti-pinching and anti-collision function:
A. Infrared anti-pinch: Install multiple pairs of photoelectric switches near the area where the wing is active (anti-pinch area). Once a person or object is detected in the anti-pinch area, the wing automatically stops; The flaps continued to move.
