Access Control:
|
RFID/Fingerprint/IC Card
|
Color:
|
Silver
|
|
Communication:
|
RS485
|
Control Mode:
|
Remote Control
|
|
Humidity:
|
≤90%
|
Size:
|
Customized
|

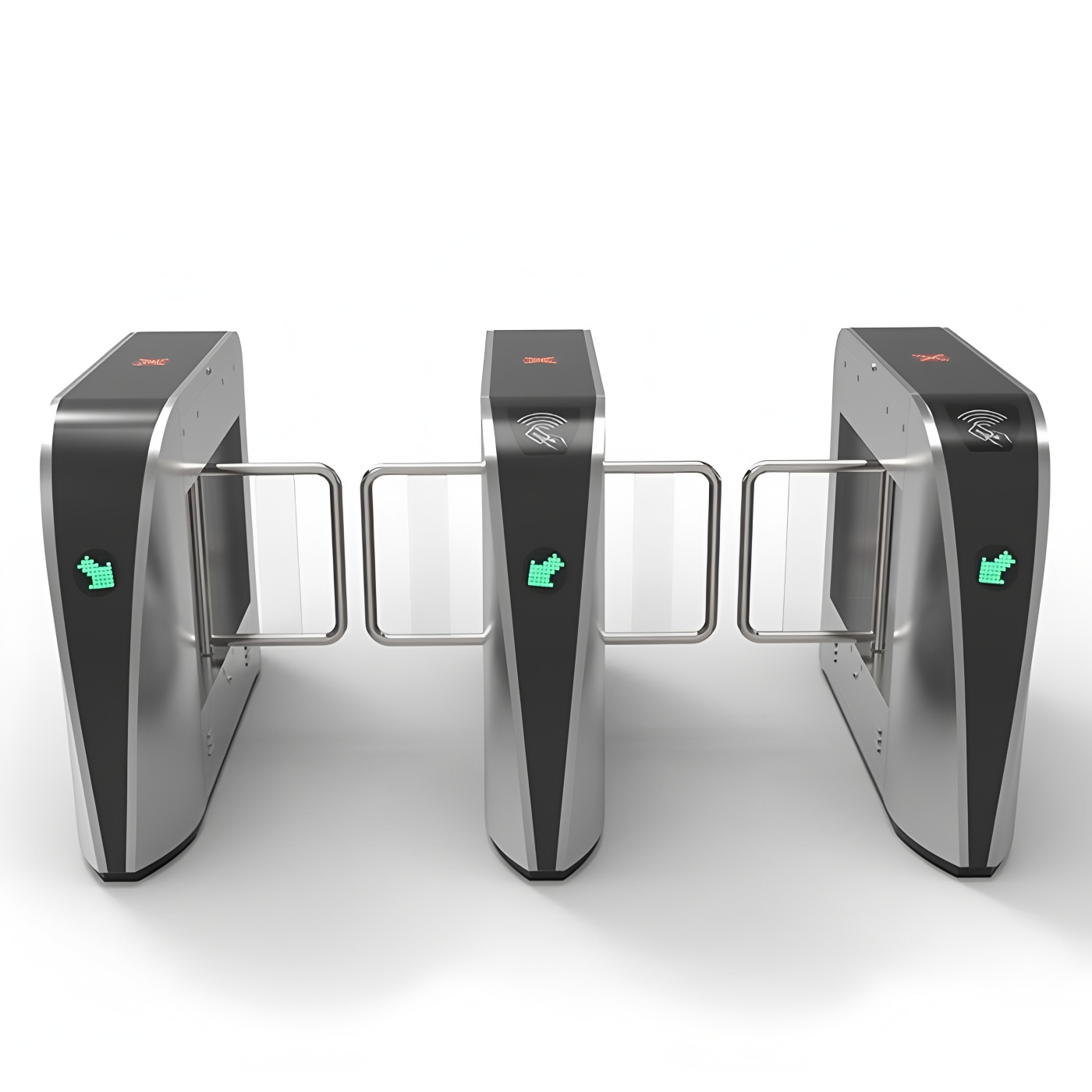

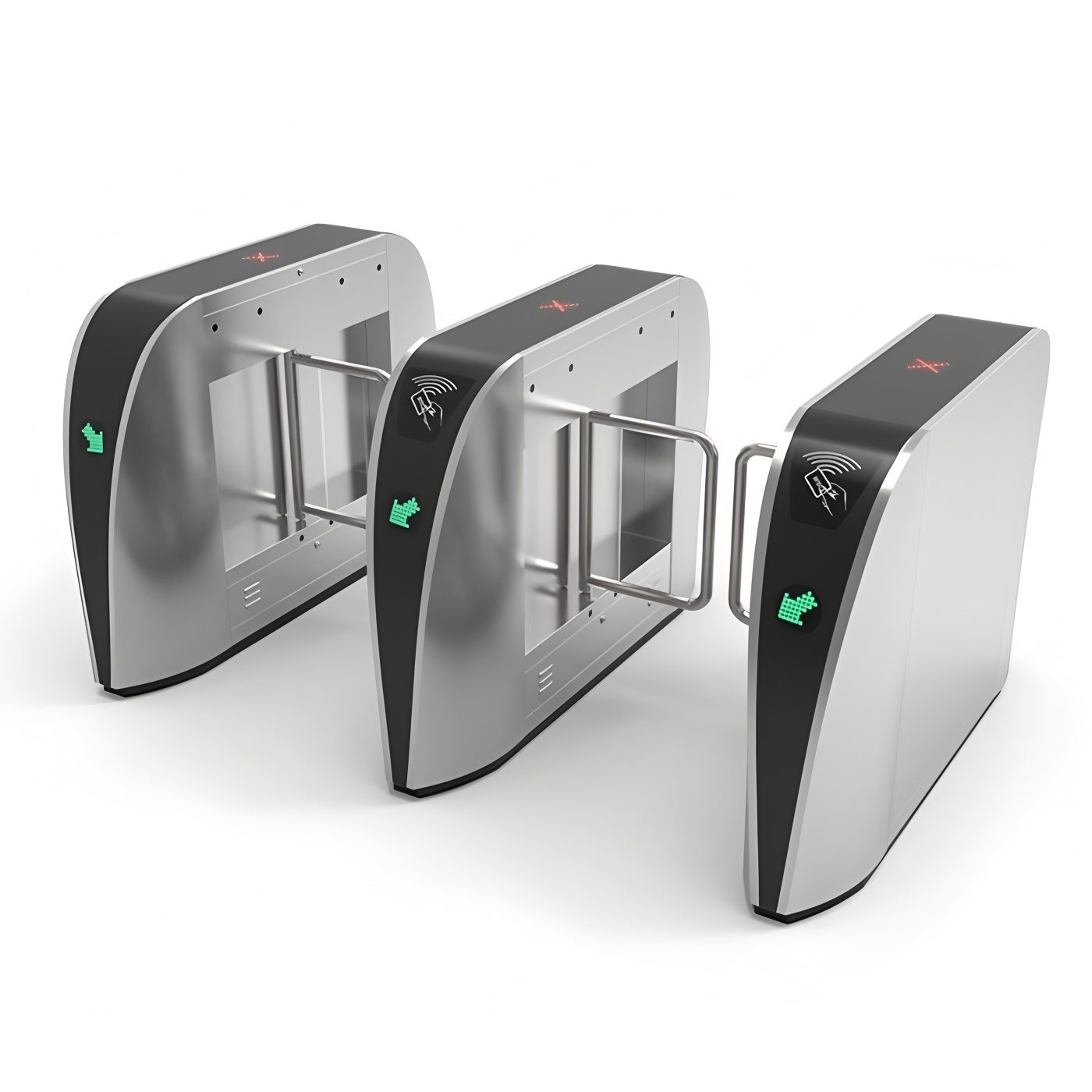

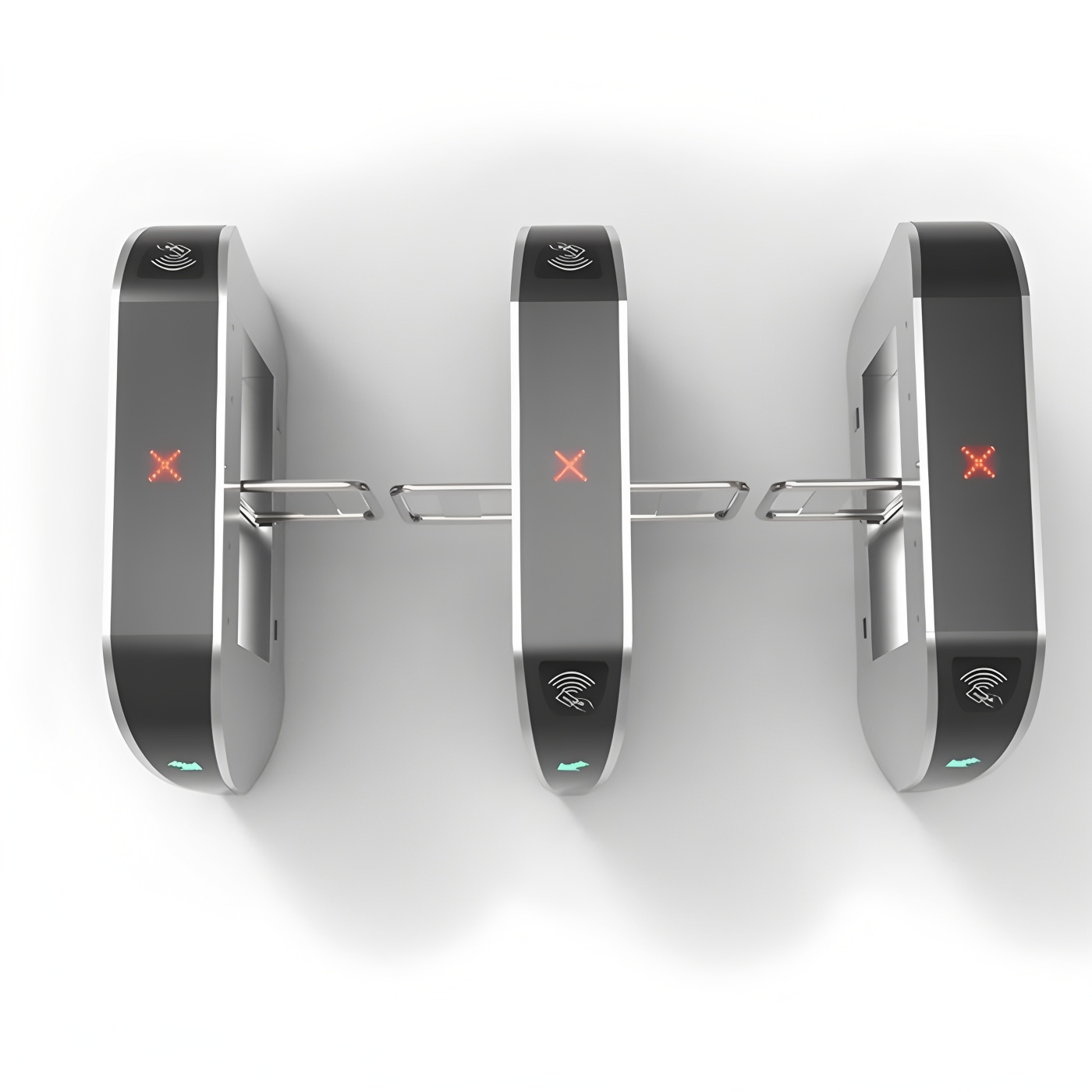

Automatic Swing Turnstile Access Control Gate Broad Passage for Gyms and Hotels
Pedestrian access gate,Dynamic face recognition intelligent access guard gate, 304 stainless steel pendulum fingerprint two dimensional code turnstiles gate.Supermarket management access channel control system turnstile swing gate,Passenger system for face recognition of pedestrian Channel in Kindergarten Gate plane .
| Technical Parameter | |
| Material: | 304 stainless steel |
| Size: | 1500*280*1000mm |
| Power Input: | AC220V,50Hz |
| Driving Voltage: | DC24V 6.25A |
| Operating Temperature: | -20℃~70℃ indoor or outdoor |
| Passage direction: | Single directional/Bi-directional |
| Driving Mode: | brushless DC motor |
| Reacting time: | 0.2S |
| Pass Speed | 30~40p/m |
| Instruction: | voice broadcast, Indicator LED |
| Communication: | TCP/IP |
| External Equipment: | IC card reader, ID card reader, code scanner, face recognition module, fingerprint recognition module (optional) |
working method can be set by the buttons on the main panel
2. Anti-pinch, anti-collision. If there is block during return of gate, motor stops working automatically. Reset again after a default delay, the force 2Kg.
3.Anti-illegal in, anti-intrusion, auto close for reverse direction.
4. Anti-collision, gate closes when no valid signal is given.
5. Protection functions for gate, gate open to prevent motor from being damaged if there is outer force collision.
6. Gates can be synchronous
7.Auto-reset. If not go through in a preset time, pass right would be cancelled automatically. (1-60s adjustable), default time is 10s.
8. Reset function by photocells, 4 or 6 pairs.
9. Anti-pinch function by photocells, 4 pairs
10.Compatible with Access control system, consumption system, ESD system, E-ticket system and so on.
