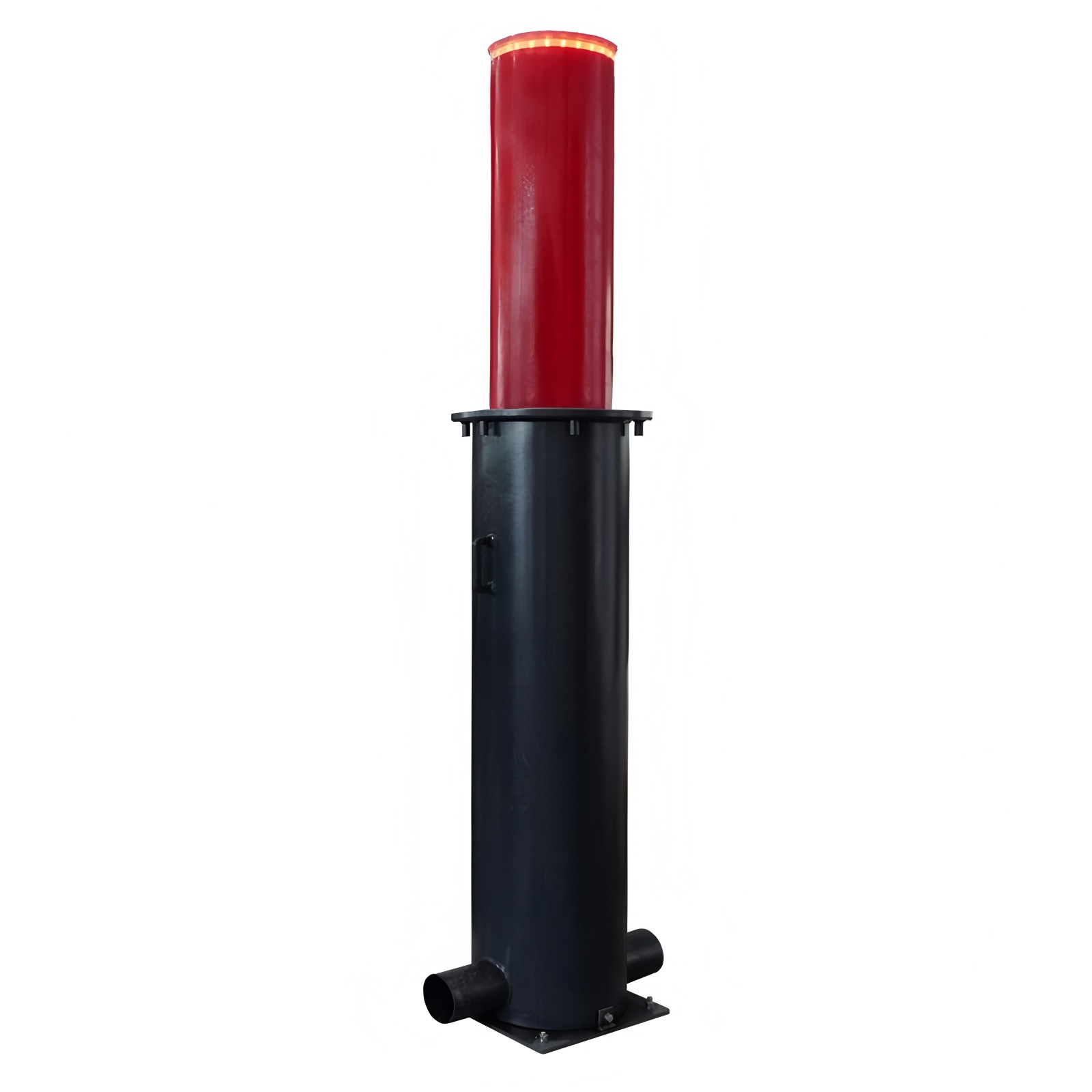

anti- vehicle collision rising bollard Road Traffic Parking Security Breakaway Automatic Hydraulic Rising Bollard

Product Description

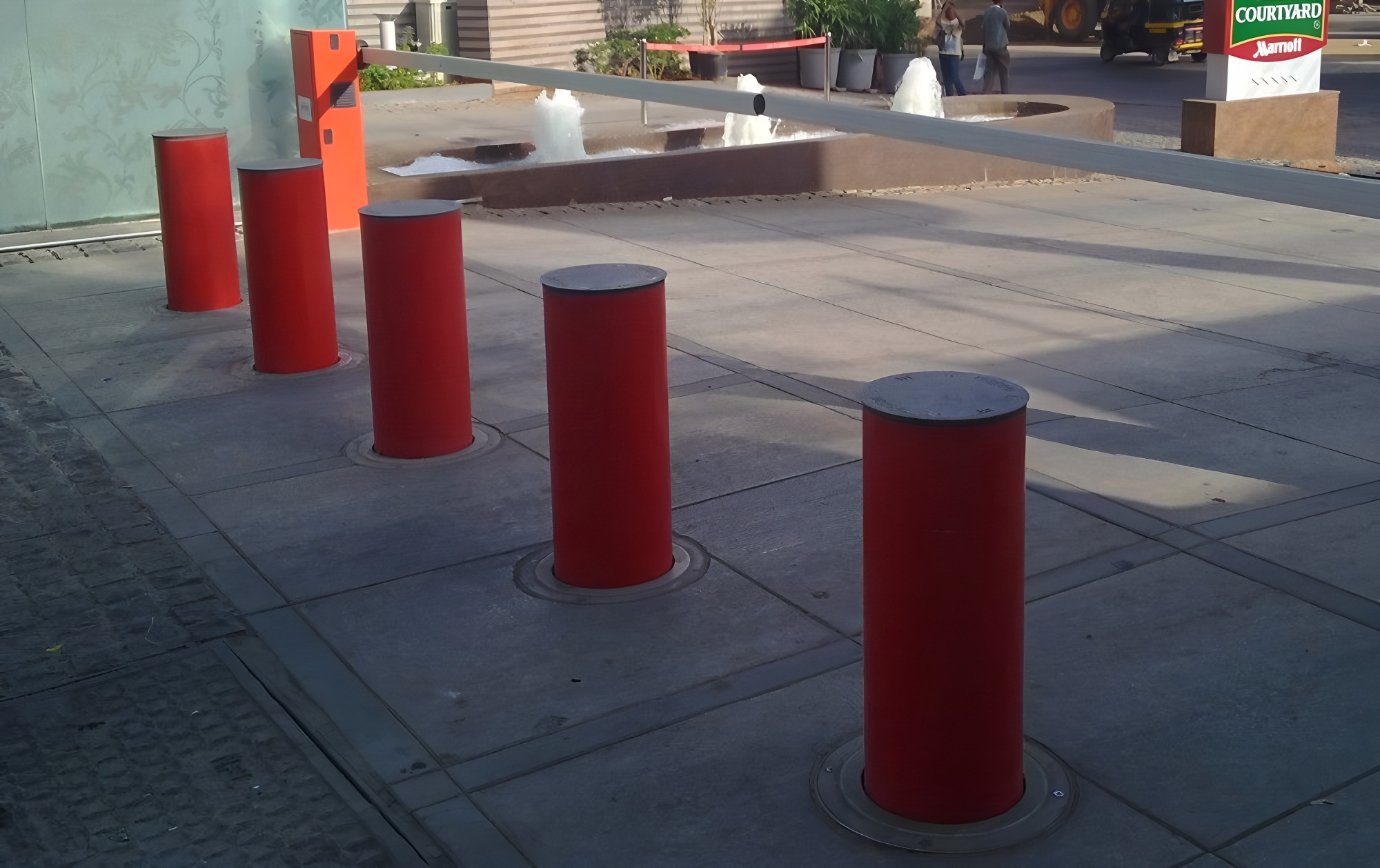

The rising bollards are widely used in highway toll stations, checkpoints, prisons, airports, government agencies, embassies, military bases, customs, banks, industrial and mining enterprises, ports, warehouses, parking lots, and all places where vehicle traffic is restricted. The placeman sends instructions through the control system, and the hydraulic transmission enables the roadblock device to quickly ascend and descend. After the vehicle passes, the roadblock is automatically lifted and lowered by the inductive detection automatic command of the roadblock device or the manual button operation; to control the lane, the door is released or closed. To effectively prevent vehicles from forcibly punching cards.
The product adopts hydraulic drive technology for mandatory interception, strong load-bearing and anti-collision capability, simple and flexible operation, hydraulic transmission, stable and fast action, low noise, strong traffic capacity, safe and reliable, strong carrying capacity and stable lifting.
The rising bollards can be used together with the traffic barrier gate, the smart card charging management system and the access control attendance system to form a complete crossing management system. (added according to user requirements)

Product advantages

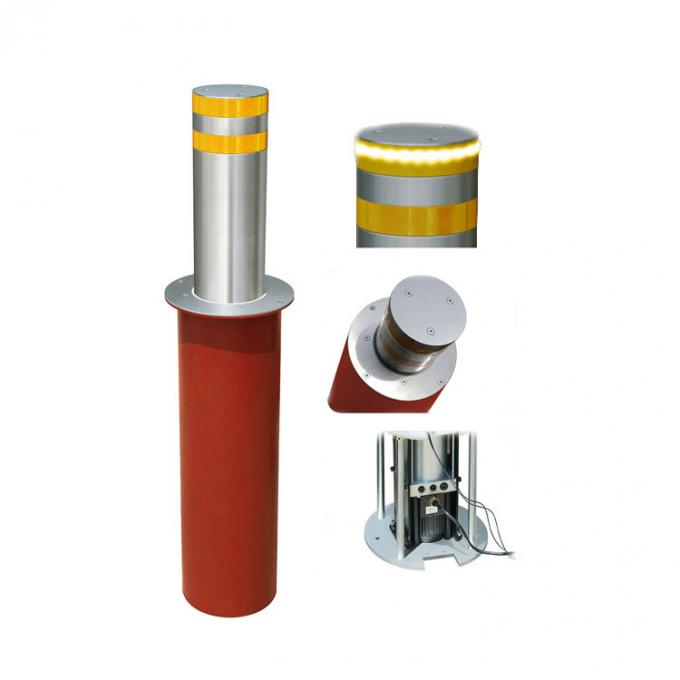

1,6k Mirror tube

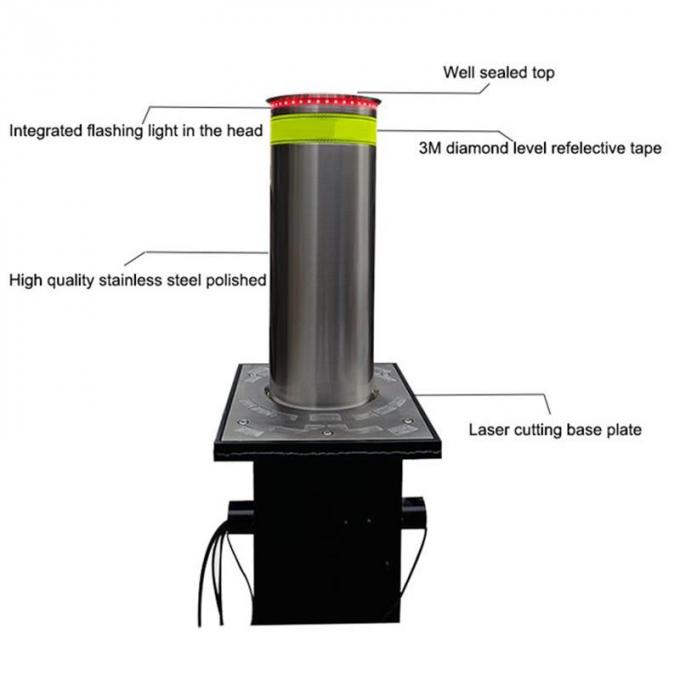

2,With LED (Acrylic light circle)
3,Reflective sticker :2 strips
4,Gang-control interface
5,In case of a power outage, the bollards can be manually lowered
6,IP rate:IP68
7,Weight:200±KG Integrated/150±kg Split
8,In rising and falling,reversible operation is available
9,Device running noise≤60decibel
10,Waterproof integrated hydraulic device drive
11,The hydraulic cylinder is double sealed to ensure a waterproof rating
12,Hydraulic drive comes with hydraulic lock
13,PLC programming command control system
14,220VIntegrated/380V Split power supply
15,Solenoid valve voltage 24V
16,Remote control distance 50M-100M(Based on the environment)
17,The control box displays text adjustable(Up,Down,Action,Time control adjustment)
18,Text display with Chinese and English bilingual
19,PLC built-in encryption system

Product parameters



Power supply (v): AC110-240V, 50Hz
Power (W): 550
Dimensions: length * width * height (mm) 360 * 360 * 1080 (error ± 10mm)
Lifting column diameter (mm): 219 (error ± 2mm)
Lifting column cylinder thickness (mm): 6 (can be customized according to customer needs)
Lifting height (mm): 600 (error ± 2mm)
Lifting time (seconds): 2~6
Pressure capacity: 120 tons of container trucks.
Anti-collision force: K12 (equivalent to 120KM / hour impact, the car is blocked, the equipment works as usual)
Surface treatment: 304 stainless steel surface wire drawing (can be processed according to customer requirements)
Protection level: up to IP68
Anti-destruction level: up to M30~M50
Working temperature (°C): -40~+75
Storage environment: -10 ° C --- 75 ° C, rain and moisture proof.
Drive unit: two-way integrated hydraulic
Weight (kg): 180
