Type:
|
Parking Lift
|
Model Number:
|
ZT-S0028
|
|
Product Name:
|
LPR Car Parking System
|
Material::
|
Steel
|
|
Warranty:
|
2 Years
|
Display Module:
|
Red And Green Color
|
License Plate Recognition technology (License Plate Recognition, LPR) is based on the computer technology, image processing technology, and the fuzzy Recognition, to build the characteristics of the vehicle model, identify the vehicles' characteristic, such as Plate, model, color, etc. It can automatically extract the plate image from an image, it USES the advanced image processing technology, pattern recognition and artificial intelligence to the collected images information and processing, it can be identify the license plate Numbers, letters and Chinese characters, and directly given recognition result, makes the system become a reality.
|
Size |
Display:150×200mm Face Display:150×200mm Total Size:1400×200×130mm |
|
Details |
IN/GND(AUDIO) OUT(AUDIO) NETWORK |
|
Operating temperature |
-25℃ ~+60℃, RH ≤90% |
|
Related humidity |
≥90%RH |
|
Normal work life |
Five years |
|
Power supply |
AC 220V/110V ±10% 50/60MHZ(optional) |
|
Operating system |
Win XP, Win7, Win8, Win10, 32/62 bits |
|
Power interface |
DC12V |
|
Identification accuracy |
>99% |
|
Voice prompt |
0.2 seconds |
Feature:
1.License plate number entrance and exit record can report output
2.Camera gun vertical angle: the maximum angle 25 degree into the horizontal
3.Can recognize 0-2 letters and numbers 1 to 4 for the license plate number
4.Can identify Chinese and English of license plate number
5.Support English, Korean, Simplified Chinese and Traditional Chinese and other language customizable.
6. Can identify vehicle license text and figures
7.The database can store the capture image, license plate number, lane number and the time of vehicle through record.
8. Image size: 768*576pixels
9. Front size: 16*16-48*64 pixels
10. Camera gun level angle: the maximum angle 25 degree into the drive lane
11. Can identify one line and two lines license plate number
12. Minimum brightness: 500lux

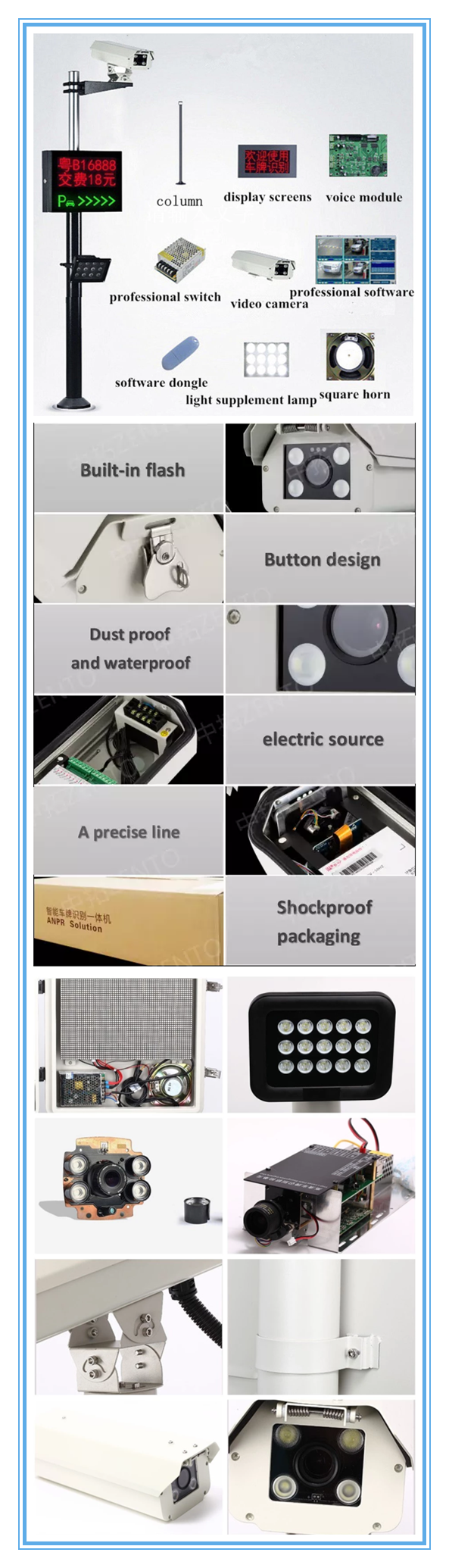

Product display
Instructions
1.Vehicle Enter
①The vehicle enters the license plate camera capture area, triggering the camera capture.
②The license plate recognition system automatically captures the image of the vehicle and recognizes the license plate number,the vehicle category is then derived by searching the database.
③The display shows the car's validity(VIP car or monthly car)Or balance(Stored value car),welcome Indications etc.
④Voice playback about identified license plates,welcome Indications etc.
⑤If parking space is not full, the vehicle enter into it,the barrier release automatically,and the vehicle entry time is recorded. When cars crosses the entrance, the parking space display refreshes the parking space.The whole process is done automatically,no staff intervention required.The vehicle is always in motion,non stop
2. Vehicle Exit
①The vehicle enters the license plate camera capture area, triggering the camera capture.
②The license plate recognition system automatically captures the image of the vehicle and recognizes the license plate number,the vehicle category is then derived by searching the database.
③The display shows the car's validity(VIP car or monthly car)or balance(Stored value car).Amount charged(Temporary car),goodbye indications etc.
④Voice playback plate number and payment and goodbye indications etc.
⑤If the vehicle is a stationary vehicle,gate automatically open.The computer pulled the capture image of the car when it entered and admission time, etc.If it's temporary parking that the vehicle must be suspended for payment before leaving.If the vehicle in the blacklist, the gate will not be
turned on, whether temporary or stationary, and the system will send out an alarm to alert the staff.
⑥Vehicles crossing the exit and leave the parking lot, the system records the departure time of the vehicle ,then the parking space screen refreshes the parking space.
