Anti-collision:
|
Yes
|
Display:
|
LED
|
|
Emergency Function:
|
Yes
|
Passage Speed:
|
40 Persons/min
|
|
Passage Width:
|
550mm-600mm
|
Size:
|
1200mm*280mm*980mm
|
|
Working Humidity:
|
5%-95%
|
Working Temperature:
|
-20℃~60℃
|

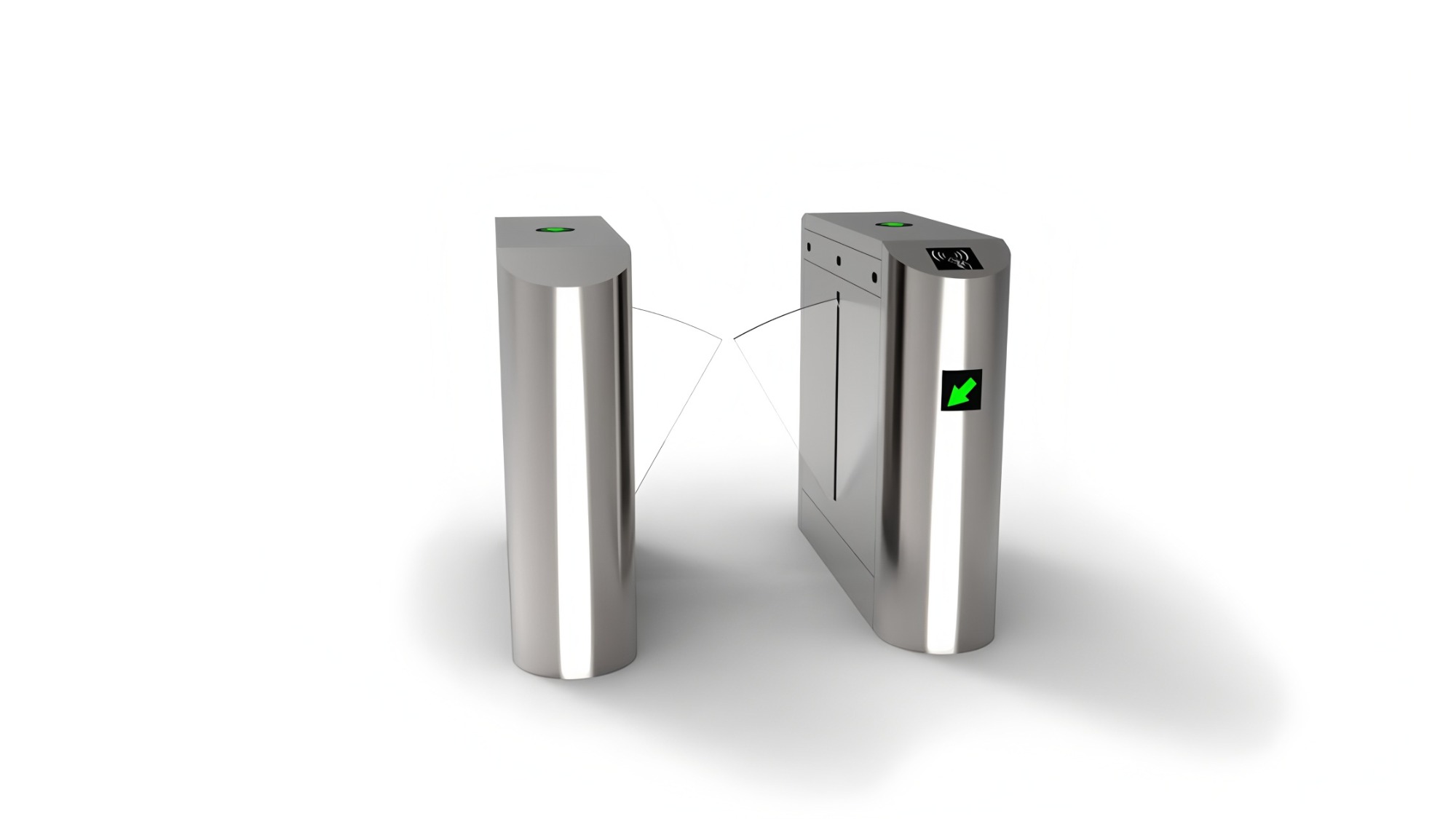

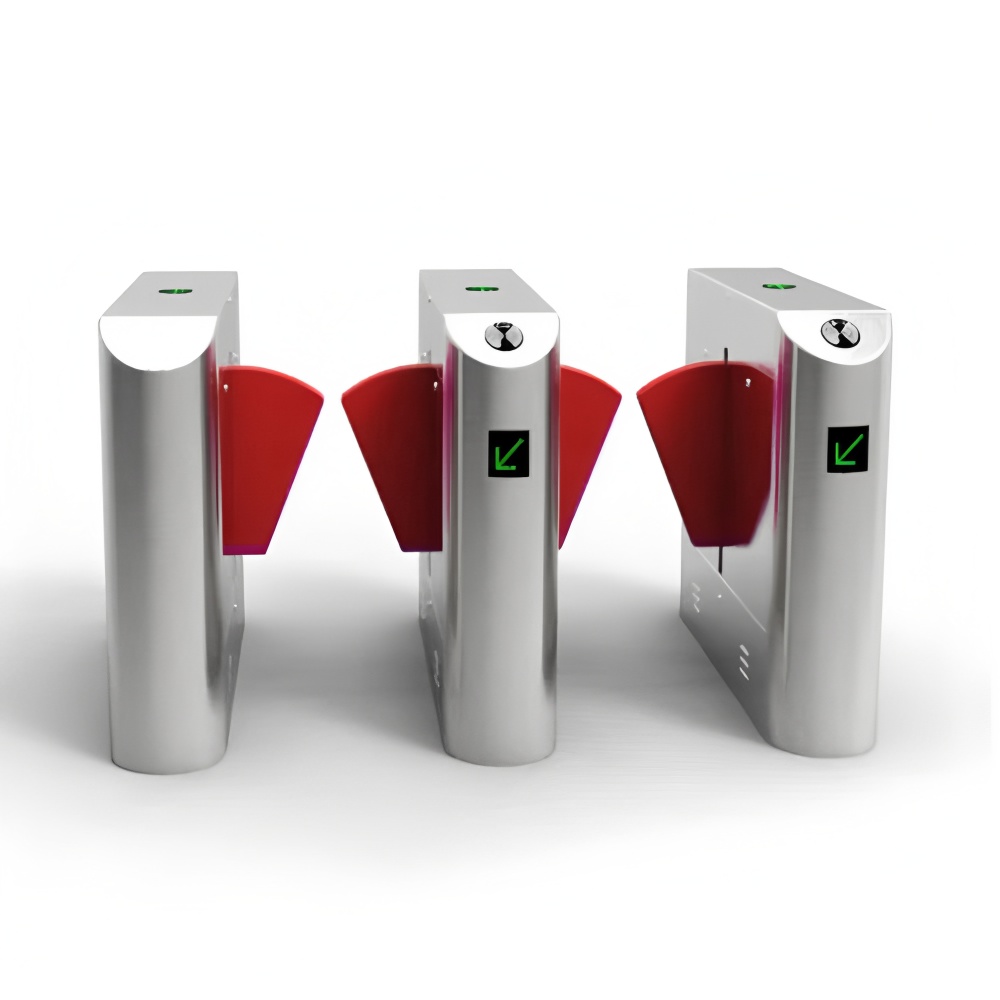

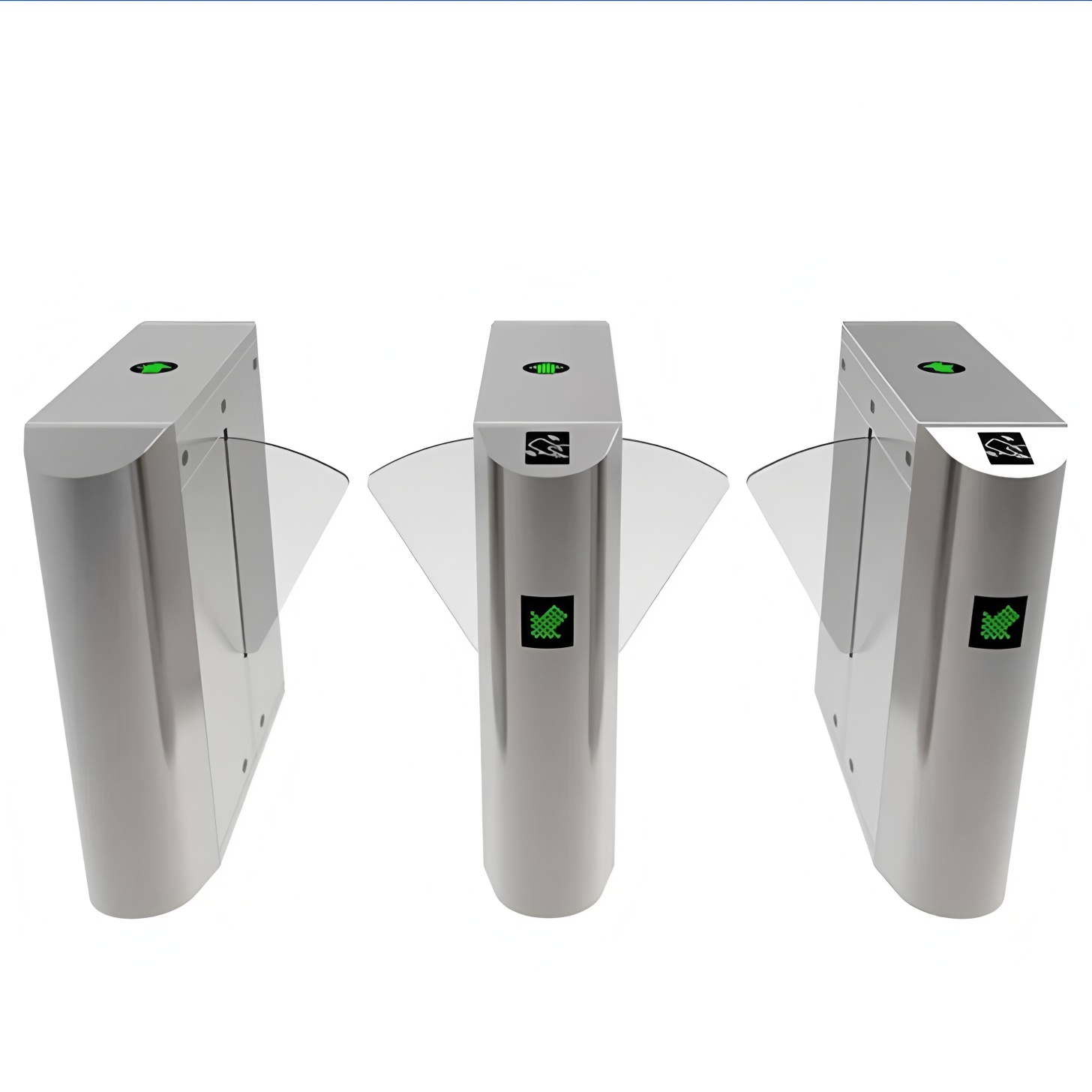

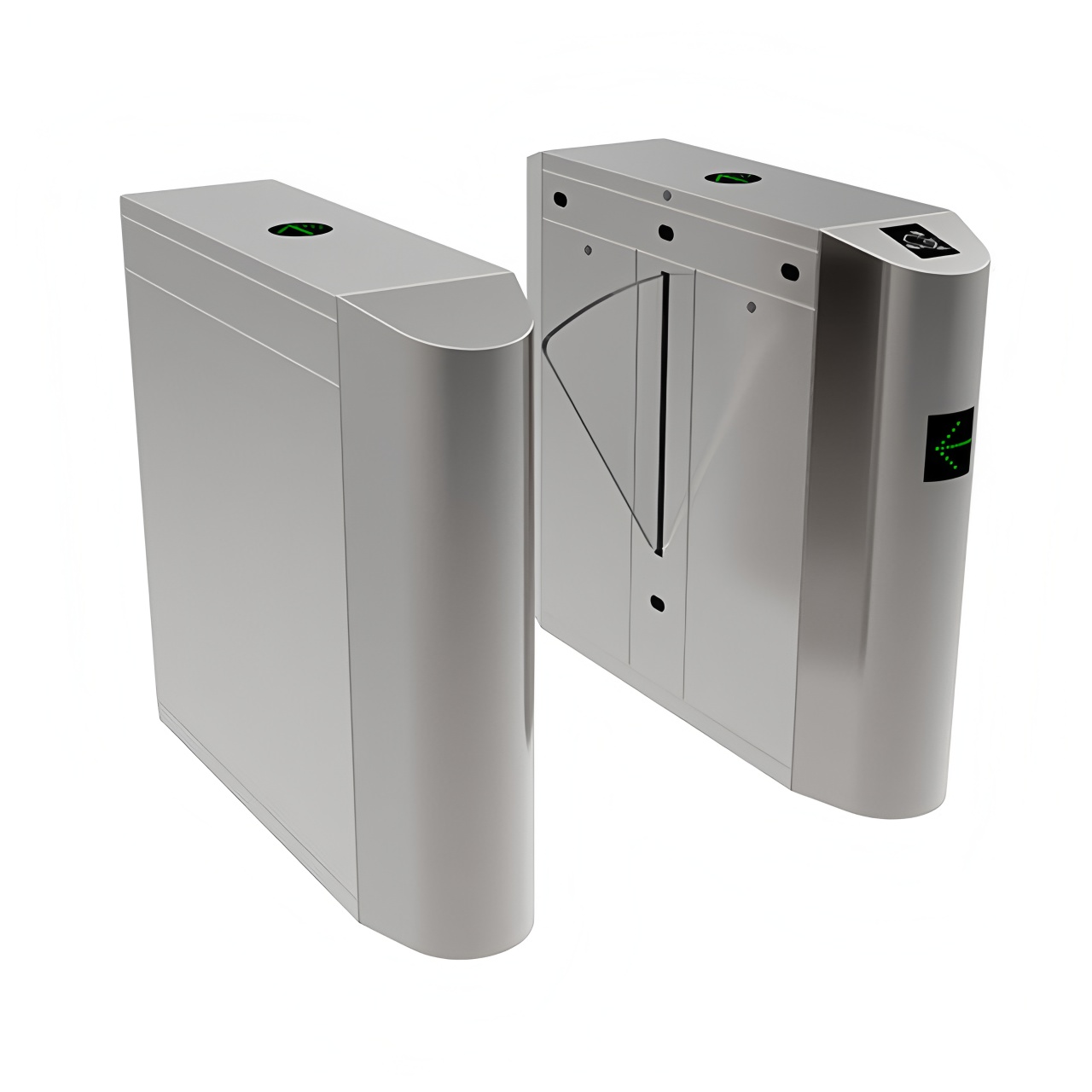

High Security Flap Barrier Gate RFID Fingerprint Face Recognition For Banks and Hotels
Flap barrier turnstile is a space efficient security barrier, with a compact design, and offer sufficient space to integrate any access control system. The device works bi-direction to control the entrance. It has a good performance for clear lane when opening. With the modular design, the maintenance of the device is easy and fast.
Features
1. SUS304 stainless steel cabinet (316 optional)
2.Bi-directional operation
3.Adjustable time out delay
4. Easy and simple installation process, easy to maintain
5. Flexible flap color including blue, red and transparent
Parameters:
| 1. Material | 304stainless steel |
| 2. Dimension | L1200*W300*H980mm. |
| 3. Channel width | ≤550mm |
| 4. arm material | transparent acrylic ,red ,blue (optional) |
| 5. Infrared | standard 5 pairs |
| 6. Environmental requirements | waterproof model, which can be used indoors and outdoors(canopy). |
| 7.Communication Interface | RS485, Dry contact |
| 8.Passage Direction | Single directional/Bi-directional |
| 9. Motor | DC brush, rebound in case of resistance. |
| 10. Power of the whole machine | 50W. |
| 9. Traffic speed | ≥ 30 people per minute |
| 11.Opening mode support | swiping card, QR code, ESD, fingerprint, face recognition,etc. |
Product feature:
1. The whole machine can be customized for high-end glaze plating, with a variety of colors to match each hue environment.
2. The high-end slotting technology of the whole machine, with beautiful seams.
3. The machine cover is high-grade black cotton covered with anti-condensation.
4. Standard 92mm fan negative pressure exhaust, effective cooling, dehumidification, reducing failure rate.
5. Each channel defaults to 5 pairs of infrared radiation protection, 3 pairs at the top and 2 pairs at the bottom, with good protection for young children, trolleys, etc.
6. Standard air switch
CARTON BOX+WOODEN CASE PACKAGE AND SHIPMENT BY SEA OR BY AIR
